Overview
LF Driver
Sica

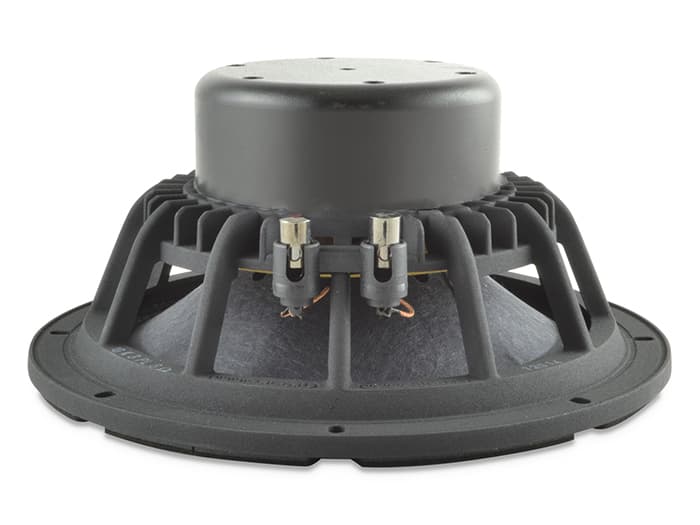

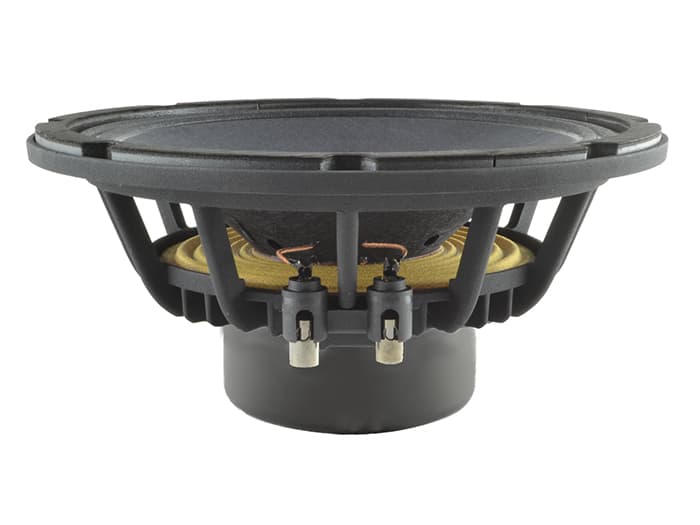

Sica 10 K 3 PL
Sica 10 K 3 PL is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 51Hz, Qts 0.26, Vas 40L, Xmax 6.5mm, sensitivity 94.9dB, plus 225cm³ Vd and 187 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
94.9dB
96.7dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
187
Vented alignment
Vd
225cm³
T/S Parameters
Valid
Fs51Hz
Qts0.26
Qes0.27
Qms5.0
Vas40.0L
Re5.2Ω
Le0.49mH
BL16.1Tm
Sd346cm²
Mms42g
Xmax6.5mm
SPL95dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Diameter268.0mm
Overall Depth114.5mm
Cutout Diameter232.0mm
Bolt Circle Diameter247.0mm
