- Net volume
- 26L
- Tuning
- 65Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.

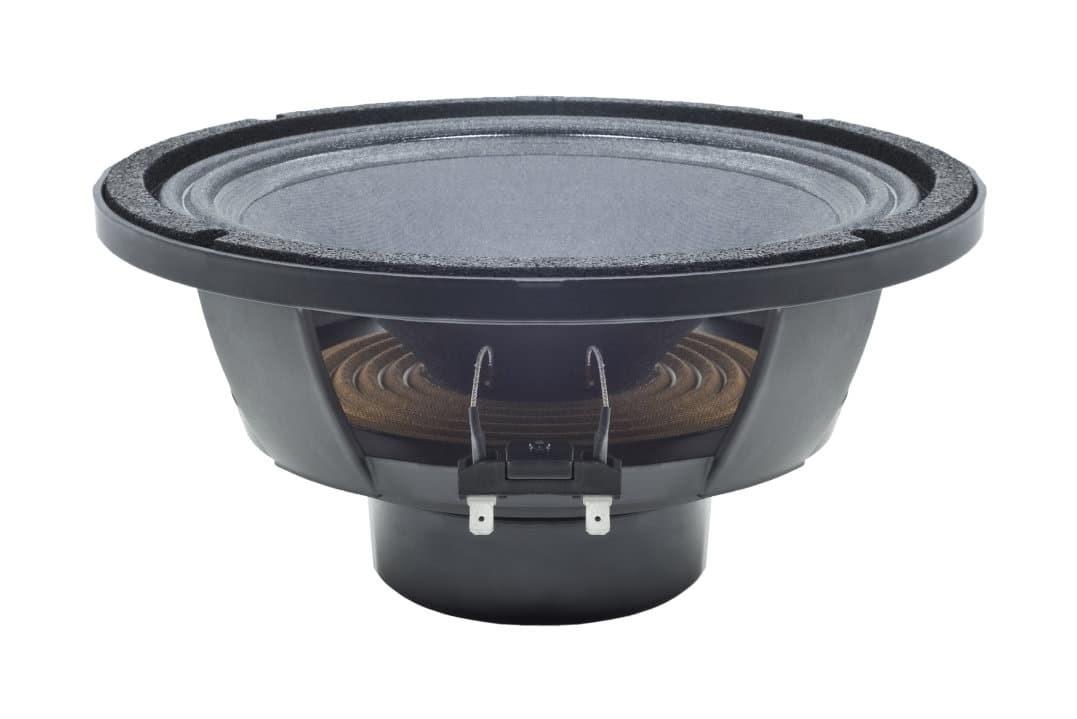

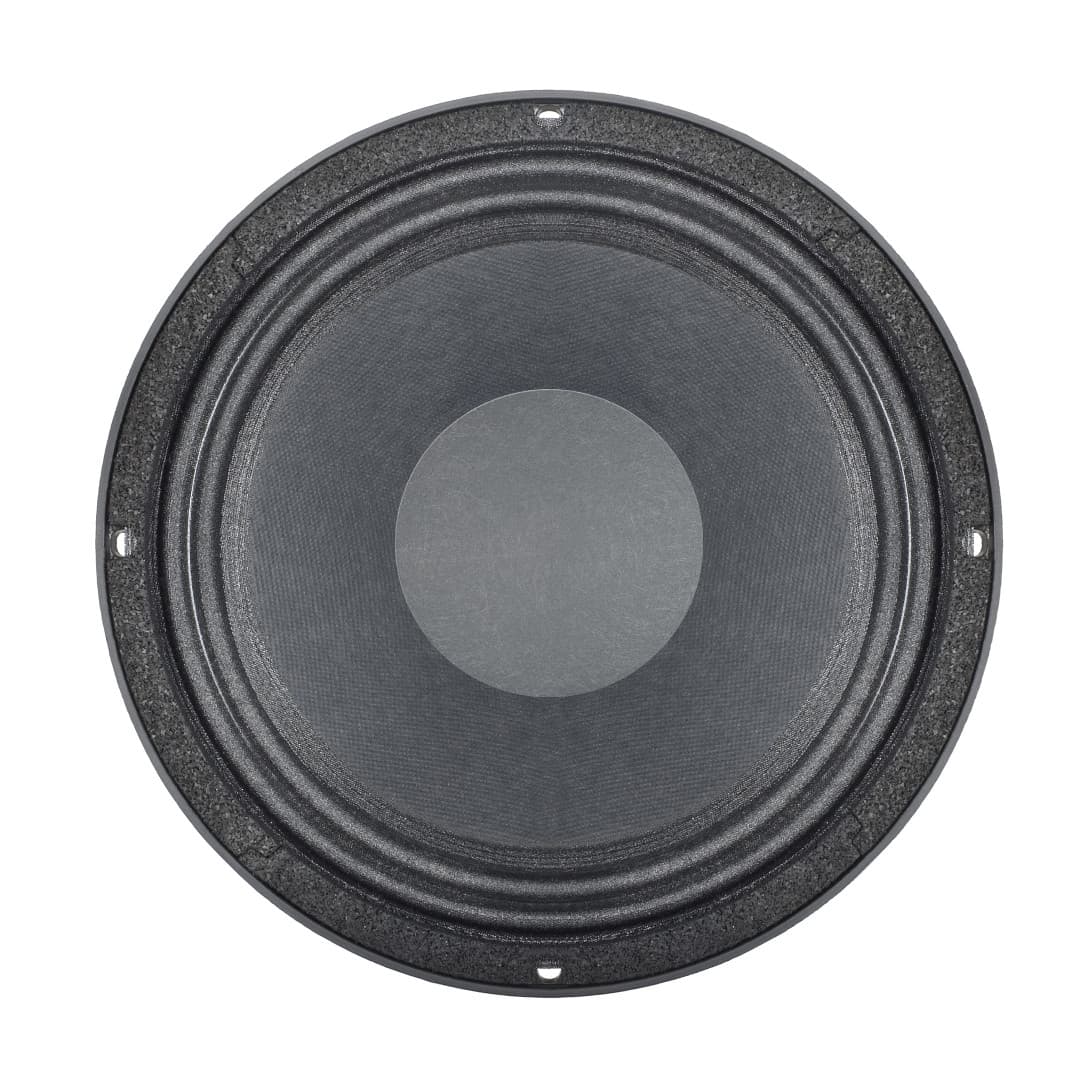

10-inch LF driver · 10MBX series · 64 mm voice coil · 350 W
B&C 10MBX64 8Ω
65–6000 Hz
- Fs
- 65Hz
- Xmax
- 4mm
- SPL
- 97dB
- Pe
- 350W
- BL
- 16.9T·m
- Vd
- 138cm³
- Qts
- 0.26
- Vas
- 28L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

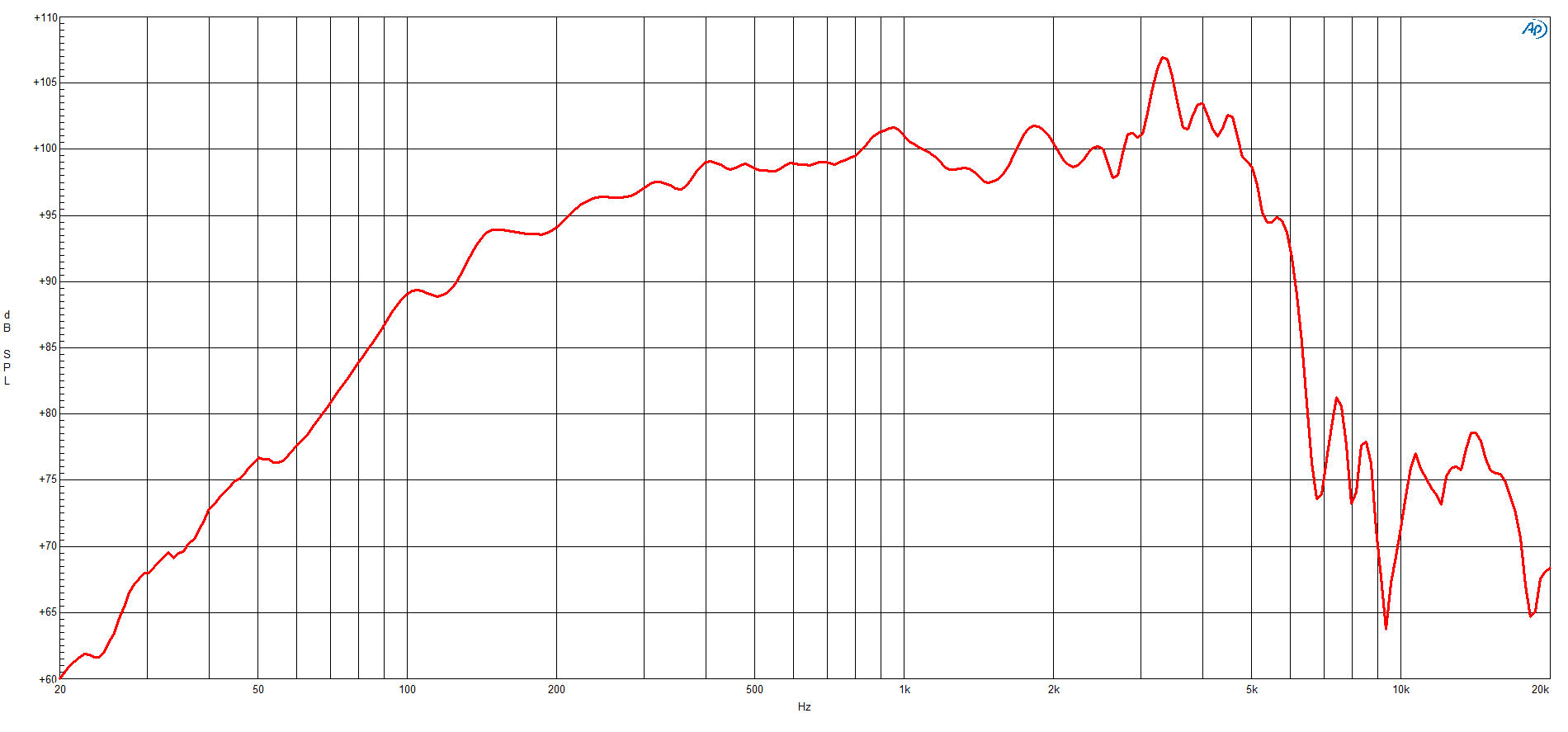

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 a76dd95ca97d…Medium confidence4,719 selected pixels of 4,719 - Trace datasheet-response-trace-poc/v2

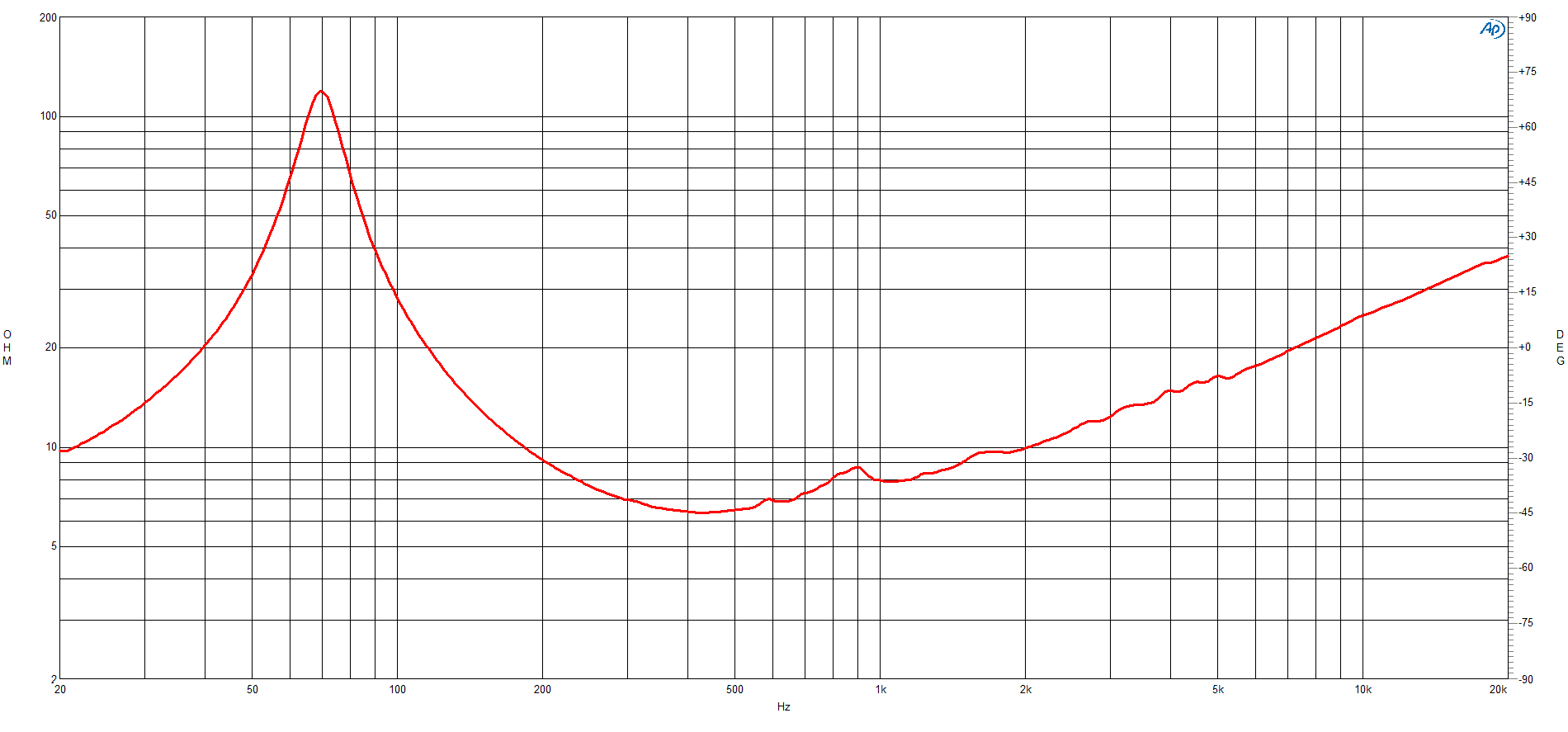

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 a76dd95ca97d…Medium confidence2,862 selected pixels of 2,862
Published graphs
B&C 10MBX64 is a 10-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.26, Vas 28 L, Xmax 4 mm, sensitivity 96.6 dB, plus 138 cm³ Vd and 241 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £155.84.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 5.6
- Vas
- 28L
- Re
- 5.5Ω
- Le
- 0.39mH
Motor and cone
- BL
- 16.9T·m
- Sd
- 346cm²
- Mms
- 32g
- Xmax
- 4mm
- Vd †
- 138cm³
- Voice coil
- 64mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 96.6dB
- Manufacturer sensitivity
- 100dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 65–6000Hz
- EBP †
- 241 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Depth
- 125mm
- Weight
- 3.3kg
Sensitivity shows 96.6 dB, calculated from the T/S values. B&C publishes 100.0 dB, 3.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 16.9T·m
- Fs
- 65Hz
- Le
- 0.39mH
- Re
- 5.5Ω
- Sd
- 346cm²
- Mms
- 32g
- Qes
- 0.27
- Qms
- 5.6
- Qts
- 0.26
- SPL
- 96.6dB
- Vas
- 28L
- Xmax
- 4mm
- Power
- 350W
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 100dB
- Low limit
- 65Hz
- Nominal power
- 350W
- Calculated sensitivity †
- 96.6dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.5Ω
- Voice coil
- 64mm
- Weight
- 3.3kg
- Diameter
- 261mm
- Depth
- 125mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Bl
- 16.9 Tm
- Fs
- 65 Hz
- Le
- 0.39 mH
- Re
- 5.5 Ω
- Sd
- 346 cm² (53.63 in²)
- Ebp
- 241 Hz
- Mms
- 32 g
- Qes
- 0.27
- Qms
- 5.6
- Qts
- 0.26
- Vas
- 28 dm³ (0.99 ft³)
- Η0
- 3.2 %
- Cone
- RCK10MBX648
- Xmax
- 4 mm
- Xvar
- 5.5 mm
- Depth
- 125 mm (4.92 in)
- Spider
- Single
- Cone shape
- Radial
- Net weight
- 3.25 kg (7.17 lb)
- Pole design
- T-Pole
- Sensitivity
- 100 dB
- Flux density
- 1.25 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 12 mm (0.47 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 65 Hz - 6000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 3.85 kg (8.49 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.28 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Recommended tuning
- 65 Hz
- Voice coil diameter
- 64 mm (2.5 in)
- Bolt circle diameter
- 245 mm (9.65 in)
- Recommended enclosure
- 26 dm³ (0.92 ft³)
- Woofer cone treatment
- Waterproof Impregnated Cone
- Baffle cutout diameter
- 230 mm (9.06 in)
- Nominal power handling
- 350 W
- Continuous power handling
- 700 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)

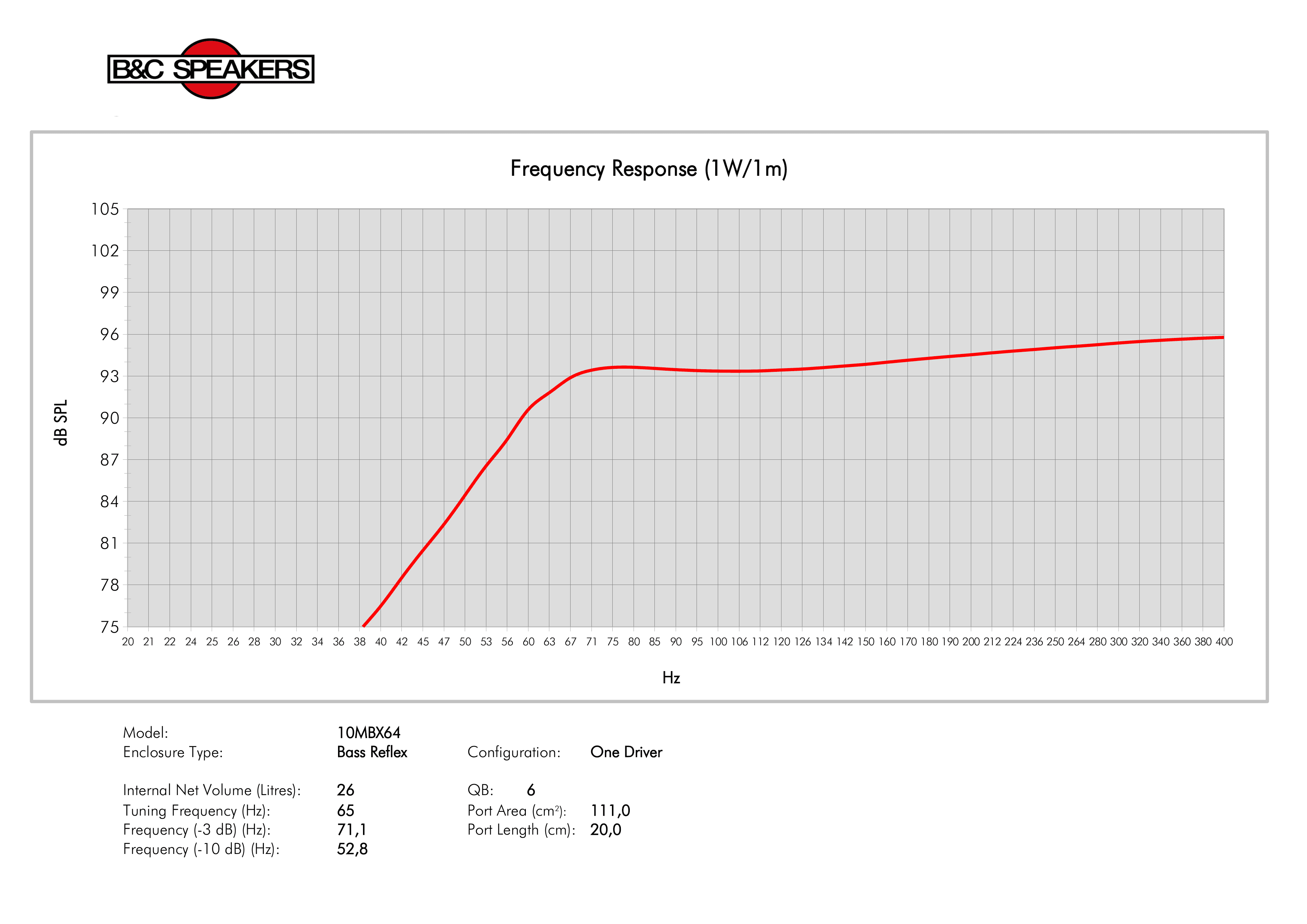

B&C’s suggested box
From B&C’s 10MBX64 page
