Oberton 10M250 8Ω
8 Ω · 70–5000 Hz
No current price
- Fs
- 77Hz
- Xmax
- 2.8mm
- SPL
- 98dB
- Pe
- 250W
- BL
- 16.6T·m
- Vd
- 87cm³
- Qts
- 0.28
- Vas
- 23L

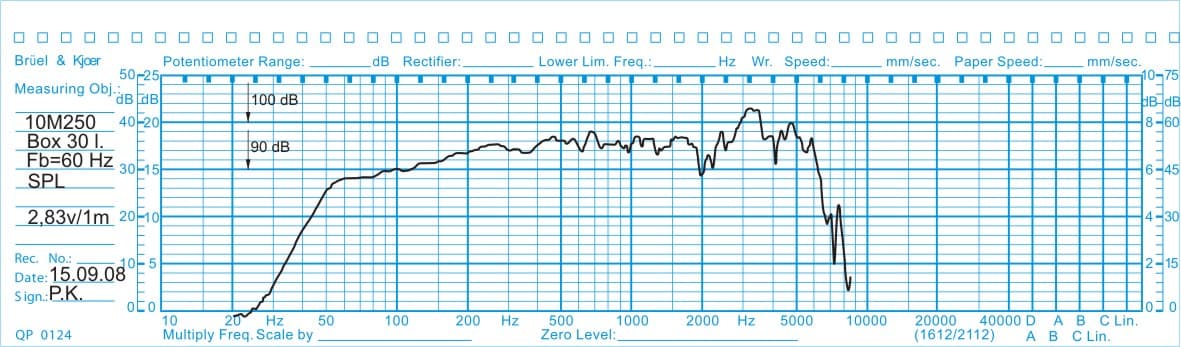

Published graphs
Oberton 10M250 is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 77 Hz, Qts 0.28, Vas 23.1 L, Xmax 2.8 mm, sensitivity 97.6 dB, plus 87 cm³ Vd and 269 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 77Hz
- Qts
- 0.28
- Qes
- 0.28
- Qms
- 14.6
- Vas
- 23.1L
- Re
- 6.1Ω
- Le
- 0.60mH
Motor and cone
- BL
- 16.6T·m
- Sd
- 317cm²
- Mms
- 27g
- Xmax
- 2.8mm
- Vd †
- 87cm³
- Voice coil
- 64mm
- Flux density
- 1.40T
Power and response
- Sensitivity †
- 97.6dB
- Manufacturer sensitivity
- 500dB
- Power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 7.2Ω
- Range
- 70–5000Hz
- EBP †
- 269 · Leans vented

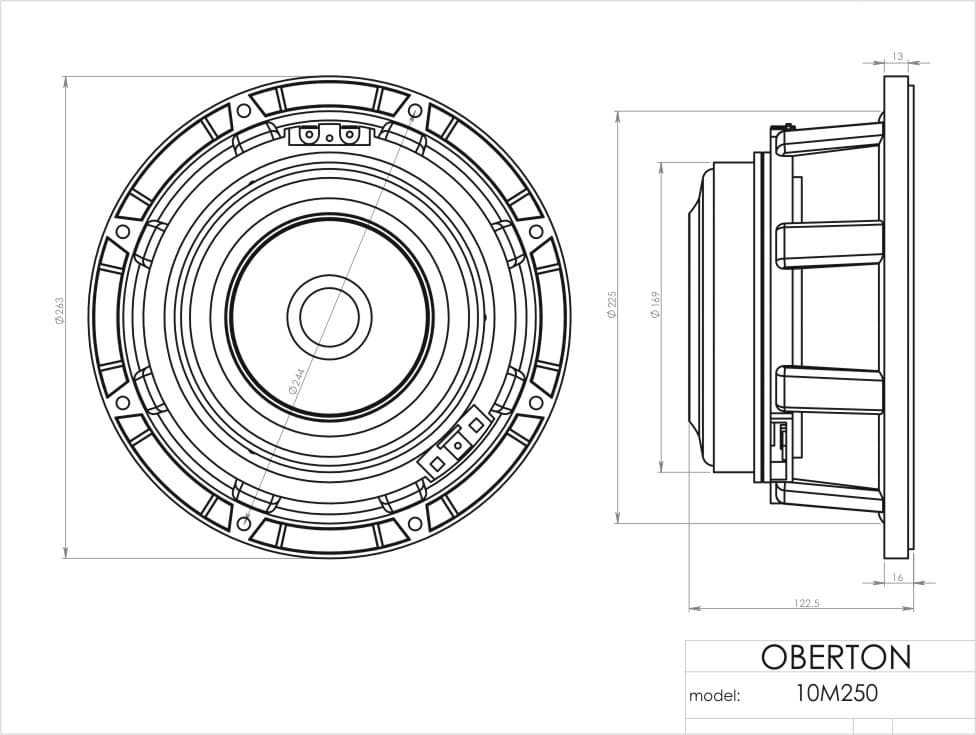

Size and mounting
- Diameter
- 263mm
- Cutout
- 225mm
- Bolt circle
- 244mm
- Depth
- 122.5mm
- Weight
- 6.6kg
Other published values
- Cms
- 0.16mm/N
- Power Program
- 500
Sensitivity shows 97.6 dB, calculated from the T/S values. Oberton publishes 500.0 dB, 402.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 10″
- BL
- 16.6T·m
- Fs
- 77Hz
- Le
- 0.60mH
- Re
- 6.1Ω
- Sd
- 317cm²
- Cms
- 0.16mm/N
- Mms
- 27g
- Qes
- 0.28
- Qms
- 14.6
- Qts
- 0.28
- SPL
- 97.6dB
- Vas
- 23.1L
- Xmax
- 2.8mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1.40T
- Sensitivity
- 500dB
- Low limit
- 70Hz
- Power Program
- 500
- Calculated sensitivity †
- 97.6dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 500dB
- Min. impedance
- 7.2Ω
- Voice coil
- 64mm
- Weight
- 6.6kg
- Diameter
- 263mm
- Depth
- 122.5mm
- Cutout
- 225mm
- Bolt circle
- 244mm
