B&C design
DCX-LA210
Three-way - Long throw, compact Line Array element
- Drivers
- 2 × 10NW76, 8 Ωor 2 × 10CLA76, 8 Ω
10-inch LF driver · 10CLA series · 76 mm voice coil · 400 W

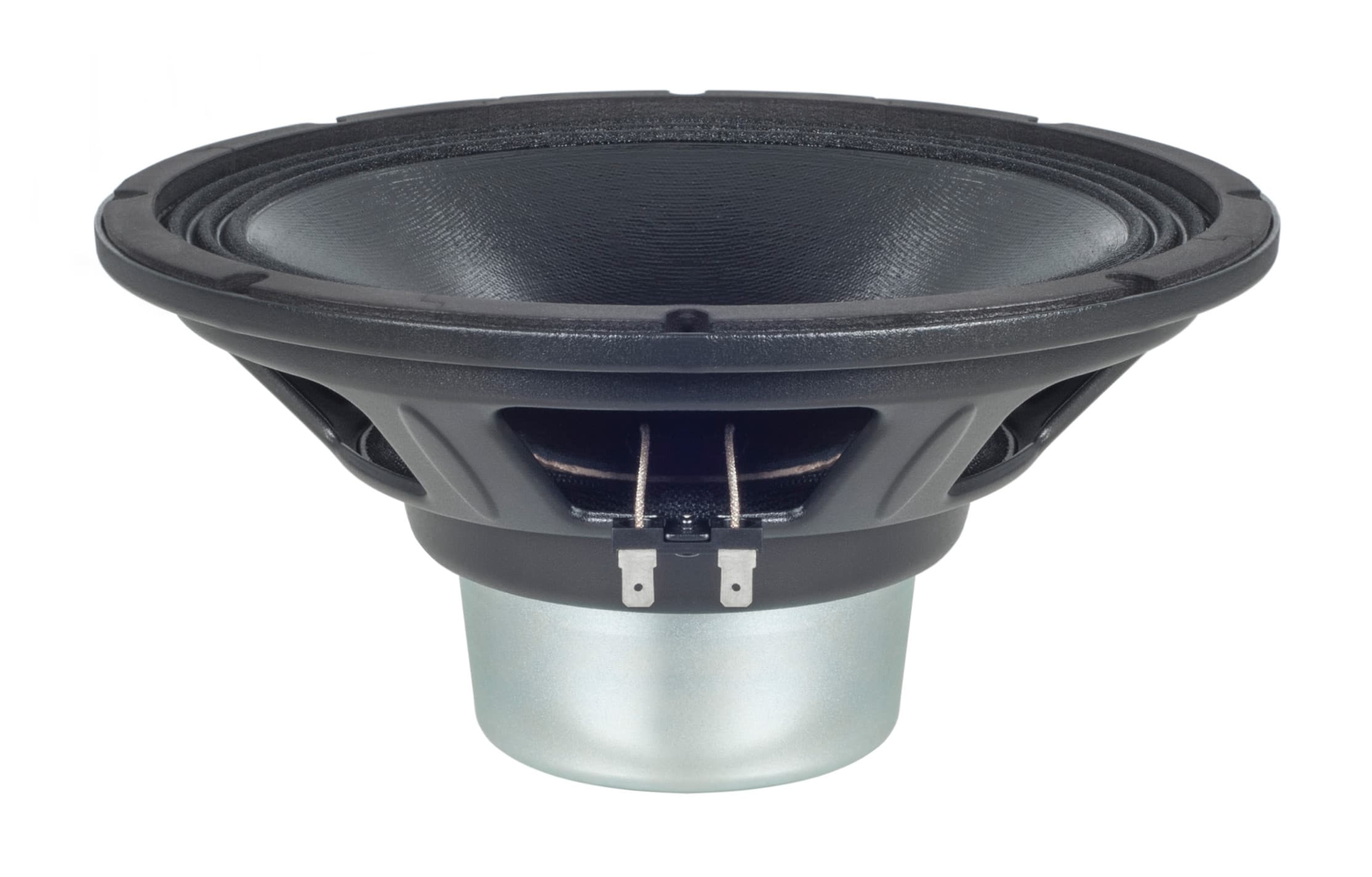

B&C 10CLA76 8Ω
8 Ω · 70–2500 Hz
£151.02
SteadyJP Leisure · In stock · All 4 offers
- Fs
- 71Hz
- Xmax
- 6.5mm
- SPL
- 95dB
- Pe
- 400W
- BL
- 18.6T·m
- Vd
- 208cm³
- Qts
- 0.29
- Vas
- 16L

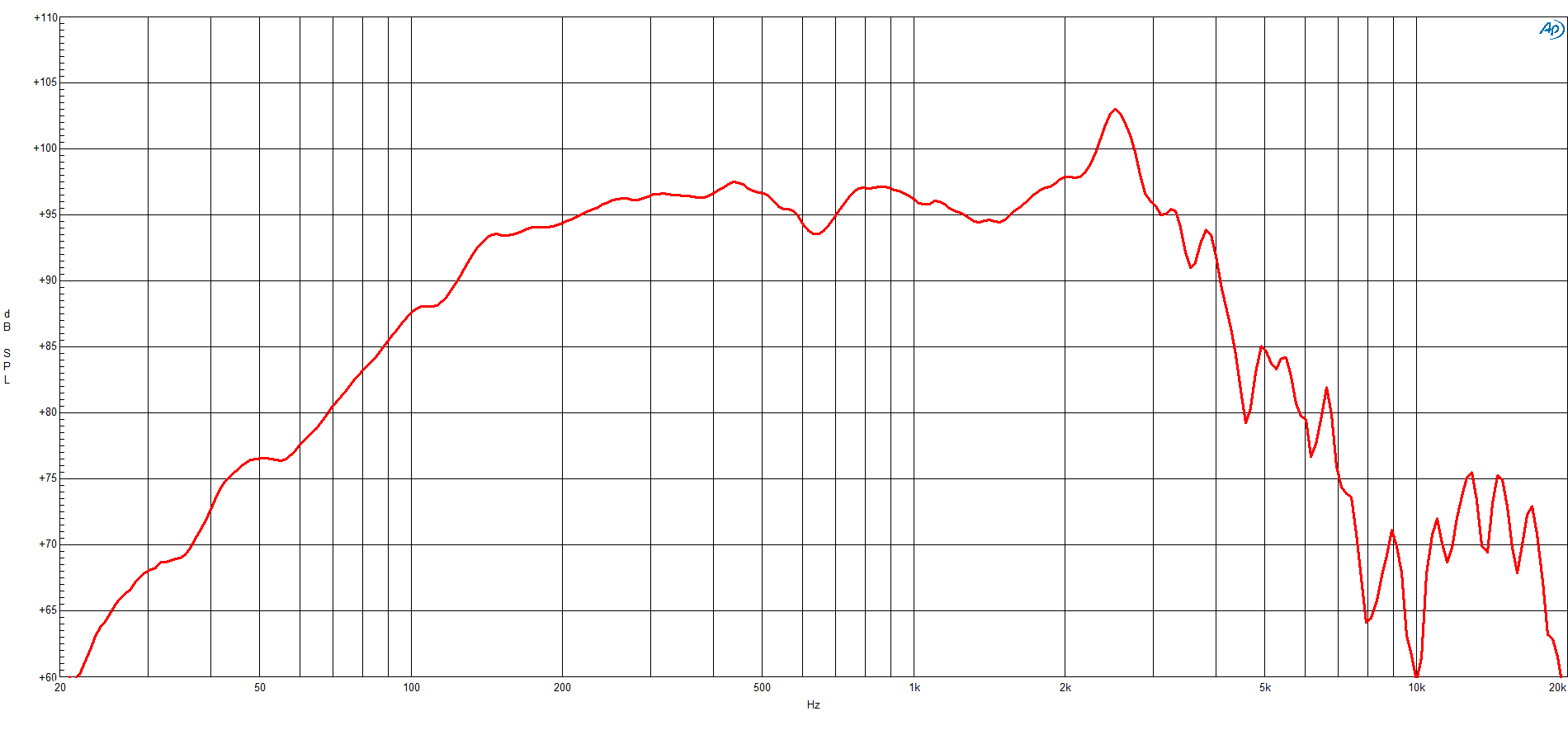

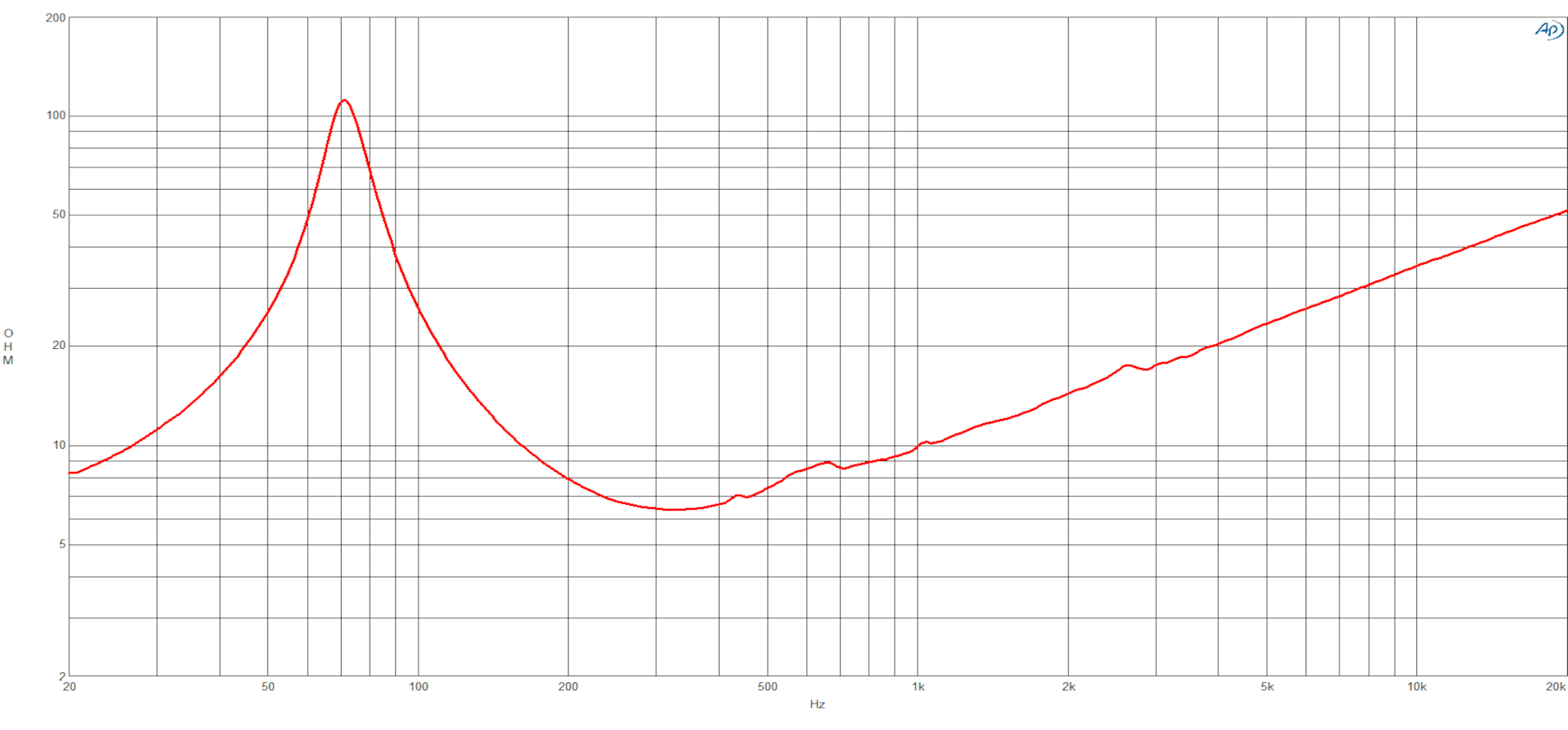

Published graphs
B&C 10CLA76 is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 71 Hz, Qts 0.29, Vas 16.4 L, Xmax 6.5 mm, sensitivity 94.9 dB, plus 208 cm³ Vd and 237 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £142.60.
The published T/S values agree with each other
Thiele/Small
- Fs
- 71Hz
- Qts
- 0.29
- Qes
- 0.30
- Qms
- 6.7
- Vas
- 16.4L
- Re
- 5.2Ω
- Le
- 1.14mH
Motor and cone
- BL
- 18.6T·m
- Sd
- 320cm²
- Mms
- 45g
- Xmax
- 6.5mm
- Vd †
- 208cm³
- Voice coil
- 76mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 94.9dB
- Manufacturer sensitivity
- 96.5dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 70–2500Hz
- EBP †
- 237 · Leans vented
Size and mounting
- Diameter
- 258mm
- Cutout
- 232mm
- Bolt circle
- 245mm
- Depth
- 122mm
- Weight
- 3.1kg
Sensitivity shows 94.9 dB, calculated from the T/S values. B&C publishes 96.5 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 18.6T·m
- Fs
- 71Hz
- Le
- 1.14mH
- Re
- 5.2Ω
- Sd
- 320cm²
- Mms
- 45g
- Qes
- 0.30
- Qms
- 6.7
- Qts
- 0.29
- SPL
- 94.9dB
- Vas
- 16.4L
- Xmax
- 6.5mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.20T
- Sensitivity
- 96.5dB
- Low limit
- 70Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 94.9dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 96.5dB
- Min. impedance
- 6.5Ω
- Voice coil
- 76mm
- Weight
- 3.1kg
- Diameter
- 258mm
- Depth
- 122mm
- Cutout
- 232mm
- Bolt circle
- 245mm
- Bl
- 18.55 Tm
- Fs
- 71 Hz
- Le
- 1.14 mH
- Re
- 5.2 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 237 Hz
- Mms
- 44.7 g
- Qes
- 0.3
- Qms
- 6.72
- Qts
- 0.29
- Vas
- 16.4 dm³ (0.58 ft³)
- Η0
- 1.92 %
- Cone
- RCK10CLA768
- Xmax
- 6.5 mm
- Xvar
- 7 mm
- Depth
- 122 mm (4.8 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 3.15 kg (6.94 lb)
- Pole design
- T-Pole
- Sensitivity
- 96.5 dB
- Flux density
- 1.2 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 18.5 mm (0.73 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 70 Hz - 2500 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 3.75 kg (8.27 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 258 mm (10.16 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 70 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 245 mm (9.65 in)
- Recommended enclosure
- 29 dm³ (1.02 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 232 mm (9.13 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 10 mm (0.39 in)
- Air volume occupied by driver
- 1.6 dm³ (0.06 ft³)
02
Designs
Cabinets for the 10CLA76: a design and a suggested box from B&C.
All 10CLA76 designsHow we find designsB&C’s design
From the maker, with plans to download

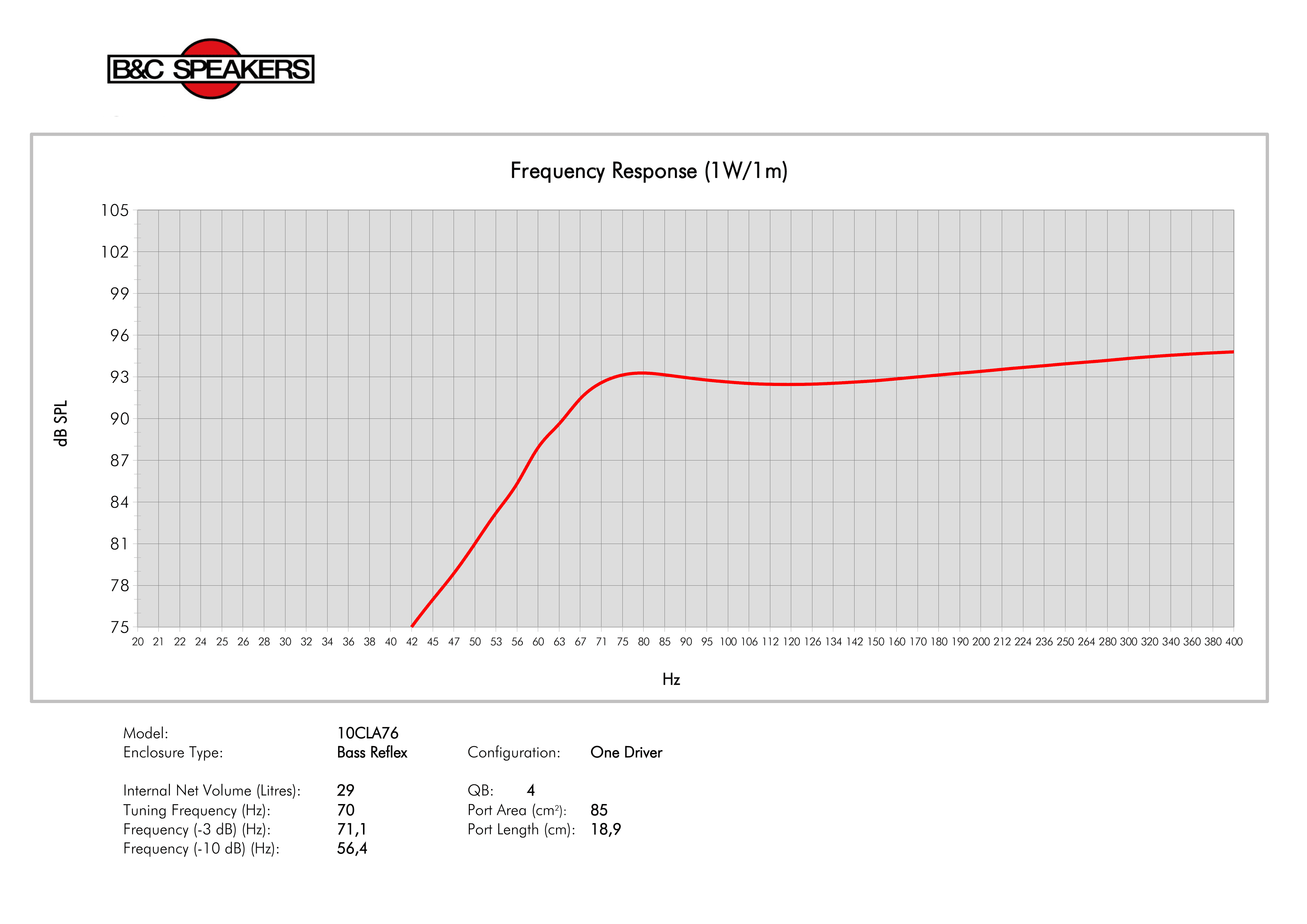

B&C’s suggested box
From B&C’s 10CLA76 page
- Net volume
- 29L
- Tuning
- 70Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10CLA76. Clear differences are green when better and red when worse.
This driver10CLA76
Best price
£142.60
Fs
71 Hz
Qts
0.29
Vas
16.4 L
BL
18.6 T·m
Xmax
6.5 mm
Sensitivity
94.9 dB
Power
400 W
HiViF10
£84.84 · 41% less, betterFs28 Hz −61%, better
Qts0.31 +7%
Vas78.6 L +379%, worse
BL16.2 T·m −13%, worse
Xmax6 mm −8%
Sensitivity89.2 dB −5.7, worse
B&C10CL64
£111.20 · 22% less, betterFs63 Hz −11%, better
Qts0.31 +7%
Vas22.2 L +35%, worse
BL16.3 T·m −12%, worse
Xmax5.2 mm −20%, worse
Sensitivity94.3 dB −0.6
B&C10NW64
£114.57 · 20% less, betterFs59 Hz −17%, better
Qts0.26 −10%, better
Vas22 L +34%, worse
BL18.3 T·m –
Xmax6 mm −8%
Sensitivity94.3 dB −0.6
Beyma10G40
£138.45 · 3% lessFs45 Hz −37%, better
Qts0.30 +3%
Vas49 L +199%, worse
BL17 T·m −8%
Xmax7 mm +8%
Sensitivity93.5 dB −1.4
B&C10NDL64
£142.60 · Same priceFs56 Hz −21%, better
Qts0.26 −10%, better
Vas31 L +89%, worse
BL16.2 T·m −13%, worse
Xmax6 mm −8%
Sensitivity94.8 dB –
Beyma10MC500
£143.96 · Same priceFs65 Hz −8%
Qts0.29 –
Vas24 L +46%, worse
BL18.3 T·m –
Xmax8 mm +23%, better
Sensitivity95.4 dB +0.5
PRV Audio10MR1200X
£150.58 · 6% more, worseFs87 Hz +22%, worse
Qts0.29 –
Vas21.8 L +33%, worse
BL17.5 T·m −6%
Xmax2.5 mm −62%, worse
Sensitivity98.8 dB +3.9, better

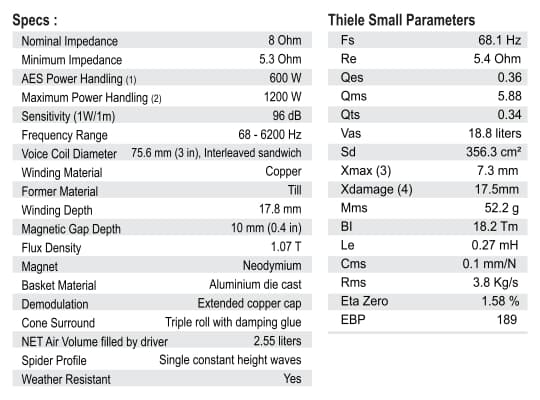

SB AudienceNERO-10MWN600D
£152.56 · 7% more, worseFs68 Hz −4%
Qts0.34 +17%, worse
Vas18.8 L +15%, worse
BL18.2 T·m –
Xmax7.3 mm +12%, better
Sensitivity94.2 dB −0.7
FaitalPRO10FH520
£165.49 · 16% more, worseFs60 Hz −15%, better
Qts0.29 –
Vas23.5 L +43%, worse
BL18 T·m –
Xmax7.3 mm +12%, better
Sensitivity94.3 dB −0.6
Beyma10MCB700
£171.06 · 20% more, worseFs75 Hz +6%
Qts0.33 +14%, worse
Vas13.2 L −20%, better
BL20.1 T·m +8%
Xmax7 mm +8%
Sensitivity94 dB −0.9
B&C10NDL88
£182.43 · 28% more, worseFs61 Hz −14%, better
Qts0.25 −14%, better
Vas18.4 L +12%, worse
BL20 T·m +8%
Xmax8.1 mm +25%, better
Sensitivity94.1 dB −0.8

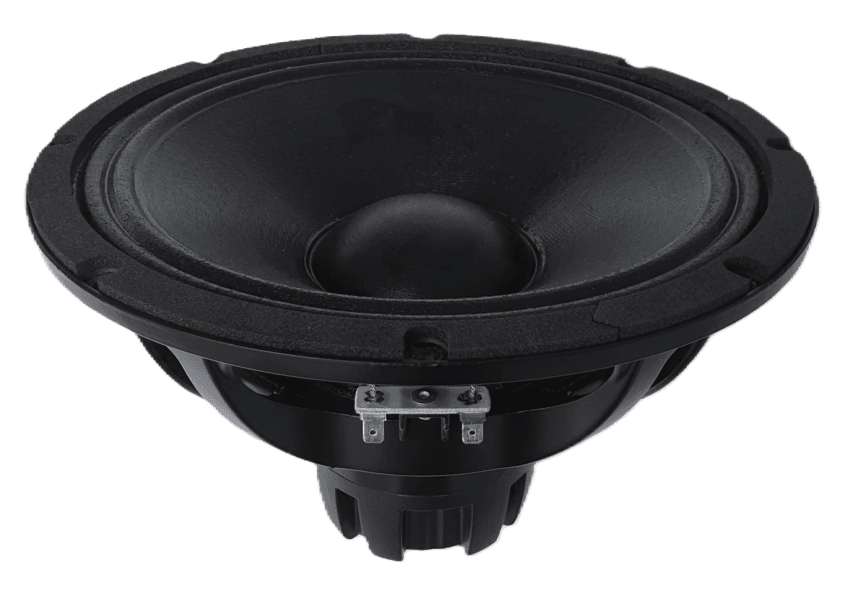

Eighteen Sound10NTLW2500
£186.32 · 31% more, worseFs65 Hz −8%
Qts0.33 +14%, worse
Vas21 L +28%, worse
BL17.4 T·m −6%
Xmax7.6 mm +17%, better
Sensitivity94.3 dB −0.6
B&C10NW76
£198.52 · 39% more, worseFs67 Hz −6%
Qts0.26 −10%, better
Vas17.6 L +7%
BL20 T·m +8%
Xmax6.8 mm +5%
Sensitivity95 dB –
B&C10BG76
£218.90 · 54% more, worseFs48 Hz −32%, better
Qts0.28 −3%
Vas17.8 L +9%
BL22 T·m +19%, better
Xmax9.6 mm +48%, better
Sensitivity90.3 dB −4.6, worse
FaitalPRO10HX240
£313.22 · 120% more, worseFs65 Hz −8%
Qts0.28 −3%
Vas31.8 L +94%, worse
BL15.5 T·m −16%, worse
Xmax7.4 mm +13%, better
Sensitivity96.7 dB +1.8
B&C10CXN76
No current priceFs58 Hz −18%, better
Qts0.30 +3%
Vas19 L +16%, worse
BL18.9 T·m –
Xmax6 mm −8%
Sensitivity92.8 dB −2.1, worse
No photo
PHL Audio3400
No current priceFs53 Hz −25%, better
Qts0.28 −3%
Vas30.6 L +87%, worse
BL18.1 T·m –
Xmax6.5 mm –
Sensitivity94 dB −0.9
Oberton10NCX
No current priceFs79 Hz +12%, worse
Qts0.29 –
Vas20.6 L +26%, worse
BL16.2 T·m −13%, worse
Xmax5.3 mm −19%, worse
Sensitivity97.4 dB +2.5, better
No photo
PHL Audio3450NDM
No current priceFs94 Hz +32%, worse
Qts0.29 –
Vas18.1 L +10%, worse
BL17 T·m −8%
Xmax2.5 mm −62%, worse
Sensitivity98.6 dB +3.7, better
Sica10 K 4 PL
No current priceFs63 Hz −12%, better
Qts0.31 +7%
Vas19.5 L +19%, worse
BL20.4 T·m +10%
Xmax5 mm −23%, worse
Sensitivity93.8 dB −1.1
Sica10 CX 3 PL P
No current priceFs59 Hz −17%, better
Qts0.29 –
Vas36.1 L +120%, worse
BL15.3 T·m −17%, worse
Xmax6 mm −8%
Sensitivity95.8 dB +0.9
No photo
PHL Audio3481-14
No current priceFs55 Hz −23%, better
Qts0.26 −10%, better
Vas25.2 L +54%, worse
BL18.1 T·m –
Xmax6 mm −8%
Sensitivity93.9 dB −1
No photo
PHL Audio3411NDU
No current priceFs47 Hz −34%, better
Qts0.29 –
Vas33.3 L +103%, worse
BL18.2 T·m –
Xmax8 mm +23%, better
Sensitivity92.5 dB −2.4, worse
Sica10 N 3 PL
No current priceFs51 Hz −28%, better
Qts0.29 –
Vas40.5 L +147%, worse
BL15.9 T·m −14%, worse
Xmax5.5 mm −15%, worse
Sensitivity94.6 dB –
No photo
REDCATT10NPM-1
No current priceFs64 Hz −10%
Qts0.28 −3%
Vas23 L +40%, worse
BL18.3 T·m –
Xmax4.0 mm −38%, worse
Sensitivity95.2 dB –
Sica10 S 3 CP
No current priceFs42 Hz −41%, better
Qts0.30 +3%
Vas42.8 L +161%, worse
BL15.6 T·m −16%, worse
Xmax7 mm +8%
Sensitivity92.1 dB −2.8, worse
Oberton10M300
No current priceFs60 Hz −16%, better
Qts0.25 −14%, better
Vas19.4 L +18%, worse
BL18.2 T·m –
Xmax5.3 mm −19%, worse
Sensitivity94.1 dB −0.8
Sica10 S 3 PL
No current priceFs43 Hz −39%, better
Qts0.27 −7%
Vas39.9 L +143%, worse
BL16.9 T·m −9%
Xmax7 mm +8%
Sensitivity92.6 dB −2.3, worse
Sica10 K 3 PL
No current priceFs51 Hz −29%, better
Qts0.26 −10%, better
Vas40 L +144%, worse
BL16.1 T·m −13%, worse
Xmax6.5 mm –
Sensitivity94.9 dB –
Eighteen Sound10NCX750H
No current priceFs65 Hz −8%
Qts0.25 −14%, better
Vas21.7 L +32%, worse
BL19.8 T·m +7%
Xmax5.5 mm −15%, worse
Sensitivity95.6 dB +0.7
