LF Driver10BG series
B&C

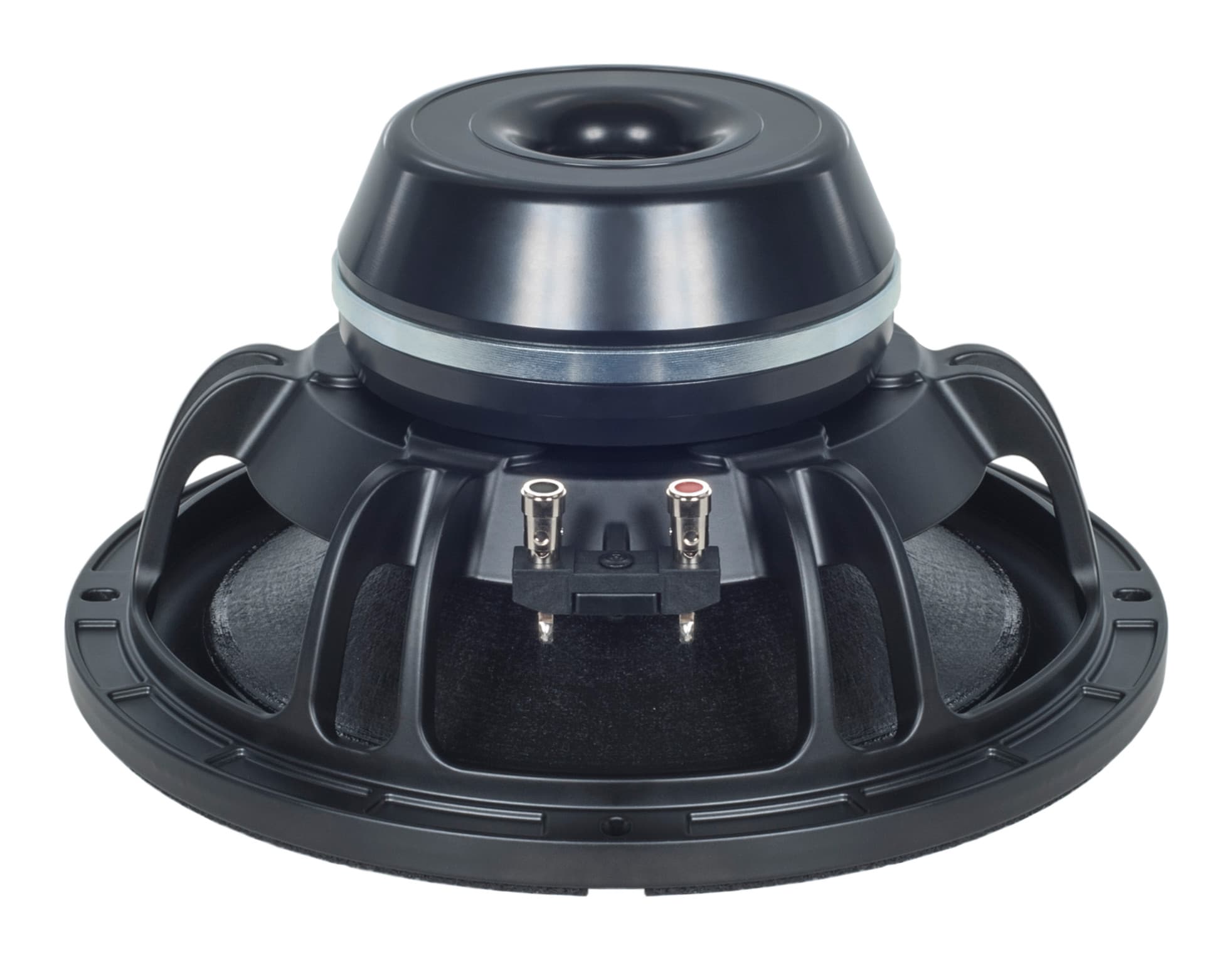

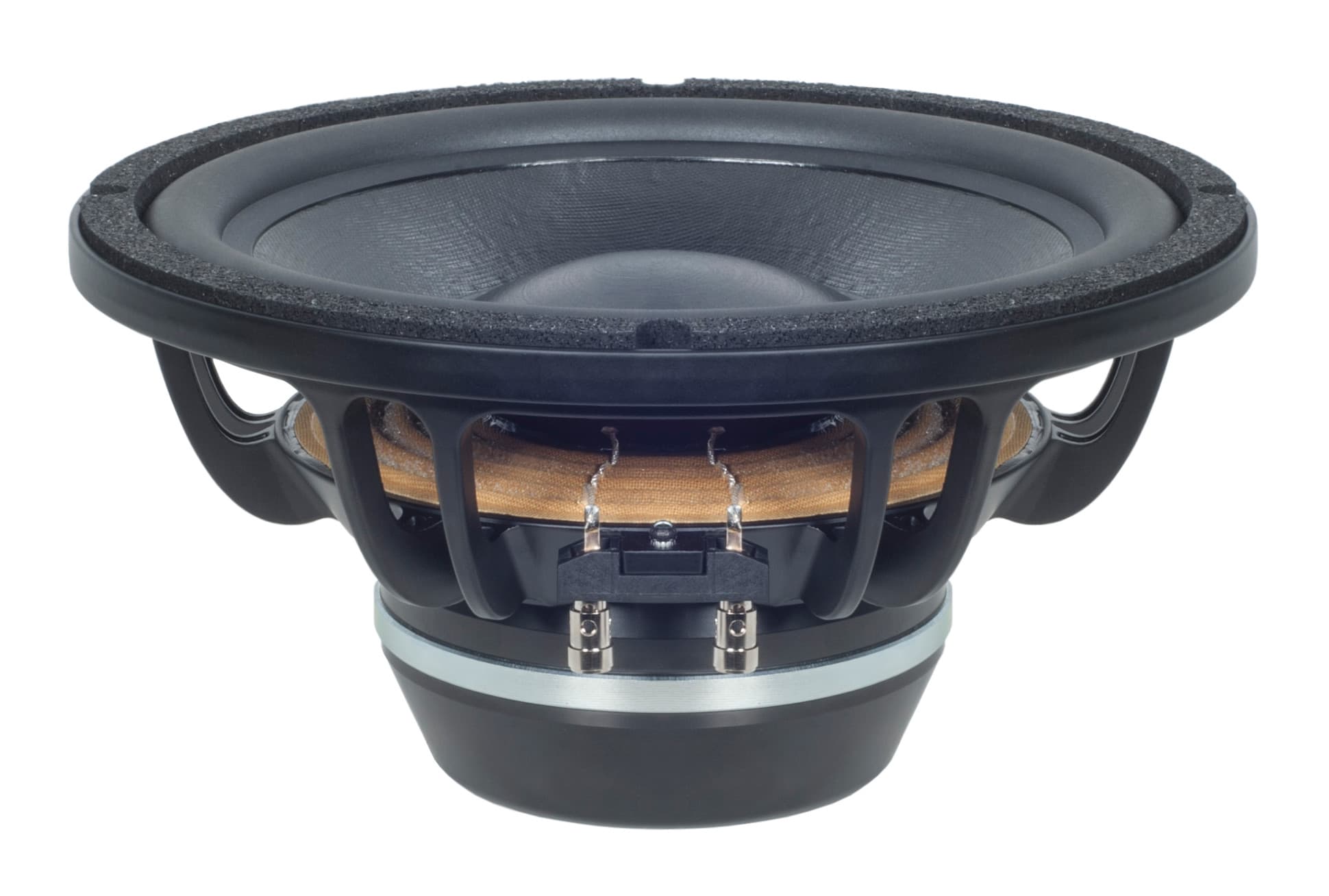

B&C 10BG76
B&C 10BG76 is a 10" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 49Hz, Qts 0.22, Vas 16.7L, Xmax 9.6mm, sensitivity 91.3dB, plus 307cm³ Vd and 213 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £218.90.
Size
10"
Impedance
8Ω
RMS Power
500W
Sensitivity
91.3dB
EBP
213
Vented alignment
Vd
307cm³

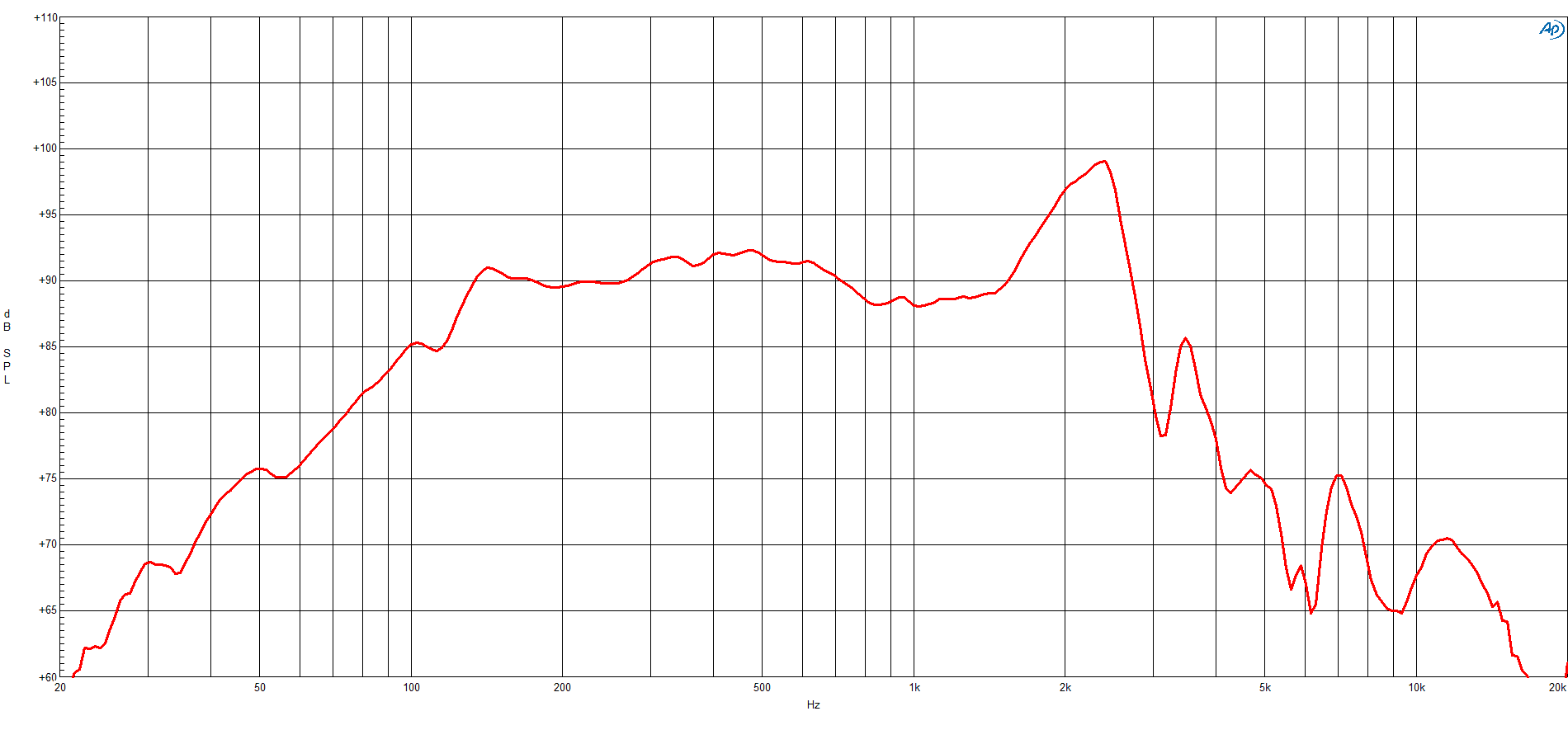

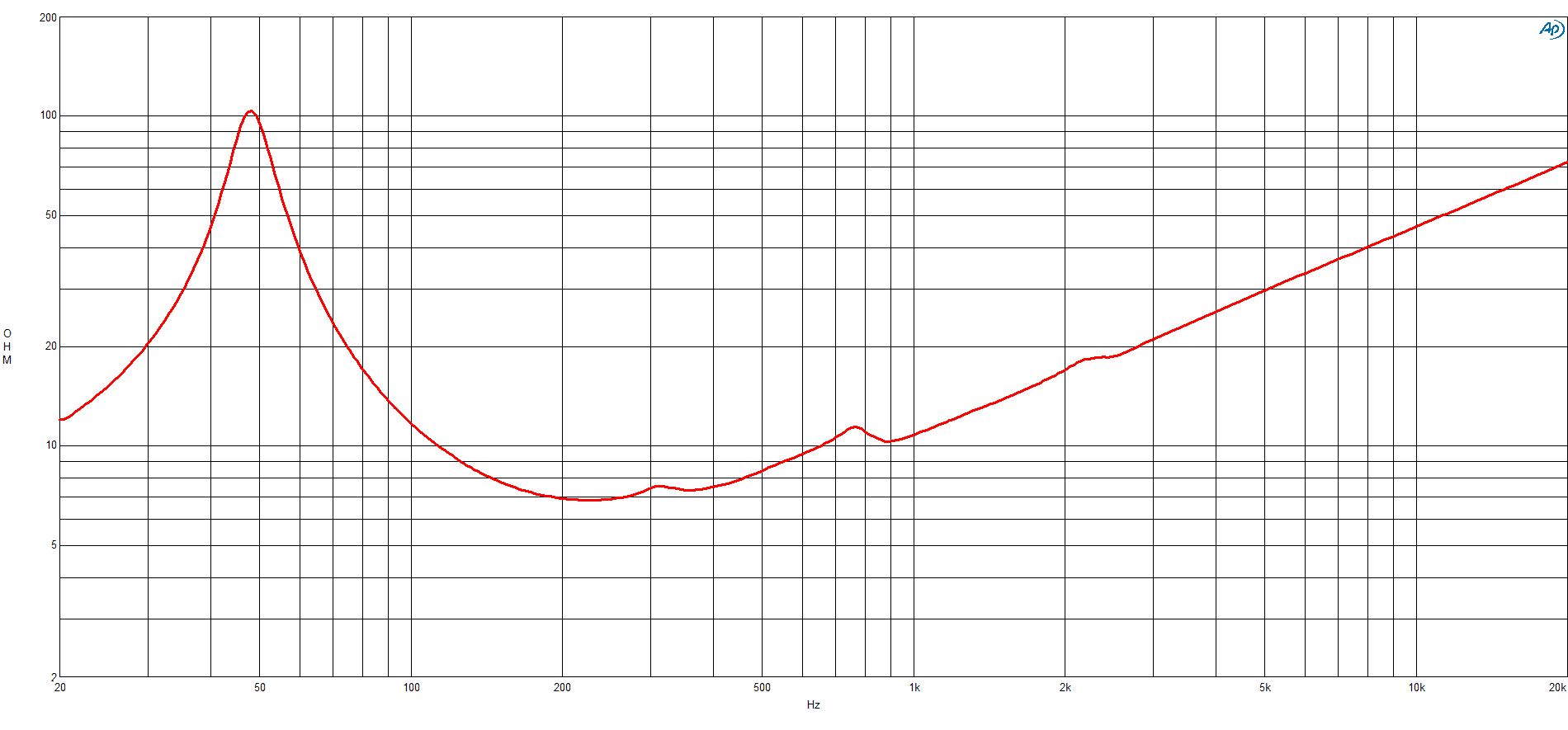

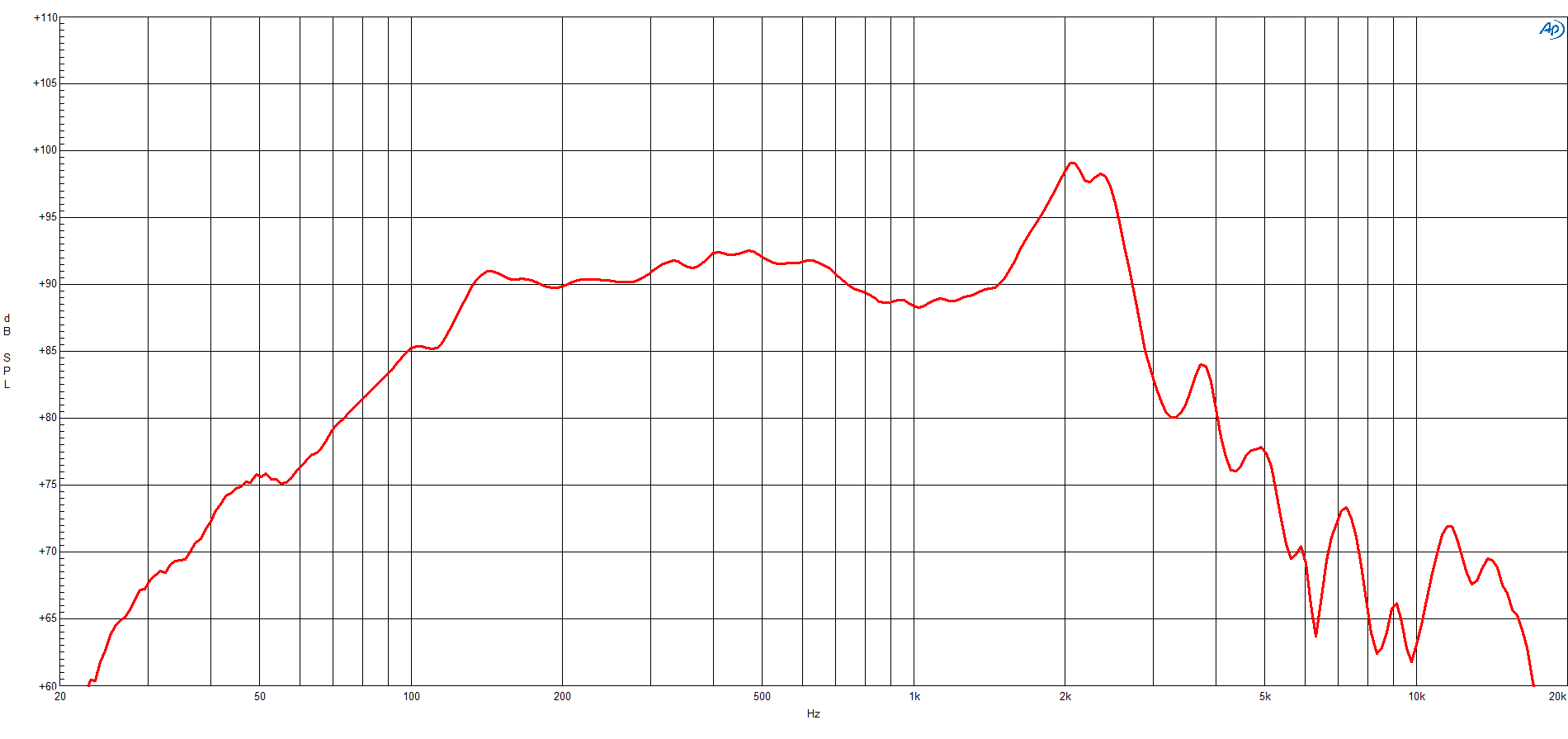

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs49Hz
Qts0.22
Qes0.23
Qms5.7
Vas16.7L
Re4.1Ω
Le1.37mH
BL22.4Tm
Sd320cm²
Mms91g
Xmax9.6mm
SPL91dB
Power500W
Power Nominal500W
Impedance8Ω
Min Impedance6.8Ω
F Low49Hz
F High800Hz
Voice Coil76mm
Flux Density1.22T
Pricing & availability
Price definitionsPrice movement
Best current price
£218.90
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.8kg
Diameter261.0mm
Overall Depth131.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter246.0mm
Additional Manufacturer Specs
Bl22.4 Tm
Fs49 Hz
Le1.37 mH
Re4.1 Ω
Sd320 cm² (49.6 in²)
Ebp213 Hz
Mms91.4 g
Qes0.23
Qms5.74
Qts0.22
Vas16.7 dm³ (0.59 ft³)
η00.86 %
ConeRCK10BG768
Xmax9.6 mm
Xvar12 mm
SpiderDouble Silicone
Cone ShapeCurvilinear
Pole DesignT-Pole
Winding Depth25 mm (1 in)
Surround ShapeRoll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter250 mm (10 in)
Winding MaterialCopper
Magnetic Gap Depth11.5 mm (0.45 in)
Bolt Circle Diameter246 mm (9.69 in)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter233 mm (9.17 in)
Flange And Gasket Thickness14 mm (0.55 in)
Air Volume Occupied By Driver1.5 dm³ (0.05 ft³)
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
10BG76
10"
Best current price
£218.90
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
64%
Similarity
62% cheaper£82.74
BishopSound
BDP10
10"
Lower price
Xmax7mm-27%
Qts0.21-5%
BL19.3Tm-14%
Vas22.4L+34%
Qes0.22-4%
58%
Similarity
41% cheaper£130.00
FaitalPRO
10FH530
10"
Lower price
Xmax7.5mm-22%
Qts0.25+14%
BL19.5Tm-13%
Vas23.5L+41%
Qes0.25+9%
43%
Similarity
27% cheaper£159.53
FaitalPRO
10FH500
10"
Lower price
Xmax7.5mm-22%
Qts0.26+18%
BL17.9Tm-20%
Vas25.8L+54%
Qes0.28+22%
59%
Similarity
9% cheaper£198.52
B&C
10NW76
10"
Lower price
Xmax6.8mm-29%
Qts0.26+18%
BL20Tm-11%
Vas17.6L+5%
Qes0.27+17%
70%
Similarity
7% cheaper£203.38

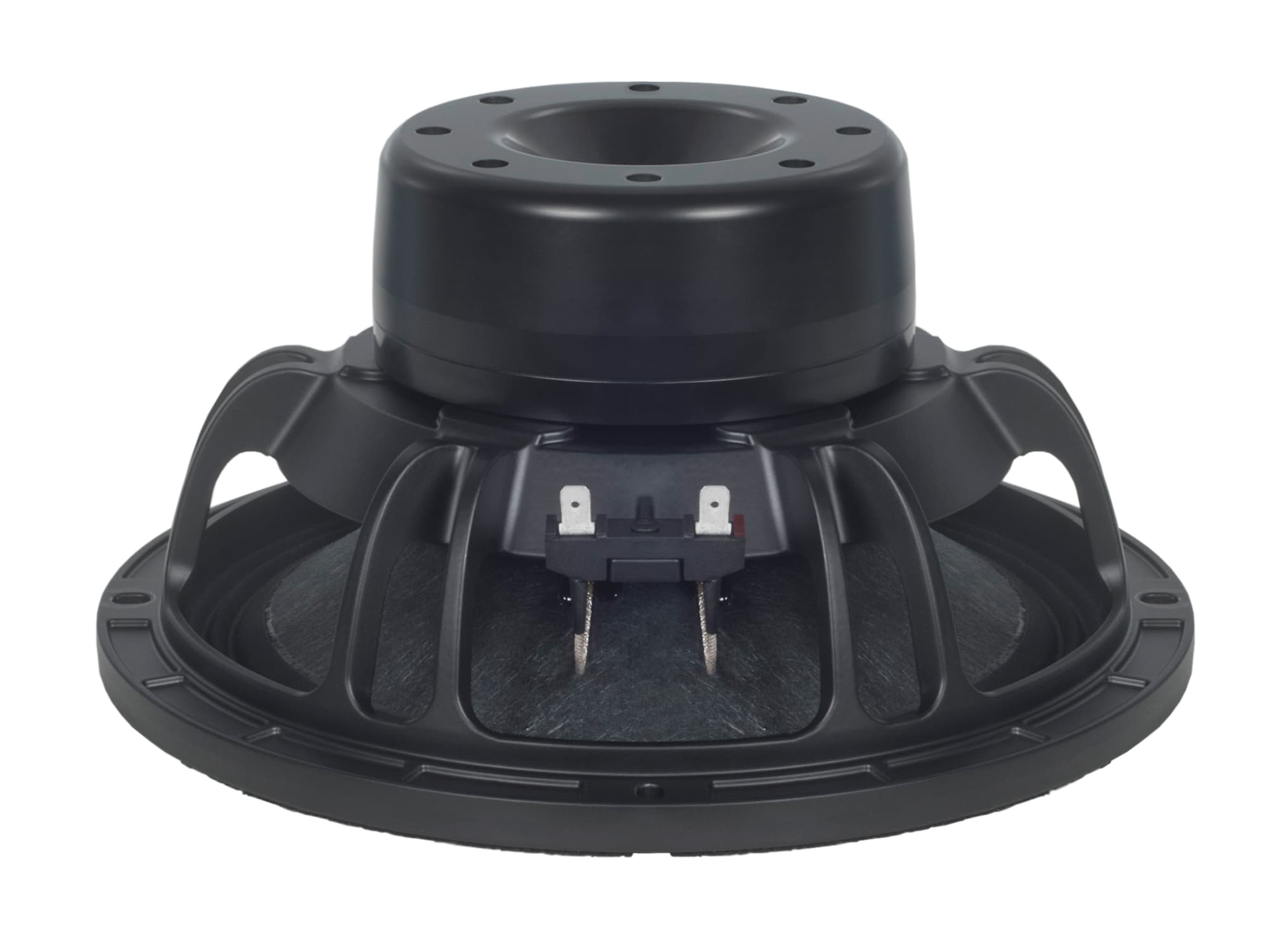

B&C
