CIAREPW252
£97.47 · 61% less, betterFs55 Hz +182%, worse
Qts0.26 −7%
Vas43.4 L −20%, better
BL15.2 T·m −29%, worse
Xmax7 mm −42%, worse
Sensitivity95.8 dB +12.4, better
10-inch LF driver · SW26 series · 76 mm voice coil · 250 W
SB Acoustics SW26DBAC76-8 8Ω
8 Ω
£252.79
SteadyLean Business · All 7 offers
- Fs
- 20Hz
- Xmax
- 12mm
- SPL
- 83dB
- Pe
- 250W
- BL
- 21.4T·m
- Vd
- 374cm³
- Qts
- 0.28
- Vas
- 54L

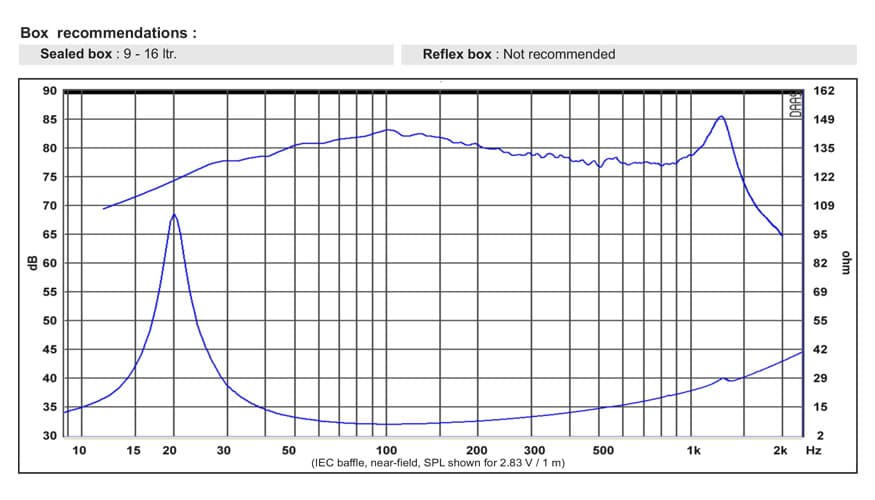

Published graphs
SB Acoustics SW26DBAC76-8 is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 20 Hz, Qts 0.28, Vas 54 L, Xmax 12 mm, sensitivity 83.4 dB, plus 374 cm³ Vd and 67 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £252.79.
The published T/S values agree with each other
Thiele/Small
- Fs
- 20Hz
- Qts
- 0.28
- Qes
- 0.29
- Qms
- 4.4
- Vas
- 54L
- Re
- 6.4Ω
Motor and cone
- BL
- 21.4T·m
- Sd
- 312cm²
- Mms
- 172g
- Xmax
- 12mm
- Vd †
- 374cm³
- Voice coil
- 76mm
- Flux density
- 1T
Power and response
- Sensitivity †
- 83.4dB
- Manufacturer sensitivity
- 83dB
- Power
- 250W
- Impedance
- 8Ω
- EBP †
- 67 · Sealed or vented
Size and mounting
- Weight
- 3.4kg
Other published values
- Cms
- 0.39mm/N
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 10″
- BL
- 21.4T·m
- Fs
- 20Hz
- Re
- 6.4Ω
- Sd
- 312cm²
- Cms
- 0.39mm/N
- Mms
- 172g
- Qes
- 0.29
- Qms
- 4.4
- Qts
- 0.28
- SPL
- 83.4dB
- Vas
- 54L
- Xmax
- 12mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1T
- Sensitivity
- 83dB
- Calculated sensitivity †
- 83.4dB
- Manufacturer sensitivity
- 83dB
- Voice coil
- 76mm
- Weight
- 3.4kg
02
Compare
Same-size drivers, compared with the SW26DBAC76-8. Clear differences are green when better and red when worse.
This driverSW26DBAC76-8
Best price
£252.79
Fs
20 Hz
Qts
0.28
Vas
54 L
BL
21.4 T·m
Xmax
12 mm
Sensitivity
83.4 dB
Power
250 W
Eighteen Sound10W500
£119.37 · 53% less, betterFs53 Hz +172%, worse
Qts0.29 +4%
Vas45.2 L −16%, better
BL14.6 T·m −32%, worse
Xmax5.5 mm −54%, worse
Sensitivity95.4 dB +12, better
FaitalPRO10PR300
£131.38 · 48% less, betterFs60 Hz +208%, worse
Qts0.28 –
Vas42.2 L −22%, better
BL14.1 T·m −34%, worse
Xmax4.9 mm −59%, worse
Sensitivity97 dB +13.6, better
FaitalPRO10PR320
£135.67 · 46% less, betterFs48 Hz +146%, worse
Qts0.29 +4%
Vas52.7 L –
BL13.5 T·m −37%, worse
Xmax7.4 mm −39%, worse
Sensitivity94.8 dB +11.4, better
Beyma10G40
£138.89 · 45% less, betterFs45 Hz +131%, worse
Qts0.30 +7%
Vas49 L −9%
BL17 T·m −21%, worse
Xmax7 mm −42%, worse
Sensitivity93.5 dB +10.1, better
SB AcousticsSB29SWNRX-S75-6
£141.54 · 44% less, betterFs20 Hz –
Qts0.29 +4%
Vas66 L +22%, worse
BL15.4 T·m −28%, worse
Xmax22 mm +83%, better
Sensitivity84.3 dB +0.9
Beyma10MC500
£143.96 · 43% less, betterFs65 Hz +233%, worse
Qts0.29 +4%
Vas24 L −56%, better
BL18.3 T·m −14%, worse
Xmax8 mm −33%, worse
Sensitivity95.4 dB +12, better
EminenceKAPPA PRO-10LF
£148.52 · 41% less, betterFs39 Hz +100%, worse
Qts0.28 –
Vas73.0 L +35%, worse
BL14.5 T·m −32%, worse
Xmax7.2 mm −40%, worse
Sensitivity93.8 dB +10.4, better
FaitalPRO10RS430
£150.42 · 40% less, betterFs32 Hz +64%, worse
Qts0.28 –
Vas59.2 L +10%
BL18 T·m −16%, worse
Xmax13.6 mm +13%, better
Sensitivity90.3 dB +6.9, better
Eighteen Sound10NTLS2000
£157.64 · 38% less, betterFs50 Hz +156%, worse
Qts0.26 −7%
Vas38 L −30%, better
BL16.7 T·m −22%, worse
Xmax7.4 mm −38%, worse
Sensitivity94.5 dB +11.1, better
Eighteen Sound10NW650
£161.89 · 36% less, betterFs51 Hz +162%, worse
Qts0.28 –
Vas48 L −11%, better
BL14 T·m −35%, worse
Xmax7 mm −42%, worse
Sensitivity95.4 dB +12, better
PRV Audio10W1000-NDY-4
£189.04 · 25% less, betterFs50 Hz +157%, worse
Qts0.27 −4%
Vas46.4 L −14%, better
BL12.0 T·m −44%, worse
Xmax6.5 mm −46%, worse
Sensitivity95.2 dB +11.8, better
Sica10 N 3 PL
£202.58 · 20% less, betterFs51 Hz +162%, worse
Qts0.29 +4%
Vas40.5 L −25%, better
BL15.9 T·m −26%, worse
Xmax5.5 mm −54%, worse
Sensitivity94.6 dB +11.2, better
B&C10BG76
£218.90 · 13% less, betterFs48 Hz +146%, worse
Qts0.28 –
Vas17.8 L −67%, better
BL22 T·m –
Xmax9.6 mm −20%, worse
Sensitivity90.3 dB +6.9, better
SB AcousticsSW26DAC76-8
£254.24 · Same priceFs20 Hz –
Qts0.28 –
Vas54 L –
BL21.4 T·m –
Xmax12 mm –
Sensitivity83.4 dB –
FaitalPRO10HX240
£312.76 · 24% more, worseFs65 Hz +233%, worse
Qts0.28 –
Vas31.8 L −41%, better
BL15.5 T·m −28%, worse
Xmax7.4 mm −39%, worse
Sensitivity96.7 dB +13.3, better
No photo
PHL Audio3400
No current priceFs53 Hz +172%, worse
Qts0.28 –
Vas30.6 L −43%, better
BL18.1 T·m −15%, worse
Xmax6.5 mm −46%, worse
Sensitivity94 dB +10.6, better
Sica10 S 3 PL
No current priceFs43 Hz +121%, worse
Qts0.27 −4%
Vas39.9 L −26%, better
BL16.9 T·m −21%, worse
Xmax7 mm −42%, worse
Sensitivity92.6 dB +9.2, better
WavecorWF259PA02
No current priceFs52 Hz +167%, worse
Qts0.28 –
Vas33 L −39%, better
BL16.8 T·m −21%, worse
Xmax4.5 mm −63%, worse
Sensitivity94.2 dB +10.8, better
EminenceCANNABASS CB3010N-8
No current priceFs42 Hz +113%, worse
Qts0.25 −11%, better
Vas55.2 L –
BL17.2 T·m −20%, worse
Xmax6.5 mm −46%, worse
Sensitivity94 dB +10.6, better
No photo
REDCATT10NPM-1
No current priceFs64 Hz +228%, worse
Qts0.28 –
Vas23 L −57%, better
BL18.3 T·m −14%, worse
Xmax4.0 mm −66%, worse
Sensitivity95.2 dB +11.8, better
No photo
PHL Audio3411NDU
No current priceFs47 Hz +141%, worse
Qts0.29 +4%
Vas33.3 L −38%, better
BL18.2 T·m −15%, worse
Xmax8 mm −33%, worse
Sensitivity92.5 dB +9.1, better
EminenceKAPPALITE KL3010LF-8
No current priceFs45 Hz +131%, worse
Qts0.31 +11%, worse
Vas47.3 L −12%, better
BL18.0 T·m −16%, worse
Xmax8.5 mm −29%, worse
Sensitivity93.2 dB +9.8, better
PRV Audio10MB500-4
No current priceFs56 Hz +185%, worse
Qts0.29 +4%
Vas47.6 L −12%, better
BL12.3 T·m −43%, worse
Xmax4.5 mm −63%, worse
Sensitivity96.4 dB +13, better
KartesianSUB250_VHE
No current priceFs26 Hz +33%, worse
Qts0.31 +11%, worse
Vas57.3 L +6%
BL14.9 T·m −30%, worse
Xmax12 mm –
Sensitivity88 dB +4.6, better
RCFMB10N251
No current priceFs55 Hz +182%, worse
Qts0.27 −4%
Vas39 L −28%, better
BL15.2 T·m −29%, worse
Xmax5 mm −58%, worse
Sensitivity95.5 dB +12.1, better
REDCATT103FIND
No current priceFs56 Hz +188%, worse
Qts0.29 +4%
Vas32.8 L −39%, better
BL18.2 T·m −15%, worse
Xmax4.0 mm −66%, worse
Sensitivity94.6 dB +11.2, better
Sica10 PN 3
No current priceFs48 Hz +147%, worse
Qts0.26 −7%
Vas40.1 L −26%, better
BL16.1 T·m −25%, worse
Xmax7 mm −42%, worse
Sensitivity94.1 dB +10.7, better
PRV Audio10MR1000
No current priceFs73 Hz +275%, worse
Qts0.27 −4%
Vas26.1 L −52%, better
BL17.9 T·m −16%, worse
Xmax2.6 mm −78%, worse
Sensitivity97.7 dB +14.3, better
Acoustic EleganceTD10M-8
No current priceFs40 Hz +106%, worse
Qts0.24 −14%, better
Vas59.2 L +10%
BL17 T·m −21%, worse
Xmax6 mm −50%, worse
Sensitivity93.7 dB +10.3, better
