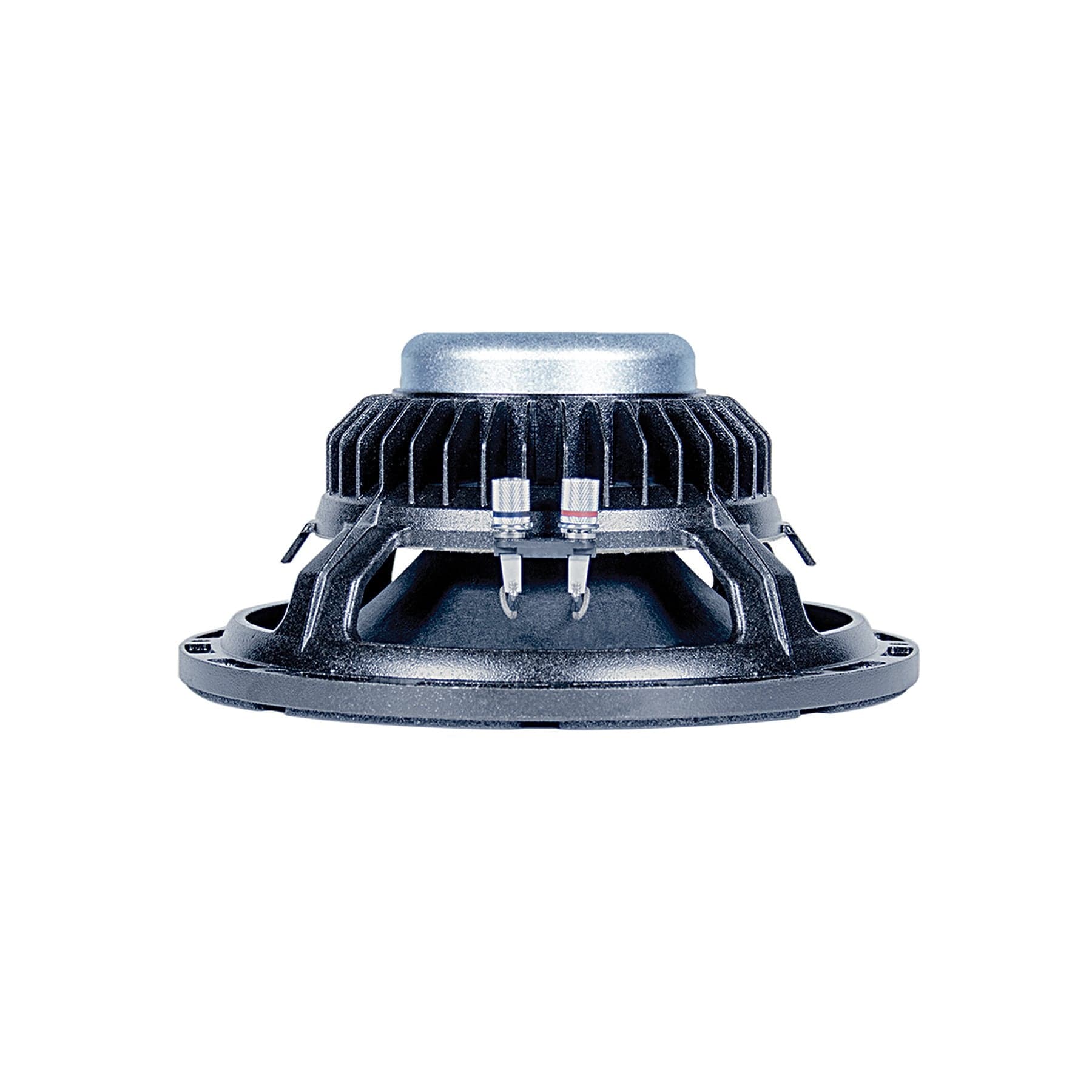

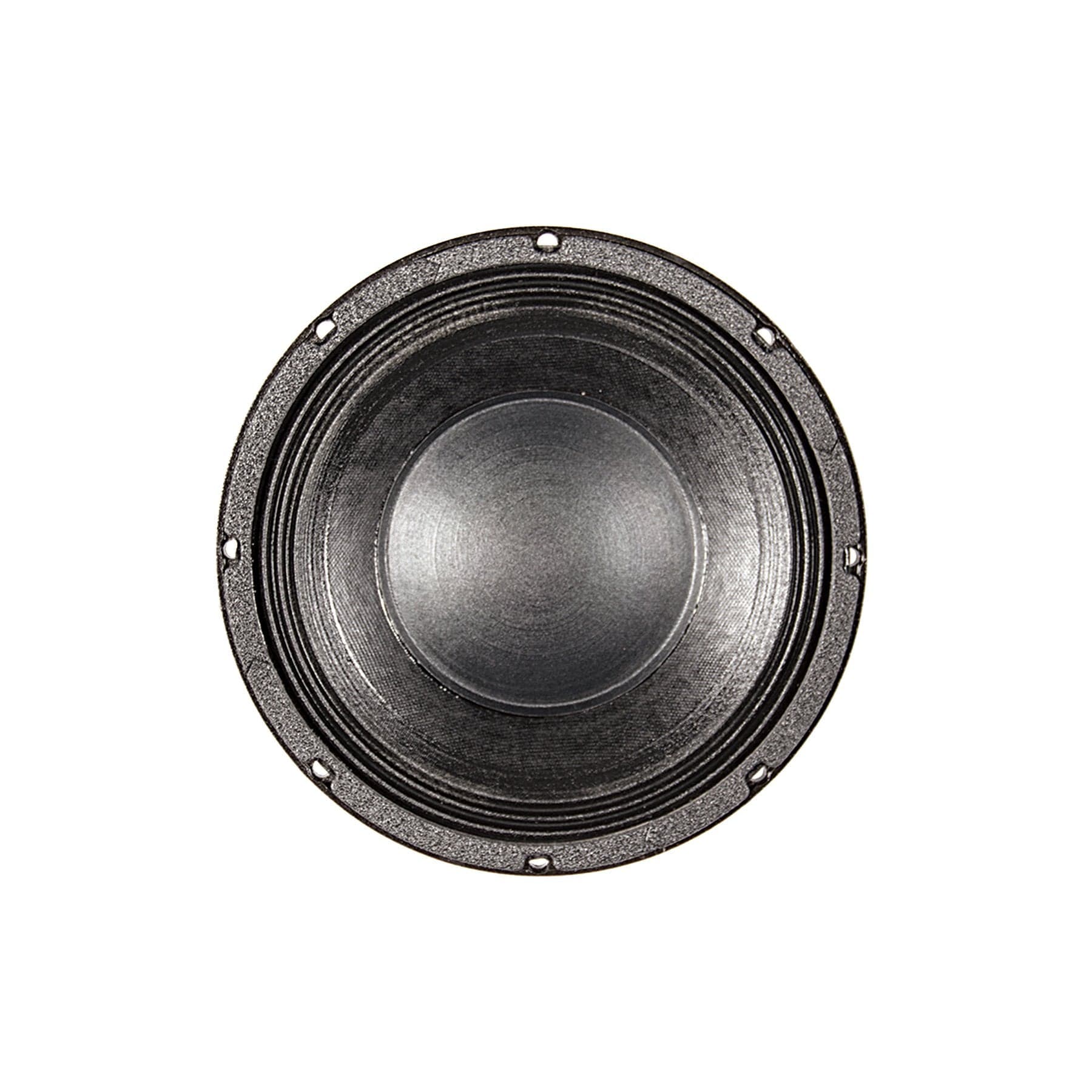

10-inch LF driver · KAPPALITE KL series · 450 W
Eminence KAPPALITE KL3010LF-8 8Ω
8 Ω · 42–1600 Hz
No current price
- Fs
- 45Hz
- Xmax
- 8.5mm
- SPL
- 93dB
- Pe
- 450W
- BL
- 18.0T·m
- Vd
- 321cm³
- Qts
- 0.31
- Vas
- 47L
Eminence KAPPALITE KL3010LF-8 is a 10-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.31, Vas 47.3 L, Xmax 8.5 mm, sensitivity 93.2 dB, plus 321 cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 7.0
- Vas
- 47.3L
- Re
- 7.0Ω
- Le
- 0.87mH
Motor and cone
- BL
- 18.0T·m
- Sd
- 377cm²
- Mms
- 53g
- Xmax
- 8.5mm
- Vd †
- 321cm³
Power and response
- Sensitivity †
- 93.2dB
- Manufacturer sensitivity
- 92dB
- Power
- 450W
- Impedance
- 8Ω
- Range
- 42–1600Hz
- EBP †
- 136 · Leans vented
Size and mounting
- Diameter
- 260.4mm
- Cutout
- 231.6mm
- Bolt circle
- 247.1mm
- Depth
- 124.0mm
- Weight
- 3.2kg
Other published values
- Cms
- 0.24mm/N
- Xmech
- 15.7
- Power Program
- 900
Sensitivity shows 93.2 dB, calculated from the T/S values. Eminence publishes 92.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 10″
- BL
- 18.0T·m
- Fs
- 45Hz
- Le
- 0.87mH
- Re
- 7.0Ω
- Sd
- 377cm²
- Cms
- 0.24mm/N
- Mms
- 53g
- Qes
- 0.33
- Qms
- 7.0
- Qts
- 0.31
- SPL
- 93.2dB
- Vas
- 47.3L
- Xmax
- 8.5mm
- Xmech
- 15.7
- Power
- 450W
- Impedance
- 8Ω
- Sensitivity
- 92dB
- Low limit
- 42Hz
- Power Program
- 900
- Calculated sensitivity †
- 93.2dB
- High limit
- 1600Hz
- Manufacturer sensitivity
- 92dB
- Weight
- 3.2kg
- Diameter
- 260.4mm
- Depth
- 124.0mm
- Cutout
- 231.6mm
- Bolt circle
- 247.1mm
