10-inch LF driver · 10NDG series · 64 mm voice coil · 500 W
Oberton 10NDG500 8Ω
8 Ω · 60–4000 Hz
No current price
- Fs
- 56Hz
- Xmax
- 9.5mm
- SPL
- 92dB
- Pe
- 500W
- BL
- 17.4T·m
- Vd
- 301cm³
- Qts
- 0.34
- Vas
- 21L

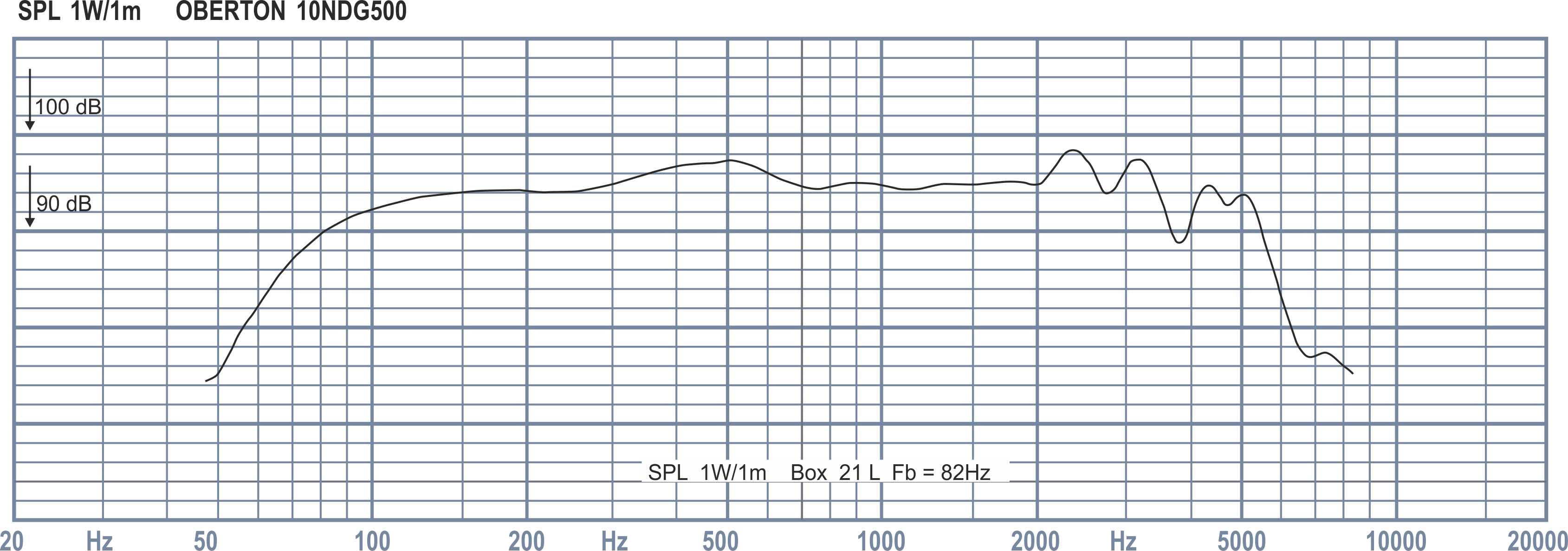

Published graphs
Oberton 10NDG500 is a 10-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 56 Hz, Qts 0.34, Vas 21.5 L, Xmax 9.5 mm, sensitivity 92.4 dB, plus 301 cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 56Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 11.1
- Vas
- 21.5L
- Re
- 5.5Ω
- Le
- 0.68mH
Motor and cone
- BL
- 17.4T·m
- Sd
- 317cm²
- Mms
- 54g
- Xmax
- 9.5mm
- Vd †
- 301cm³
- Voice coil
- 64mm
- Flux density
- 1.07T
Power and response
- Sensitivity †
- 92.4dB
- Manufacturer sensitivity
- 200dB
- Power
- 500W
- Impedance
- 8Ω
- Min. impedance
- 6.3Ω
- Range
- 60–4000Hz
- EBP †
- 161 · Leans vented

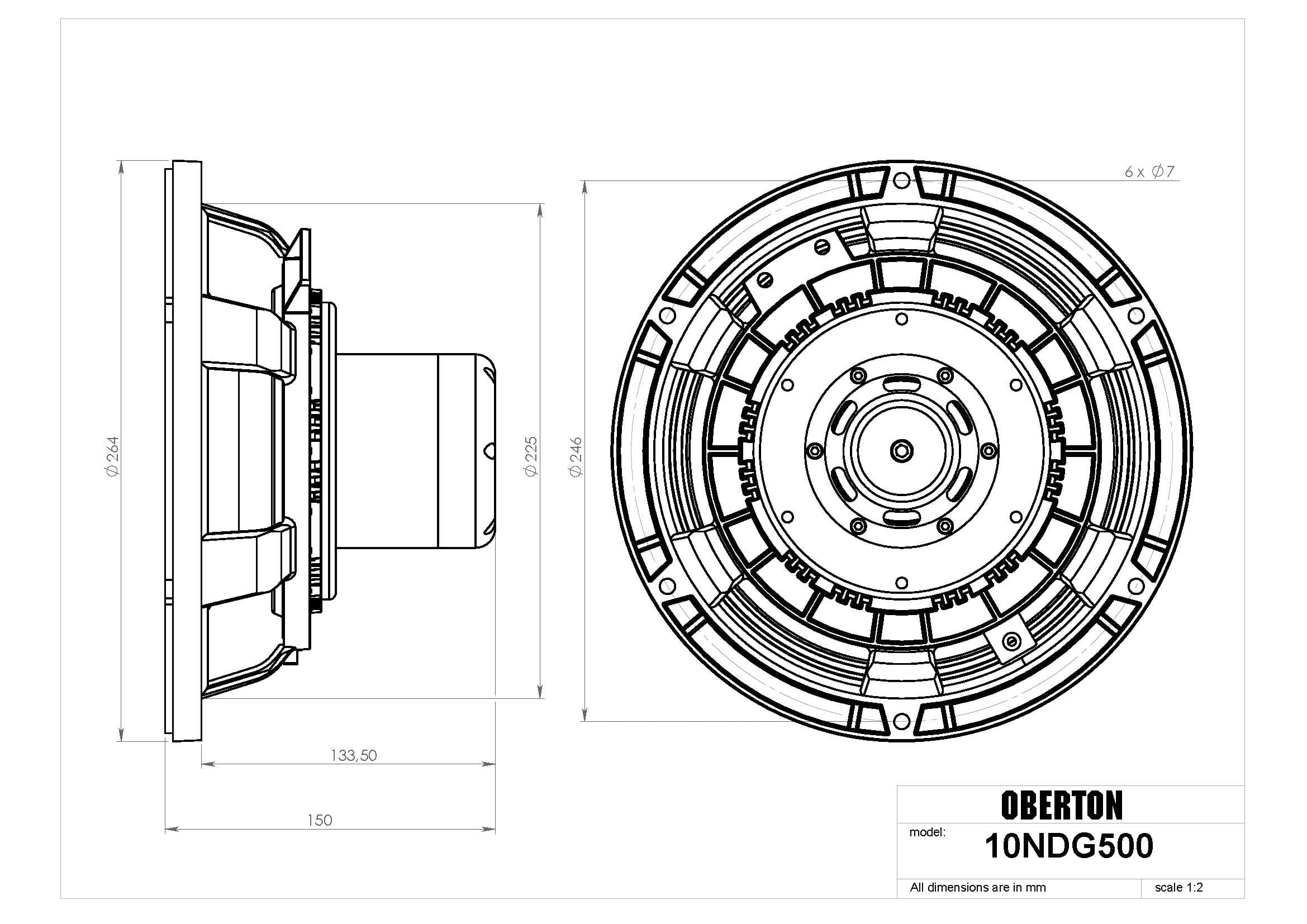

Size and mounting
- Diameter
- 264mm
- Cutout
- 225mm
- Bolt circle
- 246mm
- Depth
- 150mm
- Weight
- 2.9kg
Other published values
- Cms
- 0.15mm/N
- Power Program
- 1000
Sensitivity shows 92.4 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 107.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 10″
- BL
- 17.4T·m
- Fs
- 56Hz
- Le
- 0.68mH
- Re
- 5.5Ω
- Sd
- 317cm²
- Cms
- 0.15mm/N
- Mms
- 54g
- Qes
- 0.35
- Qms
- 11.1
- Qts
- 0.34
- SPL
- 92.4dB
- Vas
- 21.5L
- Xmax
- 9.5mm
- Power
- 500W
- Impedance
- 8Ω
- Flux density
- 1.07T
- Sensitivity
- 200dB
- Low limit
- 60Hz
- Power Program
- 1000
- Calculated sensitivity †
- 92.4dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.3Ω
- Voice coil
- 64mm
- Weight
- 2.9kg
- Diameter
- 264mm
- Depth
- 150mm
- Cutout
- 225mm
- Bolt circle
- 246mm
