LF Driver
Beyma
Beyma 10MCB700
Beyma 10MCB700 is a 10" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 75Hz, Qts 0.33, Vas 13.2L, Xmax 7mm, sensitivity 94dB, plus 245cm³ Vd and 214 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £171.06.
Size
10"
Impedance
8Ω
RMS Power
700W
Sensitivity
94.0dB
96.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
214
Vented alignment
Vd
245cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,546 selected pixels of 6,041 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,572 selected pixels of 3,572
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs75Hz
Qts0.33
Qes0.35
Qms4.9
Vas13.2L
Re5.3Ω
Le0.90mH
BL20.1Tm
Sd350cm²
Mms55g
Xmax7.0mm
SPL94dB
Power700W
Impedance8Ω
F Low80Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£171.06
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
10MCB700
10"
Best current price
£171.06
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
71%
Similarity
12% cheaper£151.02
B&C
10CLA76
10"
Lower price
Xmax6.5mm-7%
Qts0.29-12%
BL18.6Tm-8%
Vas16.4L+24%
Qes0.3-14%
78%
Similarity
11% cheaper£152.56
SB Audience
NERO-10MWN600D
10"
Lower price
Xmax7.3mm+4%
Qts0.34+3%
BL18.2Tm-9%
Vas18.8L+42%
Qes0.36+3%
71%
Similarity
9% more£186.32
Eighteen Sound
10NTLW2500
10"
Higher price
Xmax7.6mm+9%
Qts0.330%
BL17.4Tm-13%
Vas21L+59%
Qes0.34-3%
65%
Similarity
16% more£198.52
B&C
10NW76
10"
Higher price
Xmax6.8mm-3%
Qts0.26-21%
BL20Tm0%
Vas17.6L+33%
Qes0.27-23%
64%
Similarity
16% more£198.52
B&C
10NW76
10"
Higher price
Xmax7mm0%
Qts0.29-12%
BL24.7Tm+23%
Vas18.5L+40%
Qes0.3-14%
53%
Similarity
19% more£203.38
B&C
10NDL88
10"
Higher price
Xmax8.1mm+16%
Qts0.25-24%
BL20Tm0%
Vas18.4L+39%
Qes0.26-26%
79%
Similarity
52% more£260.72
Eighteen Sound
10NTLW3500
10"
Higher price
Xmax7.9mm+13%
Qts0.35+6%
BL19.2Tm-4%
Vas16L+21%
Qes0.36+3%
69%
Similarity
B&C
10NDL88
10"
Xmax7.8mm+11%
Qts0.32-3%
BL26.4Tm+31%
Vas15.6L+18%
Qes0.33-6%
66%
Similarity

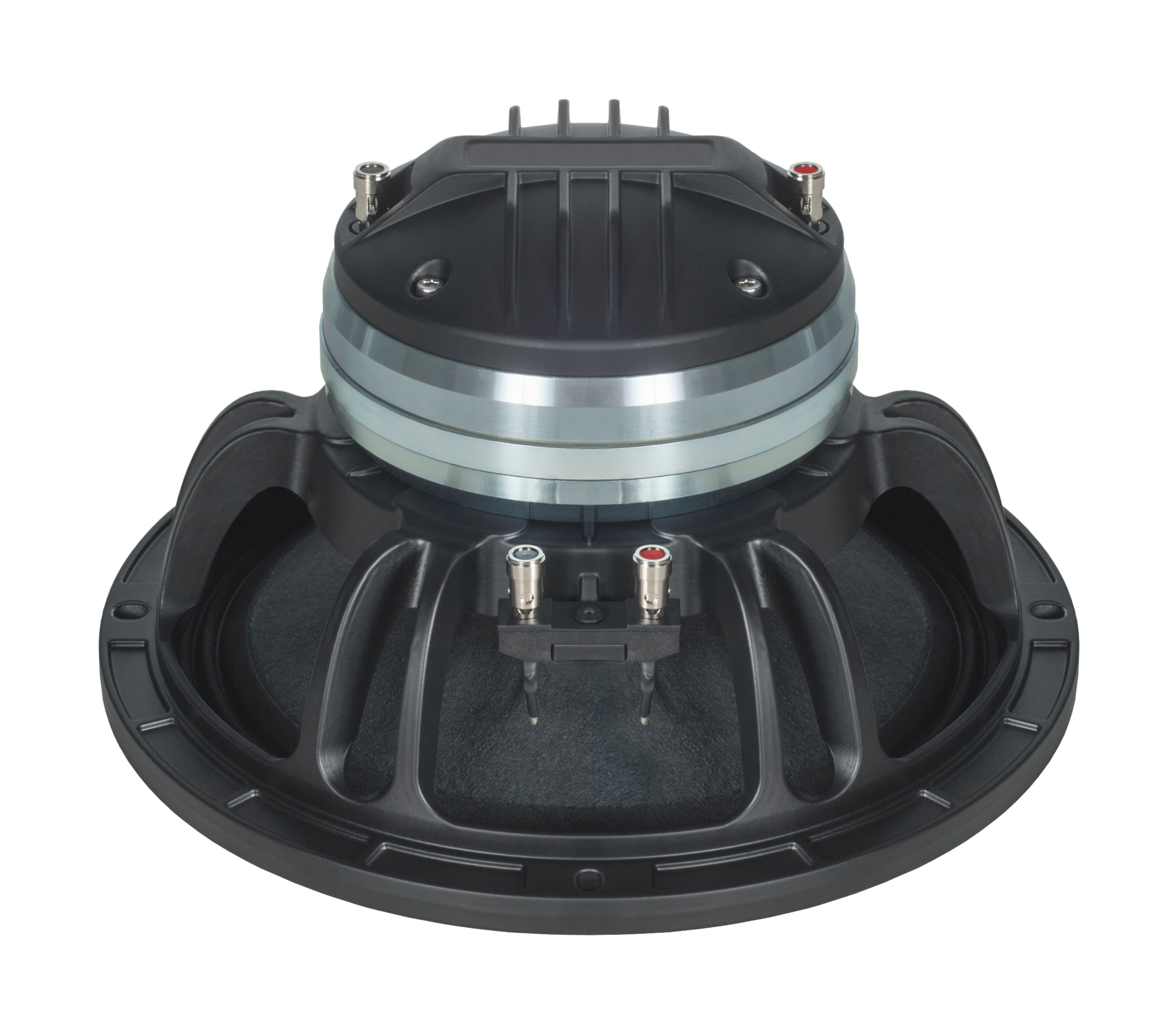

B&C
10CXN76
10"
Xmax6mm-14%
Qts0.3-9%
BL18.9Tm-6%
Vas19L+44%
Qes0.31-11%
62%
Similarity
Sica
10 K 4 PL
10"
Xmax5mm-29%
Qts0.31-6%
BL20.4Tm+1%
Vas19.5L+48%
Qes0.32-9%
46%
Similarity
Oberton
10NCX
10"
Xmax5.3mm-25%
Qts0.29-12%
BL16.2Tm-19%
Vas20.6L+56%
Qes0.3-15%
40%
Similarity

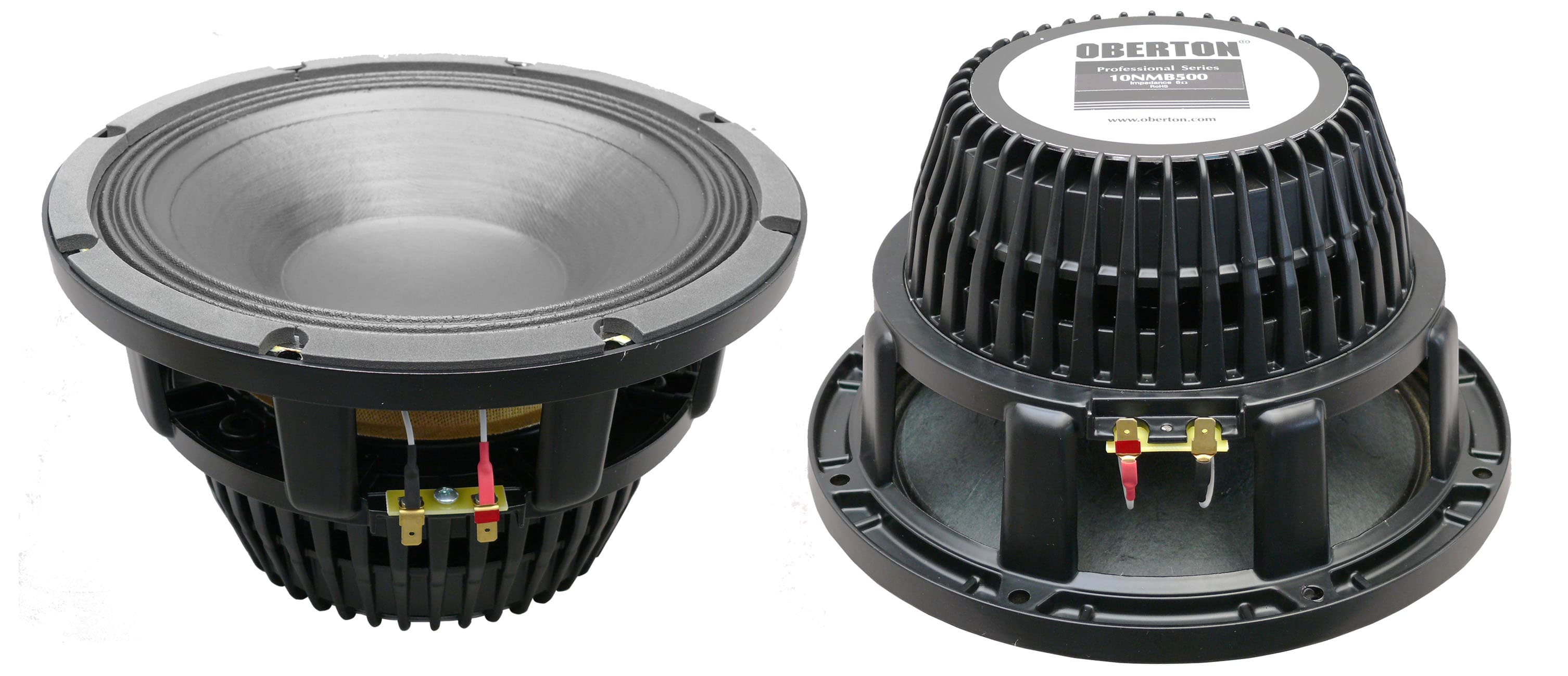

Oberton
