Overview
LF Driver
Eighteen Sound

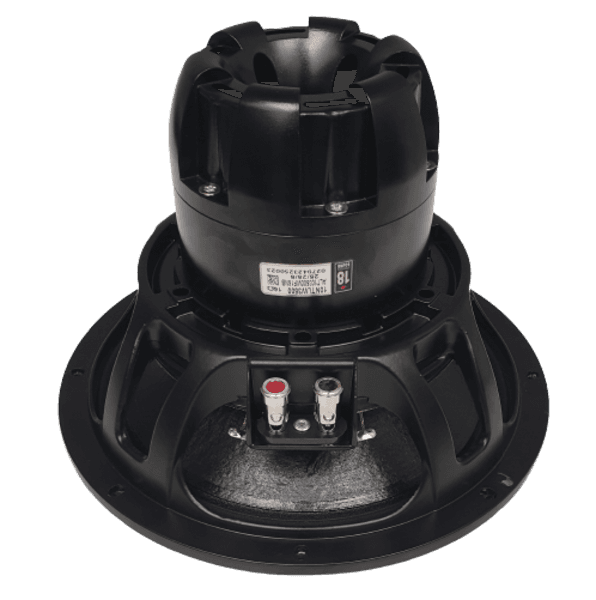

Eighteen Sound 10NTLW3500
Eighteen Sound 10NTLW3500 is a 10" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 65Hz, Qts 0.35, Vas 16L, Xmax 7.9mm, sensitivity 92.9dB, plus 273cm³ Vd and 181 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £260.72.
Size
10"
Impedance
8Ω
RMS Power
800W
Sensitivity
92.9dB
95.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
181
Vented alignment
Vd
273cm³

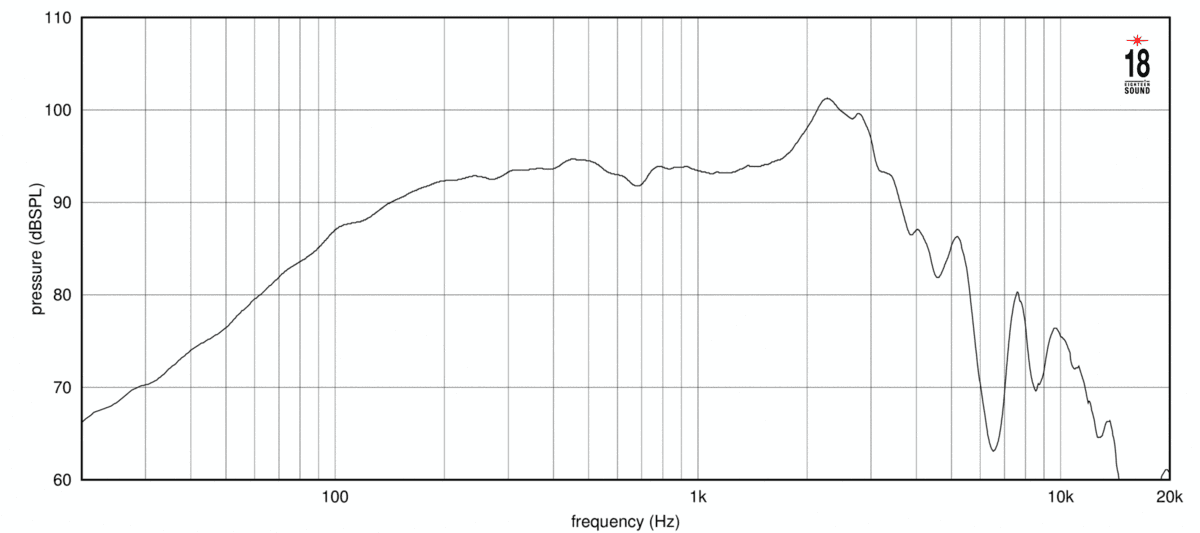

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence703 selected pixels of 925
T/S Parameters
Valid
Fs65Hz
Qts0.35
Qes0.36
Qms11.6
Vas16.0L
Re5.1Ω
Le0.42mH
BL19.2Tm
Sd346cm²
Mms58g
Xmax7.9mm
SPL93dB
Power800W
Power Nominal800W
Impedance8Ω
F Low60Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£260.72
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.2kg
Diameter260.0mm
Overall Depth177.0mm
Cutout Diameter233.0mm
Bolt Circle Diameter245.0mm
