- Net volume
- 20L
- Tuning
- 58Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.

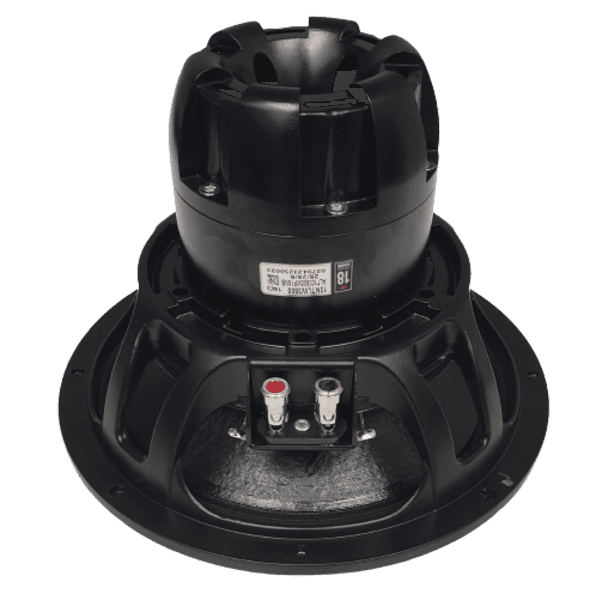

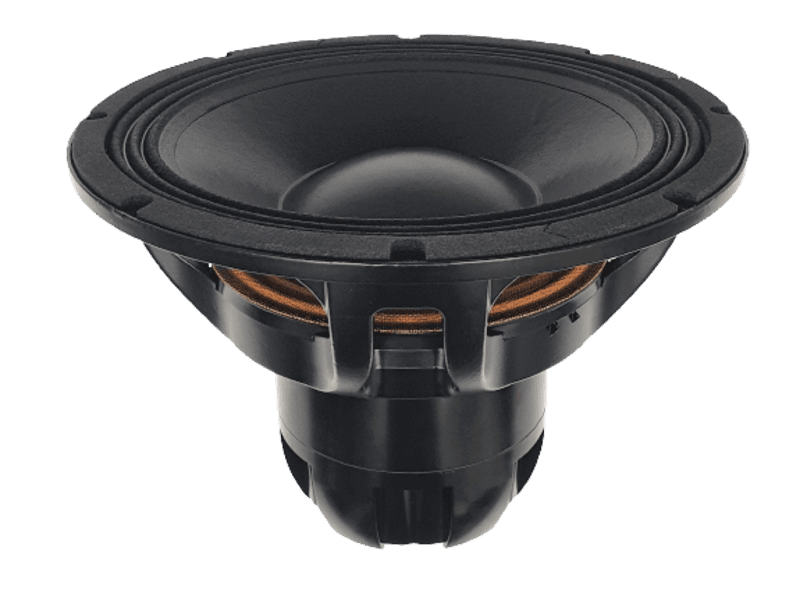

10-inch LF driver · 800 W
Eighteen Sound 10NTLW3500 16Ω
60–3500 Hz
No price for delivery to the UK
- Fs
- 64Hz
- Xmax
- 6.4mm
- SPL
- 92dB
- Pe
- 800W
- BL
- 23.9T·m
- Vd
- 221cm³
- Qts
- 0.45
- Vas
- 18L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
173 plotted pointsSource file SHA-256 44d69cbf16d8…Medium confidence2,489 selected pixels of 2,672 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 44d69cbf16d8…Medium confidence626 selected pixels of 850
Published graphs
Eighteen Sound 10NTLW3500 is a 10-inch 16 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 64 Hz, Qts 0.45, Vas 18.1 L, Xmax 6.4 mm, sensitivity 92.2 dB, plus 221 cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 64Hz
- Qts
- 0.45
- Qes
- 0.46
- Qms
- 10.8
- Vas
- 18.1L
- Re
- 11.4Ω
- Le
- 0.69mH
Motor and cone
- BL
- 23.9T·m
- Sd
- 346cm²
- Mms
- 58g
- Xmax
- 6.4mm
- Vd †
- 221cm³
Power and response
- Sensitivity †
- 92.2dB
- Manufacturer sensitivity
- 94dB
- Power
- 800W
- Nominal power
- 800W
- Impedance
- 16Ω
- Range
- 60–3500Hz
- EBP †
- 139 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 233mm
- Bolt circle
- 245mm
- Depth
- 177mm
- Weight
- 4.2kg
Other published values
- Power Program
- 1600
Sensitivity shows 92.2 dB, calculated from the T/S values. Eighteen Sound publishes 94.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 23.9T·m
- Fs
- 64Hz
- Le
- 0.69mH
- Re
- 11.4Ω
- Sd
- 346cm²
- Mms
- 58g
- Qes
- 0.46
- Qms
- 10.8
- Qts
- 0.45
- SPL
- 92.2dB
- Vas
- 18.1L
- Xmax
- 6.4mm
- Power
- 800W
- Impedance
- 16Ω
- Sensitivity
- 94dB
- Low limit
- 60Hz
- Nominal power
- 800W
- Power Program
- 1600
- Calculated sensitivity †
- 92.2dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 94dB
- Weight
- 4.2kg
- Diameter
- 260mm
- Depth
- 177mm
- Cutout
- 233mm
- Bolt circle
- 245mm
02
Designs
What Eighteen Sound suggests for the 10NTLW3500. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10NTLW3500 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NTLW3500. Clear differences are green when better and red when worse.
This driver10NTLW3500
Best price
–
Fs
64 Hz
Qts
0.45
Vas
18.1 L
BL
23.9 T·m
Xmax
6.4 mm
Sensitivity
92.2 dB
Power
800 W
Beyma10CMV2
£52.32Fs52 Hz −19%, better
Qts0.42 −7%
Vas44 L +143%, worse
BL13.4 T·m −44%, worse
Xmax6.5 mm –
Sensitivity93.2 dB +1
PRV Audio10MR650A
£63.28Fs65 Hz –
Qts0.47 +4%
Vas41.9 L +131%, worse
BL12.3 T·m −49%, worse
Xmax5.7 mm −11%, worse
Sensitivity95.8 dB +3.6, better
Beyma10BR60
£86.08Fs29 Hz −55%, better
Qts0.39 −13%, better
Vas142 L +685%, worse
BL10.9 T·m −54%, worse
Xmax6.5 mm –
Sensitivity91 dB −1.2
EminenceLEGEND BP102
£91.00Fs35 Hz −45%, better
Qts0.43 −4%
Vas91.2 L +404%, worse
BL10 T·m −58%, worse
Xmax6.2 mm −3%
Sensitivity91.2 dB −1
B&C10CLA64
£115.34Fs72 Hz +13%, worse
Qts0.41 −9%
Vas21 L +16%, worse
BL18.8 T·m −21%, worse
Xmax4.5 mm −30%, worse
Sensitivity94.3 dB +2.1, better
Dayton AudioLS10-44
£115.49Fs34 Hz −46%, better
Qts0.43 −4%
Vas30.8 L +70%, worse
BL21.1 T·m −12%, worse
Xmax10 mm +56%, better
Sensitivity86.3 dB −5.9, worse
LavoceCSF102.50K
£141.89Fs65 Hz –
Qts0.45 –
Vas29.9 L +65%, worse
BL12.9 T·m −46%, worse
Xmax6.3 mm –
Sensitivity94.4 dB +2.2, better
Eighteen Sound10W650
£142.92Fs64 Hz –
Qts0.41 −9%
Vas27 L +49%, worse
BL19.2 T·m −20%, worse
Xmax5.7 mm −11%, worse
Sensitivity94.2 dB +2, better
FaitalPRO10FH500
£155.47Fs65 Hz –
Qts0.42 −7%
Vas19.2 L +6%
BL23.8 T·m –
Xmax7.3 mm +13%, better
Sensitivity92.9 dB +0.7
Eighteen Sound10MB600
£159.63Fs64 Hz –
Qts0.33 −27%, better
Vas27.6 L +52%, worse
BL22.3 T·m −7%
Xmax6.5 mm –
Sensitivity95.2 dB +3, better
FaitalPRO10FH520
£170.10Fs65 Hz –
Qts0.41 −9%
Vas22.7 L +25%, worse
BL23.5 T·m –
Xmax7 mm +9%
Sensitivity93.7 dB +1.5
FaitalPRO10FH530
£188.05Fs67 Hz +5%
Qts0.39 −13%, better
Vas20.2 L +12%, worse
BL25.1 T·m +5%
Xmax7.5 mm +16%, better
Sensitivity93.8 dB +1.6
B&C10NW76
£198.52Fs68 Hz +6%
Qts0.29 −36%, better
Vas18.5 L –
BL24.7 T·m +3%
Xmax7 mm +9%
Sensitivity94.9 dB +2.7, better
Dayton AudioMX10-22
£216.01Fs33 Hz −49%, better
Qts0.46 –
Vas23.8 L +31%, worse
BL18.2 T·m −24%, worse
Xmax11.6 mm +81%, better
Sensitivity83.9 dB −8.3, worse
Scanspeak25W/8565-00
£221.44Fs20 Hz −69%, better
Qts0.41 −9%
Vas225 L +1143%, worse
BL8.2 T·m −66%, worse
Xmax6.5 mm –
Sensitivity88.1 dB −4.1, worse
B&C10FCX64
£237.42Fs63 Hz –
Qts0.42 −7%
Vas25 L +38%, worse
BL13.4 T·m −44%, worse
Xmax6 mm −6%
Sensitivity93.6 dB +1.4
WavecorSW280WA04
£241.54Fs34 Hz −47%, better
Qts0.45 –
Vas30.5 L +69%, worse
BL15.5 T·m −35%, worse
Xmax6 mm −6%
Sensitivity86.1 dB −6.1, worse
WavecorSW280WA03
£241.54Fs35 Hz −46%, better
Qts0.46 –
Vas29.7 L +64%, worse
BL12.5 T·m −48%, worse
Xmax6 mm −6%
Sensitivity86.1 dB −6.1, worse
WavecorSW280WA01
£408.19Fs27 Hz −58%, better
Qts0.41 −9%
Vas41.4 L +129%, worse
BL13.4 T·m −44%, worse
Xmax6 mm −6%
Sensitivity84.5 dB −7.7, worse
PeerlessFSL-1025R03-06
No current priceFs66 Hz +3%
Qts0.46 –
Vas18.1 L –
BL14.3 T·m −40%, worse
Xmax6.3 mm –
Sensitivity92.1 dB –

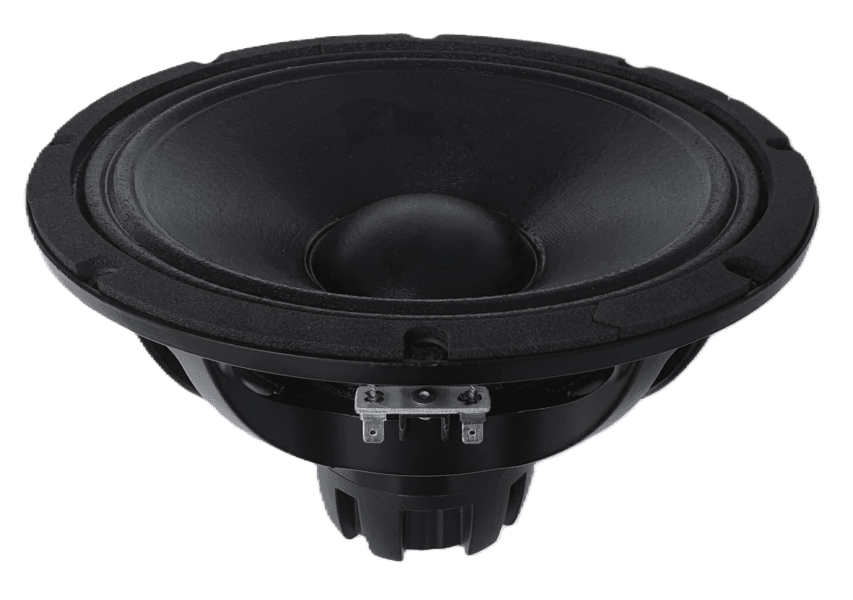

Eighteen Sound10NTLW2500
No current priceFs66 Hz +3%
Qts0.39 −13%, better
Vas20.9 L +15%, worse
BL21.9 T·m −8%
Xmax7.6 mm +19%, better
Sensitivity93.8 dB +1.6
Dayton AudioSS10-22
No current priceFs34 Hz −47%, better
Qts0.40 −11%, better
Vas20.6 L +14%, worse
BL19.4 T·m −19%, worse
Xmax21 mm +228%, better
Sensitivity84.6 dB −7.6, worse
No photo
PHL Audio3040
No current priceFs91 Hz +42%, worse
Qts0.45 –
Vas20.4 L +13%, worse
BL14.3 T·m −40%, worse
Xmax2 mm −69%, worse
Sensitivity96.8 dB +4.6, better
No photo
PHL Audio3040NDM
No current priceFs91 Hz +42%, worse
Qts0.43 −4%
Vas20.4 L +13%, worse
BL14.5 T·m −39%, worse
Xmax2 mm −69%, worse
Sensitivity97 dB +4.8, better
Oberton10NMB500
No current priceFs68 Hz +7%
Qts0.41 −9%
Vas18.6 L –
BL14.6 T·m −39%, worse
Xmax8.3 mm +29%, better
Sensitivity93.5 dB +1.3
Dayton AudioSD270A-88
No current priceFs26 Hz −59%, better
Qts0.43 −4%
Vas107.5 L +494%, worse
BL7.8 T·m −67%, worse
Xmax6 mm −6%
Sensitivity87.9 dB −4.3, worse
WavecorSW280WA02
No current priceFs27 Hz −58%, better
Qts0.48 +7%
Vas41.4 L +129%, worse
BL16.6 T·m −31%, worse
Xmax6 mm −6%
Sensitivity83.9 dB −8.3, worse
LavoceWAN102.50LD
No current priceFs52 Hz −19%, better
Qts0.40 −11%, better
Vas23.9 L +32%, worse
BL19.6 T·m −18%, worse
Xmax11.5 mm +80%, better
Sensitivity91.1 dB −1.1
B&C10CXN76
No current priceFs58 Hz −9%
Qts0.30 −33%, better
Vas19 L +5%
BL18.9 T·m −21%, worse
Xmax6 mm −6%
Sensitivity92.8 dB +0.6
PRV Audio10W1000-NDY
No current priceFs62 Hz –
Qts0.40 −11%, better
Vas39 L +115%, worse
BL12.7 T·m −47%, worse
Xmax6.5 mm –
Sensitivity95.5 dB +3.3, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
