Eighteen Sound 10MB600 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /10MB600

Media

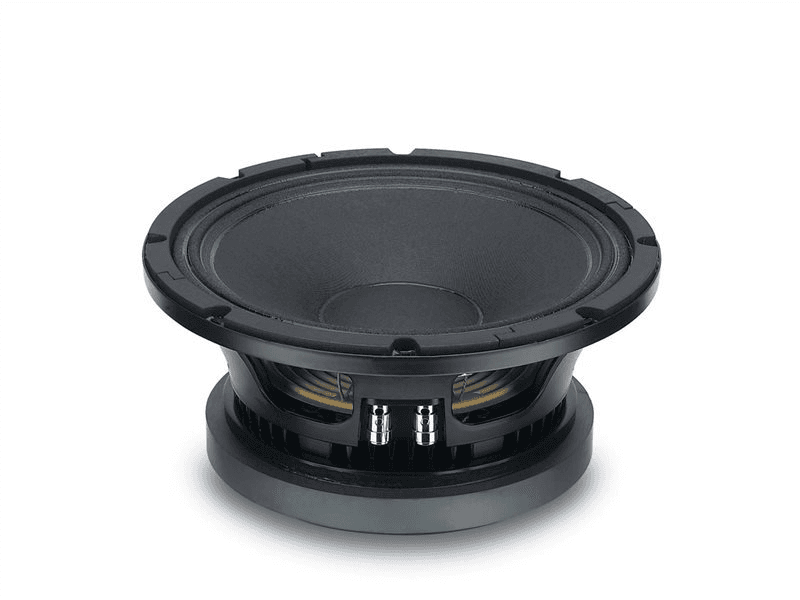

Eighteen Sound 10MB600 10 inch 16 ohm loudspeaker driver

Overview

LF Driver
Eighteen Sound

Eighteen Sound 10MB600

Eighteen Sound 10MB600 is a 10" 16 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 64Hz, Qts 0.33, Vas 27.6L, Xmax 6.5mm, sensitivity 95.2dB, plus 228cm³ Vd and 183 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
10"
Impedance
16Ω
RMS Power
450W
Sensitivity
95.2dB
98.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
183
Vented alignment
Vd
228cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
81787572691k2k5k10kHzdBfrequency response
frequency response155 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    155 plotted pointsSource file SHA-256 23fc1fff428b…Medium confidence1,666 selected pixels of 2,579
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 23fc1fff428b…Medium confidence5,830 selected pixels of 6,156
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs64Hz
Qts0.33
Qes0.35
Qms7.1
Vas27.6L
Re11.6Ω
Le2.77mH
BL22.3Tm
Sd350cm²
Mms37g
Xmax6.5mm
SPL95dB
Power450W
Power Nominal450W
Impedance16Ω
F Low55Hz
F High4500Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight7.2kg
Diameter260.0mm
Overall Depth127.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter244.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Eighteen Sound 10MB600 10 inch 16 ohm loudspeaker driver similar-driver reference
Reference
Eighteen Sound
10MB600
10"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

Beyma 10MCB700 10 inch 8 ohm loudspeaker driver similar driver
77%
Similarity
£171.06
Beyma
10MCB700
10"
Xmax7mm+8%
Qts0.330%
BL20.1Tm-10%
Vas13.2L-52%
Qes0.350%
BMS 10S302 10 inch 8 ohm loudspeaker driver similar driver
76%
Similarity
BMS
10S302
10"
Xmax5.5mm-15%
Qts0.330%
BL16.2Tm-27%
Vas30L+9%
Qes0.350%
RCF MB10G251 10 inch 8 ohm loudspeaker driver similar driver
74%
Similarity
£114.82
RCF
MB10G251
10"
Xmax7mm+8%
Qts0.34+3%
BL14.9Tm-33%
Vas24L-13%
Qes0.350%
RCF MB10G253 10 inch 8 ohm loudspeaker driver similar driver
74%
Similarity
RCF
MB10G253
10"
Xmax7mm+8%
Qts0.34+3%
BL14.9Tm-33%
Vas24L-13%
Qes0.350%
Monacor SP-10/250PRO 10 inch 8 ohm loudspeaker driver similar driver
74%
Similarity
Monacor
SP-10/250PRO
10"
Xmax7mm+8%
Qts0.330%
BL18.3Tm-18%
Vas40.7L+47%
Qes0.350%
Eighteen Sound 10NTLW2500 10 inch 8 ohm loudspeaker driver similar driver
73%
Similarity
£186.32
Eighteen Sound
10NTLW2500
10"
Xmax7.6mm+17%
Qts0.330%
BL17.4Tm-22%
Vas21L-24%
Qes0.34-3%
SB Audience NERO-10MWN600D 10 inch 8 ohm loudspeaker driver similar driver
72%
Similarity
£152.56
SB Audience
NERO-10MWN600D
10"
Xmax7.3mm+12%
Qts0.34+3%
BL18.2Tm-18%
Vas18.8L-32%
Qes0.36+3%
Image unavailable
70%
Similarity
PHL Audio
3400
10"
Xmax6.5mm0%
Qts0.28-15%
BL18.1Tm-19%
Vas30.6L+11%
Qes0.29-17%
FaitalPRO 10PR330 10 inch 16 ohm loudspeaker driver similar driver
70%
Similarity
£112.27
FaitalPRO
10PR330
10"
Xmax7.3mm+12%
Qts0.36+9%
BL19.5Tm-13%
Vas32.9L+19%
Qes0.4+14%
FaitalPRO 10FH520 10 inch 4 ohm loudspeaker driver similar driver
69%
Similarity
FaitalPRO
10FH520
10"
Xmax7.3mm+12%
Qts0.32-3%
BL15.3Tm-31%
Vas22.7L-18%
Qes0.33-6%
B&C 10CXN76 10 inch 8 ohm loudspeaker driver similar driver
69%
Similarity
B&C
10CXN76
10"
Xmax6mm-8%
Qts0.3-9%
BL18.9Tm-15%
Vas19L-31%
Qes0.31-11%

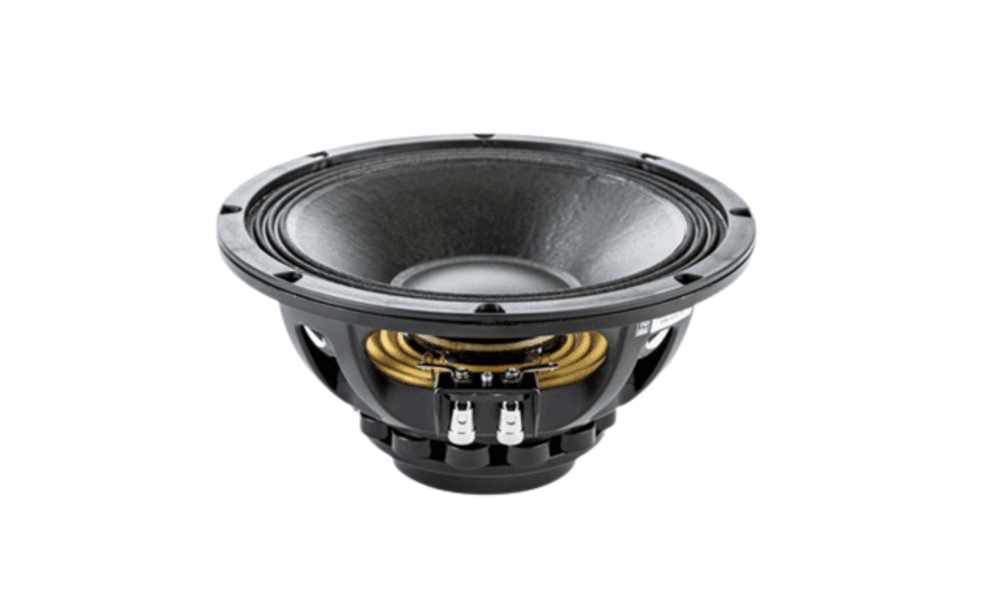

Eighteen Sound 10NW750 10 inch 16 ohm loudspeaker driver similar driver
