Overview
LF Driver
PRV Audio
PRV Audio 10MB1000FT
PRV Audio 10MB1000FT is a 10" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 75Hz, Qts 0.32, Vas 32.3L, Xmax 5.9mm, sensitivity 98.2dB, plus 223cm³ Vd and 227 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.2dB
EBP
227
Vented alignment
Vd
223cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs75Hz
Qts0.32
Qes0.33
Qms12.4
Vas32.3L
Re5.3Ω
Le0.26mH
BL14.5Tm
Sd380cm²
Mms28g
Xmax5.9mm
SPL98dB
Power500W
Impedance8Ω
F Low75Hz
F High7000Hz
Xover120Hz
Voice Coil75mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.8kg
Diameter260.5mm
Overall Depth126.0mm
Cutout Diameter229.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
10MB1000FT
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
87%
Similarity
Oberton
10B200
10"
Xmax5.8mm-2%
Qts0.35+9%
BL14.7Tm+1%
Vas31.9L-1%
Qes0.36+11%
87%
Similarity

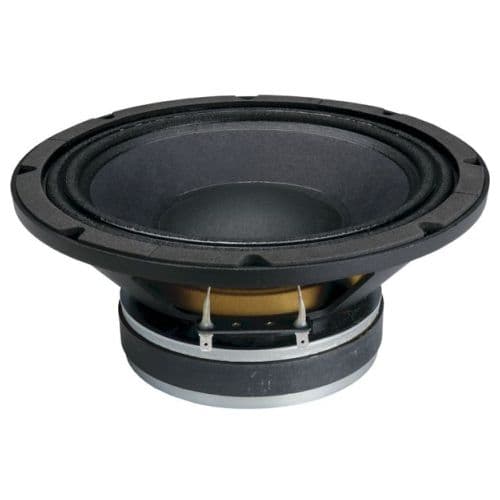

CIARE
PW257
10"
Xmax5.5mm-6%
Qts0.3-6%
BL15.9Tm+9%
Vas31L-4%
Qes0.330%
85%
Similarity
Fane
SOVEREIGN PRO 10-300
10"
Xmax5.5mm-6%
Qts0.320%
BL15.3Tm+6%
Vas41L+27%
Qes0.34+3%
84%
Similarity
£148.76
B&C
10PS26
10"
Xmax5.5mm-6%
Qts0.29-9%
BL14.1Tm-3%
Vas38L+18%
Qes0.330%
84%
Similarity
RCF
MB10G350
10"
Xmax7mm+19%
Qts0.31-3%
BL14.7Tm+1%
Vas34L+5%
Qes0.32-3%
83%
Similarity
£109.82
FaitalPRO
10PR310
10"
Xmax4.9mm-16%
Qts0.34+6%
BL14.4Tm-1%
Vas32.2L0%
Qes0.36+9%
82%
Similarity

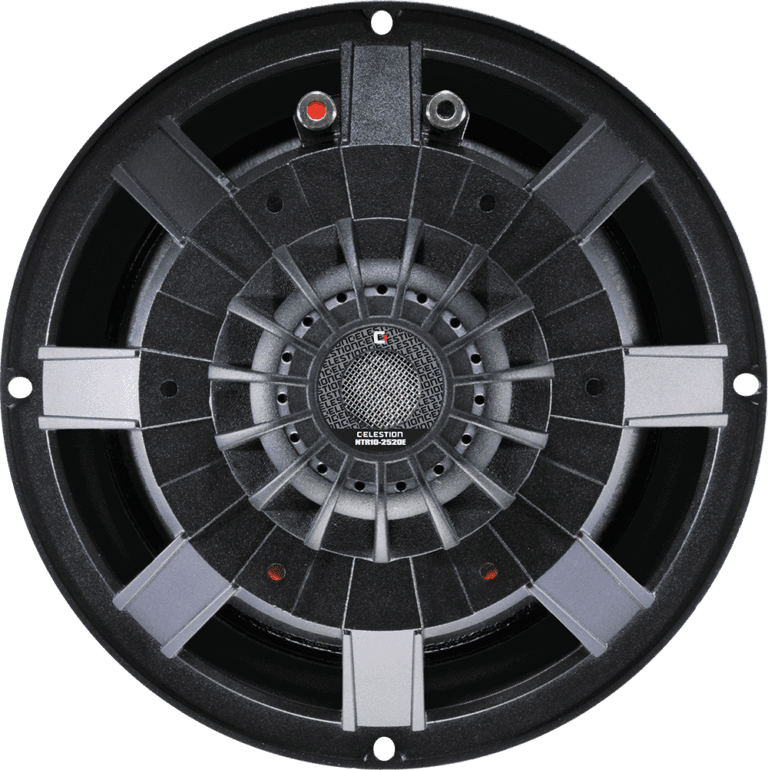

Celestion
NTR10-2520E
10"
Xmax5mm-15%
Qts0.31-3%
BL15.9Tm+10%
Vas30.1L-7%
Qes0.34+5%
80%
Similarity
Sica
10 FE 3 CP
10"
Xmax5mm-15%
Qts0.31-3%
BL15.3Tm+6%
Vas38.6L+20%
Qes0.32-3%
80%
Similarity
Oberton
10NMB200
10"
Xmax4.3mm-28%
Qts0.32-1%
BL14.1Tm-3%
Vas34.9L+8%
Qes0.33-1%
80%
Similarity
£261.58
Eighteen Sound
10CX650
10"
Xmax6mm+2%
Qts0.35+9%
BL14Tm-3%
Vas36.4L+13%
Qes0.39+18%
79%
Similarity
£112.27
FaitalPRO
10PR330
10"
Xmax7.4mm+26%
Qts0.33+3%
BL14.3Tm-1%
Vas32.5L+1%
Qes0.36+9%
77%
Similarity
£274.31
B&C
10CXN64
10"
Xmax5mm-15%
Qts0.31-3%
BL15.8Tm+9%
Vas23L-29%
Qes0.330%
