Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF Driver
PRV Audio
PRV Audio 10MB800FT
PRV Audio 10MB800FT is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 65Hz, Qts 0.32, Vas 36.7L, Xmax 3.5mm, sensitivity 96.8dB, plus 133cm³ Vd and 196 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £97.30.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.8dB
99.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
196
Vented alignment
Vd
133cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs65Hz
Qts0.32
Qes0.33
Qms15.4
Vas36.7L
Re5.1Ω
Le0.40mH
BL14.4Tm
Sd380cm²
Mms33g
Xmax3.5mm
SPL97dB
Power400W
Impedance8Ω
F Low65Hz
F High5300Hz
Voice Coil65mm
Pricing & availability
Price definitionsPrice movement
Best current price
£97.30
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter260.5mm
Overall Depth119.0mm
Cutout Diameter228.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
10MB800FT
10"
Best current price
£97.30
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
70%
Similarity
46% cheaper£52.41
Dayton Audio
MB1025-8
10"
Lower price
Xmax3mm-14%
Qts0.34+6%
BL13.2Tm-8%
Vas50.7L+38%
Qes0.36+9%
79%
Similarity
35% cheaper£63.00
Celestion
TF1020
10"
Lower price
Xmax4mm+14%
Qts0.32+1%
BL14.1Tm-2%
Vas28.8L-22%
Qes0.37+13%
56%
Similarity
18% cheaper£79.75
CIARE
FXI10
10"
Lower price
Xmax4.5mm+29%
Qts0.38+19%
BL13.3Tm-8%
Vas38.5L+5%
Qes0.41+24%
50%
Similarity
5% more£102.26
Lavoce
WSN102.50
10"
Higher price
Xmax2.9mm-17%
Qts0.39+22%
BL14.1Tm-2%
Vas20.7L-44%
Qes0.43+30%
69%
Similarity
39% more£135.00
Celestion
CF1025C
10"
Higher price
Xmax4.3mm+21%
Qts0.27-17%
BL14.8Tm+3%
Vas38.6L+5%
Qes0.3-9%
62%
Similarity
49% more£144.97
B&C
10NDL64
10"
Higher price
Xmax4.5mm+29%
Qts0.3-6%
BL19.1Tm+33%
Vas34.5L-6%
Qes0.330%
53%
Similarity
54% more£149.72
PRV Audio
10MR1200X
10"
Higher price
Xmax2.5mm-29%
Qts0.29-9%
BL17.5Tm+22%
Vas21.8L-41%
Qes0.3-9%
57%
Similarity
62% more£157.30
B&C
10MBX64
10"
Higher price
Xmax4mm+14%
Qts0.26-19%
BL16.9Tm+17%
Vas28L-24%
Qes0.27-18%
65%
Similarity
93% more£187.96
Eighteen Sound
10NMB420
10"
Higher price
Xmax4mm+14%
Qts0.25-22%
BL14.5Tm+1%
Vas40L+9%
Qes0.26-21%
84%
Similarity
Oberton
10NMB200
10"
Xmax4.3mm+21%
Qts0.32-1%
BL14.1Tm-2%
Vas34.9L-5%
Qes0.33-1%
79%
Similarity
Monacor
TF1020/8
10"
Xmax4mm+14%
Qts0.32+1%
BL14.1Tm-2%
Vas28.8L-22%
Qes0.37+13%
78%
Similarity

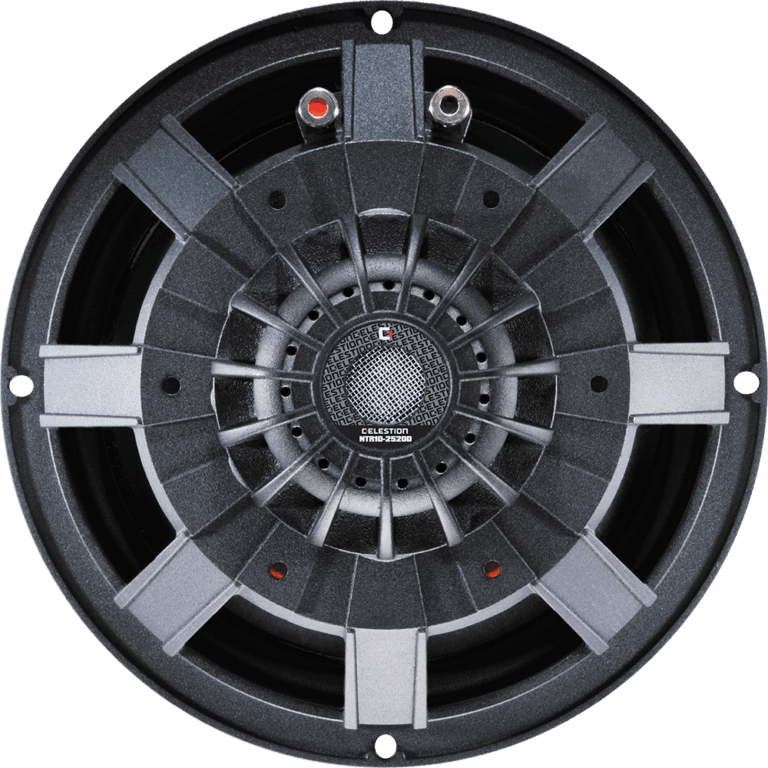

Celestion
NTR10-2520D
10"
Xmax4mm+14%
Qts0.29-10%
BL15.8Tm+10%
Vas34.7L-6%
Qes0.32-2%
