Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCelestion FTR10-2055D 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverFTR10 series
Celestion

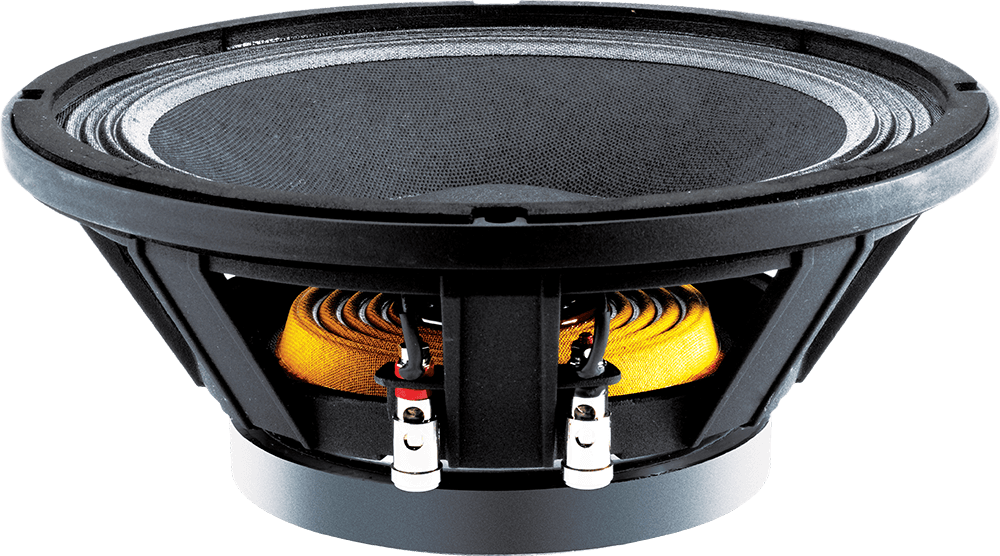

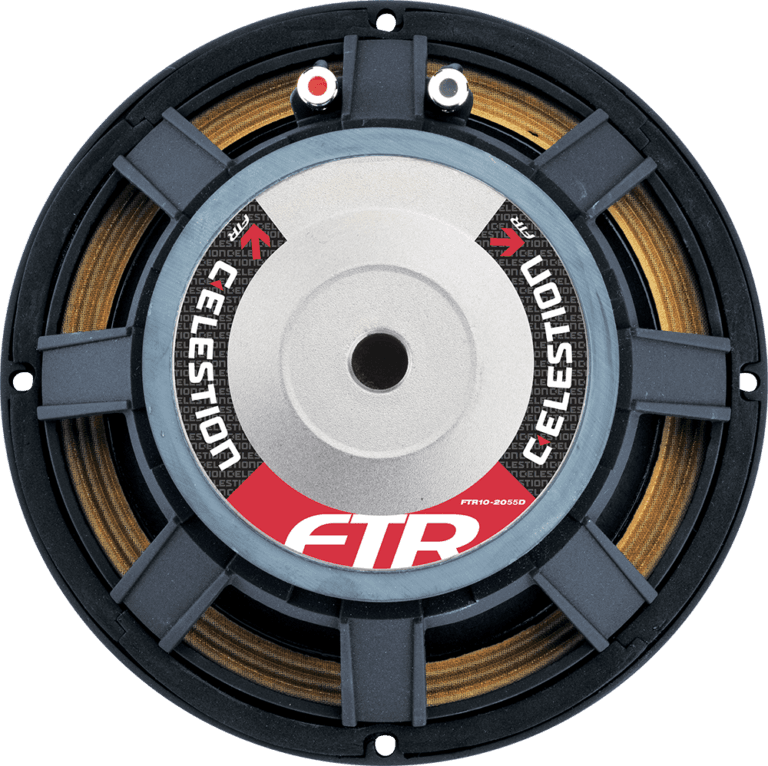

Celestion FTR10-2055D
Celestion FTR10-2055D is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 58Hz, Qts 0.34, Vas 36.9L, Xmax 4mm, sensitivity 94.6dB, plus 139cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.6dB
93.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
147
Vented alignment
Vd
139cm³

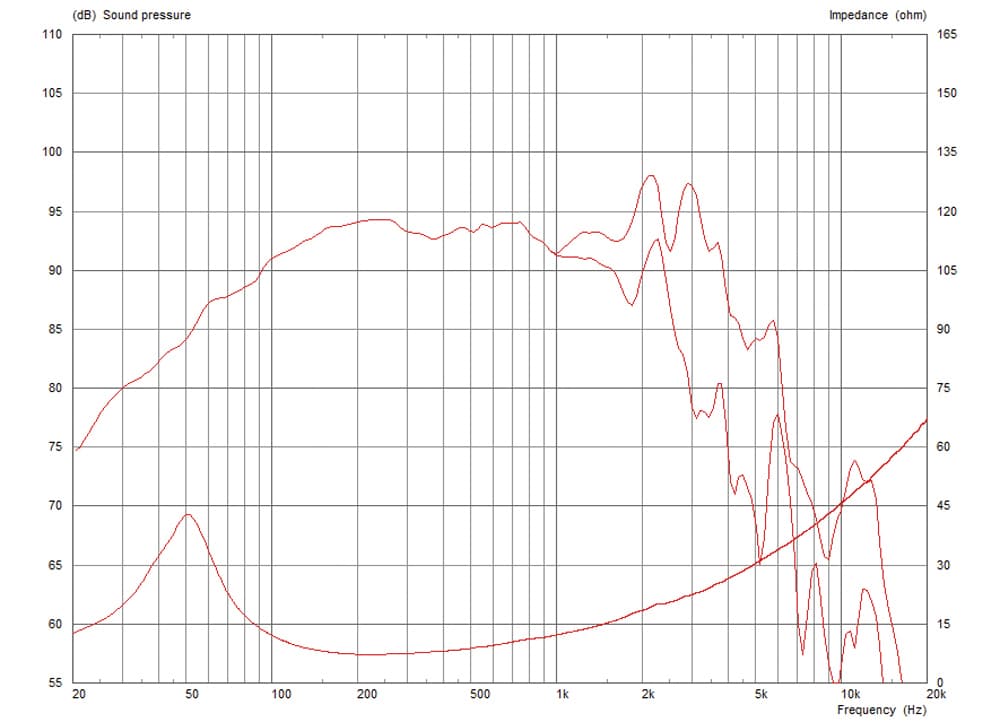

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence162 selected pixels of 310
T/S Parameters
Valid
Fs58Hz
Qts0.34
Qes0.39
Qms2.7
Vas36.9L
Re5.9Ω
Le0.46mH
BL13.8Tm
Sd346cm²
Mms35g
Xmax4.0mm
SPL95dB
Power200W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter260.0mm
Overall Depth112.0mm
Cutout Diameter235.0mm
Bolt Circle Diameter247.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
FTR10-2055D
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
Sica
10 FE 2.5 CP
10"
Xmax4mm0%
Qts0.37+8%
BL12.8Tm-7%
Vas39.7L+8%
Qes0.4+2%
87%
Similarity

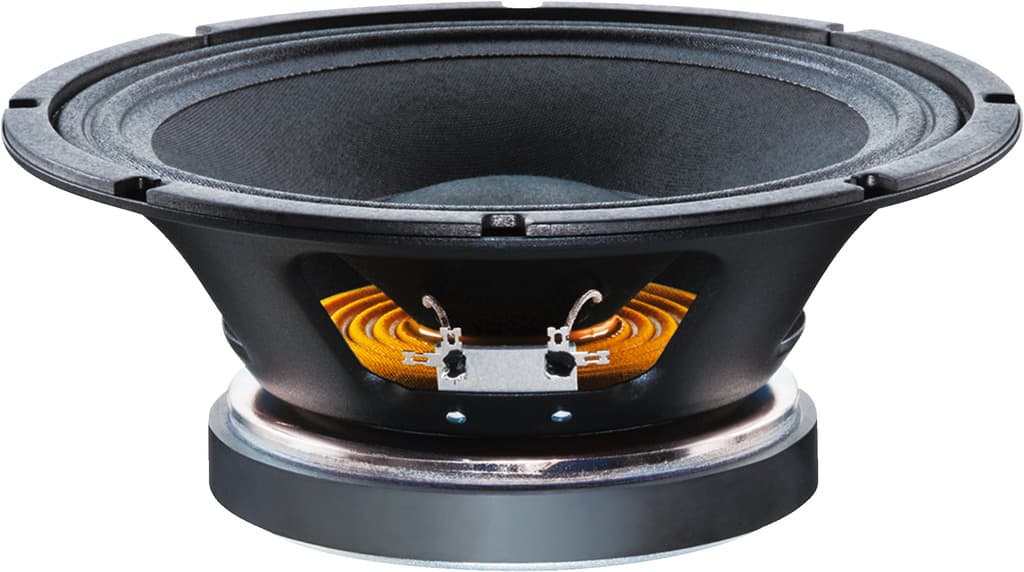

Monacor
TF1020/8
10"
Xmax4mm0%
Qts0.32-6%
BL14.1Tm+2%
Vas28.8L-22%
Qes0.37-5%
87%
Similarity
£64.00
Celestion
TF1020
10"
Xmax4mm0%
Qts0.32-6%
BL14.1Tm+2%
Vas28.8L-22%
Qes0.37-5%
83%
Similarity
Sica
10 N 2.5 PL
10"
Xmax4.5mm+13%
Qts0.36+5%
BL12.8Tm-7%
Vas40.9L+11%
Qes0.39-1%
82%
Similarity

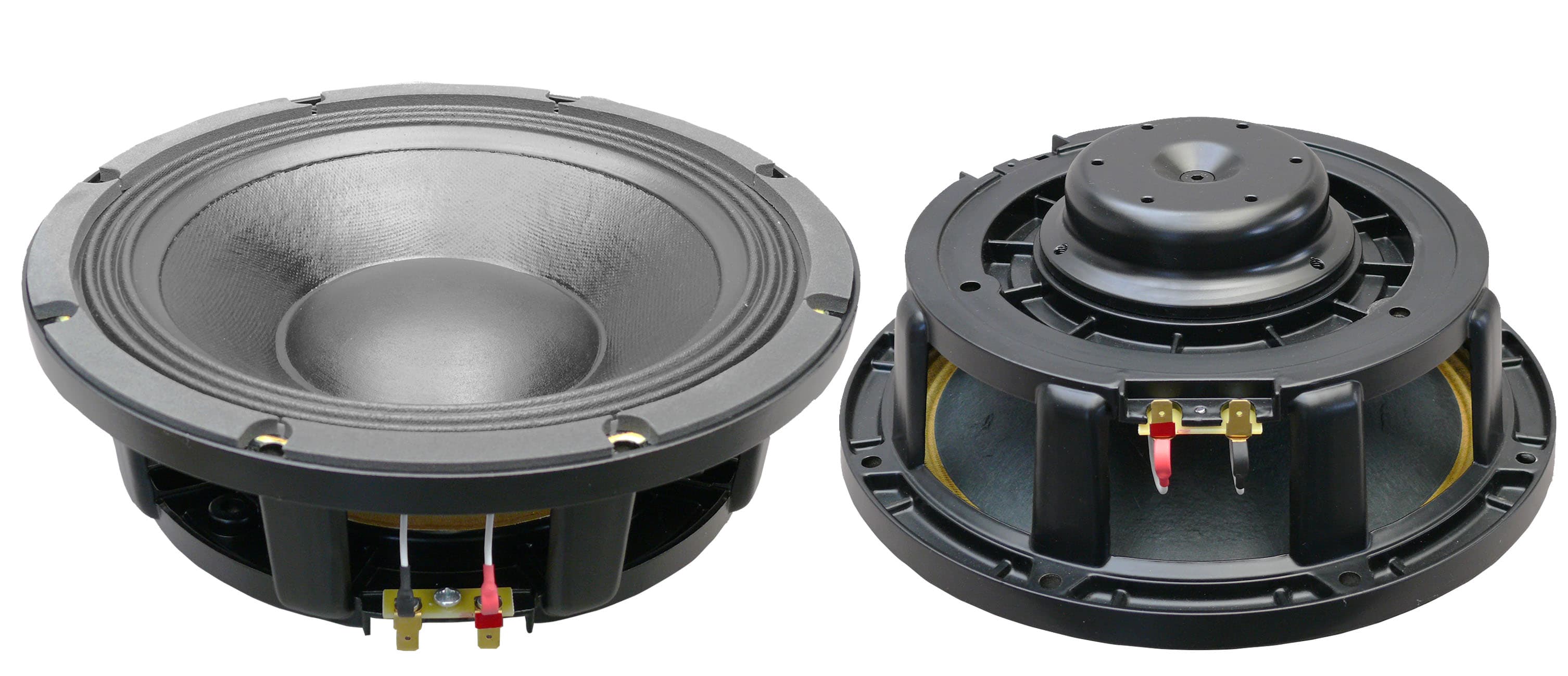

Oberton
10NMB200
10"
Xmax4.3mm+6%
Qts0.32-8%
BL14.1Tm+2%
Vas34.9L-5%
Qes0.33-17%
81%
Similarity
£79.75
CIARE
FXI10
10"
Xmax4.5mm+13%
Qts0.38+11%
BL13.3Tm-4%
Vas38.5L+4%
Qes0.41+5%
80%
Similarity
Peerless
FSL-1020R02-08
10"
Xmax5.1mm+27%
Qts0.36+5%
BL13.6Tm-2%
Vas38.5L+4%
Qes0.390%
80%
Similarity

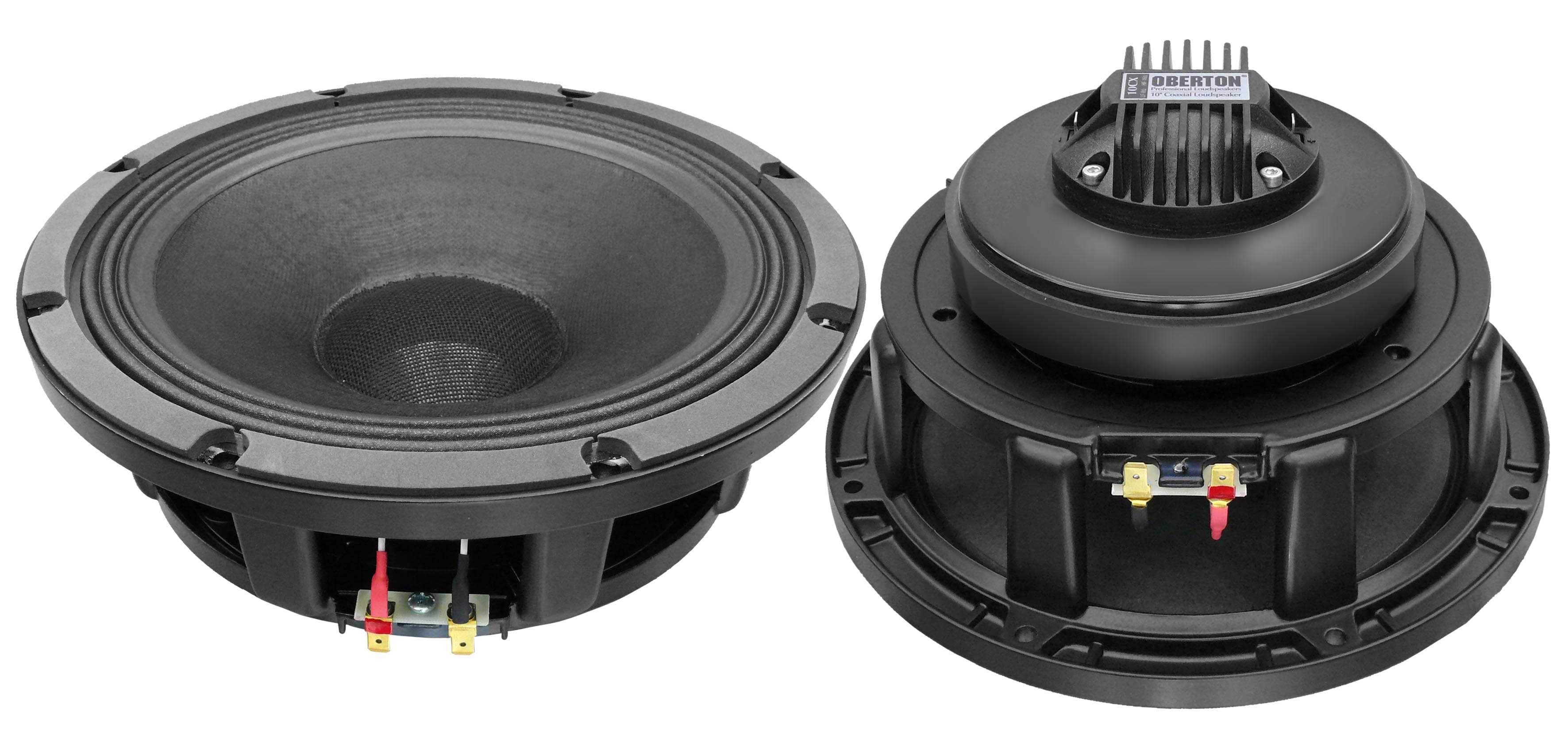

Oberton
