10-inch LF driver · CF1025 series · 64 mm voice coil · 300 W

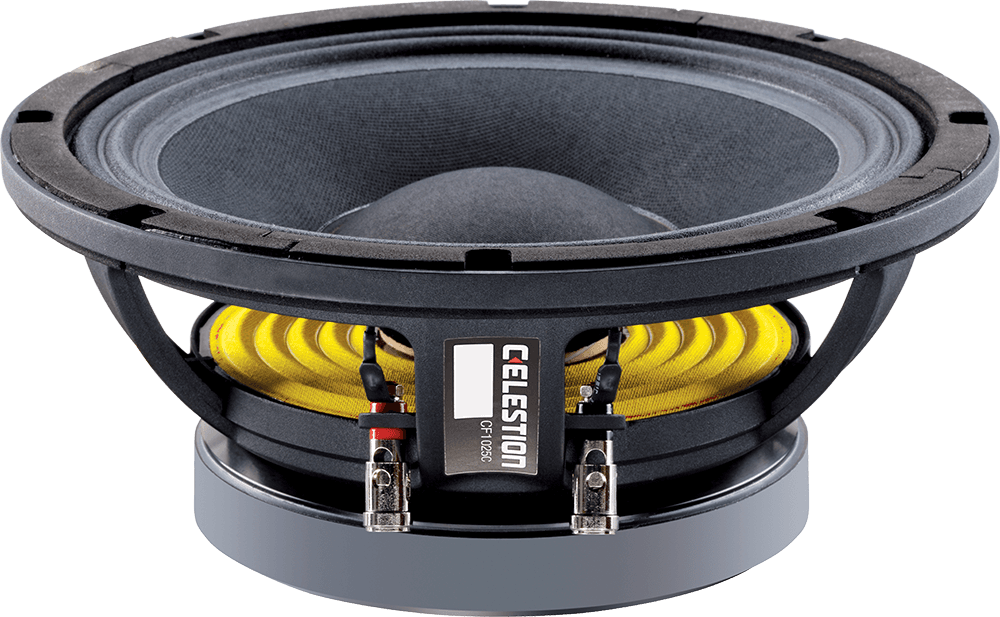

Celestion CF1025C 8Ω
8 Ω · 60–5000 Hz
£135.00
SteadyLean Business · All 2 offers
- Fs
- 55Hz
- Xmax
- 4.3mm
- SPL
- 95dB
- Pe
- 300W
- BL
- 14.8T·m
- Vd
- 147cm³
- Qts
- 0.27
- Vas
- 39L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

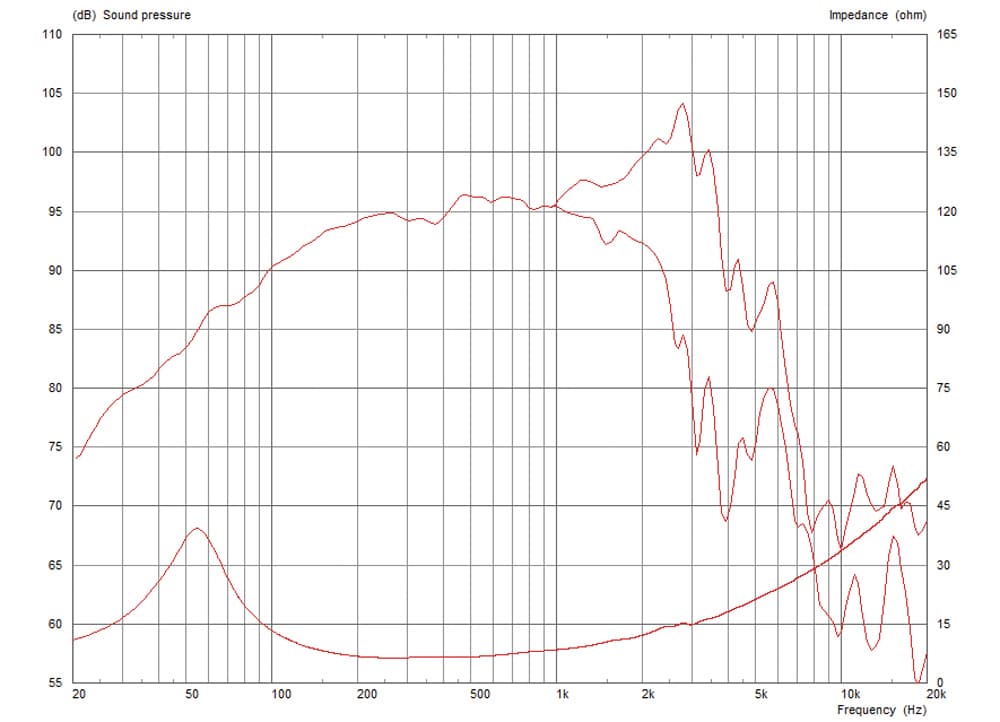

LF frequency response
Frequency response
137 plotted pointsMedium confidence171 selected pixels of 336
Published graphs
Celestion CF1025C is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.27, Vas 38.6 L, Xmax 4.3 mm, sensitivity 95.3 dB, plus 147 cm³ Vd and 183 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £135.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.27
- Qes
- 0.30
- Qms
- 2.3
- Vas
- 38.6L
- Re
- 5.2Ω
- Le
- 0.57mH
Motor and cone
- BL
- 14.8T·m
- Sd
- 346cm²
- Mms
- 37g
- Xmax
- 4.3mm
- Vd †
- 147cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 99dB
- Power
- 300W
- Impedance
- 8Ω
- Range
- 60–5000Hz
- EBP †
- 183 · Leans vented
Size and mounting
- Diameter
- 265mm
- Cutout
- 230.8mm
- Bolt circle
- 247mm
- Depth
- 119mm
- Weight
- 4.9kg
Other published values
- Cms
- 0.23mm/N
- Rms
- 5.46kg/s
- Power Program
- 600
Sensitivity shows 95.3 dB, calculated from the T/S values. Celestion publishes 99.0 dB, 3.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 10″
- BL
- 14.8T·m
- Fs
- 55Hz
- Le
- 0.57mH
- Re
- 5.2Ω
- Sd
- 346cm²
- Cms
- 0.23mm/N
- Mms
- 37g
- Qes
- 0.30
- Qms
- 2.3
- Qts
- 0.27
- Rms
- 5.46kg/s
- SPL
- 95.3dB
- Vas
- 38.6L
- Xmax
- 4.3mm
- Power
- 300W
- Impedance
- 8Ω
- Sensitivity
- 99dB
- Low limit
- 60Hz
- Power Program
- 600
- Calculated sensitivity †
- 95.3dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 99dB
- Voice coil
- 64mm
- Weight
- 4.9kg
- Diameter
- 265mm
- Depth
- 119mm
- Cutout
- 230.8mm
- Bolt circle
- 247mm
02
Compare
Same-size drivers, compared with the CF1025C. Clear differences are green when better and red when worse.
This driverCF1025C
Best price
£135.00
Fs
55 Hz
Qts
0.27
Vas
38.6 L
BL
14.8 T·m
Xmax
4.3 mm
Sensitivity
95.3 dB
Power
300 W
PRV Audio10MB800FT
£97.18 · 28% less, betterFs65 Hz +18%, worse
Qts0.32 +21%, worse
Vas36.7 L −5%
BL14.4 T·m –
Xmax3.5 mm −18%, worse
Sensitivity96.8 dB +1.5
B&C10HPL64
£115.00 · 15% less, betterFs61 Hz +11%, worse
Qts0.31 +17%, worse
Vas32 L −17%, better
BL15 T·m –
Xmax4 mm −6%
Sensitivity95.5 dB –
Eighteen Sound10W500
£119.37 · 12% less, betterFs53 Hz −3%
Qts0.29 +9%
Vas45.2 L +17%, worse
BL14.6 T·m –
Xmax5.5 mm +29%, better
Sensitivity95.4 dB –
FaitalPRO10PR300
£129.78 · 4% lessFs60 Hz +9%
Qts0.28 +6%
Vas42.2 L +9%
BL14.1 T·m −5%
Xmax4.9 mm +16%, better
Sensitivity97 dB +1.7
B&C10NDL64
£144.00 · 7% more, worseFs56 Hz –
Qts0.26 –
Vas31 L −20%, better
BL16.2 T·m +9%
Xmax6 mm +41%, better
Sensitivity94.8 dB −0.5
B&C10PS26
£148.76 · 10% more, worseFs54 Hz –
Qts0.29 +9%
Vas38 L –
BL14.1 T·m −5%
Xmax5.5 mm +29%, better
Sensitivity94.6 dB −0.7
B&C10MBX64
£157.30 · 17% more, worseFs65 Hz +19%, worse
Qts0.26 –
Vas28 L −28%, better
BL16.9 T·m +14%, better
Xmax4 mm −6%
Sensitivity96.6 dB +1.3
Eighteen Sound10NTLS2000
£157.64 · 17% more, worseFs50 Hz −9%
Qts0.26 –
Vas38 L –
BL16.7 T·m +13%, better
Xmax7.4 mm +74%, better
Sensitivity94.5 dB −0.8
Eighteen Sound10NW650
£159.93 · 18% more, worseFs51 Hz −7%
Qts0.28 +6%
Vas48 L +24%, worse
BL14 T·m −6%
Xmax7 mm +65%, better
Sensitivity95.4 dB –
Eighteen Sound10NMB420
£182.53 · 35% more, worseFs56 Hz –
Qts0.25 −6%
Vas40 L +4%
BL14.5 T·m –
Xmax4 mm −6%
Sensitivity96.3 dB +1
Sica10 N 3 PL
£200.12 · 48% more, worseFs51 Hz −7%
Qts0.29 +9%
Vas40.5 L +5%
BL15.9 T·m +7%
Xmax5.5 mm +29%, better
Sensitivity94.6 dB −0.7
Eighteen Sound10NMBA520
£225.00 · 67% more, worseFs60 Hz +9%
Qts0.23 −13%, better
Vas42 L +9%
BL14.6 T·m –
Xmax4 mm −6%
Sensitivity97.8 dB +2.5, better
FaitalPRO10HX240
£308.97 · 129% more, worseFs65 Hz +19%, worse
Qts0.28 +6%
Vas31.8 L −18%, better
BL15.5 T·m +5%
Xmax7.4 mm +73%, better
Sensitivity96.7 dB +1.4
RCFMB10N251
No current priceFs55 Hz –
Qts0.27 –
Vas39 L –
BL15.2 T·m –
Xmax5 mm +18%, better
Sensitivity95.5 dB –
MonacorSP-10A/302PA
No current priceFs55 Hz –
Qts0.30 +13%, worse
Vas40 L +4%
BL15.8 T·m +7%
Xmax4 mm −6%
Sensitivity95.3 dB –
CelestionNTR10-2520D
No current priceFs57 Hz +4%
Qts0.29 +9%
Vas34.7 L −10%, better
BL15.8 T·m +7%
Xmax4 mm −6%
Sensitivity95.1 dB –
WavecorWF259PA01
No current priceFs54 Hz –
Qts0.29 +9%
Vas31 L −20%, better
BL14.1 T·m −5%
Xmax4.5 mm +6%
Sensitivity94.3 dB −1
WavecorWF259PA02
No current priceFs52 Hz −5%
Qts0.28 +6%
Vas33 L −15%, better
BL16.8 T·m +13%, better
Xmax4.5 mm +6%
Sensitivity94.2 dB −1.1
Oberton10NMB200
No current priceFs59 Hz +7%
Qts0.32 +19%, worse
Vas34.9 L −10%
BL14.1 T·m −5%
Xmax4.3 mm –
Sensitivity95.4 dB –
No photo
PHL Audio3430
No current priceFs56 Hz –
Qts0.30 +13%, worse
Vas36 L −7%
BL16 T·m +8%
Xmax4.5 mm +6%
Sensitivity94.9 dB –
PRV Audio10MB500-4
No current priceFs56 Hz –
Qts0.29 +9%
Vas47.6 L +23%, worse
BL12.3 T·m −17%, worse
Xmax4.5 mm +6%
Sensitivity96.4 dB +1.1
Sica10 PN 3
No current priceFs48 Hz −12%, better
Qts0.26 –
Vas40.1 L +4%
BL16.1 T·m +8%
Xmax7 mm +65%, better
Sensitivity94.1 dB −1.2
Sica10 FE 3 CP
No current priceFs52 Hz −5%
Qts0.31 +17%, worse
Vas38.6 L –
BL15.3 T·m +4%
Xmax5 mm +18%, better
Sensitivity94.3 dB −1
Sica10 K 3 PL
No current priceFs51 Hz −8%
Qts0.26 –
Vas40 L +4%
BL16.1 T·m +8%
Xmax6.5 mm +53%, better
Sensitivity94.9 dB –
REDCATT103FIND
No current priceFs56 Hz –
Qts0.29 +9%
Vas32.8 L −15%, better
BL18.2 T·m +23%, better
Xmax4.0 mm −5%
Sensitivity94.6 dB −0.7
Sica10 CX 3 PL P
No current priceFs59 Hz +8%
Qts0.29 +9%
Vas36.1 L −7%
BL15.3 T·m +3%
Xmax6 mm +41%, better
Sensitivity95.8 dB +0.5
Sica10 S 3 PL
No current priceFs43 Hz −22%, better
Qts0.27 –
Vas39.9 L +3%
BL16.9 T·m +14%, better
Xmax7 mm +65%, better
Sensitivity92.6 dB −2.7, worse
No photo
PHL Audio3001NDU
No current priceFs57 Hz +4%
Qts0.31 +17%, worse
Vas31.5 L −18%, better
BL16.1 T·m +9%
Xmax4.5 mm +6%
Sensitivity94.5 dB −0.8
No photo
REDCATT10NPM-1
No current priceFs64 Hz +17%, worse
Qts0.28 +6%
Vas23 L −40%, better
BL18.3 T·m +23%, better
Xmax4.0 mm −5%
Sensitivity95.2 dB –
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £135.00, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £135.00 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
