- Net volume
- 15L
- Tuning
- 64Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
10-inch LF driver · 300 W
Eighteen Sound 10NMBA520 8Ω
8 Ω · 60–7000 Hz
£225.00
SteadyLean Business · All 3 offers
- Fs
- 60Hz
- Xmax
- 4mm
- SPL
- 98dB
- Pe
- 300W
- BL
- 14.6T·m
- Vd
- 140cm³
- Qts
- 0.23
- Vas
- 42L

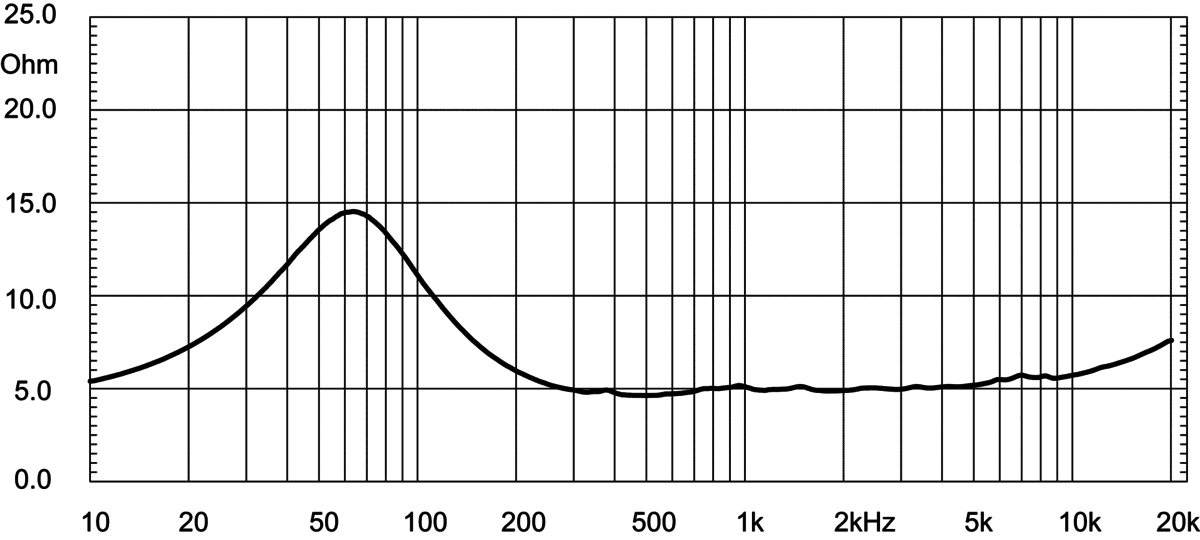

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

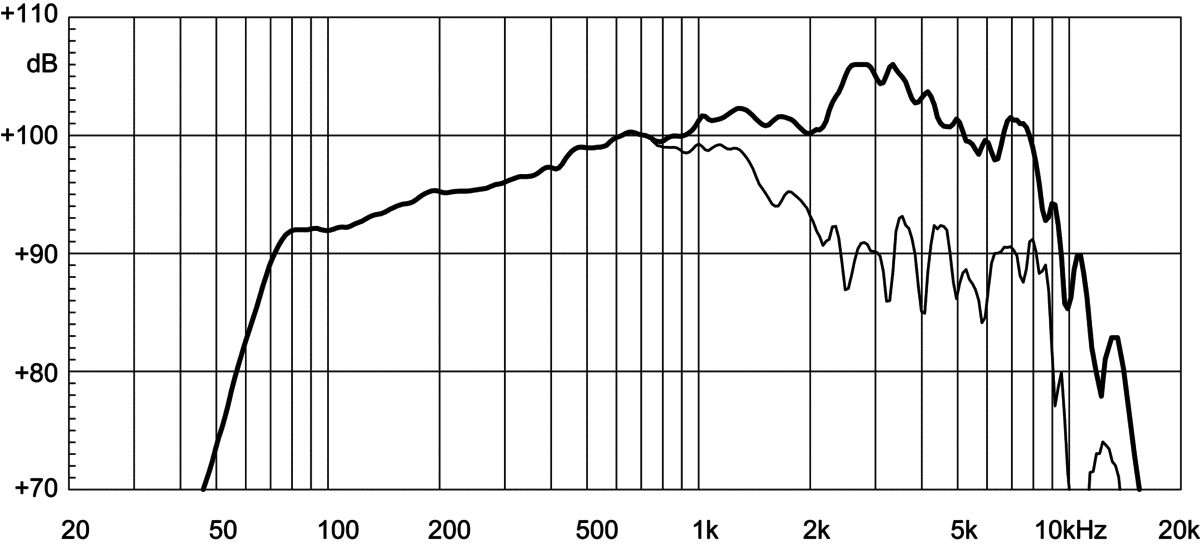

Frequency response
240 plotted pointsMedium confidence2,835 selected pixels of 2,907
Published graphs
Eighteen Sound 10NMBA520 is a 10-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 60 Hz, Qts 0.23, Vas 42 L, Xmax 4 mm, sensitivity 97.8 dB, plus 140 cm³ Vd and 250 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £225.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 4.2
- Vas
- 42L
- Re
- 5Ω
- Le
- 0.01mH
Motor and cone
- BL
- 14.6T·m
- Sd
- 350cm²
- Mms
- 28g
- Xmax
- 4mm
- Vd †
- 140cm³
Power and response
- Sensitivity †
- 97.8dB
- Manufacturer sensitivity
- 100.5dB
- Power
- 300W
- Nominal power
- 300W
- Impedance
- 8Ω
- Range
- 60–7000Hz
- EBP †
- 250 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 232mm
- Bolt circle
- 275mm
- Depth
- 104mm
- Weight
- 3kg
Other published values
- Power Program
- 600
Sensitivity shows 97.8 dB, calculated from the T/S values. Eighteen Sound publishes 100.5 dB, 2.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 14.6T·m
- Fs
- 60Hz
- Le
- 0.01mH
- Re
- 5Ω
- Sd
- 350cm²
- Mms
- 28g
- Qes
- 0.24
- Qms
- 4.2
- Qts
- 0.23
- SPL
- 97.8dB
- Vas
- 42L
- Xmax
- 4mm
- Power
- 300W
- Impedance
- 8Ω
- Sensitivity
- 100.5dB
- Low limit
- 60Hz
- Nominal power
- 300W
- Power Program
- 600
- Calculated sensitivity †
- 97.8dB
- High limit
- 7000Hz
- Manufacturer sensitivity
- 100.5dB
- Weight
- 3kg
- Diameter
- 260mm
- Depth
- 104mm
- Cutout
- 232mm
- Bolt circle
- 275mm
02
Designs
What Eighteen Sound suggests for the 10NMBA520. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10NMBA520 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NMBA520. Clear differences are green when better and red when worse.
This driver10NMBA520
Best price
£225.00
Fs
60 Hz
Qts
0.23
Vas
42 L
BL
14.6 T·m
Xmax
4 mm
Sensitivity
97.8 dB
Power
300 W
CIAREPW252
£96.29 · 57% less, betterFs55 Hz −8%
Qts0.26 +13%, worse
Vas43.4 L +3%
BL15.2 T·m +4%
Xmax7 mm +75%, better
Sensitivity95.8 dB −2, worse
B&C10HPL64
£115.00 · 49% less, betterFs61 Hz –
Qts0.31 +35%, worse
Vas32 L −24%, better
BL15 T·m –
Xmax4 mm –
Sensitivity95.5 dB −2.3, worse
B&C10FW64
£123.92 · 45% less, betterFs63 Hz +5%
Qts0.23 –
Vas27 L −36%, better
BL16.4 T·m +12%, better
Xmax5 mm +25%, better
Sensitivity96.3 dB −1.5
FaitalPRO10PR300
£129.78 · 42% less, betterFs60 Hz –
Qts0.28 +22%, worse
Vas42.2 L –
BL14.1 T·m −3%
Xmax4.9 mm +23%, better
Sensitivity97 dB −0.8
Beyma10MI100
£134.51 · 40% less, betterFs50 Hz −17%, better
Qts0.21 −9%
Vas54 L +29%, worse
BL18.7 T·m +28%, better
Xmax4.5 mm +13%, better
Sensitivity96.9 dB −0.9
CelestionCF1025C
£135.00 · 40% less, betterFs55 Hz −9%
Qts0.27 +15%, worse
Vas38.6 L −8%
BL14.8 T·m –
Xmax4.3 mm +6%
Sensitivity95.3 dB −2.5, worse
B&C10MBX64
£157.30 · 30% less, betterFs65 Hz +8%
Qts0.26 +13%, worse
Vas28 L −33%, better
BL16.9 T·m +16%, better
Xmax4 mm –
Sensitivity96.6 dB −1.2
Eighteen Sound10NTLS2000
£157.64 · 30% less, betterFs50 Hz −17%, better
Qts0.26 +13%, worse
Vas38 L −10%
BL16.7 T·m +14%, better
Xmax7.4 mm +85%, better
Sensitivity94.5 dB −3.3, worse
Eighteen Sound10NTLW2000
£157.68 · 30% less, betterFs57 Hz −5%
Qts0.22 −4%
Vas31 L −26%, better
BL17.9 T·m +23%, better
Xmax4.4 mm +10%, better
Sensitivity96.2 dB −1.6
Eighteen Sound10MB600
£159.93 · 29% less, betterFs58 Hz −3%
Qts0.22 −4%
Vas33.4 L −20%, better
BL18.6 T·m +27%, better
Xmax6.5 mm +63%, better
Sensitivity96.6 dB −1.2
Sica10 FE 2.5 CP
£163.23 · 27% less, betterFs57 Hz −5%
Qts0.37 +61%, worse
Vas39.7 L −5%
BL12.8 T·m −12%, worse
Xmax4 mm –
Sensitivity94.7 dB −3.1, worse
RCFL10-750YK
£166.00 · 26% less, betterFs68 Hz +13%, worse
Qts0.24 +4%
Vas26 L −38%, better
BL17.5 T·m +20%, better
Xmax3 mm −25%, worse
Sensitivity97.2 dB −0.6
Eighteen Sound10M600
£175.83 · 22% less, betterFs70 Hz +17%, worse
Qts0.23 –
Vas25.6 L −39%, better
BL17.6 T·m +21%, better
Xmax4 mm –
Sensitivity97.5 dB –
Eighteen Sound10NMB420
£182.53 · 19% less, betterFs56 Hz −7%
Qts0.25 +9%
Vas40 L −5%
BL14.5 T·m –
Xmax4 mm –
Sensitivity96.3 dB −1.5
RCFMB10N305
£186.20 · 17% less, betterFs60 Hz –
Qts0.23 –
Vas31 L −26%, better
BL18.5 T·m +27%, better
Xmax5 mm +25%, better
Sensitivity96.5 dB −1.3
Precision DevicesPD.103NR1
£199.00 · 12% less, betterFs65 Hz +8%
Qts0.21 −8%
Vas36 L −14%, better
BL18 T·m +23%, better
Xmax7.5 mm +88%, better
Sensitivity98.6 dB +0.8
Oberton10NHCX
No current priceFs72 Hz +19%, worse
Qts0.24 +3%
Vas24.5 L −42%, better
BL17.4 T·m +19%, better
Xmax4.3 mm +6%
Sensitivity97.7 dB –
PeerlessNCP-1030R00-08
No current priceFs67 Hz +12%, worse
Qts0.23 –
Vas27 L −36%, better
BL19.1 T·m +31%, better
Xmax3.9 mm –
Sensitivity96.9 dB −0.9
MonacorSP-10A/302PA
No current priceFs55 Hz −8%
Qts0.30 +30%, worse
Vas40 L −5%
BL15.8 T·m +8%
Xmax4 mm –
Sensitivity95.3 dB −2.5, worse
Sica10 K 3 PL
No current priceFs51 Hz −16%, better
Qts0.26 +13%, worse
Vas40 L −5%
BL16.1 T·m +10%
Xmax6.5 mm +63%, better
Sensitivity94.9 dB −2.9, worse
No photo
PHL Audio3411
No current priceFs47 Hz −22%, better
Qts0.23 –
Vas35.1 L −16%, better
BL20.2 T·m +38%, better
Xmax8 mm +100%, better
Sensitivity93.8 dB −4, worse
RCFMB10N251
No current priceFs55 Hz −8%
Qts0.27 +17%, worse
Vas39 L −7%
BL15.2 T·m +4%
Xmax5 mm +25%, better
Sensitivity95.5 dB −2.3, worse
Sica10 PN 3
No current priceFs48 Hz −20%, better
Qts0.26 +13%, worse
Vas40.1 L −5%
BL16.1 T·m +10%
Xmax7 mm +75%, better
Sensitivity94.1 dB −3.7, worse
No photo
PHL Audio3840NDU
No current priceFs62 Hz +3%
Qts0.22 −4%
Vas26.3 L −37%, better
BL20.8 T·m +42%, better
Xmax4.5 mm +13%, better
Sensitivity96.4 dB −1.4
CelestionFTR10-2055D
No current priceFs58 Hz −4%
Qts0.34 +49%, worse
Vas36.9 L −12%, better
BL13.8 T·m −5%
Xmax4 mm –
Sensitivity94.6 dB −3.2, worse
CelestionNTR10-2520D
No current priceFs57 Hz −5%
Qts0.29 +26%, worse
Vas34.7 L −17%, better
BL15.8 T·m +8%
Xmax4 mm –
Sensitivity95.1 dB −2.7, worse
Eighteen Sound10MB777
No current priceFs58 Hz −3%
Qts0.22 −4%
Vas33.4 L −20%, better
BL18.6 T·m +27%, better
Xmax6.5 mm +63%, better
Sensitivity96.6 dB −1.2
No photo
PHL Audio3840
No current priceFs62 Hz +3%
Qts0.22 −4%
Vas26.3 L −37%, better
BL20.9 T·m +43%, better
Xmax4.5 mm +13%, better
Sensitivity96.6 dB −1.2
Audio Technology10 C 77 25 10 KAP
No current priceFs25 Hz −58%, better
Qts0.24 +4%
Vas118 L +181%, worse
BL13.7 T·m −6%
Xmax8.6 mm +115%, better
Sensitivity90.7 dB −7.1, worse
WavecorWF259PA01
No current priceFs54 Hz −10%, better
Qts0.29 +26%, worse
Vas31 L −26%, better
BL14.1 T·m −3%
Xmax4.5 mm +13%, better
Sensitivity94.3 dB −3.5, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £225.00, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £225.00 | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
