Audio Technology
Audio Technology 10 C 77 25 10 KAP
Audio Technology 10 C 77 25 10 KAP is a 10" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 25Hz, Qts 0.24, Vas 118L, Xmax 8.6mm, sensitivity 90.7dB, plus 287cm³ Vd and 100 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
200W
Sensitivity
90.7dB
EBP
100
Either alignment
Vd
287cm³
T/S Parameters
Valid
Fs25Hz
Qts0.24
Qes0.25
Qms6.0
Vas118.0L
Re5.5Ω
Le0.89mH
BL13.7Tm
Sd334cm²
Mms55g
Xmax8.6mm
SPL91dB
Power200W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Audio Technology
10 C 77 25 10 KAP
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
74%
Similarity
Audio Technology
10 A 77 25 10
10"
Xmax8.6mm0%
Qts0.26+8%
BL11.3Tm-18%
Vas140L+19%
Qes0.29+16%
60%
Similarity
£147.92
Eminence
KAPPA PRO-10LF
10"
Xmax7.2mm-16%
Qts0.28+17%
BL14.5Tm+6%
Vas73L-38%
Qes0.29+16%
54%
Similarity
£163.27

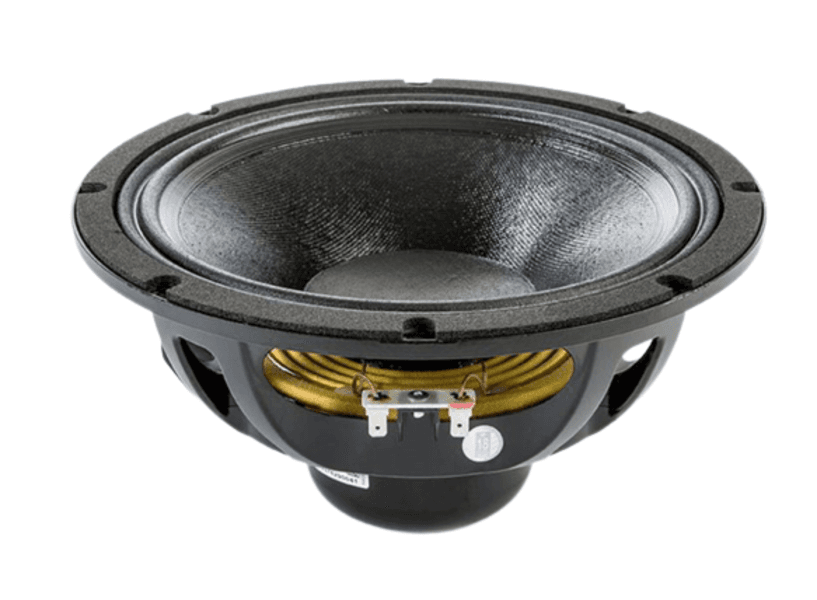

Eighteen Sound
