Overview
LF DriverC-Quenze series
Audio Technology

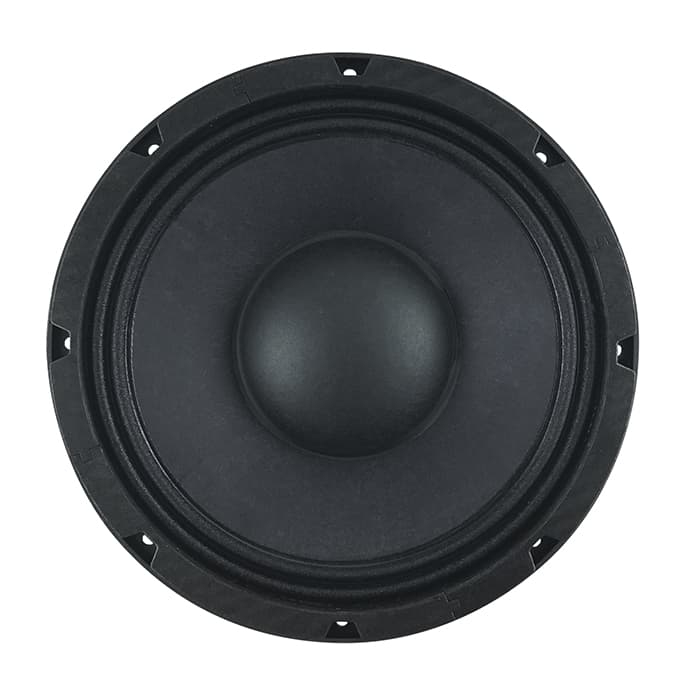

Audio Technology 23 I 52 20 06 SD
Audio Technology 23 I 52 20 06 SD is a 9" 8 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 33Hz, Qts 0.26, Vas 70L, Xmax 8mm, sensitivity 91.3dB, plus 180cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
9"
Impedance
8Ω
RMS Power
180W
Sensitivity
91.3dB
EBP
110
Vented alignment
Vd
180cm³
T/S Parameters
Valid
Fs33Hz
Qts0.26
Qes0.30
Qms1.9
Vas70.0L
Re6.0Ω
Le0.20mH
BL10.0Tm
Sd225cm²
Mms22g
Xmax8.0mm
SPL91dB
Power180W
Impedance8Ω
