LF DriverRS series
FaitalPRO

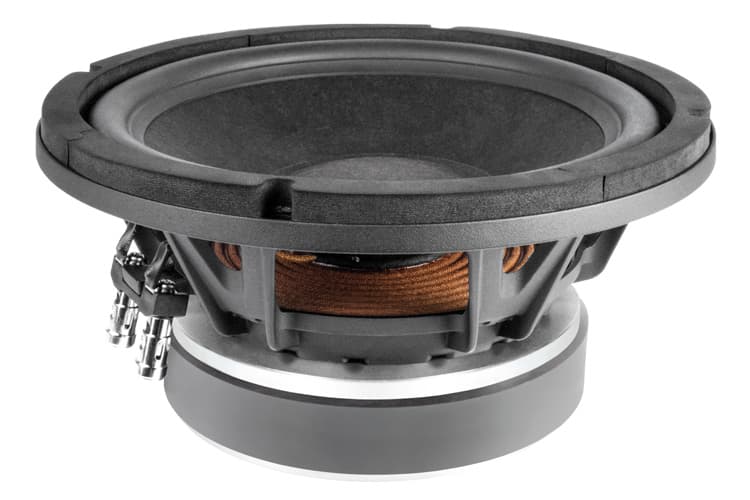

FaitalPRO 10RS430
FaitalPRO 10RS430 is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 32Hz, Qts 0.28, Vas 59.2L, Xmax 13.6mm, sensitivity 90.3dB, plus 467cm³ Vd and 110 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £149.42.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
90.3dB
EBP
110
Vented alignment
Vd
467cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees240 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence766 selected pixels of 980 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,222 selected pixels of 1,222 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,478 selected pixels of 1,478
T/S Parameters
Valid
Fs32Hz
Qts0.28
Qes0.29
Qms10.0
Vas59.2L
Re6.8Ω
Le0.78mH
BL18.0Tm
Sd344cm²
Mms69g
Xmax13.6mm
SPL90dB
Power400W
Impedance8Ω
F Low30Hz
F High2500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£149.42
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.8kg
Diameter261.0mm
Overall Depth136.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter246.0mm
