LF Driver10FCX series
B&C
B&C 10FCX64
B&C 10FCX64 is a 10" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 63Hz, Qts 0.42, Vas 25L, Xmax 6mm, sensitivity 93.6dB, plus 192cm³ Vd and 143 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £237.42.
Size
10"
Impedance
8Ω
RMS Power
250W
Sensitivity
93.6dB
95.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
143
Vented alignment
Vd
192cm³

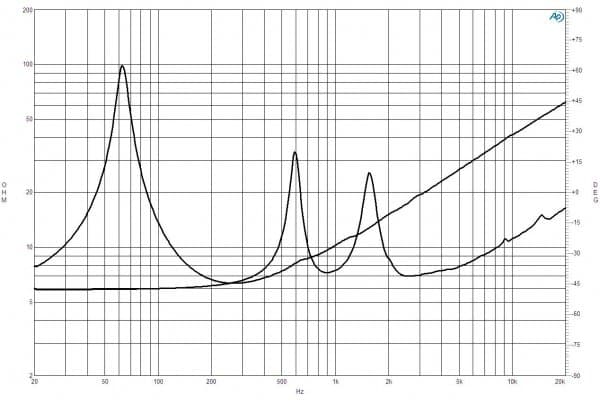

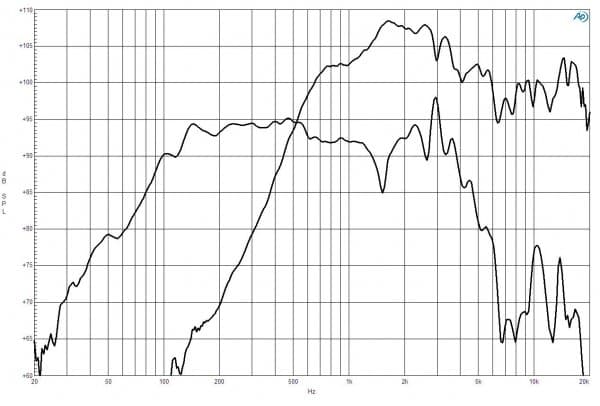

Frequency response

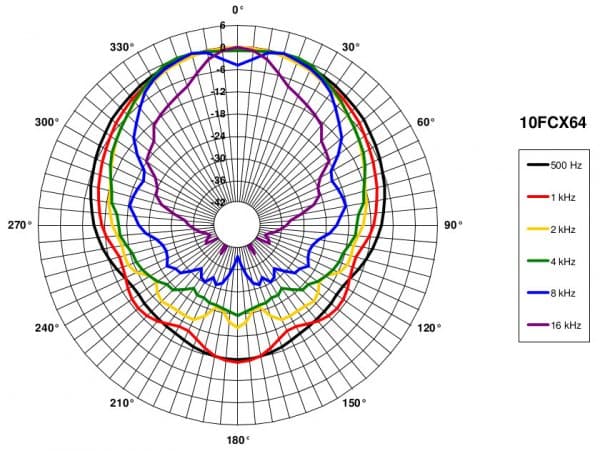

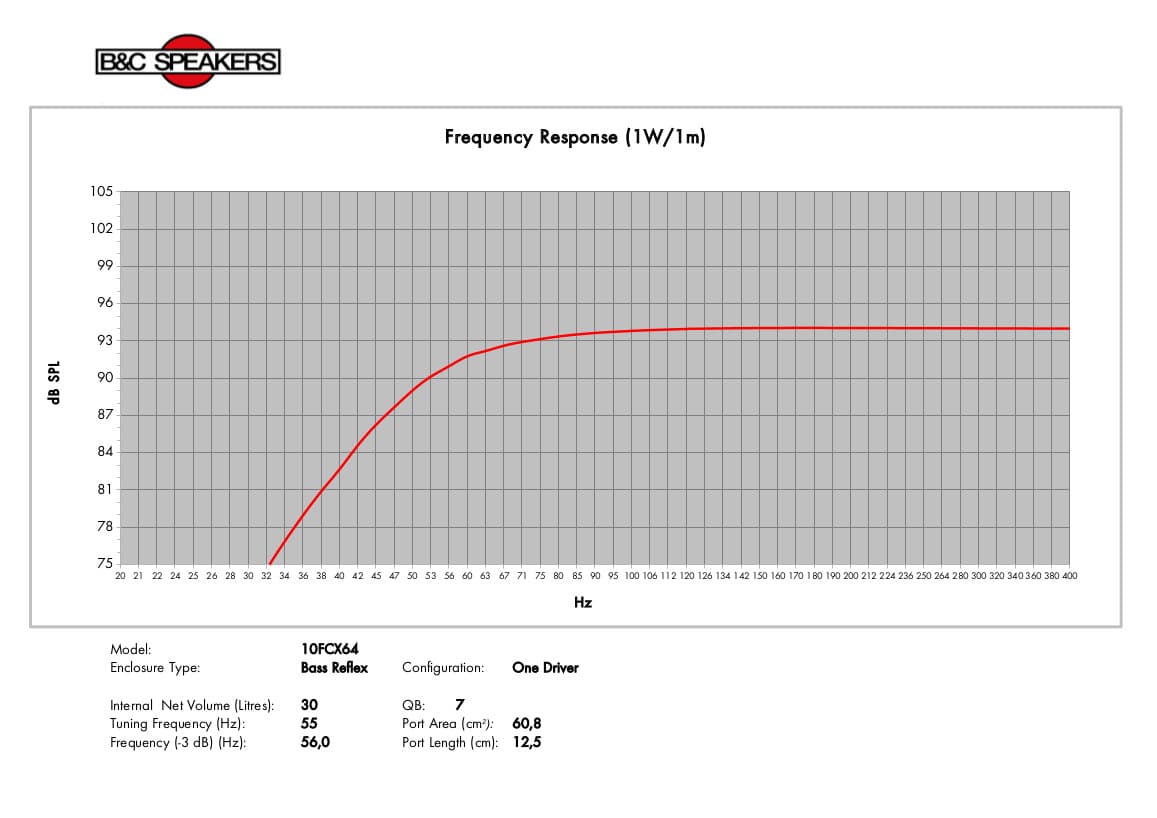

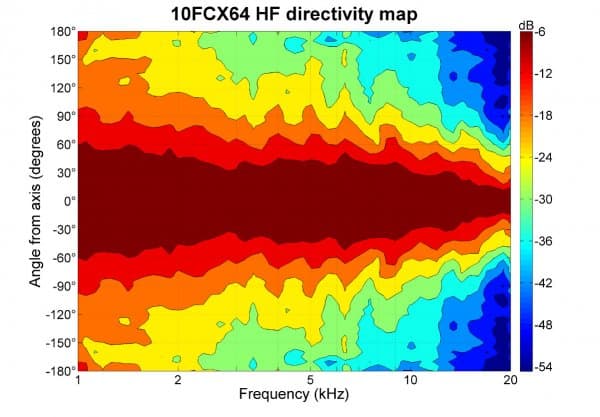

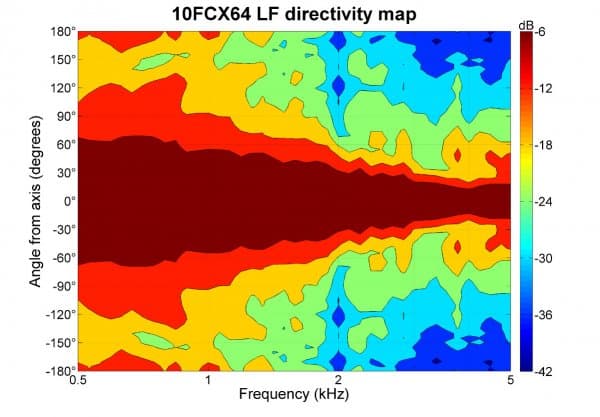

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs63Hz
Qts0.42
Qes0.44
Qms7.9
Vas25.0L
Re5.5Ω
Le1.20mH
BL13.4Tm
Sd320cm²
Mms37g
Xmax6.0mm
SPL94dB
Power250W
Power Nominal250W
Impedance8Ω
Min Impedance6.4Ω
Voice Coil64mm
Flux Density0.96T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£237.42
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs63 Hz
Qts0.42
Qes0.44
Qms7.9
Vas25.0 L
Re5.5 Ω
Le1.20 mH
BL13.4 Tm
Sd320 cm²
Mms37 g
Xmax6.0 mm
SPL94 dB
Power250 W
Power Nominal250 W
Impedance8 Ω
Min Impedance6.4 Ω
Voice Coil64 mm
Flux Density0.96 T
HFSpecifications HF unit
Le0.15 mH
SPL104 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance7.0 Ω
Xover1200 Hz
Voice Coil65 mm
Flux Density1.60 T
Additional Manufacturer Specs
Bl13.4 Tm
Fs63 Hz
Le1.2 mH
Re5.5 Ω
Sd320 cm² (49.1 in²)
Ebp143 Hz
Mms37 g
Qes0.44
Qms7.9
Qts0.42
Vas25 dm³ (0.89 ft³)
η01.4 %
Xvar6 mm
Winding Depth13 mm (0.51 in)
Former MaterialKapton
Nominal Diameter250 mm (10 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Woofer Cone TreatmentWP Waterproof Front Side
