- Net volume
- 25L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.

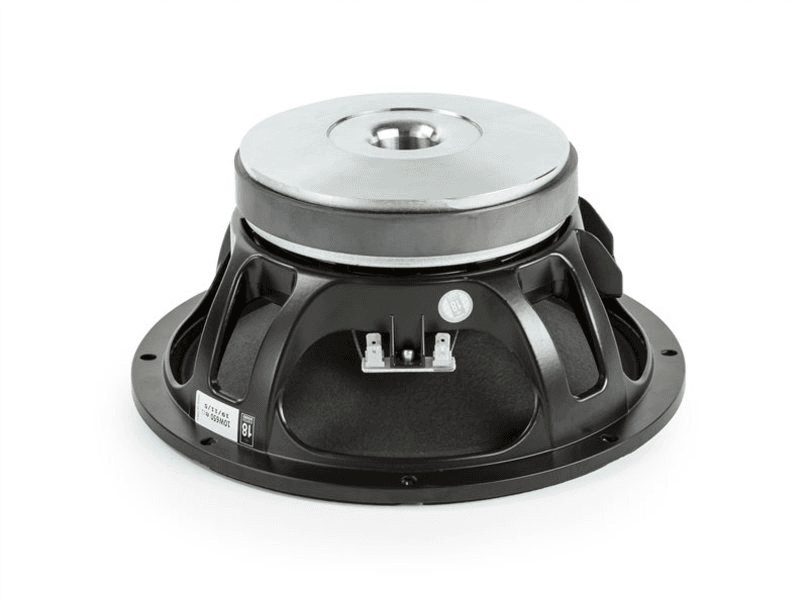

10-inch LF driver · 250 W
Eighteen Sound 10W650 8Ω
55–5700 Hz
No price for delivery to the UK
- Fs
- 67Hz
- Xmax
- 5.7mm
- SPL
- 94dB
- Pe
- 250W
- BL
- 12.4T·m
- Vd
- 200cm³
- Qts
- 0.48
- Vas
- 26L

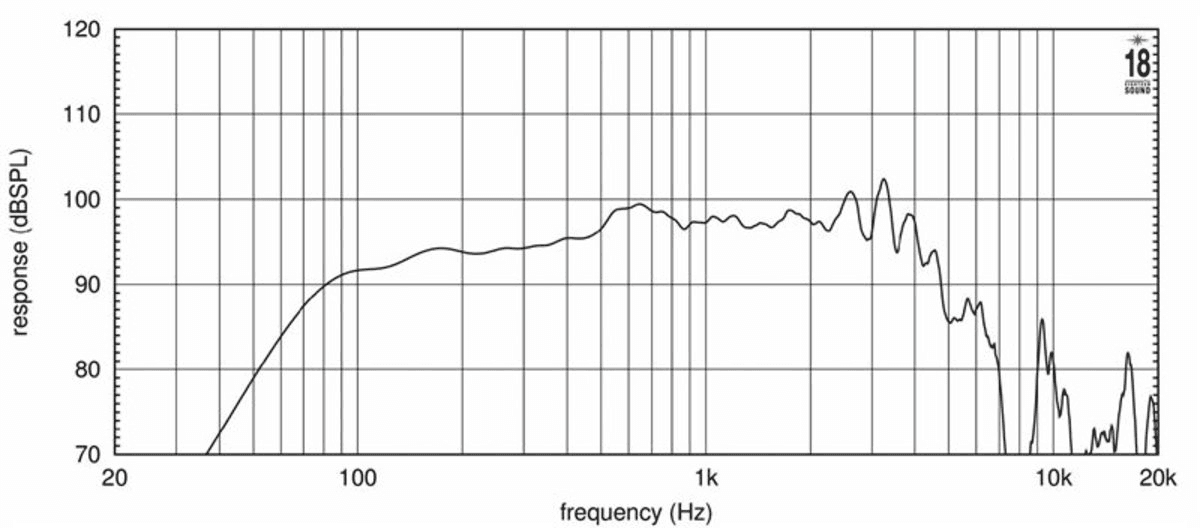

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,183 selected pixels of 1,549

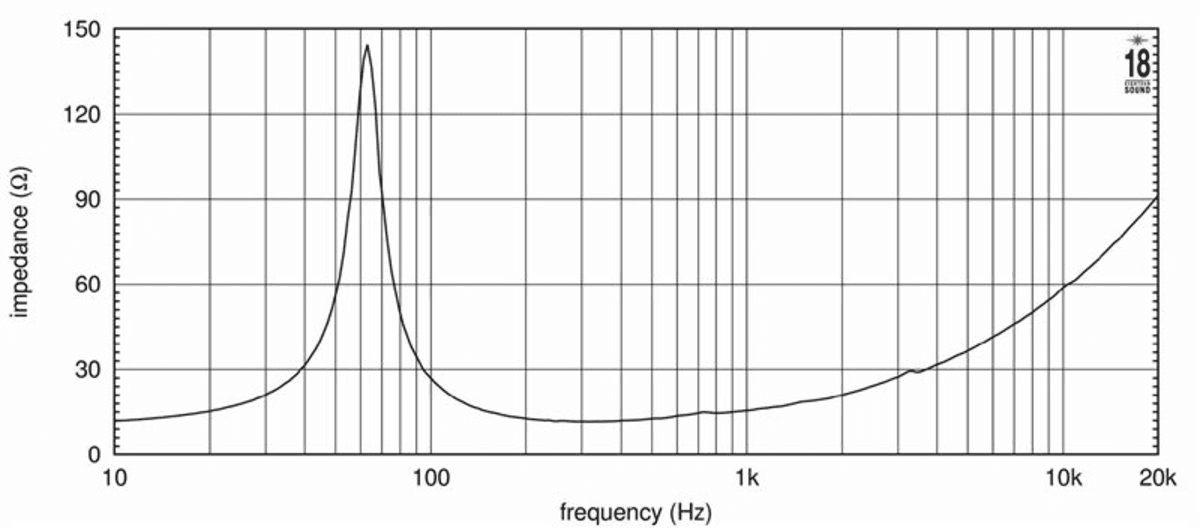

Published graphs
Eighteen Sound 10W650 is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 67 Hz, Qts 0.48, Vas 26 L, Xmax 5.7 mm, sensitivity 93.9 dB, plus 200 cm³ Vd and 131 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £143.18.
The published T/S values agree with each other
Thiele/Small
- Fs
- 67Hz
- Qts
- 0.48
- Qes
- 0.51
- Qms
- 9.6
- Vas
- 26L
- Re
- 5.1Ω
- Le
- 0.59mH
Motor and cone
- BL
- 12.4T·m
- Sd
- 350cm²
- Mms
- 37g
- Xmax
- 5.7mm
- Vd †
- 200cm³
Power and response
- Sensitivity †
- 93.9dB
- Manufacturer sensitivity
- 96dB
- Power
- 250W
- Nominal power
- 250W
- Impedance
- 8Ω
- Range
- 55–5700Hz
- EBP †
- 131 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 230mm
- Bolt circle
- 244mm
- Depth
- 121mm
- Weight
- 4.3kg
Other published values
- Power Program
- 500
Sensitivity shows 93.9 dB, calculated from the T/S values. Eighteen Sound publishes 96.0 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 12.4T·m
- Fs
- 67Hz
- Le
- 0.59mH
- Re
- 5.1Ω
- Sd
- 350cm²
- Mms
- 37g
- Qes
- 0.51
- Qms
- 9.6
- Qts
- 0.48
- SPL
- 93.9dB
- Vas
- 26L
- Xmax
- 5.7mm
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 55Hz
- Nominal power
- 250W
- Power Program
- 500
- Calculated sensitivity †
- 93.9dB
- High limit
- 5700Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 4.3kg
- Diameter
- 260mm
- Depth
- 121mm
- Cutout
- 230mm
- Bolt circle
- 244mm
02
Designs
What Eighteen Sound suggests for the 10W650. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10W650 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10W650. Clear differences are green when better and red when worse.
This driver10W650
Best price
£143.18
Fs
67 Hz
Qts
0.48
Vas
26 L
BL
12.4 T·m
Xmax
5.7 mm
Sensitivity
93.9 dB
Power
250 W
LavoceWSF101.70G
£47.14 · 67% less, betterFs78 Hz +16%, worse
Qts0.50 +4%
Vas36 L +38%, worse
BL11.9 T·m −4%
Xmax2.7 mm −53%, worse
Sensitivity97.1 dB +3.2, better
SB AudienceBIANCO-10MW150
£50.73 · 65% less, betterFs65 Hz –
Qts0.39 −19%, better
Vas25.8 L –
BL15.1 T·m +22%, better
Xmax5.6 mm –
Sensitivity94.5 dB +0.6
LavoceWSF102.00
£55.54 · 61% less, betterFs65 Hz –
Qts0.45 −6%
Vas34.0 L +31%, worse
BL11.6 T·m −6%
Xmax5.2 mm −9%
Sensitivity94.9 dB +1
PRV Audio10MR650A
£63.52 · 56% less, betterFs65 Hz −3%
Qts0.47 –
Vas41.9 L +61%, worse
BL12.3 T·m –
Xmax5.7 mm –
Sensitivity95.8 dB +1.9
FaitalPRO10FE400
£66.15 · 54% less, betterFs60 Hz −10%, better
Qts0.47 –
Vas35.3 L +36%, worse
BL11.5 T·m −7%
Xmax5.4 mm −5%
Sensitivity93.7 dB –
FaitalPRO10FE300
£67.00 · 53% less, betterFs50 Hz −25%, better
Qts0.52 +8%
Vas50.5 L +94%, worse
BL11.3 T·m −9%
Xmax5.5 mm −3%
Sensitivity92.7 dB −1.2
Dayton AudioDS270-8
£71.05 · 50% less, betterFs32 Hz −53%, better
Qts0.44 −8%
Vas87.7 L +237%, worse
BL10.1 T·m −19%, worse
Xmax5.5 mm −4%
Sensitivity89.1 dB −4.8, worse
CIAREPWA10.50
£82.89 · 42% less, betterFs57 Hz −15%, better
Qts0.40 −17%, better
Vas39.9 L +53%, worse
BL11.4 T·m −8%
Xmax5.8 mm –
Sensitivity94.2 dB –
EminenceRAGIN CAJUN
£91.87 · 36% less, betterFs84 Hz +25%, worse
Qts0.51 +6%
Vas34.1 L +31%, worse
BL11.8 T·m −5%
Xmax0.5 mm −92%, worse
Sensitivity97.8 dB +3.9, better
B&C10CLA64
£115.55 · 19% less, betterFs74 Hz +10%, worse
Qts0.42 −13%, better
Vas18.5 L −29%, better
BL14.5 T·m +17%, better
Xmax5 mm −12%, worse
Sensitivity94.2 dB –
PeerlessGBS-250F38CP01-04
£117.97 · 18% less, betterFs38 Hz −43%, better
Qts0.51 +6%
Vas22.8 L −12%, better
BL12.9 T·m +4%
Xmax9.2 mm +61%, better
Sensitivity85.6 dB −8.3, worse
Dayton AudioDCS255-4
£121.33 · 15% less, betterFs38 Hz −44%, better
Qts0.46 −4%
Vas32.1 L +23%, worse
BL12.6 T·m –
Xmax8.3 mm +46%, better
Sensitivity87.4 dB −6.5, worse
LavoceCSF102.50K
£141.89 · Same priceFs65 Hz –
Qts0.45 −6%
Vas29.9 L +15%, worse
BL12.9 T·m +4%
Xmax6.3 mm +10%
Sensitivity94.4 dB +0.5
CelestionFTX1025
£165.00 · 15% more, worseFs72 Hz +7%
Qts0.44 −8%
Vas25.9 L –
BL12.3 T·m –
Xmax5 mm −12%, worse
Sensitivity94.6 dB +0.7
B&C10FCX64
£237.42 · 66% more, worseFs63 Hz −6%
Qts0.42 −13%, better
Vas25 L −4%
BL13.4 T·m +8%
Xmax6 mm +5%
Sensitivity93.6 dB –
WavecorSW280WA03
£241.98 · 69% more, worseFs35 Hz −49%, better
Qts0.46 −4%
Vas29.7 L +14%, worse
BL12.5 T·m –
Xmax6 mm +5%
Sensitivity86.1 dB −7.8, worse
WavecorSW280WA04
£241.98 · 69% more, worseFs34 Hz −49%, better
Qts0.45 −6%
Vas30.5 L +17%, worse
BL15.5 T·m +25%, better
Xmax6 mm +5%
Sensitivity86.1 dB −7.8, worse
WavecorSW259WA01
£376.79 · 163% more, worseFs29 Hz −57%, better
Qts0.46 −4%
Vas25 L −4%
BL14.5 T·m +17%, better
Xmax11.5 mm +102%, better
Sensitivity83 dB −10.9, worse
PeerlessFSL-1025R03-06
No current priceFs66 Hz –
Qts0.46 −4%
Vas18.1 L −30%, better
BL14.3 T·m +15%, better
Xmax6.3 mm +10%
Sensitivity92.1 dB −1.8
JensenBS10N250A-8
No current priceFs58 Hz −13%, better
Qts0.43 −10%, better
Vas30.9 L +19%, worse
BL12.9 T·m +4%
Xmax5 mm −12%, worse
Sensitivity93.2 dB −0.7
Eighteen Sound10W400
No current priceFs70 Hz +4%
Qts0.40 −17%, better
Vas31 L +19%, worse
BL11.7 T·m −6%
Xmax5.5 mm −4%
Sensitivity95.9 dB +2, better
No photo
PHL Audio3005NDU
No current priceFs53 Hz −21%, better
Qts0.46 −4%
Vas31.8 L +22%, worse
BL12.6 T·m –
Xmax9 mm +58%, better
Sensitivity91.8 dB −2.1, worse
CIARENDI10
No current priceFs57 Hz −15%, better
Qts0.45 −6%
Vas35 L +35%, worse
BL12.6 T·m –
Xmax4.5 mm −21%, worse
Sensitivity93.2 dB −0.7
LavoceFBASS10-18
No current priceFs65 Hz –
Qts0.43 −10%, better
Vas32.4 L +25%, worse
BL12.5 T·m –
Xmax4.5 mm −21%, worse
Sensitivity94.7 dB +0.8
EminenceFS10.20A8
No current priceFs56 Hz −16%, better
Qts0.48 –
Vas45 L +73%, worse
BL10.4 T·m −16%, worse
Xmax5.5 mm −4%
Sensitivity93.7 dB –
Oberton10M150
No current priceFs74 Hz +10%, worse
Qts0.43 −10%, better
Vas25.9 L –
BL11.6 T·m −6%
Xmax3.3 mm −43%, worse
Sensitivity95.7 dB +1.8
PRV Audio10W650A
No current priceFs72 Hz +8%
Qts0.46 −4%
Vas34.0 L +31%, worse
BL14.1 T·m +14%, better
Xmax4.5 mm −21%, worse
Sensitivity96.4 dB +2.5, better
No photo
PHL Audio3040
No current priceFs91 Hz +36%, worse
Qts0.45 −6%
Vas20.4 L −22%, better
BL14.3 T·m +15%, better
Xmax2 mm −65%, worse
Sensitivity96.8 dB +2.9, better
WavecorSW280WA02
No current priceFs27 Hz −60%, better
Qts0.48 –
Vas41.4 L +59%, worse
BL16.6 T·m +34%, better
Xmax6 mm +5%
Sensitivity83.9 dB −10, worse
CIARECMI250
No current priceFs55 Hz −18%, better
Qts0.50 +4%
Vas34 L +31%, worse
BL9 T·m −27%, worse
Xmax4.5 mm −21%, worse
Sensitivity92.4 dB −1.5
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
