Overview
LF DriverWSF101 series
Lavoce
Lavoce WSF101.70G
Lavoce WSF101.70G is a 10" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 78Hz, Qts 0.50, Vas 36L, Xmax 2.7mm, sensitivity 97.1dB, plus 96cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
60W
Sensitivity
97.1dB
EBP
147
Vented alignment
Vd
96cm³

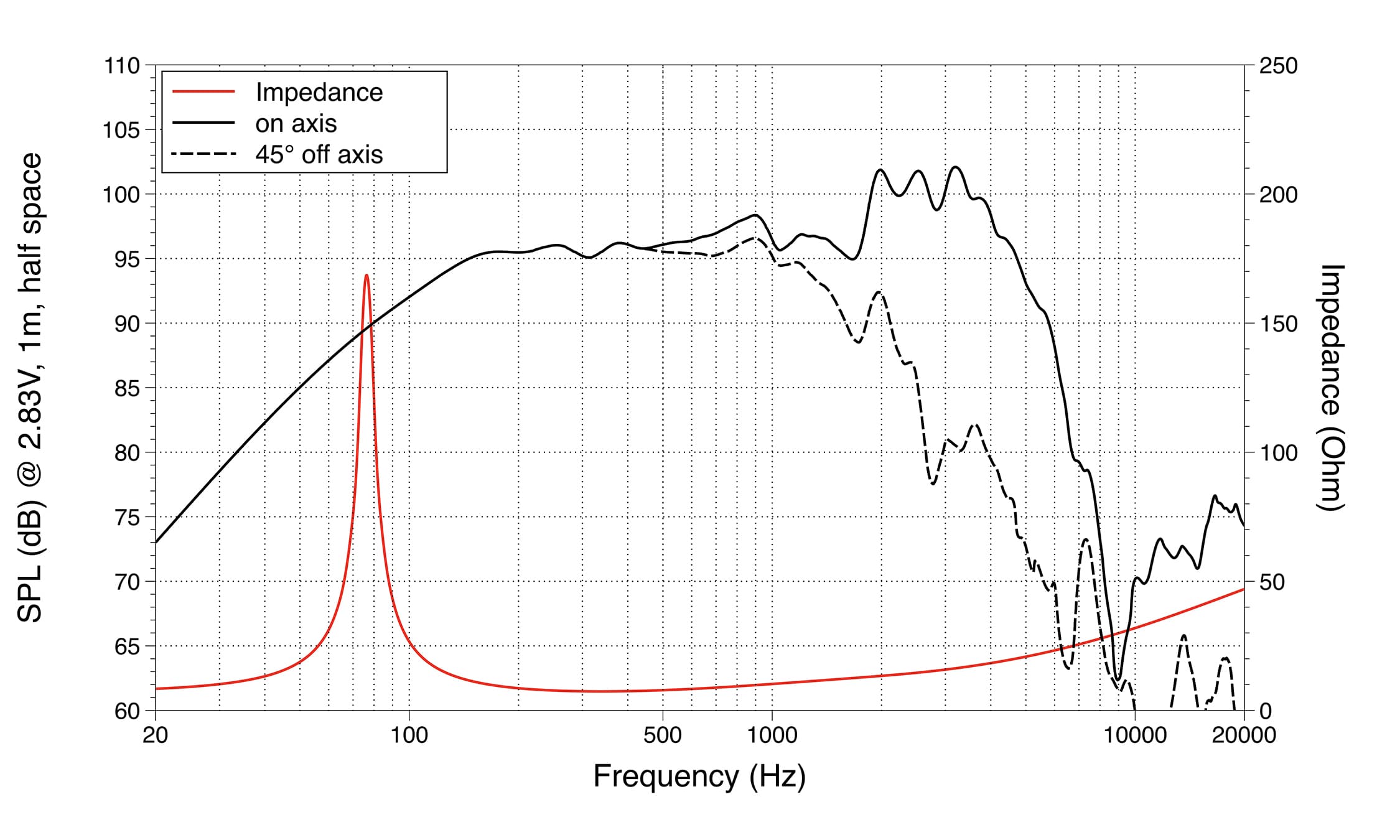

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs78Hz
Qts0.50
Qes0.53
Qms11.4
Vas36.0L
Re7.5Ω
Le0.51mH
BL11.9Tm
Sd356cm²
Mms21g
Xmax2.7mm
SPL97dB
Power60W
Impedance8Ω
Min Impedance7.4Ω
F Low100Hz
F High6000Hz
Voice Coil45mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

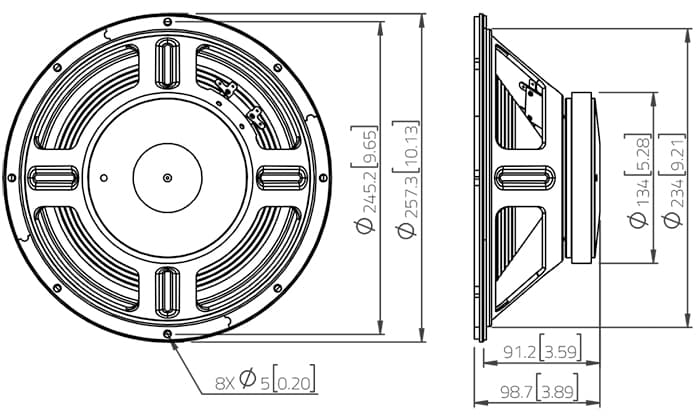

Dimensions & Physical
Weight2.4kg
