- Net volume
- 25L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
10-inch LF driver · 250 W
Eighteen Sound 10W650 16Ω
55–5700 Hz
No price for delivery to the UK
- Fs
- 64Hz
- Xmax
- 5.7mm
- SPL
- 94dB
- Pe
- 250W
- BL
- 19.2T·m
- Vd
- 200cm³
- Qts
- 0.41
- Vas
- 27L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
174 plotted pointsSource file SHA-256 5437ad929ad6…Medium confidence2,518 selected pixels of 2,967 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 5437ad929ad6…Medium confidence519 selected pixels of 988
Published graphs

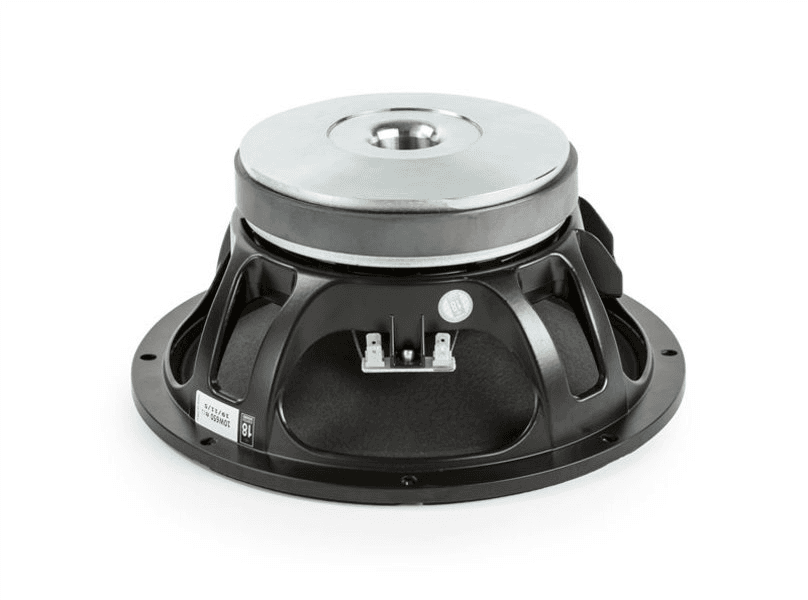

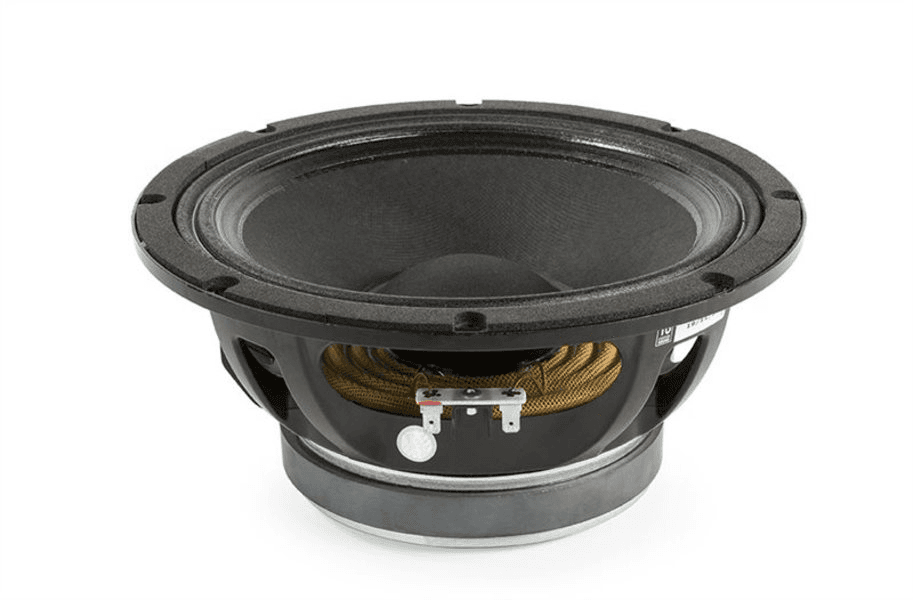

Eighteen Sound 10W650 is a 10-inch 16 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 64 Hz, Qts 0.41, Vas 27 L, Xmax 5.7 mm, sensitivity 94.2 dB, plus 200 cm³ Vd and 149 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £142.92.
The published T/S values agree with each other
Thiele/Small
- Fs
- 64Hz
- Qts
- 0.41
- Qes
- 0.43
- Qms
- 8.4
- Vas
- 27L
- Re
- 10.2Ω
- Le
- 1mH
Motor and cone
- BL
- 19.2T·m
- Sd
- 350cm²
- Mms
- 39g
- Xmax
- 5.7mm
- Vd †
- 200cm³
Power and response
- Sensitivity †
- 94.2dB
- Manufacturer sensitivity
- 96dB
- Power
- 250W
- Nominal power
- 250W
- Impedance
- 16Ω
- Range
- 55–5700Hz
- EBP †
- 149 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 230mm
- Bolt circle
- 244mm
- Depth
- 121mm
- Weight
- 4.3kg
Other published values
- Power Program
- 500
Sensitivity shows 94.2 dB, calculated from the T/S values. Eighteen Sound publishes 96.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 19.2T·m
- Fs
- 64Hz
- Le
- 1mH
- Re
- 10.2Ω
- Sd
- 350cm²
- Mms
- 39g
- Qes
- 0.43
- Qms
- 8.4
- Qts
- 0.41
- SPL
- 94.2dB
- Vas
- 27L
- Xmax
- 5.7mm
- Power
- 250W
- Impedance
- 16Ω
- Sensitivity
- 96dB
- Low limit
- 55Hz
- Nominal power
- 250W
- Power Program
- 500
- Calculated sensitivity †
- 94.2dB
- High limit
- 5700Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 4.3kg
- Diameter
- 260mm
- Depth
- 121mm
- Cutout
- 230mm
- Bolt circle
- 244mm
02
Designs
What Eighteen Sound suggests for the 10W650. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 10W650 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10W650. Clear differences are green when better and red when worse.
This driver10W650
Best price
£142.92
Fs
64 Hz
Qts
0.41
Vas
27 L
BL
19.2 T·m
Xmax
5.7 mm
Sensitivity
94.2 dB
Power
250 W
SB AudienceBIANCO-10MW150
£50.73 · 65% less, betterFs65 Hz –
Qts0.39 −5%
Vas25.8 L −4%
BL15.1 T·m −21%, worse
Xmax5.6 mm –
Sensitivity94.5 dB –
FaitalPRO10FE400
£64.31 · 55% less, betterFs60 Hz −6%
Qts0.41 –
Vas33.6 L +24%, worse
BL10.2 T·m −47%, worse
Xmax5.6 mm –
Sensitivity94.2 dB –
LavoceWAN102.50
£82.61 · 42% less, betterFs78 Hz +22%, worse
Qts0.35 −15%, better
Vas22.4 L −17%, better
BL15.3 T·m −20%, worse
Xmax5.1 mm −11%, worse
Sensitivity96.5 dB +2.3, better
CIAREPWA10.50
£82.74 · 42% less, betterFs57 Hz −11%, better
Qts0.40 –
Vas39.9 L +48%, worse
BL11.4 T·m −41%, worse
Xmax5.8 mm –
Sensitivity94.2 dB –
B&C10CL51
£84.00 · 41% less, betterFs58 Hz −9%
Qts0.38 −7%
Vas36 L +33%, worse
BL11.6 T·m −40%, worse
Xmax5.5 mm −4%
Sensitivity94.3 dB –
CIAREPWA10.64
£105.31 · 26% less, betterFs73 Hz +14%, worse
Qts0.38 −7%
Vas23 L −15%, better
BL14.4 T·m −25%, worse
Xmax4.5 mm −21%, worse
Sensitivity95.5 dB +1.3
B&C10CLA64
£115.34 · 19% less, betterFs72 Hz +13%, worse
Qts0.41 –
Vas21 L −22%, better
BL18.8 T·m –
Xmax4.5 mm −21%, worse
Sensitivity94.3 dB –
Dayton AudioLS10-44
£115.49 · 19% less, betterFs34 Hz −46%, better
Qts0.43 +5%
Vas30.8 L +14%, worse
BL21.1 T·m +10%
Xmax10 mm +75%, better
Sensitivity86.3 dB −7.9, worse
FaitalPRO10PR330
£127.04 · 11% less, betterFs60 Hz −6%
Qts0.36 −12%, better
Vas32.9 L +22%, worse
BL19.5 T·m –
Xmax7.3 mm +28%, better
Sensitivity94.5 dB –
FaitalPRO10PR300
£132.89 · 7% less, betterFs65 Hz –
Qts0.48 +17%, worse
Vas30.6 L +13%, worse
BL18 T·m −6%
Xmax4.9 mm −14%, worse
Sensitivity94.1 dB –
FaitalPRO10PR310
£135.39 · 5% less, betterFs65 Hz –
Qts0.47 +15%, worse
Vas29 L +7%
BL18.7 T·m –
Xmax4.9 mm −14%, worse
Sensitivity93.9 dB –
LavoceCSF102.50K
£141.89 · Same priceFs65 Hz –
Qts0.45 +10%
Vas29.9 L +11%, worse
BL12.9 T·m −33%, worse
Xmax6.3 mm +10%
Sensitivity94.4 dB –
FaitalPRO10FH520
£170.10 · 19% more, worseFs65 Hz –
Qts0.41 –
Vas22.7 L −16%, better
BL23.5 T·m +22%, better
Xmax7 mm +23%, better
Sensitivity93.7 dB −0.5
B&C10FCX64
£237.42 · 66% more, worseFs63 Hz –
Qts0.42 –
Vas25 L −7%
BL13.4 T·m −30%, worse
Xmax6 mm +5%
Sensitivity93.6 dB −0.6
WavecorSW280WA04
£241.54 · 69% more, worseFs34 Hz −47%, better
Qts0.45 +10%
Vas30.5 L +13%, worse
BL15.5 T·m −19%, worse
Xmax6 mm +5%
Sensitivity86.1 dB −8.1, worse
WavecorSW280WA03
£241.54 · 69% more, worseFs35 Hz −46%, better
Qts0.46 +12%, worse
Vas29.7 L +10%
BL12.5 T·m −35%, worse
Xmax6 mm +5%
Sensitivity86.1 dB −8.1, worse
WavecorSW259WA02
£376.10 · 163% more, worseFs24 Hz −63%, better
Qts0.43 +5%
Vas40 L +48%, worse
BL18.6 T·m −3%
Xmax11.5 mm +102%, better
Sensitivity83 dB −11.2, worse
WavecorSW280WA01
£408.19 · 186% more, worseFs27 Hz −58%, better
Qts0.41 –
Vas41.4 L +53%, worse
BL13.4 T·m −30%, worse
Xmax6 mm +5%
Sensitivity84.5 dB −9.7, worse
LavoceWAN102.50LD
No current priceFs52 Hz −19%, better
Qts0.40 –
Vas23.9 L −12%, better
BL19.6 T·m –
Xmax11.5 mm +102%, better
Sensitivity91.1 dB −3.1, worse
Eighteen Sound10W400
No current priceFs70 Hz +9%
Qts0.40 –
Vas31 L +15%, worse
BL11.7 T·m −39%, worse
Xmax5.5 mm −4%
Sensitivity95.9 dB +1.7
Dayton AudioSS10-22
No current priceFs34 Hz −47%, better
Qts0.40 –
Vas20.6 L −24%, better
BL19.4 T·m –
Xmax21 mm +268%, better
Sensitivity84.6 dB −9.6, worse
No photo
PHL Audio3002
No current priceFs47 Hz −27%, better
Qts0.39 −5%
Vas31.5 L +17%, worse
BL15.9 T·m −17%, worse
Xmax4.5 mm −21%, worse
Sensitivity91 dB −3.2, worse
P.Audio10FT-65MB
No current priceFs65 Hz –
Qts0.39 −5%
Vas24.8 L −8%
BL16.6 T·m −14%, worse
Xmax3 mm −47%, worse
Sensitivity94.2 dB –
No photo
REDCATT10NPM-2
No current priceFs58 Hz −9%
Qts0.33 −20%, better
Vas29.3 L +9%
BL17.9 T·m −7%
Xmax6.3 mm +11%, better
Sensitivity94 dB –
JensenBS10N250A-8
No current priceFs58 Hz −9%
Qts0.43 +5%
Vas30.9 L +14%, worse
BL12.9 T·m −33%, worse
Xmax5 mm −12%, worse
Sensitivity93.2 dB −1
Oberton10B200
No current priceFs48 Hz −25%, better
Qts0.35 −15%, better
Vas31.9 L +18%, worse
BL14.7 T·m −23%, worse
Xmax5.8 mm –
Sensitivity91.9 dB −2.3, worse
BMS10S302
No current priceFs60 Hz −6%
Qts0.33 −20%, better
Vas30 L +11%, worse
BL16.2 T·m −16%, worse
Xmax5.5 mm −4%
Sensitivity94.7 dB +0.5
CelestionCN1025B
No current priceFs80 Hz +24%, worse
Qts0.36 −11%, better
Vas21.6 L −20%, better
BL20.3 T·m +6%
Xmax2.1 mm −63%, worse
Sensitivity96.3 dB +2.1, better
REDCATT10FIND
No current priceFs66 Hz +3%
Qts0.39 −5%
Vas23.5 L −13%, better
BL15.5 T·m −19%, worse
Xmax2.8 mm −52%, worse
Sensitivity94.2 dB –
LavoceWAF102.50A
No current priceFs73 Hz +14%, worse
Qts0.36 −12%, better
Vas21.7 L −20%, better
BL15.8 T·m −18%, worse
Xmax4.8 mm −16%, worse
Sensitivity95.5 dB +1.3
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £151.58 | Back order | Visit shop at Lean Audio |
