SB AudienceBIANCO-10MW150
£50.73Fs65 Hz –
Qts0.39 –
Vas25.8 L +10%
BL15.1 T·m –
Xmax5.6 mm +105%, better
Sensitivity94.5 dB –
10-inch LF driver · 64 mm voice coil · 250 W

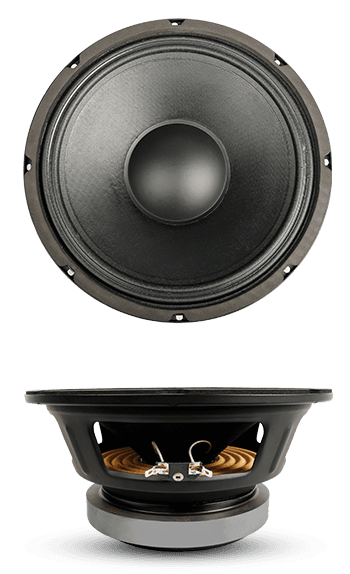

REDCATT 10FIND 8Ω
8 Ω
No current price
- Fs
- 66Hz
- Xmax
- 2.8mm
- SPL
- 94dB
- Pe
- 250W
- BL
- 15.5T·m
- Vd
- 95cm³
- Qts
- 0.39
- Vas
- 24L
REDCATT 10FIND is a 10-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 66 Hz, Qts 0.39, Vas 23.5 L, Xmax 2.8 mm, sensitivity 94.2 dB, plus 95 cm³ Vd and 161 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 66Hz
- Qts
- 0.39
- Qes
- 0.41
- Qms
- 13.1
- Vas
- 23.5L
- Re
- 5.5Ω
- Le
- 0.68mH
Motor and cone
- BL
- 15.5T·m
- Sd
- 346cm²
- Mms
- 41g
- Xmax
- 2.8mm
- Vd †
- 95cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 94.2dB
- Manufacturer sensitivity
- 95.8dB
- Power
- 250W
- Impedance
- 8Ω
- EBP †
- 161 · Leans vented
Size and mounting
- Diameter
- 262mm
- Cutout
- 230mm
- Bolt circle
- 246mm
- Weight
- 4.5kg
Other published values
- Xmech
- 10.75
- Power Peak
- 1000
Other dimensions
- Mounting Depth
- 108.5
Sensitivity shows 94.2 dB, calculated from the T/S values. REDCATT publishes 95.8 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 10″
- BL
- 15.5T·m
- Fs
- 66Hz
- Le
- 0.68mH
- Re
- 5.5Ω
- Sd
- 346cm²
- Mms
- 41g
- Qes
- 0.41
- Qms
- 13.1
- Qts
- 0.39
- SPL
- 94.2dB
- Vas
- 23.5L
- Xmax
- 2.8mm
- Xmech
- 10.75
- Power
- 250W
- Impedance
- 8Ω
- Power Peak
- 1000
- Sensitivity
- 95.8dB
- Calculated sensitivity †
- 94.2dB
- Manufacturer sensitivity
- 95.8dB
- Voice coil
- 64mm
- Weight
- 4.5kg
- Diameter
- 262mm
- Mounting Depth
- 108.5
- Cutout
- 230mm
- Bolt circle
- 246mm
02
Compare
Same-size drivers, compared with the 10FIND. Clear differences are green when better and red when worse.
This driver10FIND
Best price
–
Fs
66 Hz
Qts
0.39
Vas
23.5 L
BL
15.5 T·m
Xmax
2.8 mm
Sensitivity
94.2 dB
Power
250 W
Beyma10WRS300
£75.00Fs52 Hz −21%, better
Qts0.38 –
Vas42 L +79%, worse
BL13.9 T·m −10%, worse
Xmax6 mm +118%, better
Sensitivity93.7 dB −0.5
LavoceWAN102.50
£82.61Fs78 Hz +18%, worse
Qts0.35 −10%, better
Vas22.4 L −5%
BL15.3 T·m –
Xmax5.1 mm +85%, better
Sensitivity96.5 dB +2.3, better
LavoceWSN102.50
£102.26Fs76 Hz +15%, worse
Qts0.39 –
Vas20.7 L −12%, better
BL14.1 T·m −9%
Xmax2.9 mm +5%
Sensitivity95.3 dB +1.1
CIAREPWA10.64
£107.57Fs73 Hz +11%, worse
Qts0.38 –
Vas23 L –
BL14.4 T·m −7%
Xmax4.5 mm +64%, better
Sensitivity95.5 dB +1.3
B&C10CLA64
£116.96Fs74 Hz +12%, worse
Qts0.42 +8%
Vas18.5 L −21%, better
BL14.5 T·m −6%
Xmax5 mm +82%, better
Sensitivity94.2 dB –
LavoceWAF102.50
£120.15Fs74 Hz +12%, worse
Qts0.38 –
Vas23.7 L –
BL14.6 T·m −6%
Xmax5.1 mm +85%, better
Sensitivity95.6 dB +1.4
PRV Audio10MR1200X
£151.06Fs87 Hz +32%, worse
Qts0.29 −26%, better
Vas21.8 L −7%
BL17.5 T·m +13%, better
Xmax2.5 mm −9%
Sensitivity98.8 dB +4.6, better
Dayton AudioRSS265HO-4
£221.12Fs27 Hz −59%, better
Qts0.35 −10%, better
Vas29.4 L +25%, worse
BL17.6 T·m +14%, better
Xmax12.3 mm +347%, better
Sensitivity83.7 dB −10.5, worse
B&C10FCX64
£237.42Fs63 Hz −5%
Qts0.42 +8%
Vas25 L +6%
BL13.4 T·m −14%, worse
Xmax6 mm +118%, better
Sensitivity93.6 dB −0.6
B&C10CXN64
£274.31Fs68 Hz +3%
Qts0.31 −21%, better
Vas23 L –
BL15.8 T·m –
Xmax5 mm +82%, better
Sensitivity95.4 dB +1.2
FaitalPRO10HX230
£277.47Fs65 Hz –
Qts0.39 –
Vas30.5 L +30%, worse
BL13.1 T·m −15%, worse
Xmax7.4 mm +168%, better
Sensitivity95 dB +0.8
P.Audio10FT-65MB
No current priceFs65 Hz –
Qts0.39 –
Vas24.8 L +6%
BL16.6 T·m +7%
Xmax3 mm +9%
Sensitivity94.2 dB –
No photo
PHL Audio3450
No current priceFs94 Hz +42%, worse
Qts0.34 −13%, better
Vas18.1 L −23%, better
BL15.7 T·m –
Xmax2.5 mm −9%
Sensitivity98 dB +3.8, better
No photo
PHL Audio3002
No current priceFs47 Hz −29%, better
Qts0.39 –
Vas31.5 L +34%, worse
BL15.9 T·m –
Xmax4.5 mm +64%, better
Sensitivity91 dB −3.2, worse
LavoceWAF102.51
No current priceFs70 Hz +6%
Qts0.42 +8%
Vas21.4 L −9%
BL15.6 T·m –
Xmax6.0 mm +116%, better
Sensitivity94.3 dB –
Oberton10NMB500
No current priceFs68 Hz +3%
Qts0.41 +5%
Vas18.6 L −21%, better
BL14.6 T·m −6%
Xmax8.3 mm +200%, better
Sensitivity93.5 dB −0.7
CelestionTN1020
No current priceFs95 Hz +44%, worse
Qts0.40 –
Vas16.0 L −32%, better
BL14.9 T·m −4%
Xmax2 mm −27%, worse
Sensitivity96.9 dB +2.7, better
LavoceWAN102.50LD
No current priceFs52 Hz −21%, better
Qts0.40 –
Vas23.9 L –
BL19.6 T·m +27%, better
Xmax11.5 mm +318%, better
Sensitivity91.1 dB −3.1, worse
Oberton10M250
No current priceFs77 Hz +16%, worse
Qts0.28 −28%, better
Vas23.1 L –
BL16.6 T·m +7%
Xmax2.8 mm –
Sensitivity97.6 dB +3.4, better
RCFMB10G251
No current priceFs76 Hz +15%, worse
Qts0.34 −13%, better
Vas24 L –
BL14.9 T·m −4%
Xmax7 mm +155%, better
Sensitivity96.8 dB +2.6, better
RCFMB10G253
No current priceFs76 Hz +15%, worse
Qts0.34 −13%, better
Vas24 L –
BL14.9 T·m −4%
Xmax7 mm +155%, better
Sensitivity96.8 dB +2.6, better
CelestionCN1025B
No current priceFs80 Hz +20%, worse
Qts0.36 −7%
Vas21.6 L −8%
BL20.3 T·m +31%, better
Xmax2.1 mm −24%, worse
Sensitivity96.3 dB +2.1, better
Oberton10M150
No current priceFs74 Hz +12%, worse
Qts0.43 +10%, worse
Vas25.9 L +10%, worse
BL11.6 T·m −25%, worse
Xmax3.3 mm +18%, better
Sensitivity95.7 dB +1.5
PurifiPTT10.0X08-NAB-01
No current priceFs22 Hz −67%, better
Qts0.40 –
Vas81 L +245%, worse
BL15.7 T·m –
Xmax14.8 mm +436%, better
Sensitivity85.2 dB −9, worse
No photo
PHL Audio3040NDM
No current priceFs91 Hz +38%, worse
Qts0.43 +10%, worse
Vas20.4 L −13%, better
BL14.5 T·m −6%
Xmax2 mm −27%, worse
Sensitivity97 dB +2.8, better
Dayton AudioSS10-22
No current priceFs34 Hz −48%, better
Qts0.40 –
Vas20.6 L −12%, better
BL19.4 T·m +25%, better
Xmax21 mm +664%, better
Sensitivity84.6 dB −9.6, worse
Oberton10NDG500
No current priceFs56 Hz −15%, better
Qts0.34 −14%, better
Vas21.5 L −9%
BL17.4 T·m +12%, better
Xmax9.5 mm +245%, better
Sensitivity92.4 dB −1.8
Oberton10B200
No current priceFs48 Hz −27%, better
Qts0.35 −11%, better
Vas31.9 L +36%, worse
BL14.7 T·m −5%
Xmax5.8 mm +109%, better
Sensitivity91.9 dB −2.3, worse
No photo
PHL Audio3450NDM
No current priceFs94 Hz +42%, worse
Qts0.29 −26%, better
Vas18.1 L −23%, better
BL17 T·m +10%
Xmax2.5 mm −9%
Sensitivity98.6 dB +4.4, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
