Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespLavoce WAN102.50LD 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverWAN102 series
Lavoce
Lavoce WAN102.50LD
Lavoce WAN102.50LD is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 52Hz, Qts 0.40, Vas 23.9L, Xmax 11.5mm, sensitivity 91.1dB, plus 403cm³ Vd and 124 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £206.76.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
91.1dB
EBP
124
Vented alignment
Vd
403cm³

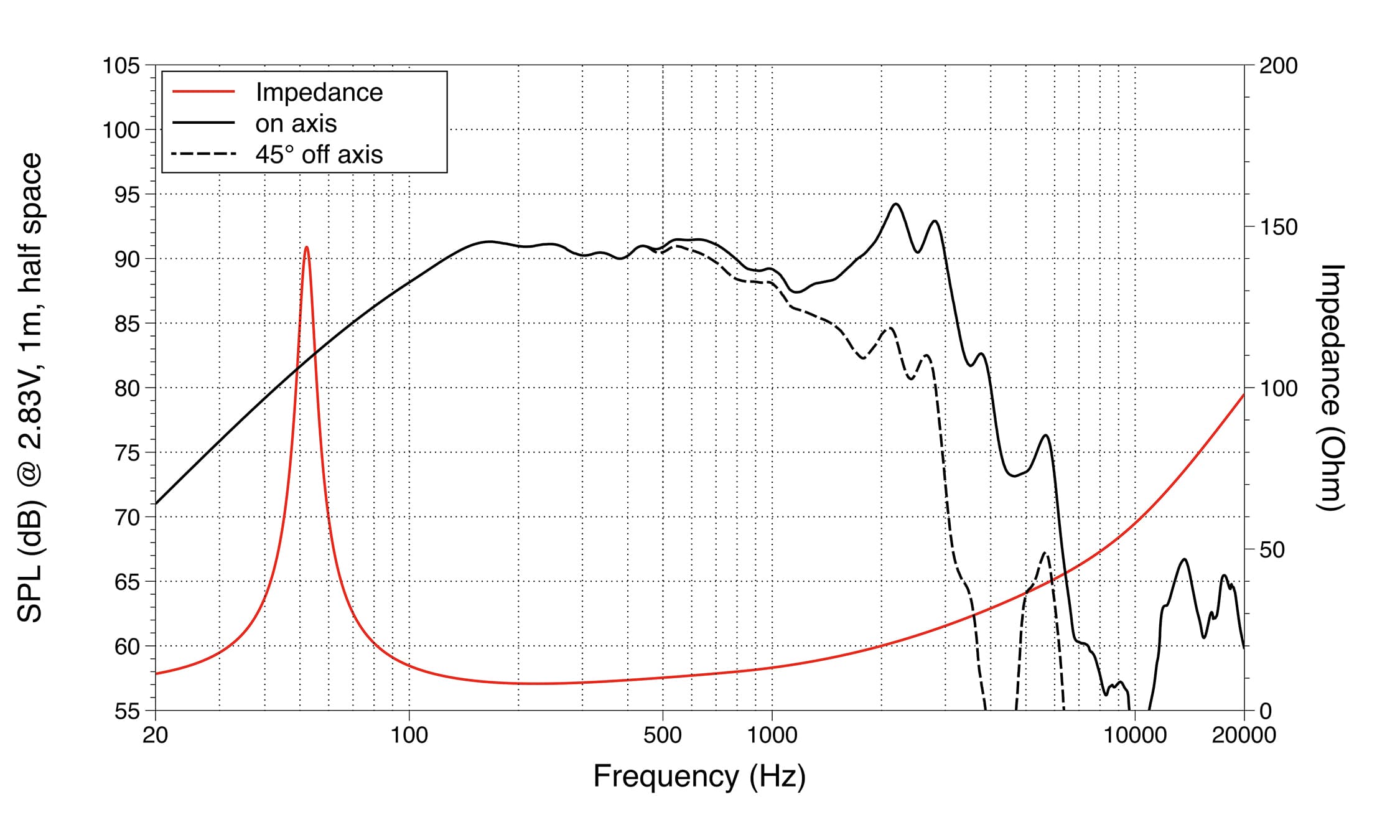

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs52Hz
Qts0.40
Qes0.42
Qms7.8
Vas23.9L
Re7.3Ω
Le1.27mH
BL19.6Tm
Sd350cm²
Mms68g
Xmax11.5mm
SPL91dB
Power300W
Impedance8Ω
Min Impedance8.3Ω
F Low50Hz
F High4000Hz
Voice Coil65mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
bluearan
£206.76
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

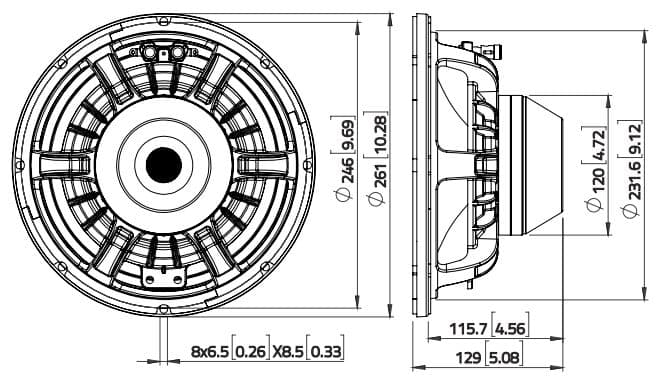

Dimensions & Physical
Weight3.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
WAN102.50LD
10"
Best current price
£206.76
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
6 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
71%
Similarity
45% cheaper£114.63
Dayton Audio
LS10-44
10"
Lower price
Xmax10mm-13%
Qts0.43+7%
BL21.1Tm+7%
Vas30.8L+29%
Qes0.47+12%
74%
Similarity
Dayton Audio
RSS265HO-4
10"
Xmax12.3mm+7%
Qts0.35-13%
BL17.6Tm-10%
Vas29.4L+23%
Qes0.39-7%
Image unavailable
69%
Similarity
Wavecor
SW259WA01
10"
Xmax11.5mm0%
Qts0.46+15%
BL14.5Tm-26%
Vas25L+5%
Qes0.49+17%
64%
Similarity
Oberton
10NMB500
10"
Xmax8.3mm-28%
Qts0.41+2%
BL14.6Tm-26%
Vas18.6L-22%
Qes0.42+1%
64%
Similarity
Oberton
10NDG500
10"
Xmax9.5mm-17%
Qts0.34-16%
BL17.4Tm-11%
Vas21.5L-10%
Qes0.35-18%
46%
Similarity
Oberton
10MB500
10"
Xmax8.3mm-28%
Qts0.31-24%
BL15.4Tm-21%
Vas22.1L-8%
Qes0.32-25%
