LF Driver10CLA series
B&C

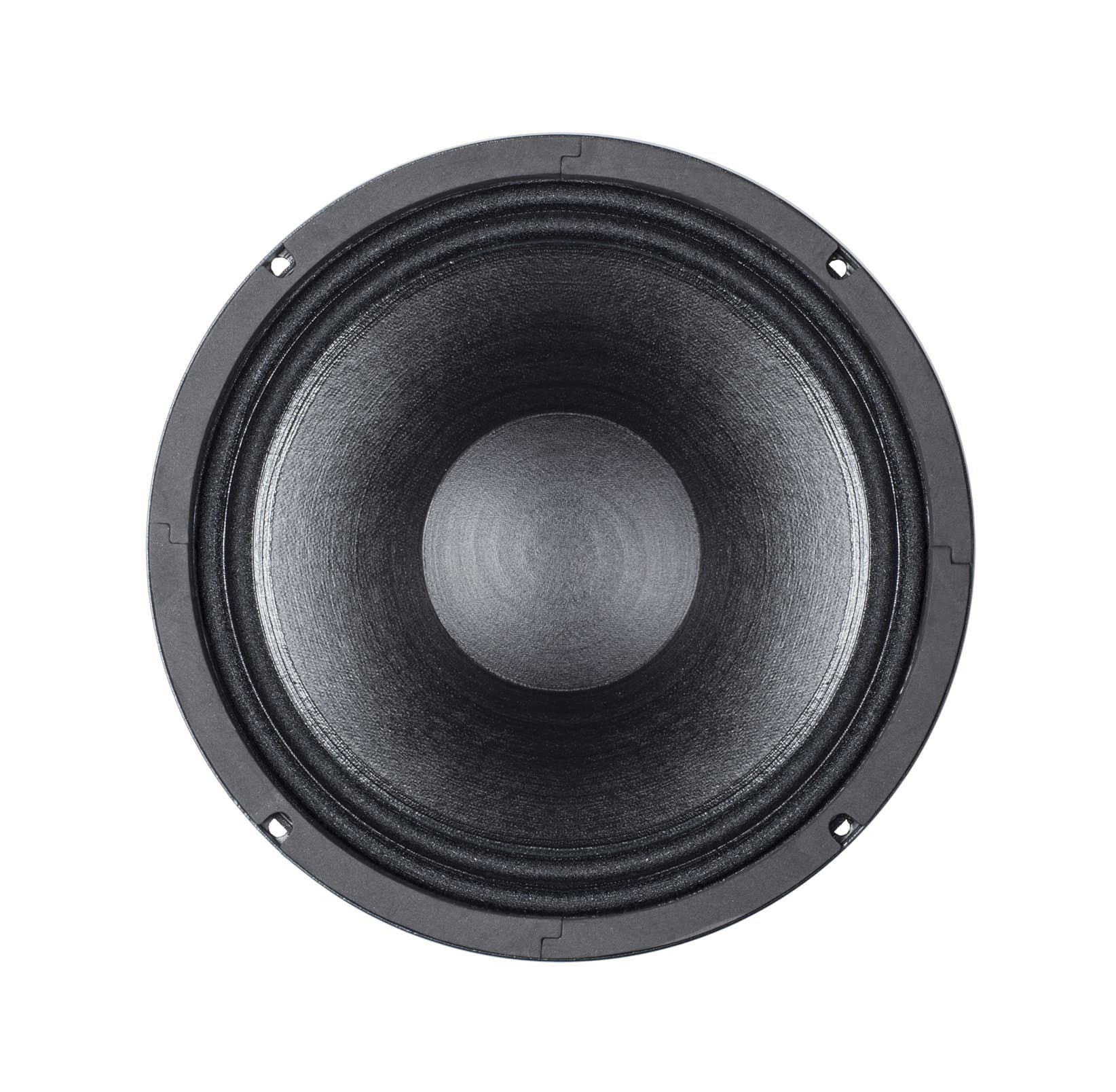

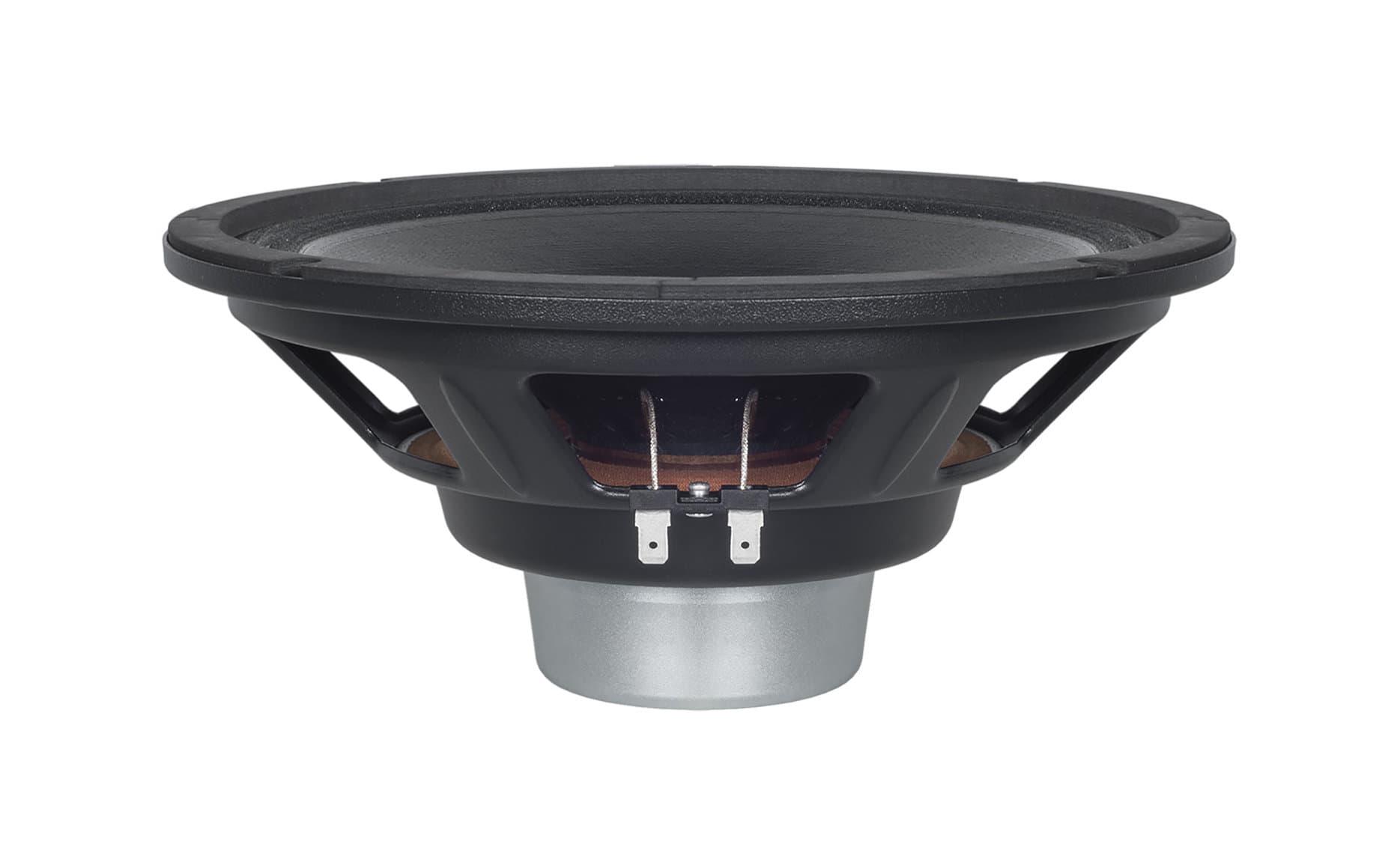

B&C 10CLA64
B&C 10CLA64 is a 10" 16 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 72Hz, Qts 0.41, Vas 21L, Xmax 4.5mm, sensitivity 94.3dB, plus 144cm³ Vd and 157 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £119.08.
Size
10"
Impedance
16Ω
RMS Power
250W
Sensitivity
94.3dB
96.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
157
Vented alignment
Vd
144cm³

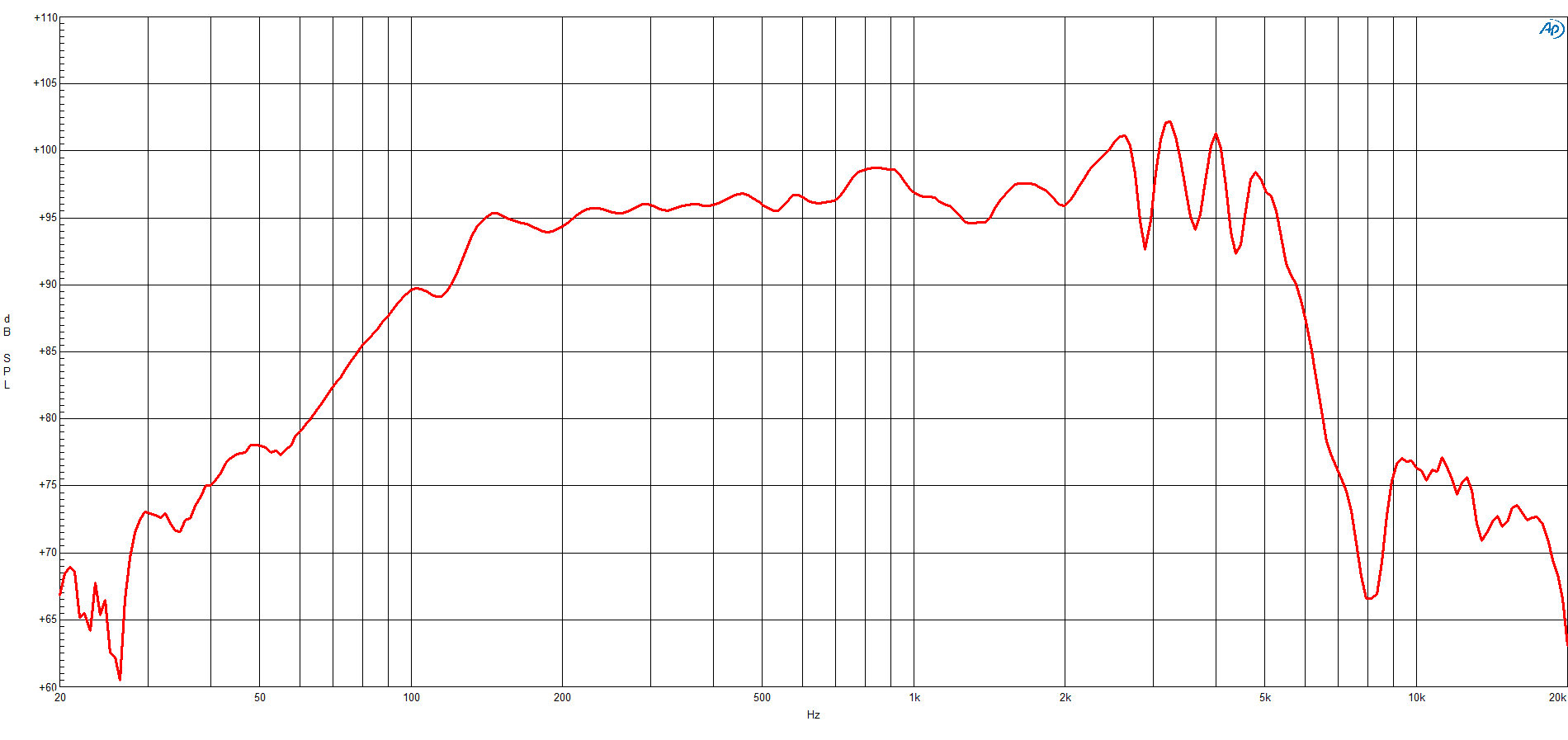

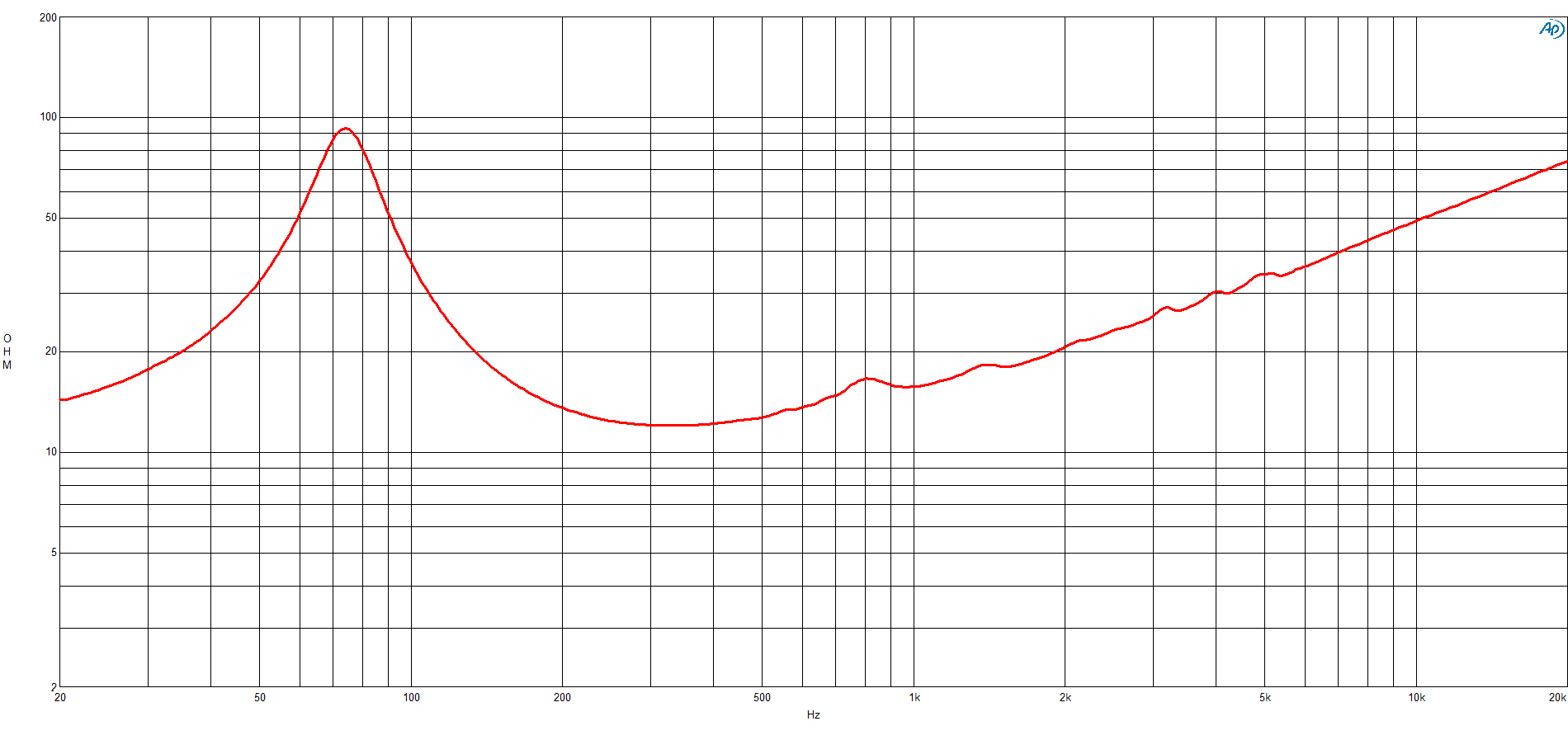

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs72Hz
Qts0.41
Qes0.46
Qms3.8
Vas21.0L
Re10.6Ω
Le0.70mH
BL18.8Tm
Sd320cm²
Mms34g
Xmax4.5mm
SPL94dB
Power250W
Power Nominal250W
Impedance16Ω
Min Impedance12.0Ω
F Low75Hz
F High4000Hz
Voice Coil64mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£119.08
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Diameter257.0mm
Overall Depth111.0mm
Cutout Diameter232.0mm
Bolt Circle Diameter245.0mm
Additional Manufacturer Specs
Bl18.8 Tm
Fs72 Hz
Le0.7 mH
Re10.6 Ω
Sd320 cm² (49.6 in²)
Ebp157 Hz
Mms33.6 g
Qes0.46
Qms3.8
Qts0.41
Vas21 dm³ (0.74 ft³)
η01.64 %
ConeRCK10CLA6416
Xmax4.5 mm
Xvar5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth13 mm (0.51 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)

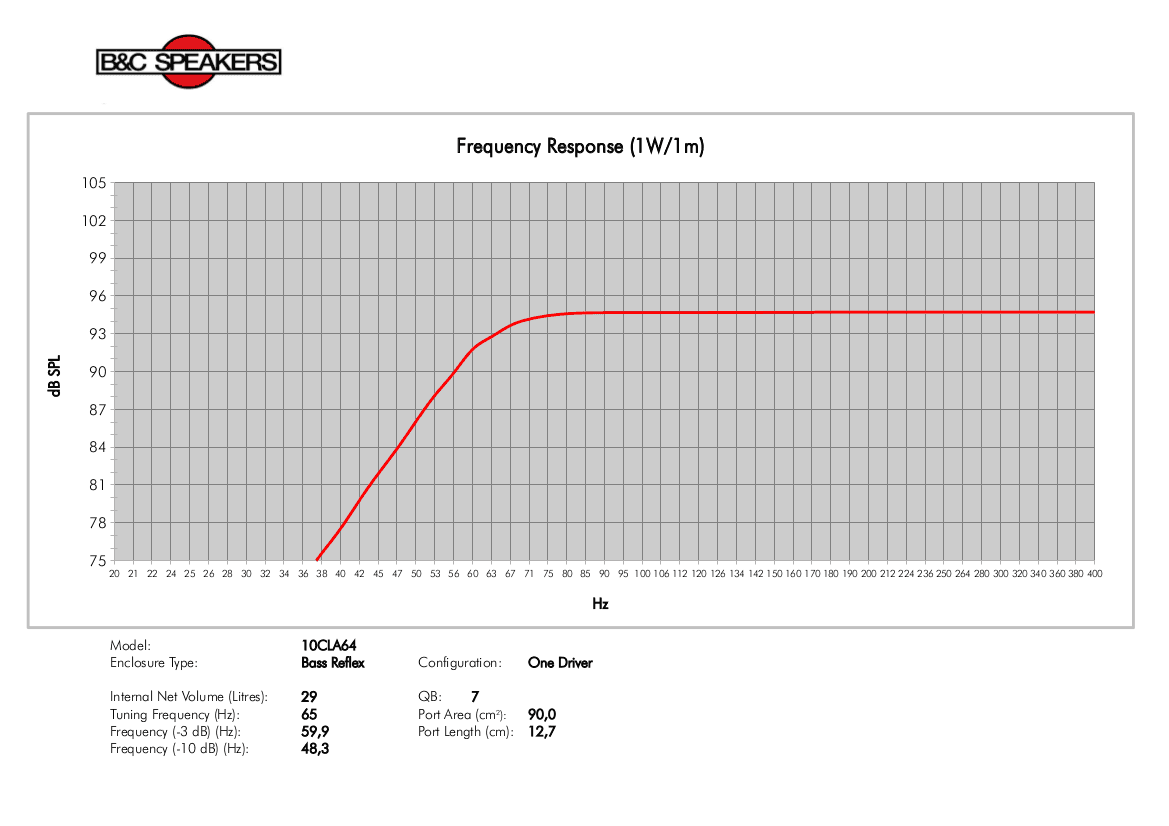

Recommended Tuning65 Hz
Bolt Circle Diameter245 mm (9.65 in)
Recommended Enclosure29 dm³ (1.02 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter232 mm (9.13 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver1 dm³ (0.04 ft³)
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
B&C
10CLA64
10"
Best current price
£119.08
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
57% cheaper£50.73
SB Audience
BIANCO-10MW150
10"
Lower price
Xmax5.6mm+25%
Qts0.39-5%
BL15.1Tm-20%
Vas25.8L+23%
Qes0.4-13%
49%
Similarity
47% cheaper£63.00

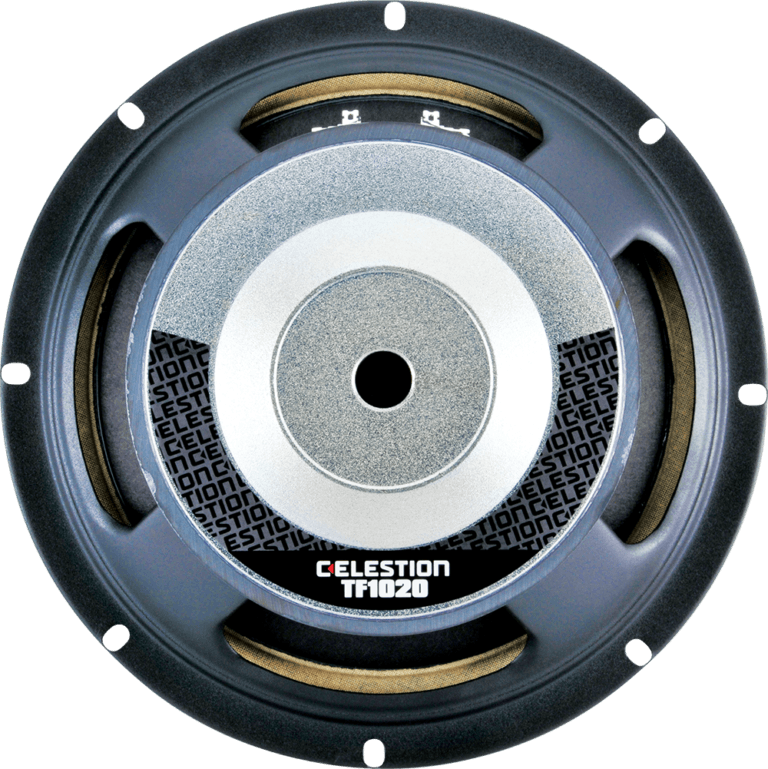

Celestion
TF1020
10"
Lower price
Xmax4mm-11%
Qts0.32-21%
BL14.1Tm-25%
Vas28.8L+37%
Qes0.37-19%
70%
Similarity
45% cheaper£65.00
Lavoce
WAF102.50
10"
Lower price
Xmax5.1mm+13%
Qts0.38-7%
BL14.6Tm-22%
Vas23.7L+13%
Qes0.42-9%
65%
Similarity
31% cheaper£82.61
Lavoce
WAN102.50
10"
Lower price
Xmax5.1mm+13%
Qts0.35-15%
BL15.3Tm-19%
Vas22.4L+7%
Qes0.38-17%
48%
Similarity
8% cheaper£109.82
FaitalPRO
10PR310
10"
Lower price
Xmax4.9mm+9%
Qts0.34-17%
BL14.4Tm-23%
Vas32.2L+53%
Qes0.36-22%
55%
Similarity
3% cheaper£116.06
B&C
10CL64
10"
Lower price
Xmax5.2mm+16%
Qts0.31-24%
BL16.3Tm-13%
Vas22.2L+6%
Qes0.33-28%
77%
Similarity
£119.08
B&C
10CLA64
10"
Xmax5mm+11%
Qts0.42+2%
BL14.5Tm-23%
Vas18.5L-12%
Qes0.45-2%
60%
Similarity
39% more£165.00

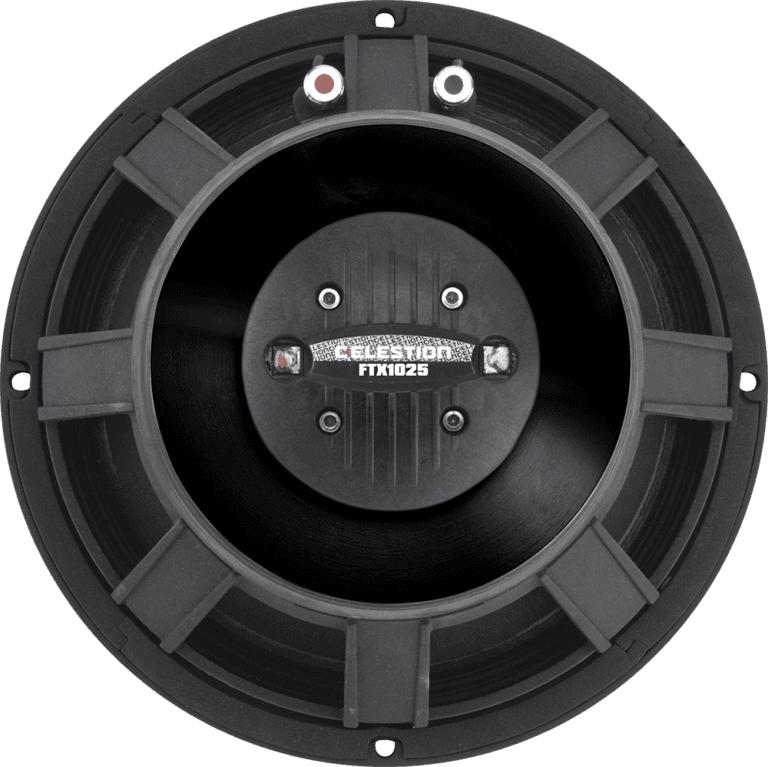

Celestion
