B&C10NW64
£114.03 · 35% less, betterFs59 Hz +13%, worse
Qts0.26 +37%, worse
Vas22 L −29%, better
BL18.3 T·m –
Xmax6 mm –
Sensitivity94.3 dB −1.1
10-inch LF driver · 10PLB series · 76 mm voice coil · 400 W

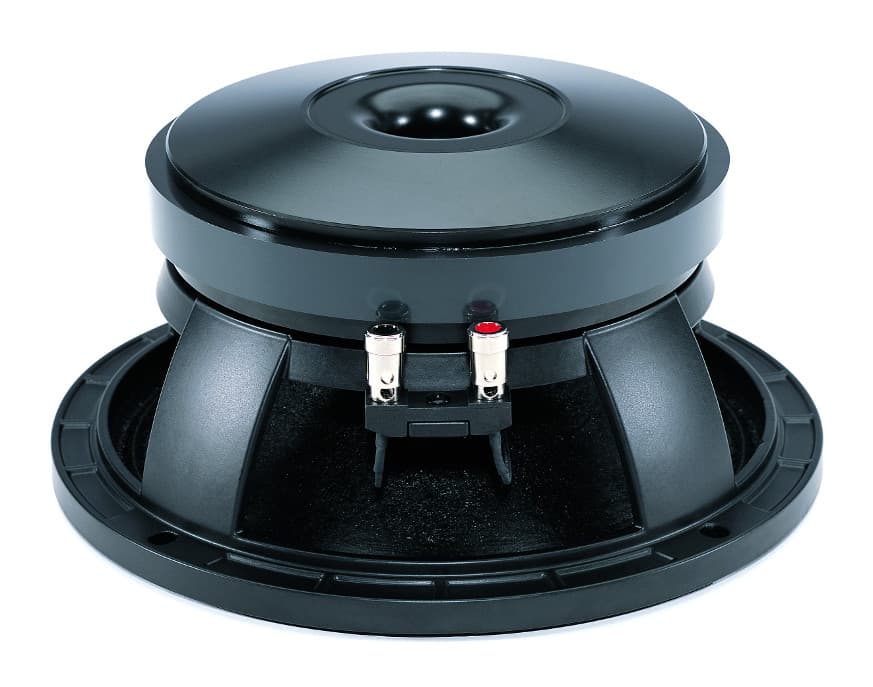

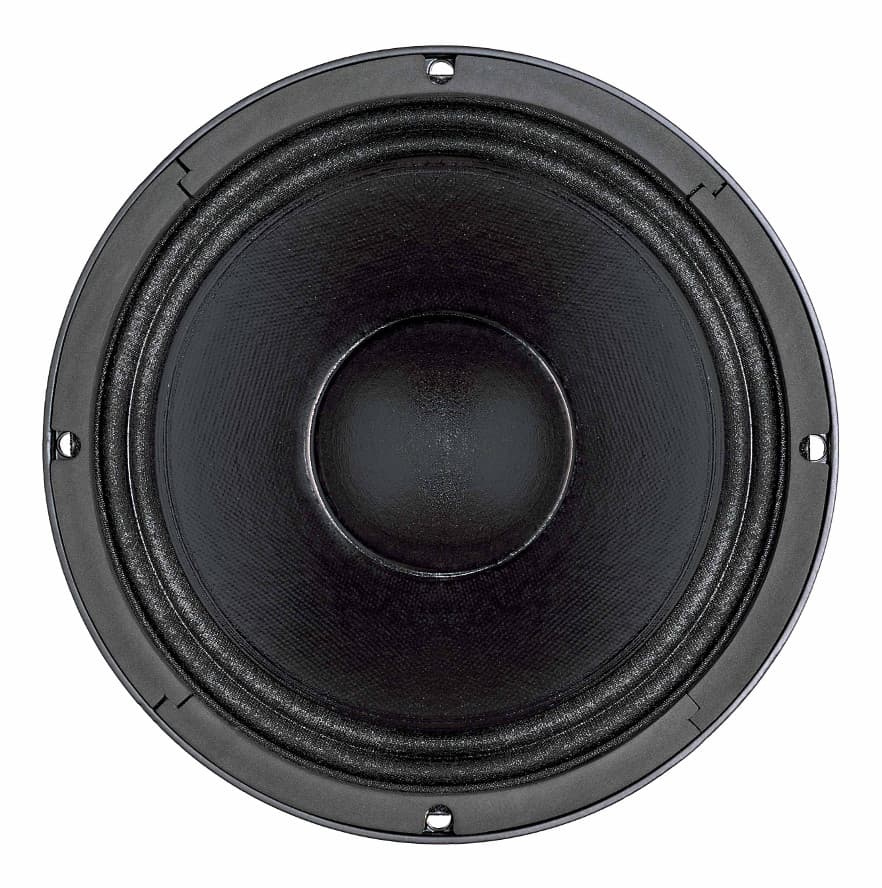

B&C 10PLB76 8Ω
8 Ω · 50–2500 Hz
£175.40
SteadyJP Leisure · In stock · All 8 offers
- Fs
- 52Hz
- Xmax
- 6mm
- SPL
- 95dB
- Pe
- 400W
- BL
- 18.4T·m
- Vd
- 192cm³
- Qts
- 0.19
- Vas
- 31L

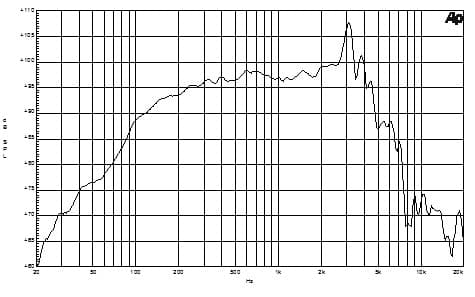

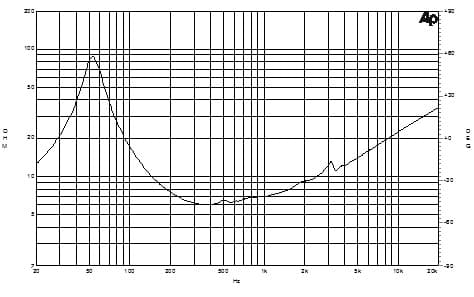

Published graphs
B&C 10PLB76 is a 10-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 52 Hz, Qts 0.19, Vas 31 L, Xmax 6 mm, sensitivity 95.4 dB, plus 192 cm³ Vd and 260 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £175.40.
The published T/S values agree with each other
Thiele/Small
- Fs
- 52Hz
- Qts
- 0.19
- Qes
- 0.20
- Qms
- 3.4
- Vas
- 31L
- Re
- 4.8Ω
- Le
- 0.32mH
Motor and cone
- BL
- 18.4T·m
- Sd
- 320cm²
- Mms
- 43g
- Xmax
- 6mm
- Vd †
- 192cm³
- Voice coil
- 76mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 95.4dB
- Manufacturer sensitivity
- 98dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6Ω
- Range
- 50–2500Hz
- EBP †
- 260 · Leans vented
Size and mounting
- Diameter
- 262mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Depth
- 124mm
- Weight
- 7.4kg
Sensitivity shows 95.4 dB, calculated from the T/S values. B&C publishes 98.0 dB, 2.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 18.4T·m
- Fs
- 52Hz
- Le
- 0.32mH
- Re
- 4.8Ω
- Sd
- 320cm²
- Mms
- 43g
- Qes
- 0.20
- Qms
- 3.4
- Qts
- 0.19
- SPL
- 95.4dB
- Vas
- 31L
- Xmax
- 6mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 98dB
- Low limit
- 50Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 95.4dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 98dB
- Min. impedance
- 6Ω
- Voice coil
- 76mm
- Weight
- 7.4kg
- Diameter
- 262mm
- Depth
- 124mm
- Cutout
- 230mm
- Bolt circle
- 245mm
- Bl
- 18.4 Tm
- Fs
- 52 Hz
- Le
- 0.32 mH
- Re
- 4.8 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 260 Hz
- Mms
- 43 g
- Qes
- 0.2
- Qms
- 3.4
- Qts
- 0.19
- Vas
- 31 dm³ (1.09 ft³)
- Η0
- 2.2 %
- Cone
- RCK10PLB768
- Xmax
- 6 mm
- Xvar
- 7 mm
- Depth
- 124 mm (4.88 in)
- Spider
- Single
- Cone shape
- Radial
- Net weight
- 7.4 kg (16.31 lb)
- Pole design
- T-Pole
- Sensitivity
- 98 dB
- Flux density
- 1.1 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 20 mm (0.79 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 50 Hz - 2500 Hz
- Magnet material
- Ferrite
- Shipping weight
- 8 kg (17.64 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 262 mm (10.31 in)
- Winding material
- Aluminium
- Minimum impedance
- 6 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.33 in)
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 245 mm (9.65 in)
- Woofer cone treatment
- None
- Baffle cutout diameter
- 230 mm (9.06 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 2.6 dm³ (0.09 ft³)
02
Compare
Same-size drivers, compared with the 10PLB76. Clear differences are green when better and red when worse.
This driver10PLB76
Best price
£175.40
Fs
52 Hz
Qts
0.19
Vas
31 L
BL
18.4 T·m
Xmax
6 mm
Sensitivity
95.4 dB
Power
400 W
B&C10MD26
£117.17 · 33% less, betterFs76 Hz +46%, worse
Qts0.21 +11%, worse
Vas20 L −35%, better
BL19.6 T·m +7%
Xmax1.5 mm −75%, worse
Sensitivity98 dB +2.6, better
B&C10FW64
£124.19 · 29% less, betterFs63 Hz +21%, worse
Qts0.23 +21%, worse
Vas27 L −13%, better
BL16.4 T·m −11%, worse
Xmax5 mm −17%, worse
Sensitivity96.3 dB +0.9
EminenceKAPPA PRO-10A
£124.66 · 29% less, betterFs46 Hz −12%, better
Qts0.20 +5%
Vas52.2 L +68%, worse
BL18.8 T·m –
Xmax3.2 mm −47%, worse
Sensitivity96.1 dB +0.7
CIAREPW257
£133.48 · 24% less, betterFs57 Hz +10%
Qts0.30 +58%, worse
Vas31 L –
BL15.9 T·m −14%, worse
Xmax5.5 mm −8%
Sensitivity94.4 dB −1
Beyma10MI100
£135.72 · 23% less, betterFs50 Hz −4%
Qts0.21 +11%, worse
Vas54 L +74%, worse
BL18.7 T·m –
Xmax4.5 mm −25%, worse
Sensitivity96.9 dB +1.5
B&C10NDL64
£141.93 · 19% less, betterFs56 Hz +8%
Qts0.26 +37%, worse
Vas31 L –
BL16.2 T·m −12%, worse
Xmax6 mm –
Sensitivity94.8 dB −0.6
Eighteen Sound10NTLW2000
£157.68 · 10% less, betterFs57 Hz +10%
Qts0.22 +16%, worse
Vas31 L –
BL17.9 T·m –
Xmax4.4 mm −27%, worse
Sensitivity96.2 dB +0.8
Eighteen Sound10MB600
£161.36 · 8% less, betterFs58 Hz +12%, worse
Qts0.22 +16%, worse
Vas33.4 L +8%
BL18.6 T·m –
Xmax6.5 mm +8%
Sensitivity96.6 dB +1.2
FaitalPRO10PR410
£167.27 · 5% lessFs60 Hz +15%, worse
Qts0.23 +21%, worse
Vas32 L +3%
BL18.5 T·m –
Xmax4.5 mm −25%, worse
Sensitivity96.8 dB +1.4
RCFMB10N305
£186.20 · 6% more, worseFs60 Hz +15%, worse
Qts0.23 +21%, worse
Vas31 L –
BL18.5 T·m –
Xmax5 mm −17%, worse
Sensitivity96.5 dB +1.1
Precision DevicesPD.103NR1
£205.00 · 17% more, worseFs65 Hz +25%, worse
Qts0.21 +12%, worse
Vas36 L +16%, worse
BL18 T·m –
Xmax7.5 mm +25%, better
Sensitivity98.6 dB +3.2, better
B&C10NW76
£213.75 · 22% more, worseFs67 Hz +29%, worse
Qts0.19 –
Vas17.8 L −43%, better
BL17 T·m −8%
Xmax6.5 mm +8%
Sensitivity96.3 dB +0.9
WavecorSW280WA04
£244.15 · 39% more, worseFs34 Hz −35%, better
Qts0.45 +137%, worse
Vas30.5 L –
BL15.5 T·m −16%, worse
Xmax6 mm –
Sensitivity86.1 dB −9.3, worse
Eighteen Sound10MB777
No current priceFs58 Hz +12%, worse
Qts0.22 +16%, worse
Vas33.4 L +8%
BL18.6 T·m –
Xmax6.5 mm +8%
Sensitivity96.6 dB +1.2
Oberton10NM300
No current priceFs71 Hz +37%, worse
Qts0.21 +10%
Vas20.6 L −34%, better
BL20.1 T·m +9%
Xmax5.3 mm −13%, worse
Sensitivity97.5 dB +2.1, better
Dayton AudioAPOLLO 10N
No current priceFs54 Hz +4%
Qts0.22 +16%, worse
Vas43.5 L +40%, worse
BL19.2 T·m +4%
Xmax5.8 mm −3%
Sensitivity96.8 dB +1.4
CIARECW260SPL
No current priceFs40 Hz −23%, better
Qts0.19 –
Vas66.3 L +114%, worse
BL12.0 T·m −35%, worse
Xmax6 mm –
Sensitivity95.5 dB –
No photo
PHL Audio3481-14
No current priceFs55 Hz +6%
Qts0.26 +37%, worse
Vas25.2 L −19%, better
BL18.1 T·m –
Xmax6 mm –
Sensitivity93.9 dB −1.5
No photo
PHL Audio3920NDU-7
No current priceFs74 Hz +42%, worse
Qts0.20 +5%
Vas17.7 L −43%, better
BL20.7 T·m +13%, better
Xmax4.5 mm −25%, worse
Sensitivity97.4 dB +2, better
No photo
PHL Audio3400
No current priceFs53 Hz –
Qts0.28 +47%, worse
Vas30.6 L –
BL18.1 T·m –
Xmax6.5 mm +8%
Sensitivity94 dB −1.4
No photo
PHL Audio3840
No current priceFs62 Hz +19%, worse
Qts0.22 +16%, worse
Vas26.3 L −15%, better
BL20.9 T·m +14%, better
Xmax4.5 mm −25%, worse
Sensitivity96.6 dB +1.2
No photo
PHL Audio3820NDU
No current priceFs55 Hz +6%
Qts0.18 −5%
Vas24.7 L −20%, better
BL23.9 T·m +30%, better
Xmax4.5 mm −25%, worse
Sensitivity95.4 dB –
No photo
REDCATT10NPM-2
No current priceFs58 Hz +12%, worse
Qts0.33 +74%, worse
Vas29.3 L −5%
BL17.9 T·m –
Xmax6.3 mm +6%
Sensitivity94 dB −1.4
LavoceWAN103.01
No current priceFs70 Hz +35%, worse
Qts0.22 +16%, worse
Vas22.3 L −28%, better
BL20.6 T·m +12%, better
Xmax5 mm −17%, worse
Sensitivity97.2 dB +1.8
No photo
PHL Audio3840NDU
No current priceFs62 Hz +19%, worse
Qts0.22 +16%, worse
Vas26.3 L −15%, better
BL20.8 T·m +13%, better
Xmax4.5 mm −25%, worse
Sensitivity96.4 dB +1
Oberton10MB300
No current priceFs65 Hz +24%, worse
Qts0.24 +28%, worse
Vas22.8 L −27%, better
BL18.3 T·m –
Xmax5.3 mm −13%, worse
Sensitivity95.9 dB +0.5
No photo
PHL Audio3900-2
No current priceFs56 Hz +8%
Qts0.18 −5%
Vas20.3 L −35%, better
BL22.7 T·m +23%, better
Xmax4.5 mm −25%, worse
Sensitivity95 dB –
BMS10S302
No current priceFs60 Hz +15%, worse
Qts0.33 +74%, worse
Vas30 L −3%
BL16.2 T·m −12%, worse
Xmax5.5 mm −8%
Sensitivity94.7 dB −0.7
Eighteen Sound10NCX750
No current priceFs64 Hz +23%, worse
Qts0.25 +32%, worse
Vas23 L −26%, better
BL20 T·m +9%
Xmax5.5 mm −8%
Sensitivity95.7 dB –
