B&C design
DCX-LA210
Three-way - Long throw, compact Line Array element
- Drivers
- 2 × 10NW76, 8 Ωor 2 × 10CLA76, 8 Ω
Designed with the 8 Ω version.
10-inch LF driver · 10NW series · 76 mm voice coil · 400 W
B&C 10NW76 4Ω
65–3500 Hz
No price for delivery to the UK
- Fs
- 67Hz
- Xmax
- 6.5mm
- SPL
- 96dB
- Pe
- 400W
- BL
- 17T·m
- Vd
- 208cm³
- Qts
- 0.19
- Vas
- 18L

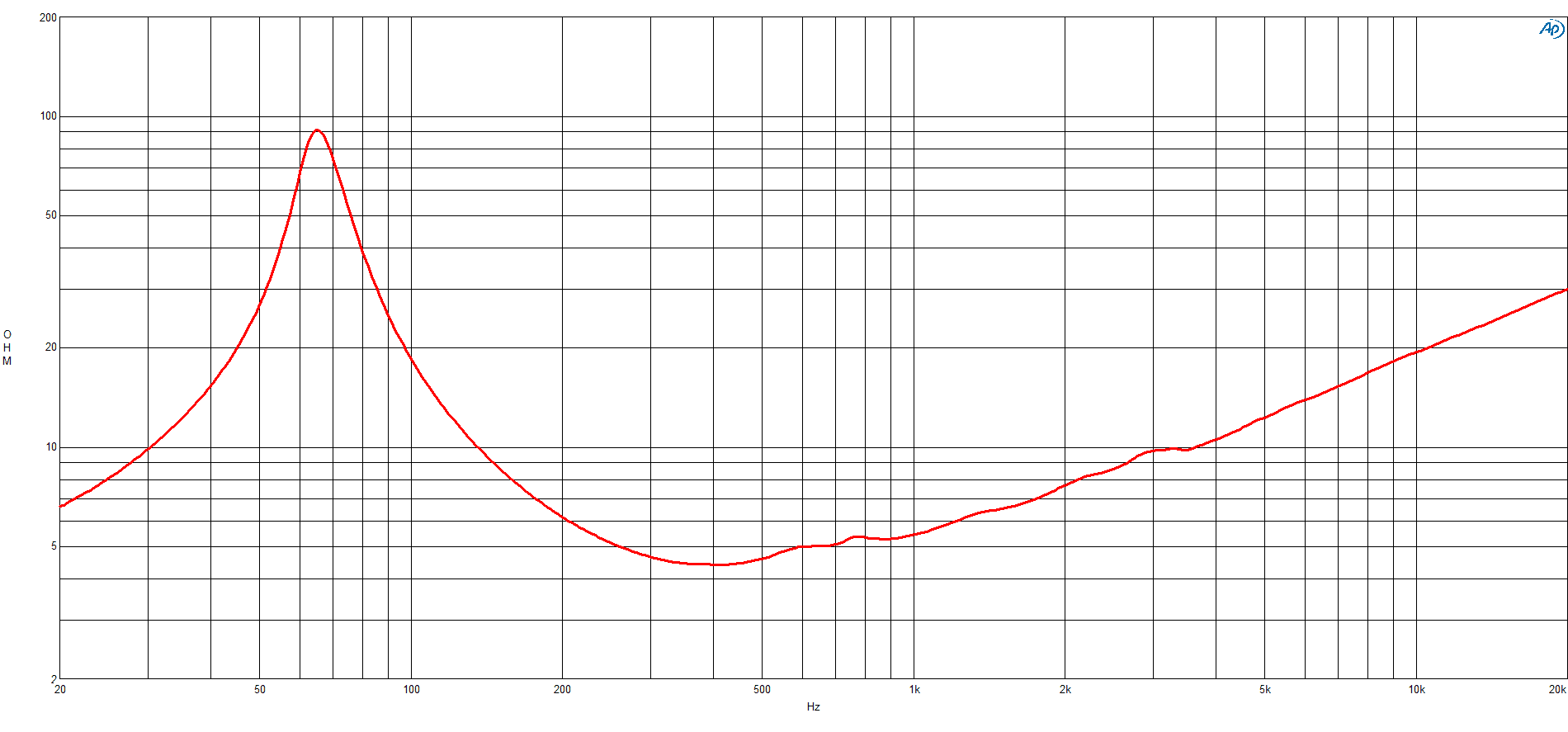

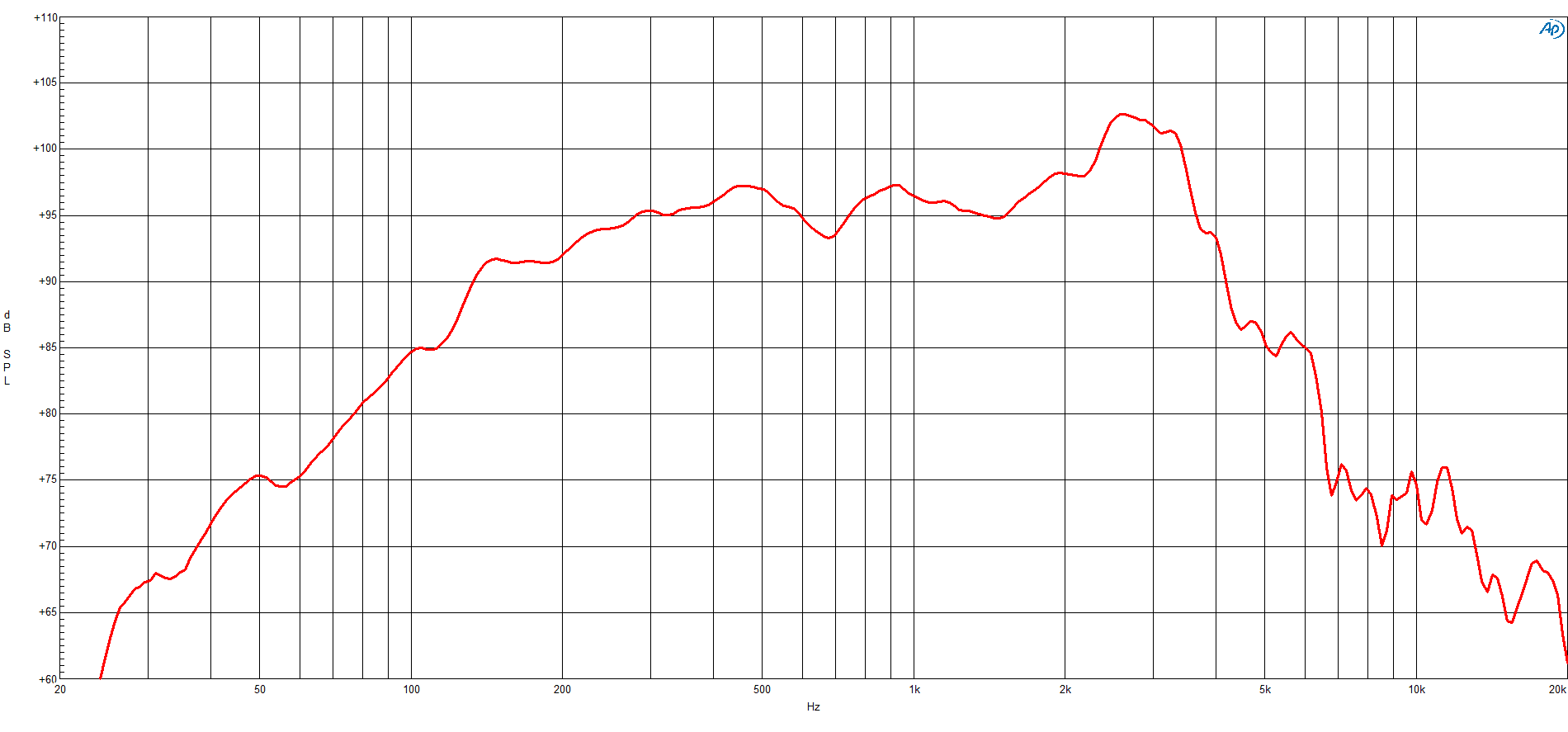

Published graphs

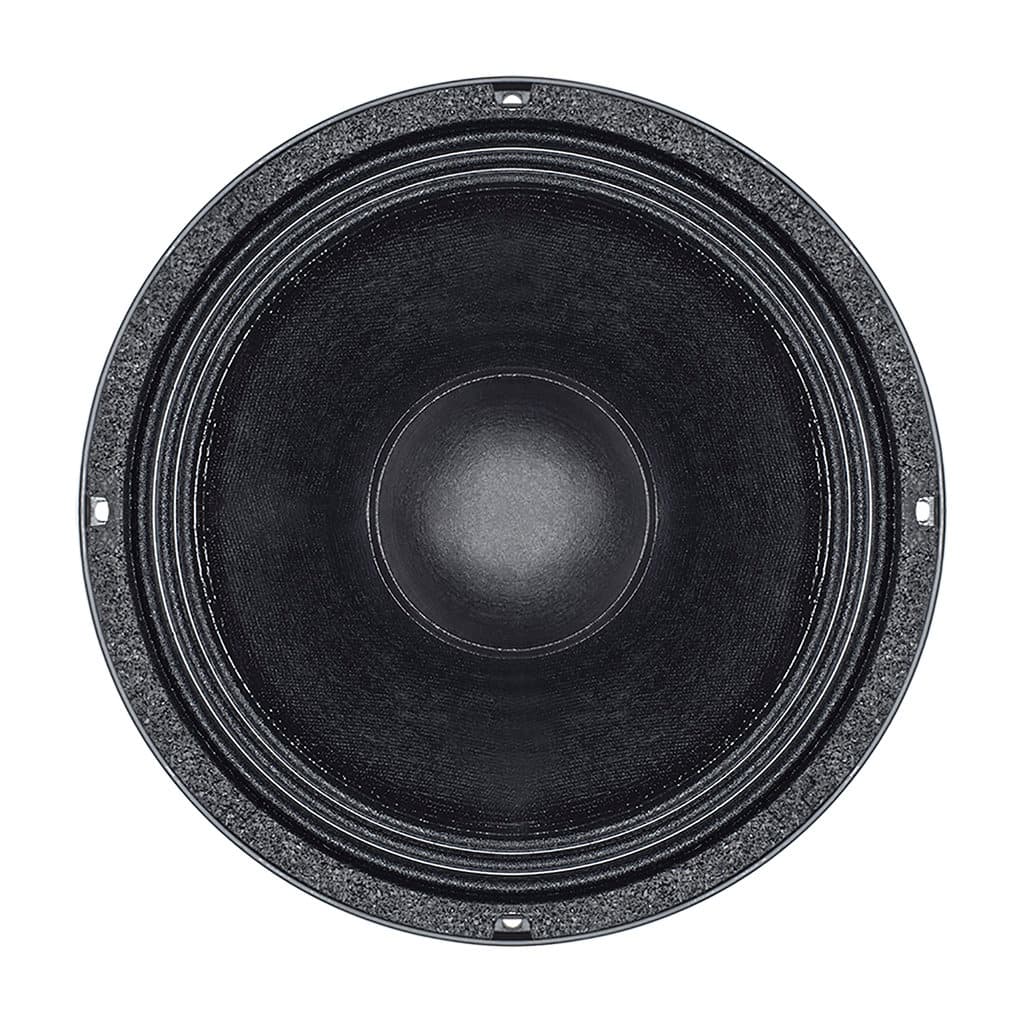

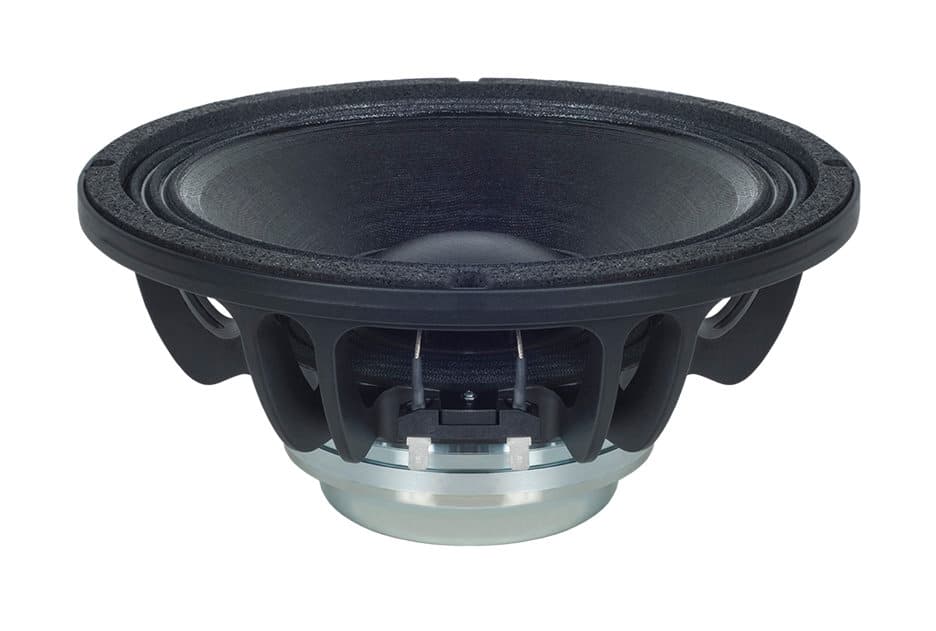

B&C 10NW76 is a 10-inch 4 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 67 Hz, Qts 0.19, Vas 17.8 L, Xmax 6.5 mm, sensitivity 96.3 dB, plus 208 cm³ Vd and 335 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £214.76.
The published T/S values agree with each other
Thiele/Small
- Fs
- 67Hz
- Qts
- 0.19
- Qes
- 0.20
- Qms
- 7
- Vas
- 17.8L
- Re
- 3Ω
- Le
- 0.53mH
Motor and cone
- BL
- 17T·m
- Sd
- 320cm²
- Mms
- 45g
- Xmax
- 6.5mm
- Vd †
- 208cm³
- Voice coil
- 76mm
- Flux density
- 1.35T
Power and response
- Sensitivity †
- 96.3dB
- Manufacturer sensitivity
- 97.5dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 4Ω
- Min. impedance
- 4.5Ω
- Range
- 65–3500Hz
- EBP †
- 335 · Leans vented
Size and mounting
- Diameter
- 261mm
- Cutout
- 233mm
- Bolt circle
- 246mm
- Depth
- 119mm
- Weight
- 3.8kg
Sensitivity shows 96.3 dB, calculated from the T/S values. B&C publishes 97.5 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 17T·m
- Fs
- 67Hz
- Le
- 0.53mH
- Re
- 3Ω
- Sd
- 320cm²
- Mms
- 45g
- Qes
- 0.20
- Qms
- 7
- Qts
- 0.19
- SPL
- 96.3dB
- Vas
- 17.8L
- Xmax
- 6.5mm
- Power
- 400W
- Impedance
- 4Ω
- Flux density
- 1.35T
- Sensitivity
- 97.5dB
- Low limit
- 65Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 96.3dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 97.5dB
- Min. impedance
- 4.5Ω
- Voice coil
- 76mm
- Weight
- 3.8kg
- Diameter
- 261mm
- Depth
- 119mm
- Cutout
- 233mm
- Bolt circle
- 246mm
- Bl
- 17 Tm
- Fs
- 67 Hz
- Le
- 0.53 mH
- Re
- 3 Ω
- Sd
- 320 cm² (49.6 in²)
- Ebp
- 335 Hz
- Mms
- 45.4 g
- Qes
- 0.2
- Qms
- 7
- Qts
- 0.19
- Vas
- 17.8 dm³ (0.63 ft³)
- Η0
- 2.64 %
- Cone
- RCK10NW764
- Xmax
- 6.5 mm
- Xvar
- 7.5 mm
- Depth
- 119 mm (4.69 in)
- Spider
- Single
- Cone shape
- Curvilinear
- Net weight
- 3.8 kg (8.38 lb)
- Pole design
- T-Pole
- Sensitivity
- 97.5 dB
- Flux density
- 1.35 T
- Shipping box
- 295x314x175 mm (11.61x12.36x6.89 in)
- Winding depth
- 18 mm (0.71 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 65 Hz - 3500 Hz
- Magnet material
- Neodymium Ring
- Shipping weight
- 4.4 kg (9.7 lb)
- Nominal diameter
- 250 mm (10 in)
- Overall diameter
- 261 mm (10.28 in)
- Winding material
- CCAW
- Minimum impedance
- 4.5 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 10 mm (0.39 in)
- Recommended tuning
- 65 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 246 mm (9.69 in)
- Recommended enclosure
- 26 dm³ (0.92 ft³)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 233 mm (9.17 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 13 mm (0.51 in)
- Air volume occupied by driver
- 1.5 dm³ (0.05 ft³)
02
Designs
Cabinets for the 10NW76: a design and a suggested box from B&C.
All 10NW76 designsHow we find designsB&C’s design
From the maker, with plans to download

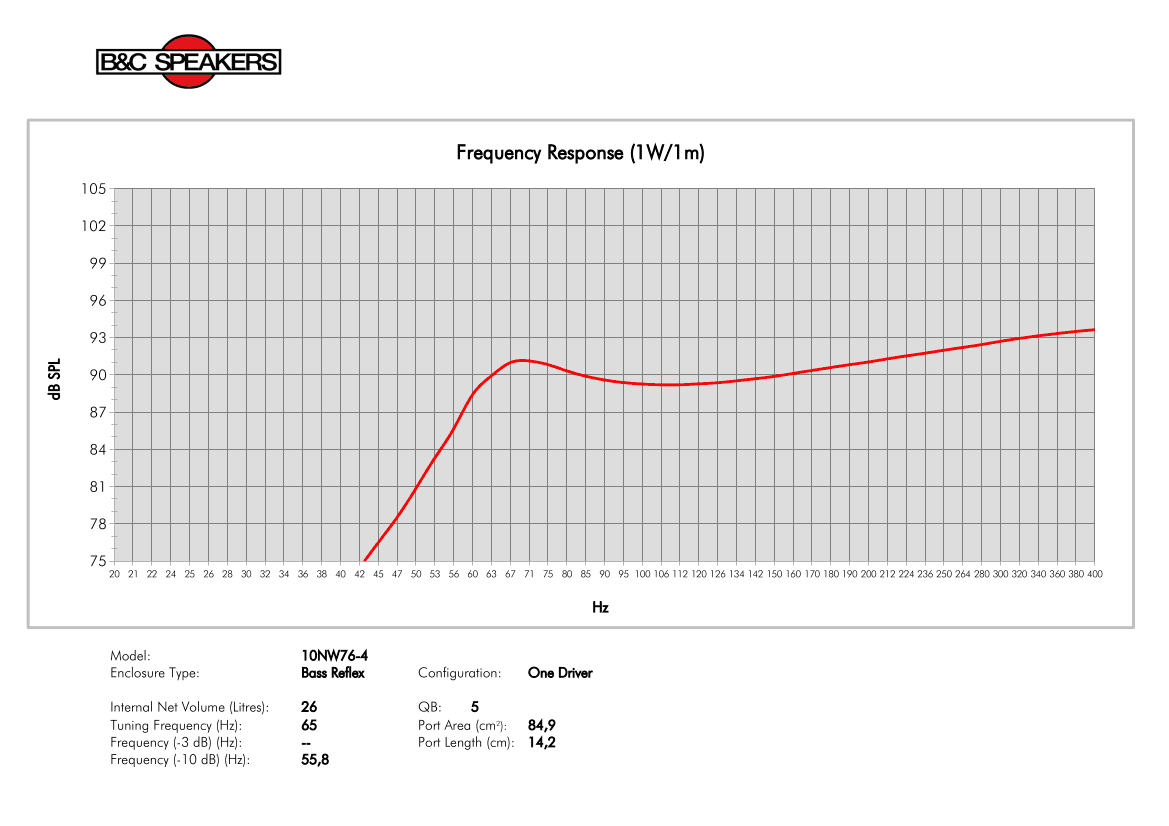

B&C’s suggested box
From B&C’s 10NW76 page
- Net volume
- 26L
- Tuning
- 65Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
