Eighteen Sound design
10" 2-WAY point source
- Drivers
- 1 × 10NTLW2000, 8 Ω
Designed with the 8 Ω version.
10-inch LF driver · 350 W
Eighteen Sound 10NTLW2000 4Ω
60–4500 Hz
No current price
- Fs
- 56Hz
- Xmax
- 4.4mm
- SPL
- 97dB
- Pe
- 350W
- BL
- 14.2T·m
- Vd
- 152cm³
- Qts
- 0.20
- Vas
- 37L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
173 plotted pointsSource file SHA-256 433dd64f5d43…Medium confidence2,089 selected pixels of 2,761 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 433dd64f5d43…Medium confidence544 selected pixels of 776
Published graphs

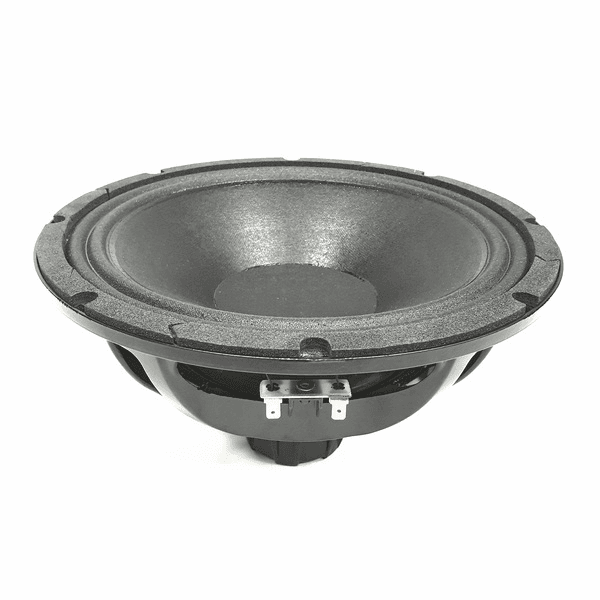

Eighteen Sound 10NTLW2000 is a 10-inch 4 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 56 Hz, Qts 0.20, Vas 36.6 L, Xmax 4.4 mm, sensitivity 96.9 dB, plus 152 cm³ Vd and 267 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 56Hz
- Qts
- 0.20
- Qes
- 0.21
- Qms
- 7
- Vas
- 36.6L
- Re
- 3.2Ω
- Le
- 0.46mH
Motor and cone
- BL
- 14.2T·m
- Sd
- 346cm²
- Mms
- 37g
- Xmax
- 4.4mm
- Vd †
- 152cm³
Power and response
- Sensitivity †
- 96.9dB
- Manufacturer sensitivity
- 98dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 4Ω
- Range
- 60–4500Hz
- EBP †
- 267 · Leans vented
Size and mounting
- Diameter
- 260mm
- Cutout
- 233mm
- Bolt circle
- 245mm
- Depth
- 141mm
- Weight
- 1.9kg
Other published values
- Power Program
- 700
Sensitivity shows 96.9 dB, calculated from the T/S values. Eighteen Sound publishes 98.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 10″
- BL
- 14.2T·m
- Fs
- 56Hz
- Le
- 0.46mH
- Re
- 3.2Ω
- Sd
- 346cm²
- Mms
- 37g
- Qes
- 0.21
- Qms
- 7
- Qts
- 0.20
- SPL
- 96.9dB
- Vas
- 36.6L
- Xmax
- 4.4mm
- Power
- 350W
- Impedance
- 4Ω
- Sensitivity
- 98dB
- Low limit
- 60Hz
- Nominal power
- 350W
- Power Program
- 700
- Calculated sensitivity †
- 96.9dB
- High limit
- 4500Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 1.9kg
- Diameter
- 260mm
- Depth
- 141mm
- Cutout
- 233mm
- Bolt circle
- 245mm
02
Designs
Cabinets for the 10NTLW2000: a design and a suggested box from Eighteen Sound.
All 10NTLW2000 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 10NTLW2000 page
- Net volume
- 14L
- Tuning
- 70Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 10NTLW2000. Clear differences are green when better and red when worse.
This driver10NTLW2000
Best price
–
Fs
56 Hz
Qts
0.20
Vas
36.6 L
BL
14.2 T·m
Xmax
4.4 mm
Sensitivity
96.9 dB
Power
350 W
PRV Audio10W650A
£58.06Fs72 Hz +29%, worse
Qts0.46 +130%, worse
Vas34.0 L −7%
BL14.1 T·m –
Xmax4.5 mm –
Sensitivity96.4 dB −0.5
CIAREFXI10
£79.75Fs58 Hz +4%
Qts0.38 +90%, worse
Vas38.5 L +5%
BL13.3 T·m −6%
Xmax4.5 mm –
Sensitivity94.7 dB −2.2, worse
B&C10FW64
£123.69Fs63 Hz +13%, worse
Qts0.23 +15%, worse
Vas27 L −26%, better
BL16.4 T·m +15%, better
Xmax5 mm +14%, better
Sensitivity96.3 dB −0.6
Beyma10MI100
£134.27Fs50 Hz −11%, better
Qts0.21 +5%
Vas54 L +48%, worse
BL18.7 T·m +32%, better
Xmax4.5 mm –
Sensitivity96.9 dB –
CelestionCF1025C
£135.00Fs55 Hz –
Qts0.27 +33%, worse
Vas38.6 L +6%
BL14.8 T·m +4%
Xmax4.3 mm −3%
Sensitivity95.3 dB −1.6
EminenceKAPPA PRO-10A
£152.95Fs46 Hz −18%, better
Qts0.20 –
Vas52.2 L +43%, worse
BL18.8 T·m +32%, better
Xmax3.2 mm −27%, worse
Sensitivity96.1 dB −0.8
B&C10PLB76
£175.40Fs52 Hz −7%
Qts0.19 −5%
Vas31 L −15%, better
BL18.4 T·m +30%, better
Xmax6 mm +36%, better
Sensitivity95.4 dB −1.5
Eighteen Sound10M600
£175.83Fs70 Hz +25%, worse
Qts0.23 +15%, worse
Vas25.6 L −30%, better
BL17.6 T·m +24%, better
Xmax4 mm −9%
Sensitivity97.5 dB +0.6
Eighteen Sound10NMB420
£182.20Fs56 Hz –
Qts0.25 +25%, worse
Vas40 L +9%
BL14.5 T·m –
Xmax4 mm −9%
Sensitivity96.3 dB −0.6
RCFMB10N305
£186.20Fs60 Hz +7%
Qts0.23 +15%, worse
Vas31 L −15%, better
BL18.5 T·m +30%, better
Xmax5 mm +14%, better
Sensitivity96.5 dB –
Precision DevicesPD.103NR1
£199.00Fs65 Hz +16%, worse
Qts0.21 +6%
Vas36 L –
BL18 T·m +27%, better
Xmax7.5 mm +70%, better
Sensitivity98.6 dB +1.7
Eighteen Sound10NMBA520
£225.00Fs60 Hz +7%
Qts0.23 +15%, worse
Vas42 L +15%, worse
BL14.6 T·m –
Xmax4 mm −9%
Sensitivity97.8 dB +0.9
No photo
PHL Audio3920NDU-7
No current priceFs74 Hz +32%, worse
Qts0.20 –
Vas17.7 L −52%, better
BL20.7 T·m +46%, better
Xmax4.5 mm –
Sensitivity97.4 dB +0.5
No photo
PHL Audio3840
No current priceFs62 Hz +11%, worse
Qts0.22 +10%
Vas26.3 L −28%, better
BL20.9 T·m +47%, better
Xmax4.5 mm –
Sensitivity96.6 dB –
No photo
PHL Audio3840NDU
No current priceFs62 Hz +11%, worse
Qts0.22 +10%
Vas26.3 L −28%, better
BL20.8 T·m +46%, better
Xmax4.5 mm –
Sensitivity96.4 dB −0.5
Oberton10NMB200
No current priceFs59 Hz +5%
Qts0.32 +58%, worse
Vas34.9 L −5%
BL14.1 T·m –
Xmax4.3 mm −3%
Sensitivity95.4 dB −1.5
No photo
PHL Audio3820NDU
No current priceFs55 Hz –
Qts0.18 −10%, better
Vas24.7 L −33%, better
BL23.9 T·m +68%, better
Xmax4.5 mm –
Sensitivity95.4 dB −1.5
WavecorWF259PA01
No current priceFs54 Hz −4%
Qts0.29 +45%, worse
Vas31 L −15%, better
BL14.1 T·m –
Xmax4.5 mm –
Sensitivity94.3 dB −2.6, worse
CelestionFTR10-2055D
No current priceFs58 Hz –
Qts0.34 +72%, worse
Vas36.9 L –
BL13.8 T·m –
Xmax4 mm −9%
Sensitivity94.6 dB −2.3, worse
No photo
PHL Audio3430
No current priceFs56 Hz –
Qts0.30 +50%, worse
Vas36 L –
BL16 T·m +13%, better
Xmax4.5 mm –
Sensitivity94.9 dB −2, worse
Oberton10NHCX
No current priceFs72 Hz +28%, worse
Qts0.24 +19%, worse
Vas24.5 L −33%, better
BL17.4 T·m +23%, better
Xmax4.3 mm −3%
Sensitivity97.7 dB +0.8
CIARENDI10
No current priceFs57 Hz –
Qts0.45 +125%, worse
Vas35 L −4%
BL12.6 T·m −12%, worse
Xmax4.5 mm –
Sensitivity93.2 dB −3.7, worse
Sica10 N 2.5 PL
No current priceFs57 Hz –
Qts0.36 +80%, worse
Vas40.9 L +12%, worse
BL12.8 T·m −10%
Xmax4.5 mm –
Sensitivity94.9 dB −2, worse
No photo
PHL Audio3820
No current priceFs55 Hz –
Qts0.17 −15%, better
Vas24.7 L −33%, better
BL24.5 T·m +73%, better
Xmax4.5 mm –
Sensitivity95.6 dB −1.3
No photo
PHL Audio3900-2
No current priceFs56 Hz –
Qts0.18 −10%, better
Vas20.3 L −45%, better
BL22.7 T·m +60%, better
Xmax4.5 mm –
Sensitivity95 dB −1.9
WavecorWF259PA02
No current priceFs52 Hz −7%
Qts0.28 +40%, worse
Vas33 L −10%
BL16.8 T·m +18%, better
Xmax4.5 mm –
Sensitivity94.2 dB −2.7, worse
Oberton10NM300
No current priceFs71 Hz +27%, worse
Qts0.21 +4%
Vas20.6 L −44%, better
BL20.1 T·m +42%, better
Xmax5.3 mm +19%, better
Sensitivity97.5 dB +0.6
LavoceFBASS10-18
No current priceFs65 Hz +16%, worse
Qts0.43 +115%, worse
Vas32.4 L −11%, better
BL12.5 T·m −12%, worse
Xmax4.5 mm –
Sensitivity94.7 dB −2.2, worse
No photo
PHL Audio3001
No current priceFs57 Hz –
Qts0.32 +60%, worse
Vas31.5 L −14%, better
BL15.9 T·m +12%, better
Xmax4.5 mm –
Sensitivity94.4 dB −2.5, worse
No photo
PHL Audio3002
No current priceFs47 Hz −16%, better
Qts0.39 +95%, worse
Vas31.5 L −14%, better
BL15.9 T·m +12%, better
Xmax4.5 mm –
Sensitivity91 dB −5.9, worse
