Oberton 10NM300
Oberton 10NM300 is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 71Hz, Qts 0.21, Vas 20.6L, Xmax 5.3mm, sensitivity 97.5dB, plus 167cm³ Vd and 333 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
97.5dB
200.0dBmanufacturer; using T/S-derived value (102.5dB delta).
EBP
333
Vented alignment
Vd
167cm³
T/S Parameters
Valid
Fs71Hz
Qts0.21
Qes0.21
Qms9.2
Vas20.6L
Re5.6Ω
Le0.62mH
BL20.1Tm
Sd317cm²
Mms35g
Xmax5.3mm
SPL98dB
Power400W
Impedance8Ω
Min Impedance7.2Ω
F Low100Hz
F High4000Hz
Voice Coil77mm
Flux Density1.45T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

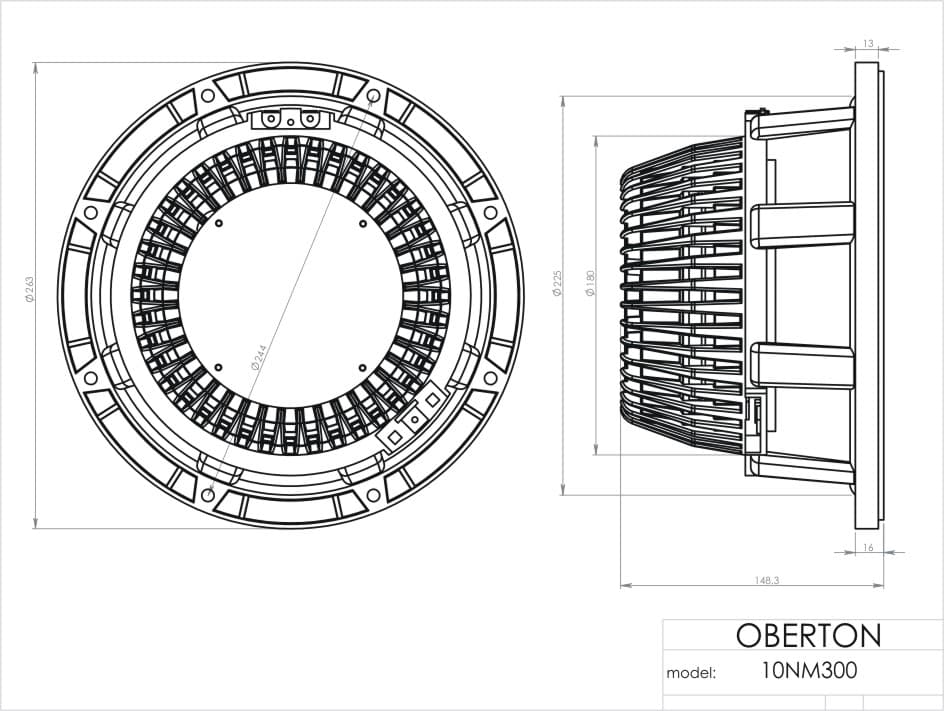

Dimensions & Physical
Weight4.8kg
Diameter263.0mm
Overall Depth148.3mm
Cutout Diameter225.0mm
Bolt Circle Diameter244.0mm
