Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespFaitalPRO 10PR410 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverPR series
FaitalPRO
FaitalPRO 10PR410

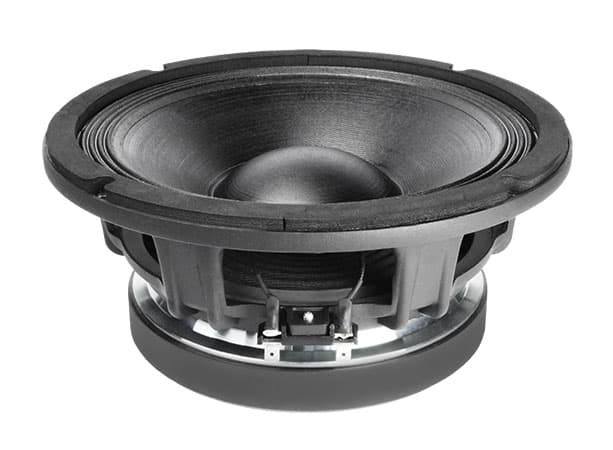

FaitalPRO 10PR410 is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 60Hz, Qts 0.23, Vas 32L, Xmax 4.5mm, sensitivity 96.8dB, plus 155cm³ Vd and 261 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £144.83.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
96.8dB
99.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
261
Vented alignment
Vd
155cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees200 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
200 plotted pointsMedium confidence659 selected pixels of 923 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,277 selected pixels of 1,277 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,363 selected pixels of 1,363
T/S Parameters
Valid
Fs60Hz
Qts0.23
Qes0.23
Qms10.5
Vas32.0L
Re5.4Ω
Le0.60mH
BL18.5Tm
Sd345cm²
Mms37g
Xmax4.5mm
SPL97dB
Power300W
Impedance8Ω
F Low100Hz
F High2000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£144.83
inc VAT
Back order
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£148.76
inc VAT
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£197.57
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
bluearan
£144.83
Avg £146.80£1.97 below avg (-1.3%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.5kg
Diameter261.0mm
Overall Depth131.0mm
Cutout Diameter230.0mm
Bolt Circle Diameter246.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
10PR410
10"
Best current price
£144.83
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
57%
Similarity
14% cheaper£124.67
RCF
MB10N251
10"
Lower price
Xmax5mm+11%
Qts0.27+17%
BL15.2Tm-18%
Vas39L+22%
Qes0.29+26%
50%
Similarity
10% cheaper£130.28
FaitalPRO
10PR300
10"
Lower price
Xmax4.9mm+9%
Qts0.28+22%
BL14.1Tm-24%
Vas42.2L+32%
Qes0.29+26%
81%
Similarity
10% cheaper£130.64
B&C
10FW64
10"
Lower price
Xmax5mm+11%
Qts0.230%
BL16.4Tm-11%
Vas27L-16%
Qes0.25+9%
59%
Similarity
7% cheaper£135.00
Celestion
CF1025C
10"
Lower price
Xmax4.3mm-6%
Qts0.27+15%
BL14.8Tm-20%
Vas38.6L+21%
Qes0.3+30%
71%
Similarity
9% more£157.30
B&C
10MBX64
10"
Higher price
Xmax4mm-11%
Qts0.26+13%
BL16.9Tm-9%
Vas28L-12%
Qes0.27+17%
92%
Similarity
9% more£157.68
Eighteen Sound
10NTLW2000
10"
Higher price
Xmax4.4mm-2%
Qts0.22-4%
BL17.9Tm-3%
Vas31L-3%
Qes0.22-4%
82%
Similarity
21% more£175.83
Eighteen Sound
10M600
10"
Higher price
Xmax4mm-11%
Qts0.230%
BL17.6Tm-5%
Vas25.6L-20%
Qes0.25+9%
91%
Similarity
29% more£186.20
RCF
MB10N305
10"
Higher price
Xmax5mm+11%
Qts0.230%
BL18.5Tm0%
Vas31L-3%
Qes0.24+4%
78%
Similarity
29% more£186.65
Lavoce
WAN103.01
10"
Higher price
Xmax5mm+11%
Qts0.22-4%
BL20.6Tm+11%
Vas22.3L-30%
Qes0.230%
66%
Similarity
30% more£187.96
Eighteen Sound
10NMB420
10"
Higher price
Xmax4mm-11%
Qts0.25+9%
BL14.5Tm-22%
Vas40L+25%
Qes0.26+13%
74%
Similarity
55% more£225.00
Eighteen Sound
10NMBA520
10"
Higher price
Xmax4mm-11%
Qts0.230%
BL14.6Tm-21%
Vas42L+31%
Qes0.24+4%
83%
Similarity
Oberton
10NHCX
10"
Xmax4.3mm-6%
Qts0.24+3%
BL17.4Tm-6%
Vas24.5L-23%
Qes0.24+6%
