Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing Mms, RMS power
Cube Audio F10 NEO V2 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverF10 series
Cube Audio

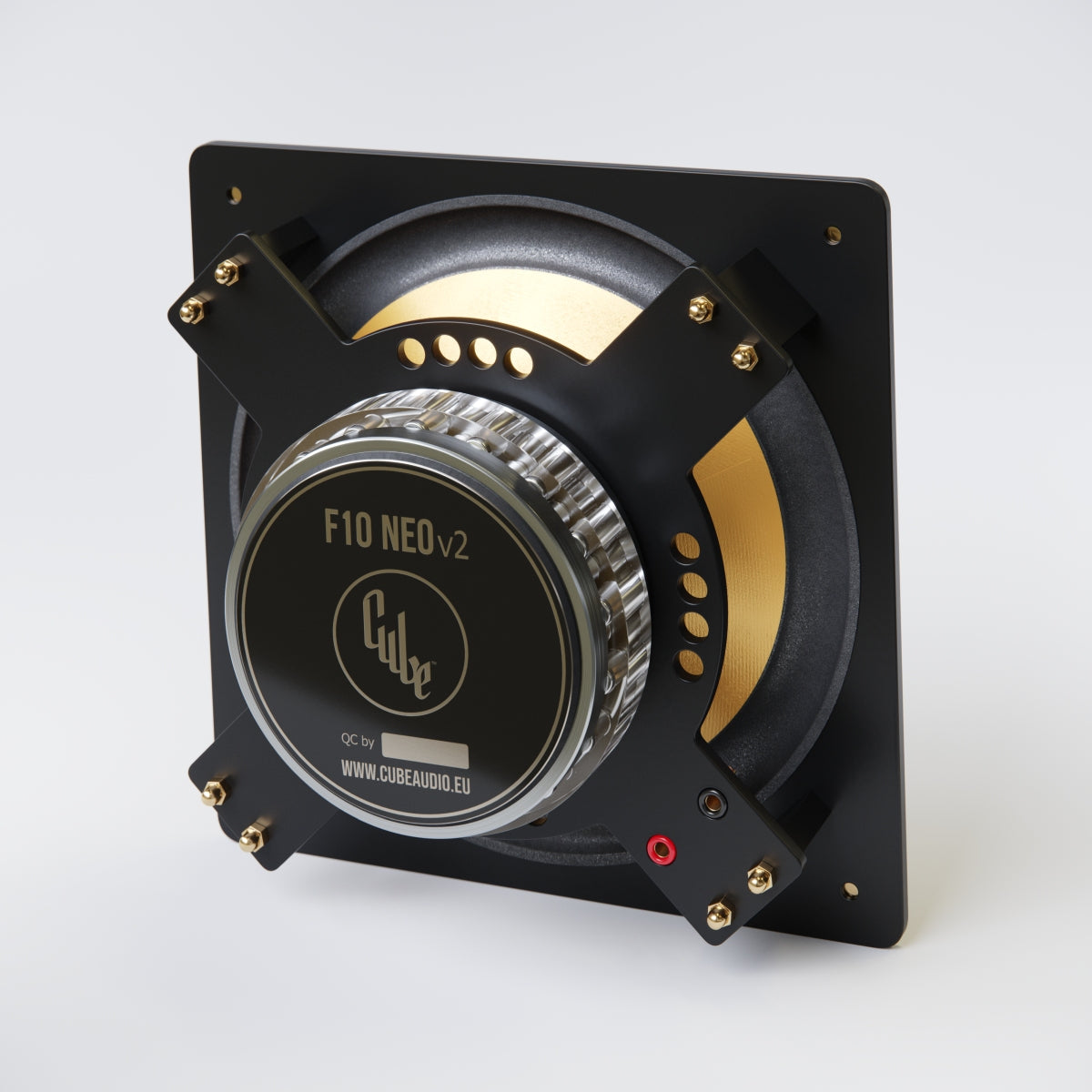

Cube Audio F10 NEO V2
Cube Audio F10 NEO V2 is a 10" 8 ohm LF driver. The validated T/S data includes Fs 40Hz, Qts 0.37, Vas 53L, Xmax 3mm, sensitivity 91.7dB, plus 69cm³ Vd and 108 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Partial source evidence
Automated T/S checks passed, but some material low-frequency parameters are not published for this record.
Material fields not published: Mms
- Manufacturer page linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
- EBP can be derived from Fs and Qes
Size
10"
Impedance
8Ω
Sensitivity
91.7dB
EBP
108
Vented alignment
Vd
69cm³
T/S Parameters
Valid
Fs40Hz
Qts0.37
Qes0.37
Qms16.4
Vas53.0L
Re6.0Ω
Le0.01mH
BL9.0Tm
Sd230cm²
Xmax3.0mm
SPL92dB
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter260.0mm
Overall Depth107.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Cube Audio
F10 NEO V2
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
61%
Similarity
Eighteen Sound
10MB400
10"
Xmax2.5mm-17%
Qts0.33-11%
BL12Tm+33%
Vas41L-23%
Qes0.370%
48%
Similarity
Oberton
10M150
10"
Xmax3.3mm+8%
Qts0.43+16%
BL11.6Tm+29%
Vas25.9L-51%
Qes0.45+22%
