LF DriverCME series
CIARE

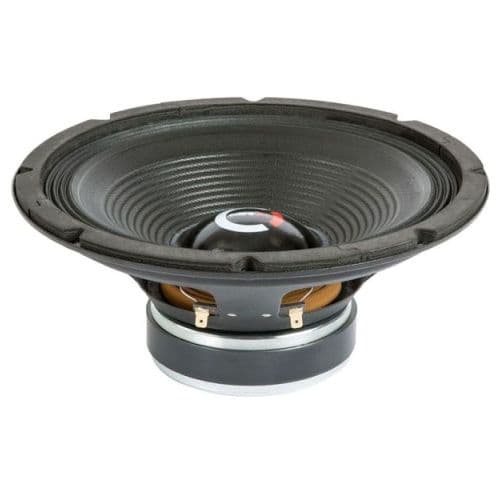

CIARE CME250
CIARE CME250 is a 10" 4 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 48Hz, Qts 0.48, Vas 74L, Xmax 4.5mm, sensitivity 93.9dB, plus 171cm³ Vd and 91 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
4Ω
RMS Power
450W
Sensitivity
93.9dB
97.0dBmanufacturer; using T/S-derived value (3.1dB delta).
EBP
91
Either alignment
Vd
171cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,663 selected pixels of 2,663 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence2,288 selected pixels of 2,288
T/S Parameters
Valid
Fs48Hz
Qts0.48
Qes0.53
Qms5.7
Vas74.0L
Re3.0Ω
Le0.40mH
BL7.5Tm
Sd380cm²
Mms36g
Xmax4.5mm
SPL94dB
Power450W
Power Nominal220W
Impedance4Ω
F Low70Hz
F High3000Hz
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.7kg
Diameter265.0mm
Overall Depth114.0mm
Cutout Diameter238.0mm
Bolt Circle Diameter253.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CME250
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
73%
Similarity

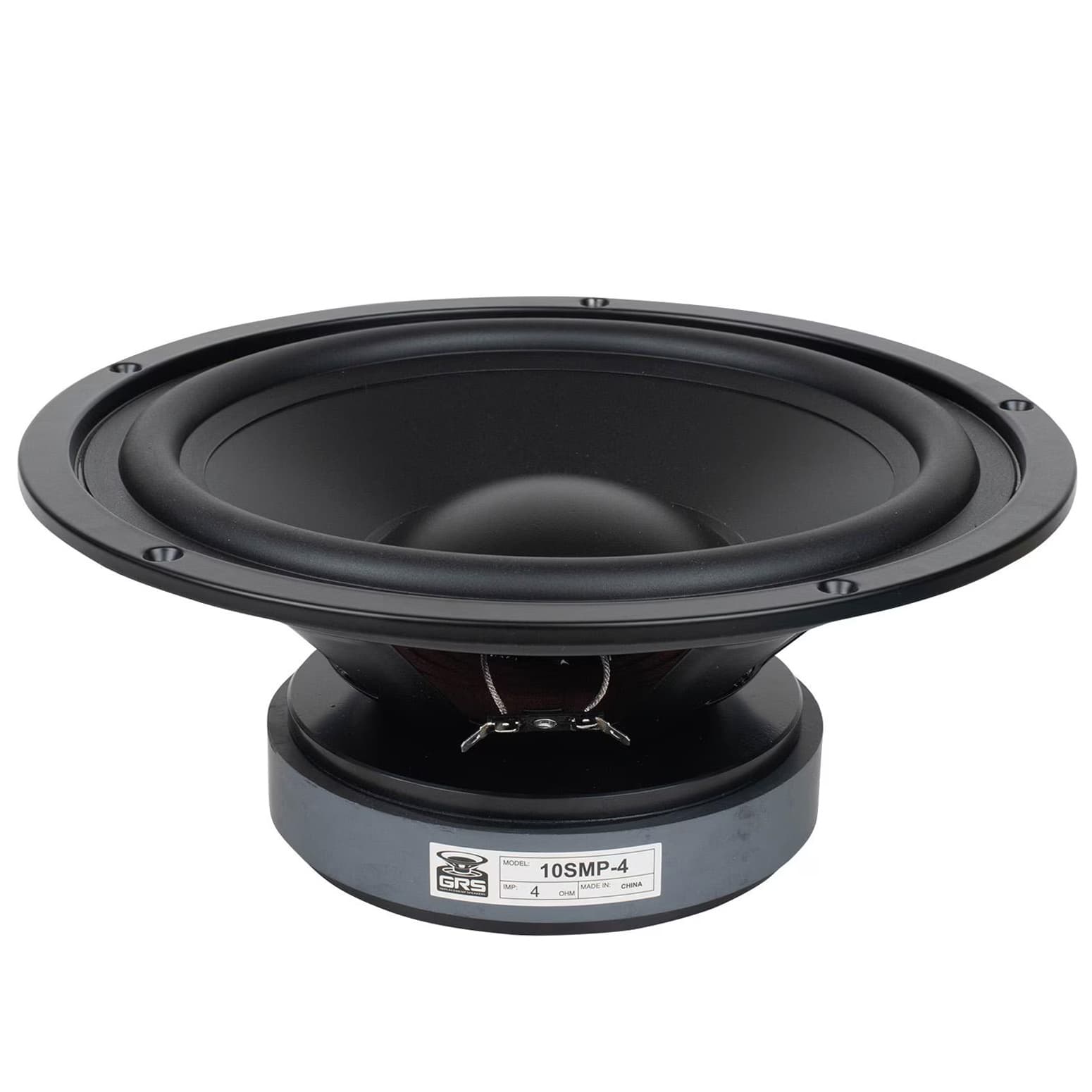

GRS
10SMP-4
10"
Xmax5mm+11%
Qts0.51+6%
BL8.2Tm+9%
Vas86L+16%
Qes0.63+19%
73%
Similarity

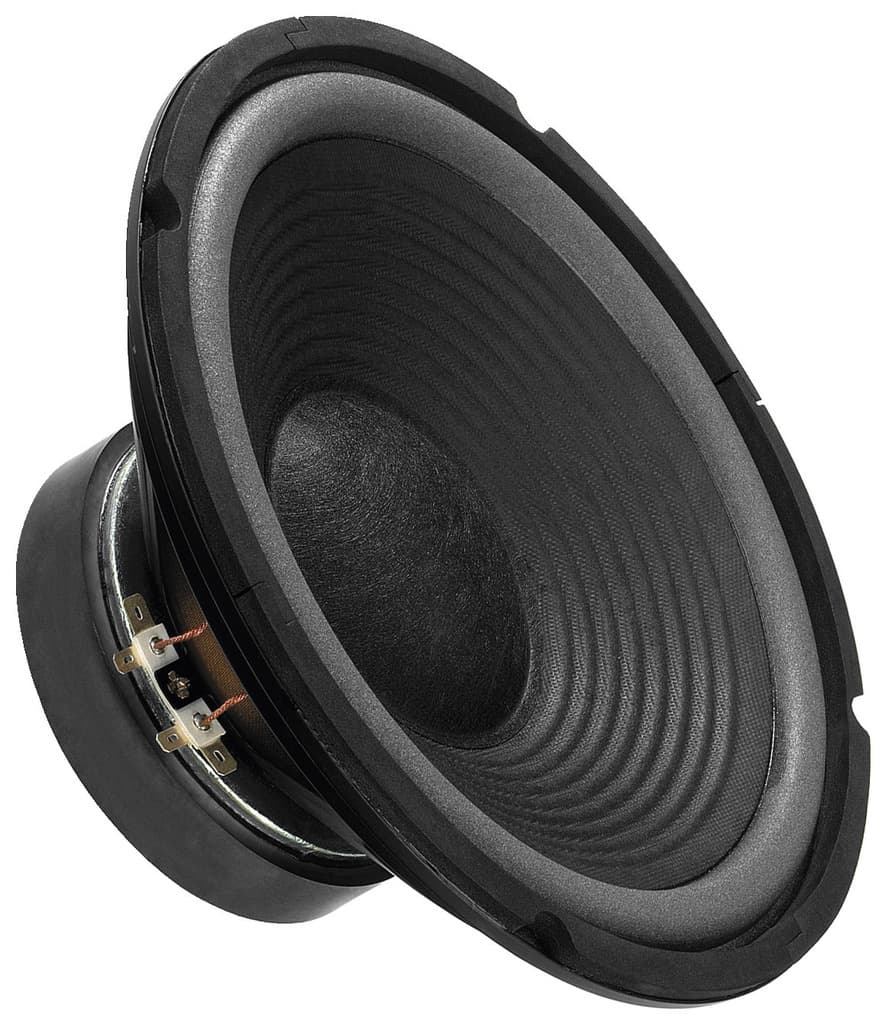

Monacor
SP-252E
10"
Xmax4mm-11%
Qts0.5+4%
BL8.5Tm+13%
Vas57L-23%
Qes0.6+13%
72%
Similarity
CIARE
CMI250
10"
Xmax4.5mm0%
Qts0.5+4%
BL9Tm+20%
Vas34L-54%
Qes0.52-2%
72%
Similarity

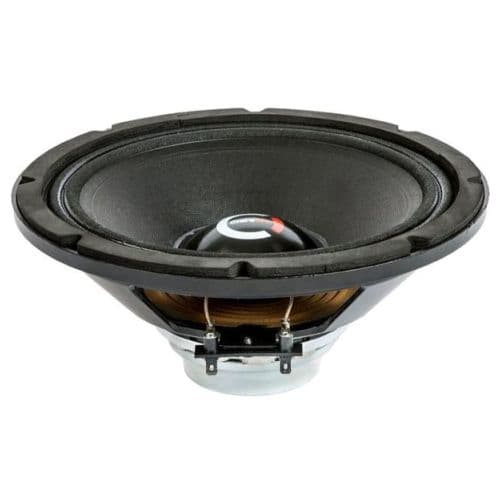

CIARE
CMI250ND
10"
Xmax4.5mm0%
Qts0.5+4%
BL9Tm+20%
Vas34L-54%
Qes0.52-2%
68%
Similarity

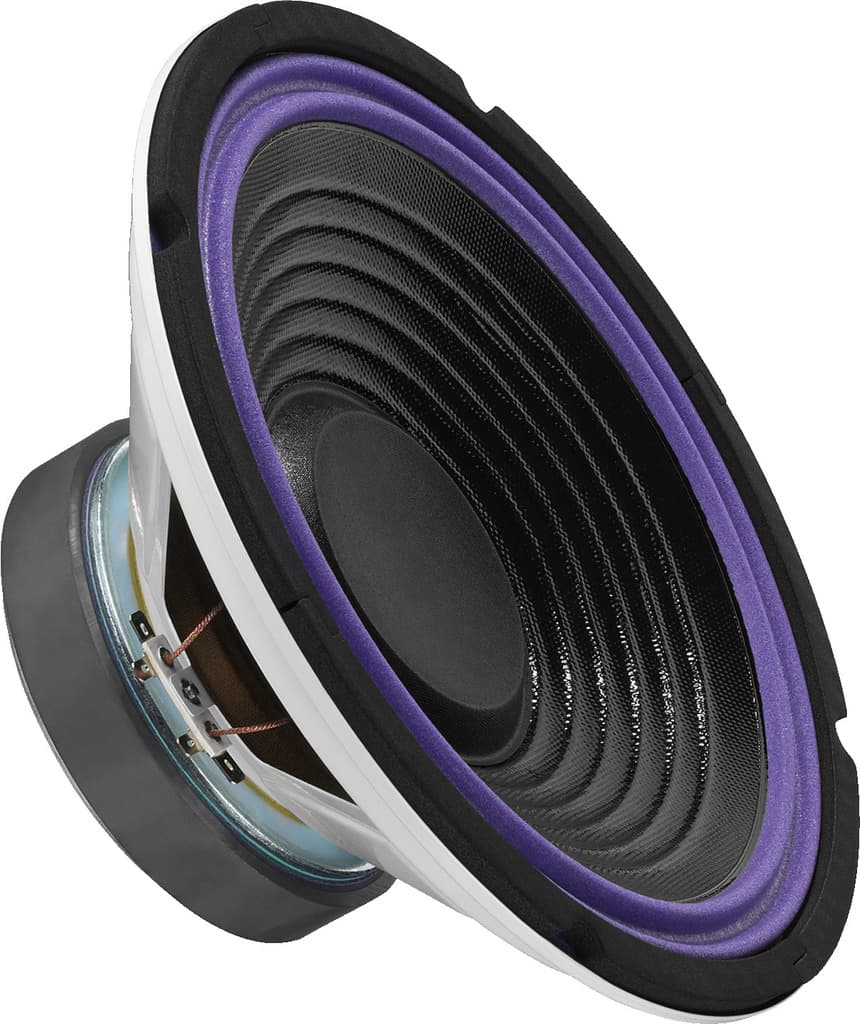

Monacor
SP-252C
10"
Xmax5mm+11%
Qts0.41-15%
BL8.1Tm+8%
Vas96L+30%
Qes0.47-11%
60%
Similarity
£65.89
Dayton Audio
DS270-8
10"
Xmax5.5mm+22%
Qts0.44-8%
BL10.1Tm+35%
Vas87.7L+19%
Qes0.54+2%
56%
Similarity
£60.00

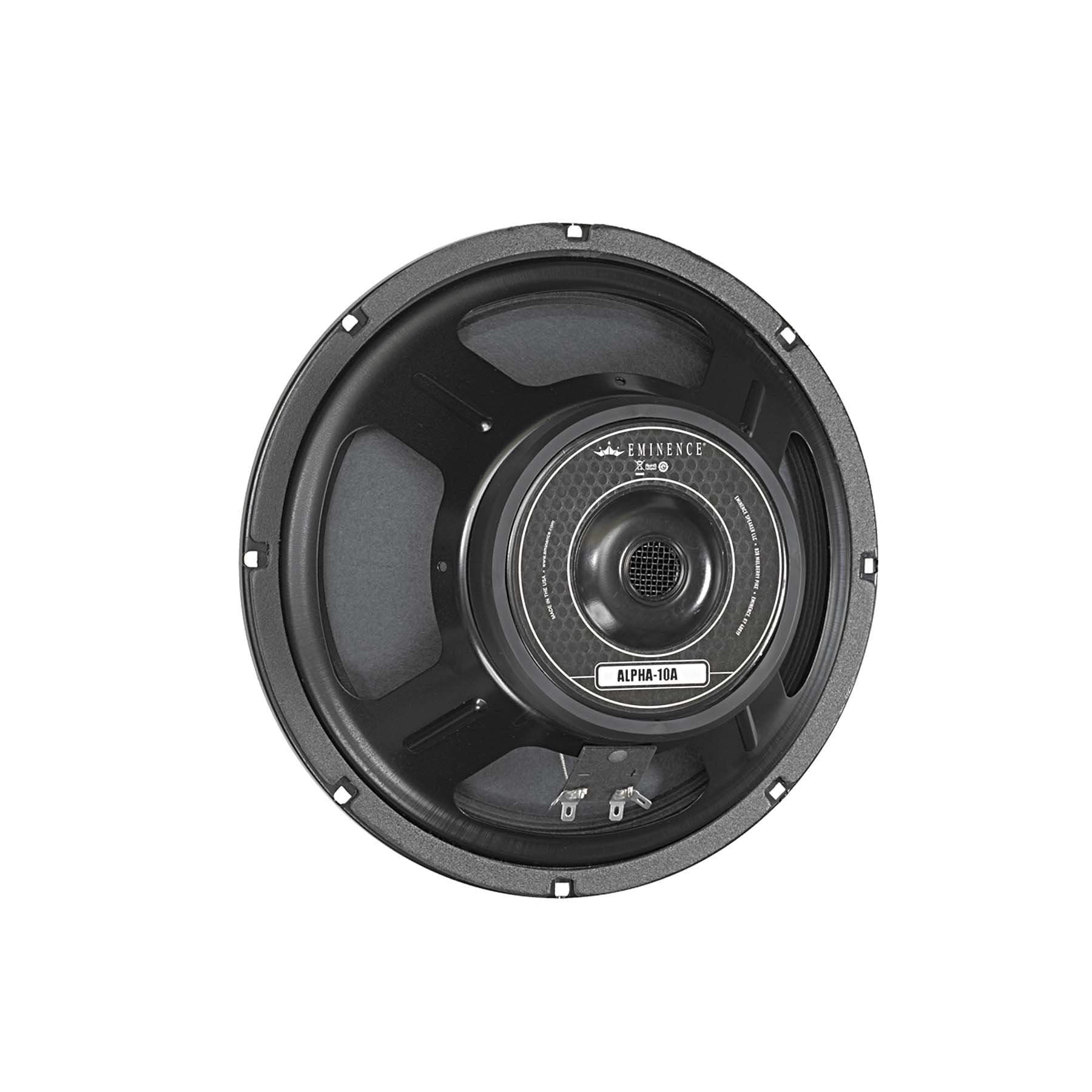

Eminence
ALPHA-10A
10"
Xmax3.2mm-29%
Qts0.59+23%
BL7.5Tm0%
Vas82.2L+11%
Qes0.66+25%
48%
Similarity
GRS
10SMP-8
10"
Xmax5mm+11%
Qts0.58+21%
BL9.6Tm+28%
Vas81L+9%
Qes0.73+38%
42%
Similarity
PRV Audio
10MR650A-4
10"
Xmax5.2mm+16%
Qts0.39-19%
BL10Tm+33%
Vas44L-41%
Qes0.4-25%
