LF DriverBASSLITE SC series
Eminence

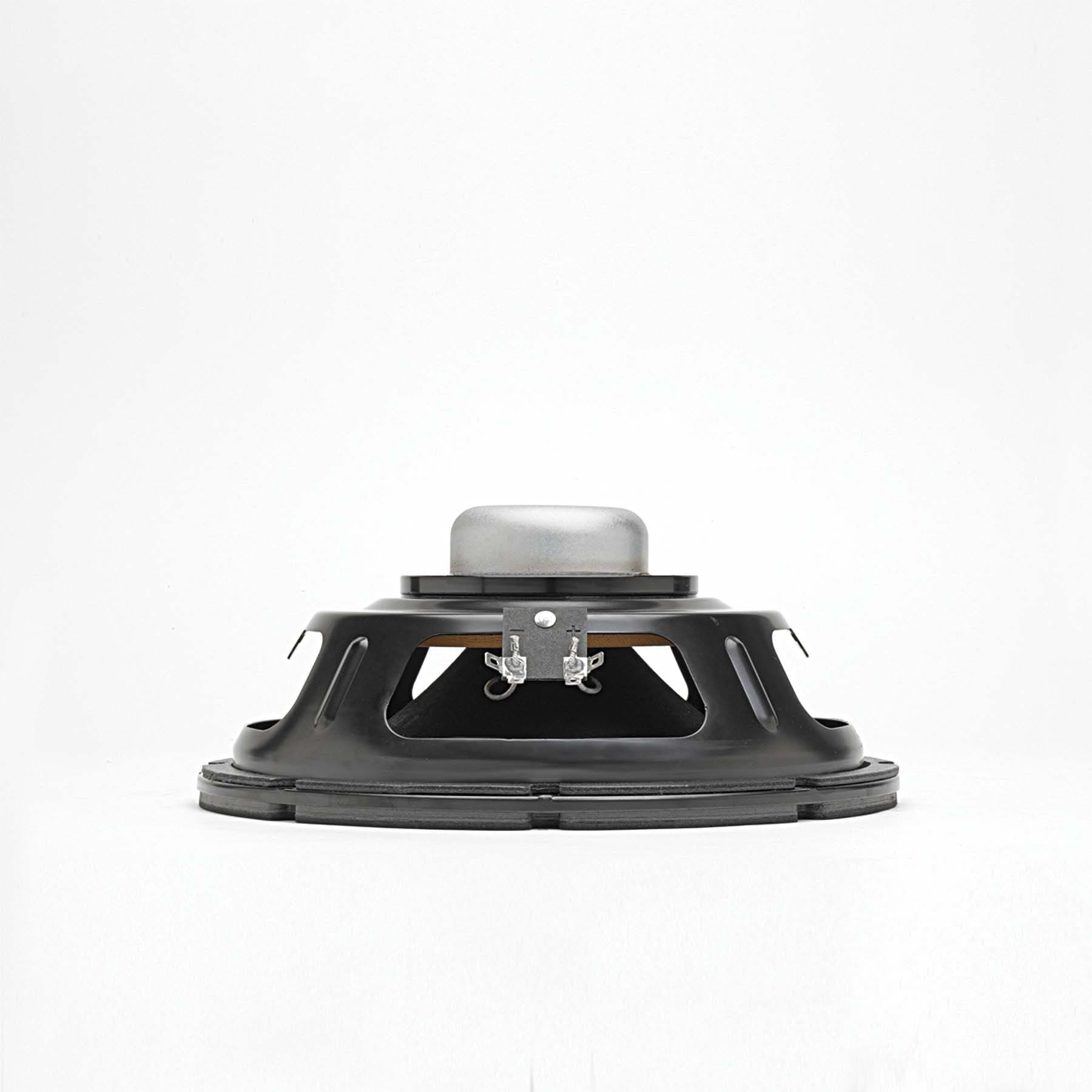

Eminence BASSLITE SC10-16
Eminence BASSLITE SC10-16 is a 10" 16 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 46Hz, Qts 0.45, Vas 78.3L, Xmax 4.4mm, sensitivity 93.4dB, plus 154cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
16Ω
RMS Power
150W
Sensitivity
93.4dB
EBP
82
Either alignment
Vd
154cm³
T/S Parameters
Valid
Fs46Hz
Qts0.45
Qes0.56
Qms2.2
Vas78.3L
Re12.2Ω
Le0.89mH
BL12.8Tm
Sd350cm²
Mms26g
Xmax4.4mm
SPL93dB
Power150W
Impedance16Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter256.0mm
Overall Depth108.0mm
Cutout Diameter233.2mm
Bolt Circle Diameter245.4mm
