Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Acoustics SB26SFCL38-8 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverSB26 series
SB Acoustics
SB Acoustics SB26SFCL38-8
SB Acoustics SB26SFCL38-8 is a 10" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 28Hz, Qts 0.53, Vas 107L, Xmax 16.4mm, sensitivity 87.7dB, plus 567cm³ Vd and 46 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £75.95.
Size
10"
Impedance
8Ω
RMS Power
80W
Sensitivity
87.7dB
EBP
46
Sealed alignment
Vd
567cm³

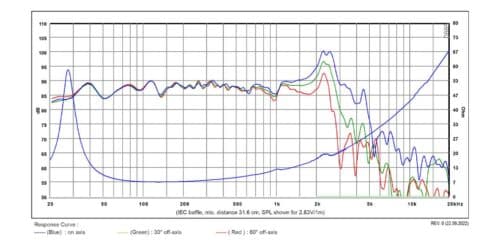

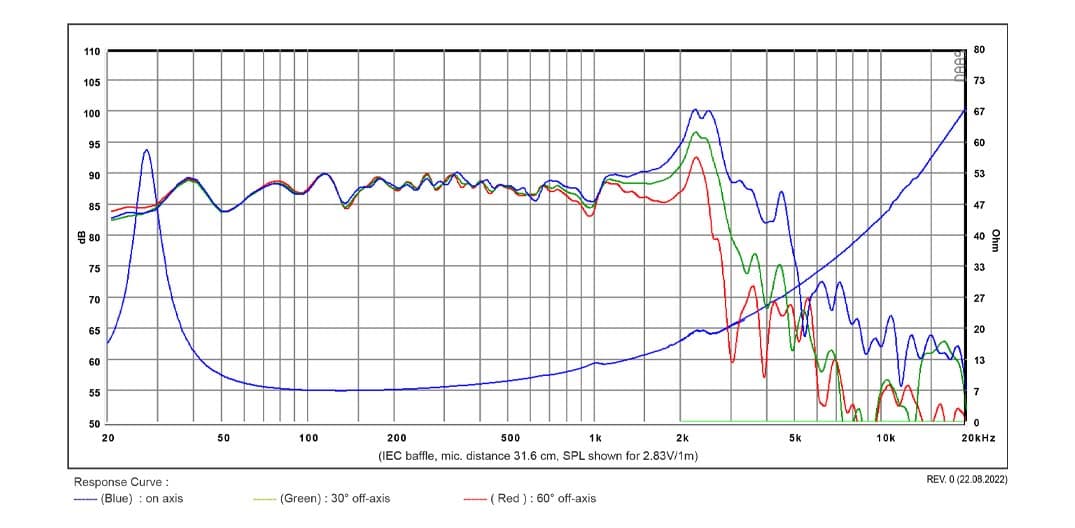

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees233 ptsp1medium
60 degrees215 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
233 plotted pointsMedium confidence1,169 selected pixels of 3,339 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
215 plotted pointsMedium confidence1,342 selected pixels of 3,222
T/S Parameters
Valid
Fs28Hz
Qts0.53
Qes0.60
Qms5.1
Vas107.0L
Re6.0Ω
Le1.60mH
BL9.6Tm
Sd346cm²
Mms53g
Xmax16.4mm
SPL88dB
Power80W
Impedance8Ω
Voice Coil39mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£62.50
inc VAT
Back order
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£62.68
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
willyshifi
£75.95
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
SB26SFCL38-8
10"
Best current price
£75.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
68%
Similarity
18% cheaper£62.50
SB Acoustics
SB26SFCL38-4
10"
Lower price
Xmax15.8mm-4%
Qts0.43-19%
BL8.2Tm-15%
Vas104L-3%
Qes0.47-22%
33%
Similarity
200% more£227.95
SB Acoustics
WO24P-4
9"
Higher price
Xmax17mm+4%
Qts0.4-25%
BL7.6Tm-21%
Vas71L-34%
Qes0.42-30%
71%
Similarity
Acoustic Elegance
IB10AU-4
10"
Xmax18mm+10%
Qts0.48-9%
BL8.8Tm-9%
Vas68L-36%
Qes0.56-7%
70%
Similarity
Kartesian
Sub265_vKi-S
10.5"
Xmax16mm-2%
Qts0.46-13%
BL9.1Tm-5%
Vas103.4L-3%
Qes0.49-18%
61%
Similarity
Acoustic Elegance
IB10AU-8
10"
Xmax18mm+10%
Qts0.48-9%
BL12.4Tm+29%
Vas68L-36%
Qes0.56-7%
52%
Similarity
Acoustic Elegance
SBP10-4
10"
Xmax14mm-15%
Qts0.41-24%
BL10.4Tm+8%
Vas68.2L-36%
Qes0.46-24%
48%
Similarity
Dayton Audio
RSS265HF-4
10"
Xmax12.3mm-25%
Qts0.45-15%
BL11.4Tm+19%
Vas54L-50%
Qes0.53-12%
