Overview
LF DriverF10 series
Cube Audio

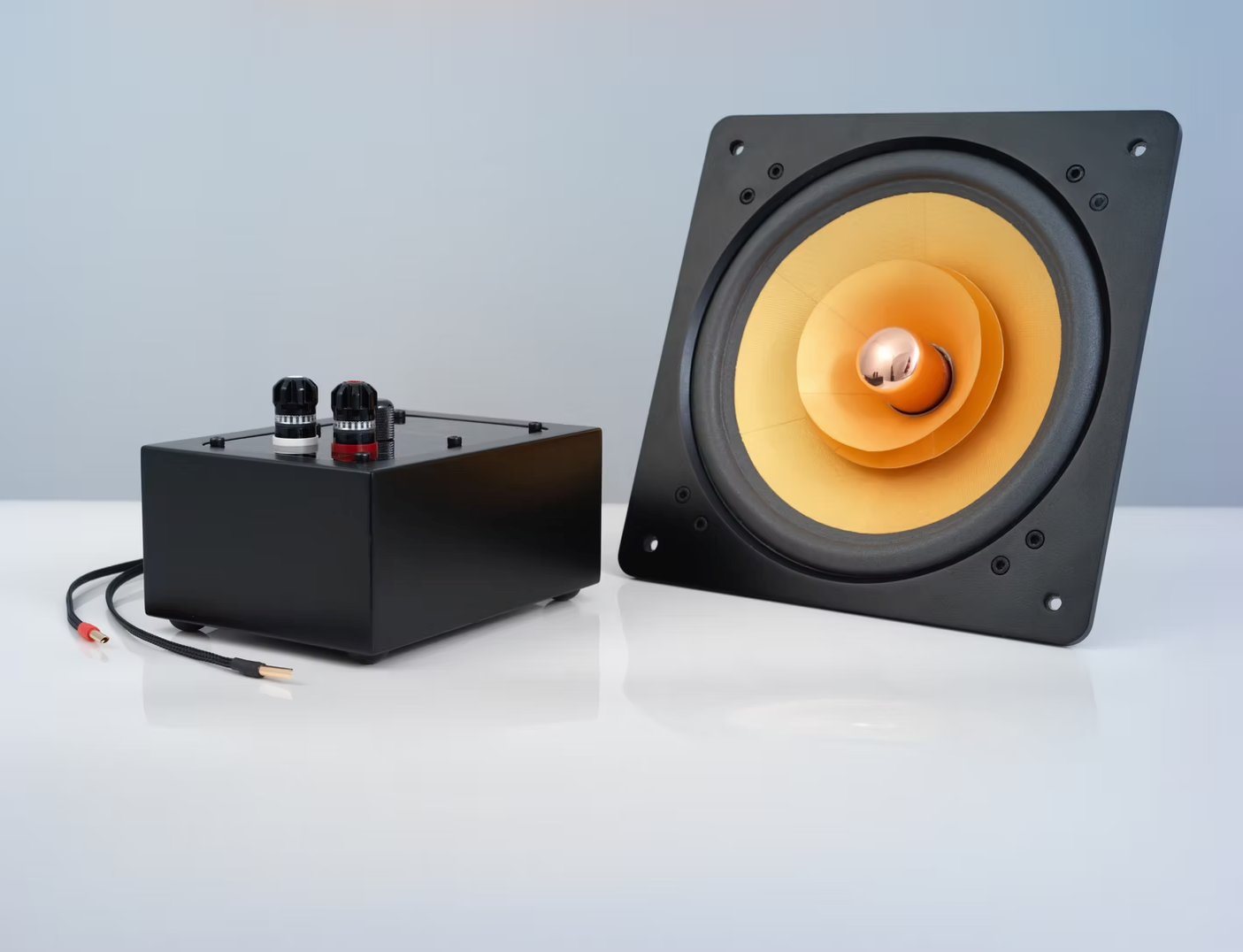

Cube Audio F10 SELECT V2
Cube Audio F10 SELECT V2 is a 10" 10 ohm LF driver. The validated T/S data includes Fs 28Hz, Qts 0.58, Vas 185L, Xmax 2.5mm, sensitivity 90.1dB, plus 87cm³ Vd and 44 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
10Ω
Sensitivity
90.1dB
93.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
44
Sealed alignment
Vd
87cm³
T/S Parameters
Valid
Fs28Hz
Qts0.58
Qes0.63
Qms14.6
Vas185.0L
Re9.4Ω
Le0.14mH
BL9.2Tm
Sd346cm²
Mms30g
Xmax2.5mm
SPL90dB
Impedance10Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.0kg
Diameter260.0mm
Overall Depth107.0mm
