Overview
LF DriverSP series
Monacor

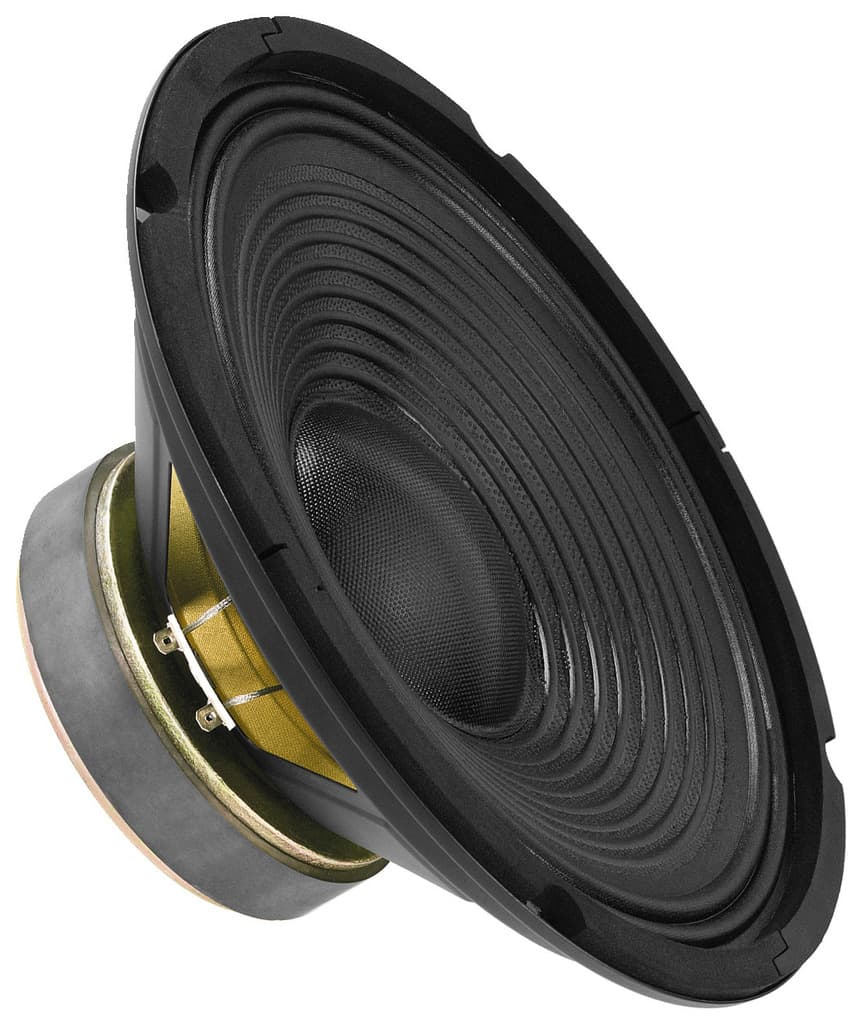

Monacor SP-252PA
Monacor SP-252PA is a 10" 8 ohm LF driver rated at 75W RMS. The validated T/S data includes Fs 55Hz, Qts 0.70, Vas 30L, Xmax 2.5mm, sensitivity 89dB, plus 88cm³ Vd and 55 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
75W
Sensitivity
89.0dB
90.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
55
Either alignment
Vd
88cm³
T/S Parameters
Valid
Fs55Hz
Qts0.70
Qes1.00
Qms2.1
Vas30.0L
Re7.7Ω
Le0.60mH
BL9.7Tm
Sd350cm²
Mms30g
Xmax2.5mm
SPL89dB
Power75W
Impedance8Ω
F Low3Hz
F High4500Hz
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

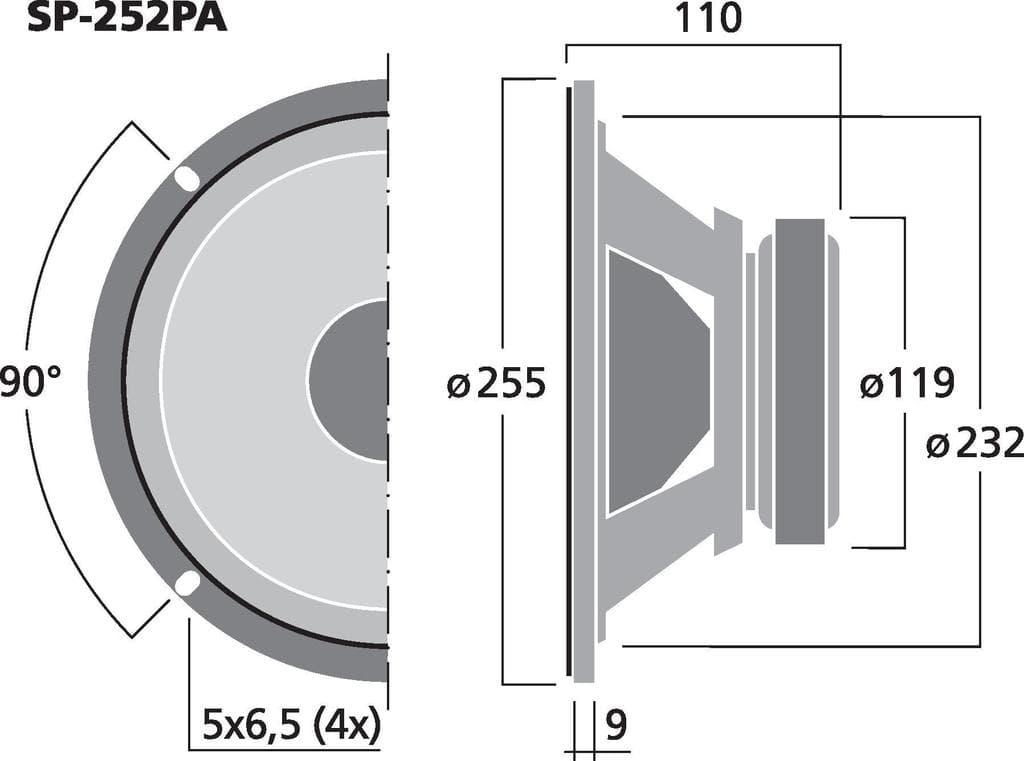

Dimensions & Physical
Weight2.2kg
Diameter255.0mm
Overall Depth110.0mm
Cutout Diameter232.0mm
