PRV Audio 10FR300 8Ω
8 Ω · 50–14000 Hz
No price for delivery to the UK
- Fs
- 60Hz
- Xmax
- 4mm
- SPL
- 94dB
- Pe
- –
- BL
- 9.8T·m
- Vd
- 158cm³
- Qts
- 0.65
- Vas
- 47L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 de2201b9b056…Medium confidence2,591 selected pixels of 2,591 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 de2201b9b056…Medium confidence1,822 selected pixels of 1,822
PRV Audio 10FR300 is a 10-inch 8 ohm LF driver. The validated T/S data includes Fs 60 Hz, Qts 0.65, Vas 47.4 L, Xmax 4 mm, sensitivity 93.8 dB, plus 158 cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.65
- Qes
- 0.68
- Qms
- 15.6
- Vas
- 47.4L
- Re
- 5.4Ω
- Le
- 0.27mH
Motor and cone
- BL
- 9.8T·m
- Sd
- 394cm²
- Mms
- 32g
- Xmax
- 4mm
- Vd †
- 158cm³
- Voice coil
- 51mm
Power and response
- Sensitivity †
- 93.8dB
- Manufacturer sensitivity
- 100dB
- Impedance
- 8Ω
- Range
- 50–14000Hz
- Crossover
- 65Hz
- EBP †
- 88 · Sealed or vented
Size and mounting
- Diameter
- 257mm
- Cutout
- 235mm
- Depth
- 114.5mm
- Weight
- 3.3kg
Other published values
- Cms
- 0.22mm/N
Other dimensions
- Mounting Depth
- 106
Sensitivity shows 93.8 dB, calculated from the T/S values. PRV Audio publishes 100.0 dB, 6.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else PRV Audio lists
LF · Primary · 10″
- BL
- 9.8T·m
- Fs
- 60Hz
- Le
- 0.27mH
- Re
- 5.4Ω
- Sd
- 394cm²
- Cms
- 0.22mm/N
- Mms
- 32g
- Qes
- 0.68
- Qms
- 15.6
- Qts
- 0.65
- SPL
- 93.8dB
- Vas
- 47.4L
- Xmax
- 4mm
- Impedance
- 8Ω
- Sensitivity
- 100dB
- Low limit
- 50Hz
- Calculated sensitivity †
- 93.8dB
- High limit
- 14000Hz
- Manufacturer sensitivity
- 100dB
- Voice coil
- 51mm
- Crossover
- 65Hz
- Weight
- 3.3kg
- Diameter
- 257mm
- Depth
- 114.5mm
- Mounting Depth
- 106
- Cutout
- 235mm
02
Compare
Same-size drivers, compared with the 10FR300. Clear differences are green when better and red when worse.
This driver10FR300
Best price
–
Fs
60 Hz
Qts
0.65
Vas
47.4 L
BL
9.8 T·m
Xmax
4 mm
Sensitivity
93.8 dB
Power
–
GRS10SMP-8
£38.89Fs29 Hz −52%, better
Qts0.58 −11%, better
Vas81 L +71%, worse
BL9.6 T·m –
Xmax5 mm +25%, better
Sensitivity86.4 dB −7.4, worse
FaitalPRO10FE200
£40.19Fs55 Hz −9%
Qts0.69 +6%
Vas61.7 L +30%, worse
BL8.2 T·m −16%, worse
Xmax4.7 mm +17%, better
Sensitivity93.5 dB –
Dayton AudioPA255-8
£56.09Fs51 Hz −16%, better
Qts0.61 −6%
Vas41.2 L −13%, better
BL10.6 T·m +8%
Xmax5 mm +25%, better
Sensitivity91.1 dB −2.7, worse
LavoceSSF102.40
£56.92Fs39 Hz −35%, better
Qts0.57 −12%, better
Vas39.5 L −17%, better
BL14.0 T·m +43%, better
Xmax8.3 mm +108%, better
Sensitivity87.9 dB −5.9, worse
SB AcousticsSB26SFCL38-8
£58.53Fs28 Hz −54%, better
Qts0.53 −18%, better
Vas107 L +126%, worse
BL9.6 T·m –
Xmax8.2 mm +105%, better
Sensitivity87.7 dB −6.1, worse
EminenceALPHA-10A
£60.00Fs50 Hz −17%, better
Qts0.59 −9%
Vas82.2 L +73%, worse
BL7.5 T·m −23%, worse
Xmax3.2 mm −20%, worse
Sensitivity94 dB –
PeerlessSLS-P830668
£66.98Fs35 Hz −42%, better
Qts0.59 −9%
Vas62.9 L +33%, worse
BL10.3 T·m +5%
Xmax10.9 mm +173%, better
Sensitivity88.2 dB −5.6, worse
FaitalPRO10FE300
£67.00Fs50 Hz −17%, better
Qts0.52 −20%, better
Vas50.5 L +7%
BL11.3 T·m +16%, better
Xmax5.5 mm +38%, better
Sensitivity92.7 dB −1.1
PRV Audio10W650A-4
£82.01Fs67 Hz +11%, worse
Qts0.39 −40%, better
Vas41.2 L −13%, better
BL11.2 T·m +15%, better
Xmax4 mm –
Sensitivity96.9 dB +3.1, better

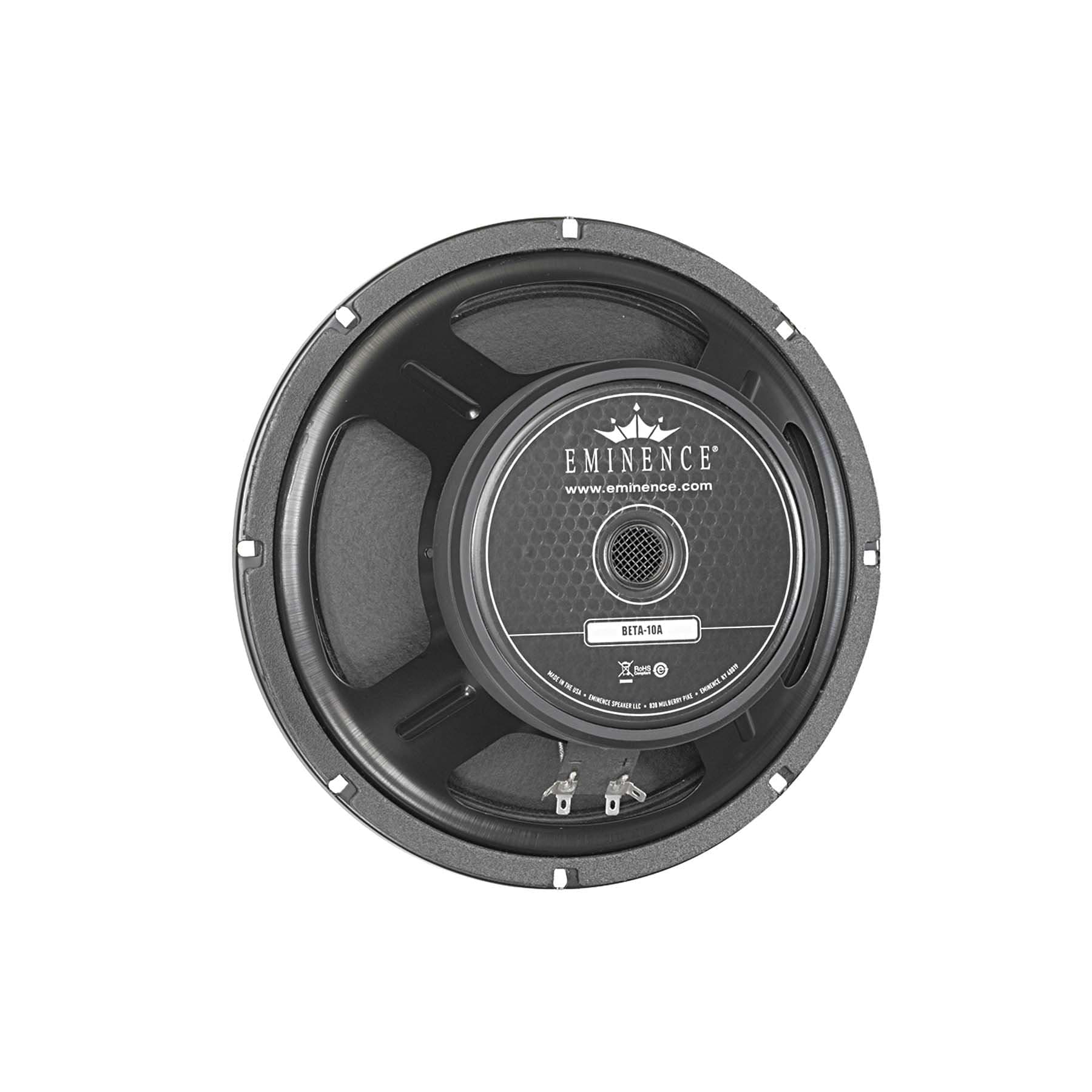

EminenceBETA-10A
