LF DriverDiscovery series
Scanspeak

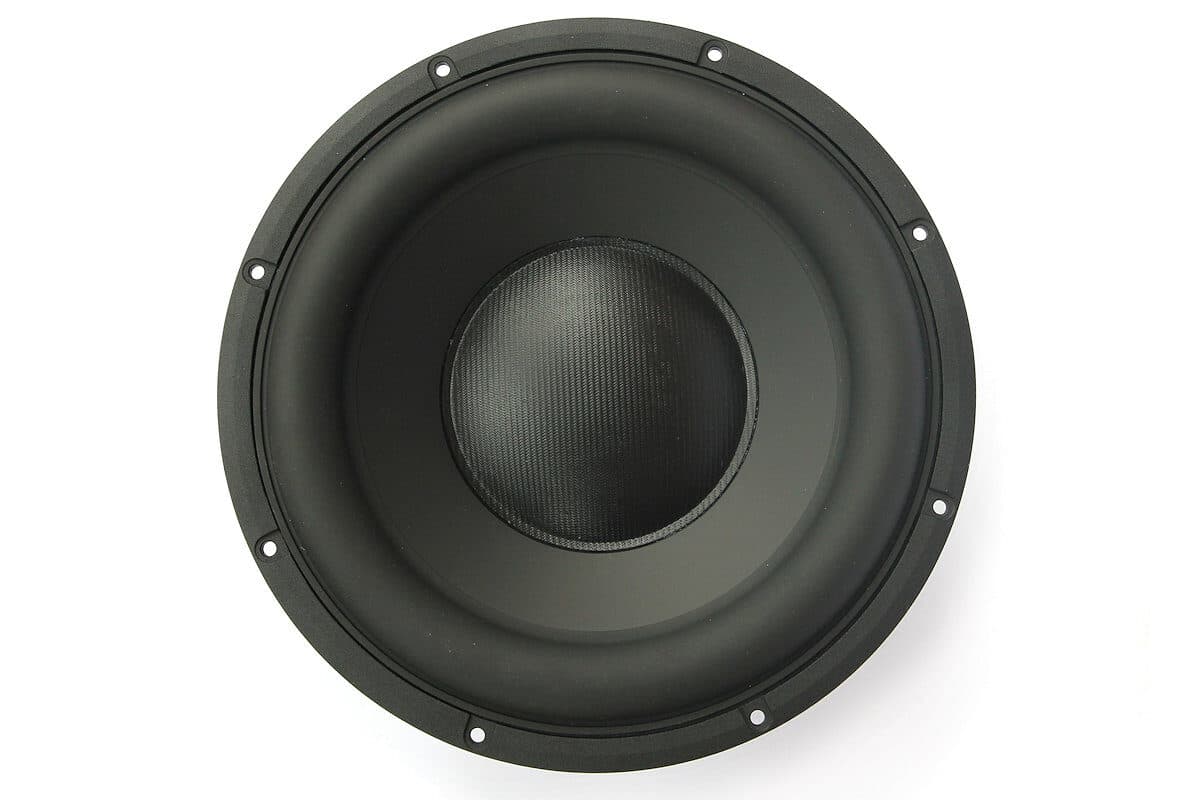

Scanspeak 26W/4558T00
Scanspeak 26W/4558T00 is a 10" 4 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 21Hz, Qts 0.31, Vas 94.9L, Xmax 12.5mm, sensitivity 86.3dB, plus 440cm³ Vd and 64 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £298.95.
Size
10"
Impedance
4Ω
RMS Power
150W
Sensitivity
86.3dB
88.0dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
64
Either alignment
Vd
440cm³
T/S Parameters
Valid
Fs21Hz
Qts0.31
Qes0.33
Qms5.6
Vas94.9L
Re2.6Ω
Le0.83mH
BL10.5Tm
Sd352cm²
Mms105g
Xmax12.5mm
SPL86dB
Power150W
Impedance4Ω
Min Impedance3.3Ω
Voice Coil51mm
Pricing & availability
Price definitionsPrice movement
Best current price
£298.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter260.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
26W/4558T00
10"
Best current price
£298.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
48% more£443.61
Volt
RV2550
10"
Higher price
Xmax12mm-4%
Qts0.33+6%
BL13.9Tm+32%
Vas71.8L-24%
Qes0.38+15%
69%
Similarity
Purifi
PTT10.0X04-NAB-01
10"
Xmax14.8mm+18%
Qts0.33+6%
BL12.8Tm+22%
Vas82L-14%
Qes0.35+6%
67%
Similarity
Visaton
TIW 250 XS - 8 OHM
10"
Xmax14mm+12%
Qts0.33+6%
BL13Tm+24%
Vas66L-30%
Qes0.35+6%
63%
Similarity
Kartesian
Wom265_vKi-6
10.5"
Xmax10mm-20%
Qts0.34+10%
BL10.4Tm-1%
Vas114.6L+21%
Qes0.37+12%
Image unavailable
54%
Similarity
Wavecor
WF275BD01
10"
Xmax9mm-28%
Qts0.37+19%
BL8.9Tm-15%
Vas81.5L-14%
Qes0.38+15%
