LF Driver10NSM series
B&C

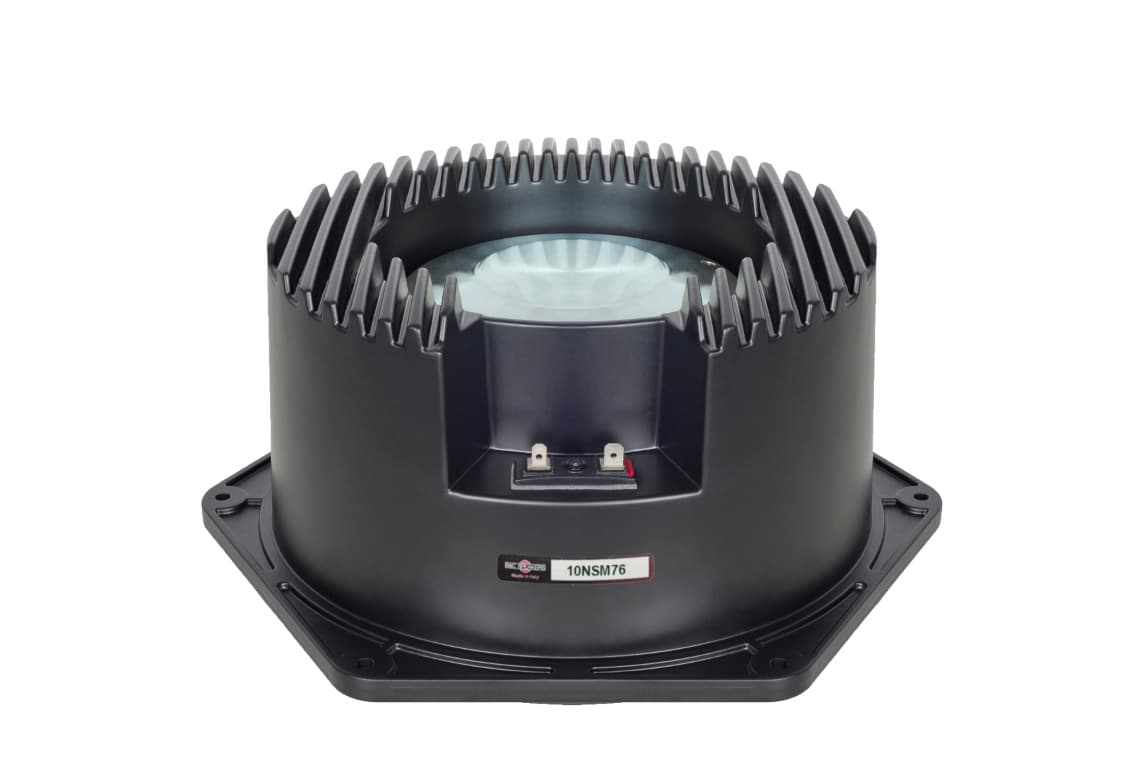

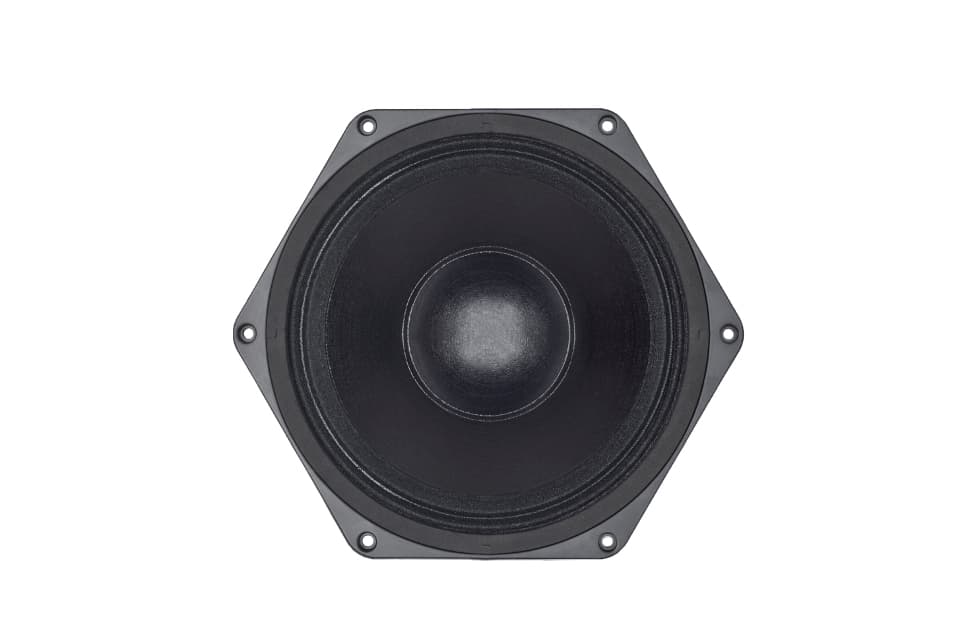

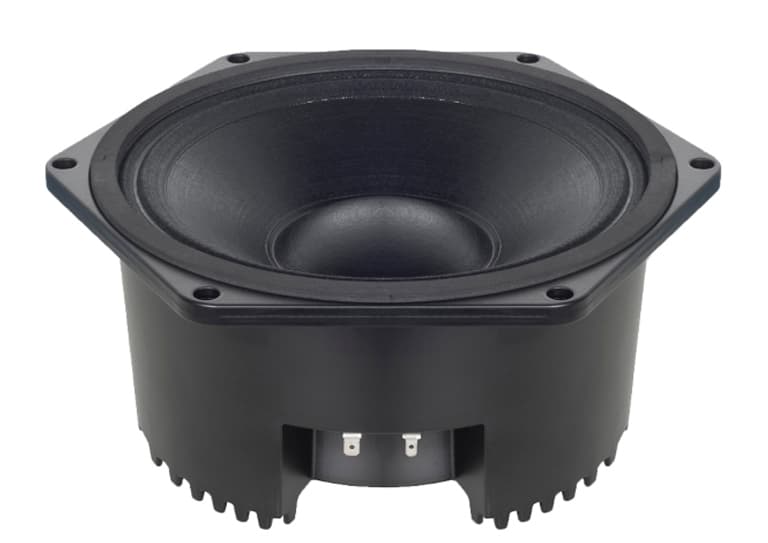

B&C 10NSM76
B&C 10NSM76 is a 10" 16 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 235Hz, Qts 0.66, Vas 2L, Xmax 3.5mm, sensitivity 97.7dB, plus 112cm³ Vd and 331 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £231.04.
Size
10"
Impedance
16Ω
RMS Power
400W
Sensitivity
97.7dB
99.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
331
Vented alignment
Vd
112cm³

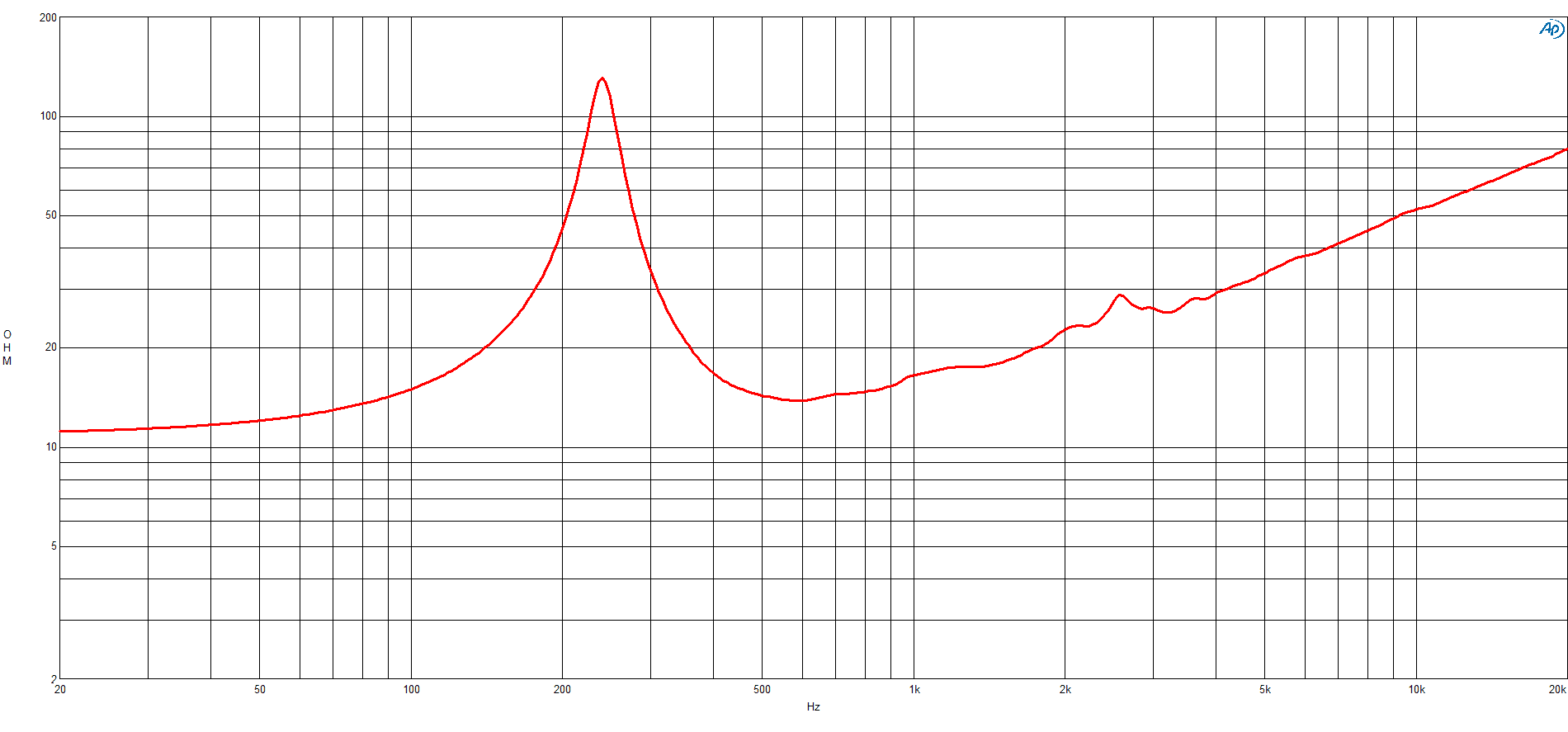

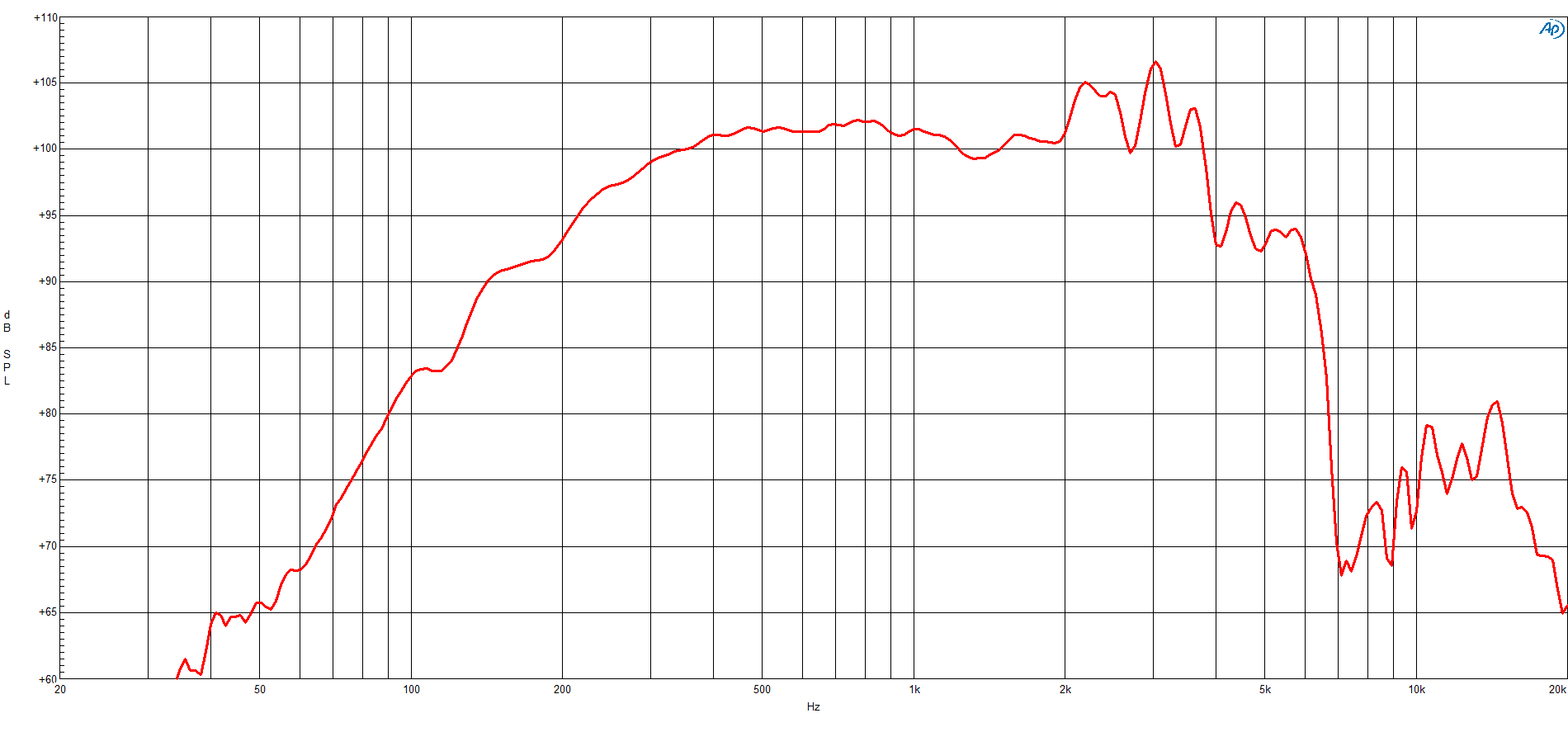

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs235Hz
Qts0.66
Qes0.71
Qms9.0
Vas2.0L
Re10.8Ω
Le1.50mH
BL27.2Tm
Sd320cm²
Mms33g
Xmax3.5mm
SPL98dB
Power400W
Power Nominal400W
Impedance16Ω
Min Impedance14.0Ω
F Low235Hz
F High3500Hz
Voice Coil76mm
Flux Density1.60T
Pricing & availability
Price definitionsPrice movement
Best current price
£231.04
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter291.0mm
Overall Depth130.0mm
Cutout Diameter234.0mm
Bolt Circle Diameter274.0mm
Additional Manufacturer Specs
Bl27.2 Tm
Fs235 Hz
Le1.5 mH
Re10.8 Ω
Sd320 cm² (49.6 in²)
Ebp331 Hz
Mms33 g
Qes0.71
Qms9
Qts0.66
Vas2 dm³ (0.07 ft³)
η03.5 %
ConeRCK010NSM7616
Xmax3.5 mm
Xvar3.5 mm
SpiderSingle
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth11.5 mm (0.45 in)
Surround ShapeAccordion
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter250 mm (10 in)
Winding MaterialAluminium
Magnetic Gap Depth9 mm (0.35 in)
Bolt Circle Diameter274 mm (10.79 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter234 mm (9.21 in)
Flange And Gasket Thickness12 mm (0.47 in)
Air Volume Occupied By Driver5 dm³ (0.18 ft³)
