LF DriverCF series
Monacor

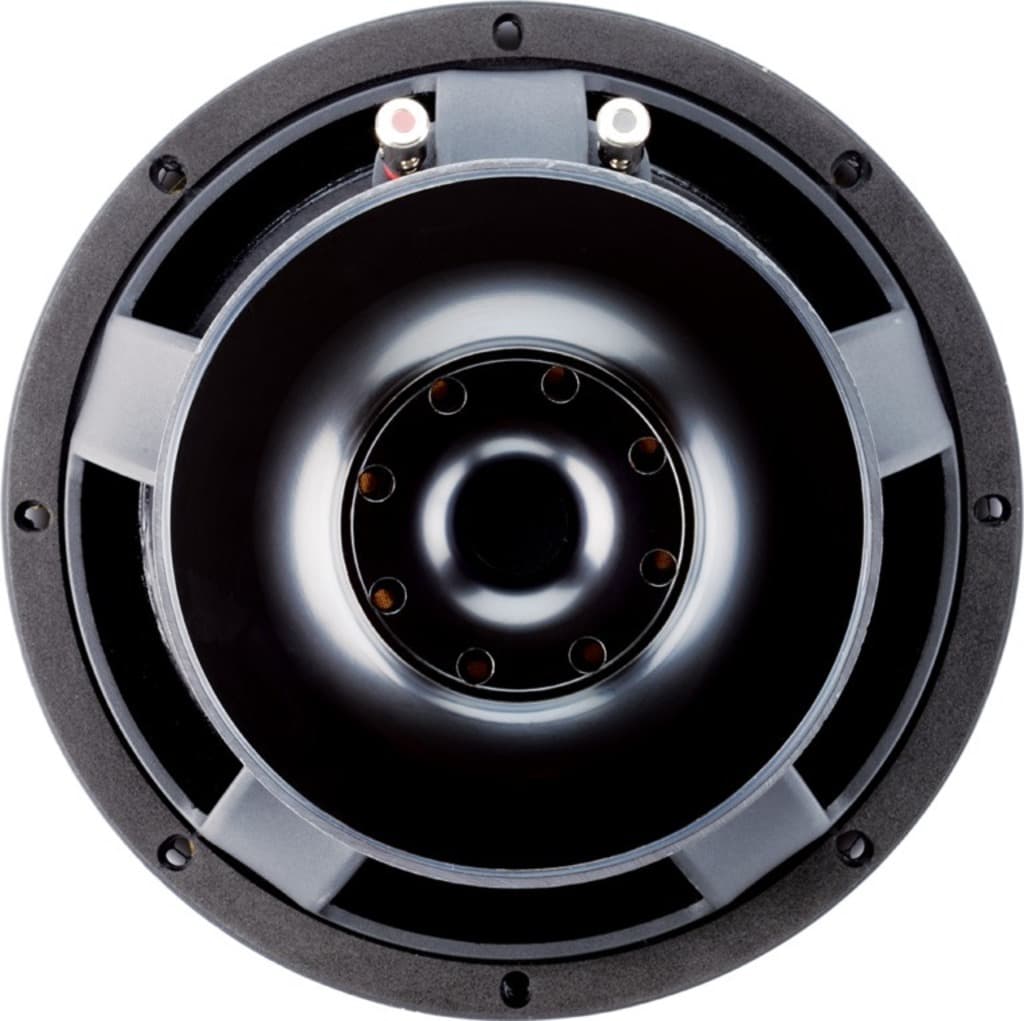

Monacor CF1025C/8
Monacor CF1025C/8 is a 10" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 55Hz, Qts 0.27, Vas 38.6L, Xmax 4.3mm, sensitivity 95.3dB, plus 147cm³ Vd and 183 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
300W
Sensitivity
95.3dB
99.0dBmanufacturer; using T/S-derived value (3.7dB delta).
EBP
183
Vented alignment
Vd
147cm³
T/S Parameters
Valid
Fs55Hz
Qts0.27
Qes0.30
Qms2.3
Vas38.6L
Re5.2Ω
Le0.57mH
BL14.8Tm
Sd346cm²
Mms37g
Xmax4.3mm
SPL95dB
Power300W
Impedance8Ω
F Low60Hz
F High5000Hz
Voice Coil64mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.9kg
Diameter265.0mm
Overall Depth119.0mm
Cutout Diameter230.8mm
