Purifi PTT8.0X08-NAB-01 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverPTT series
Purifi

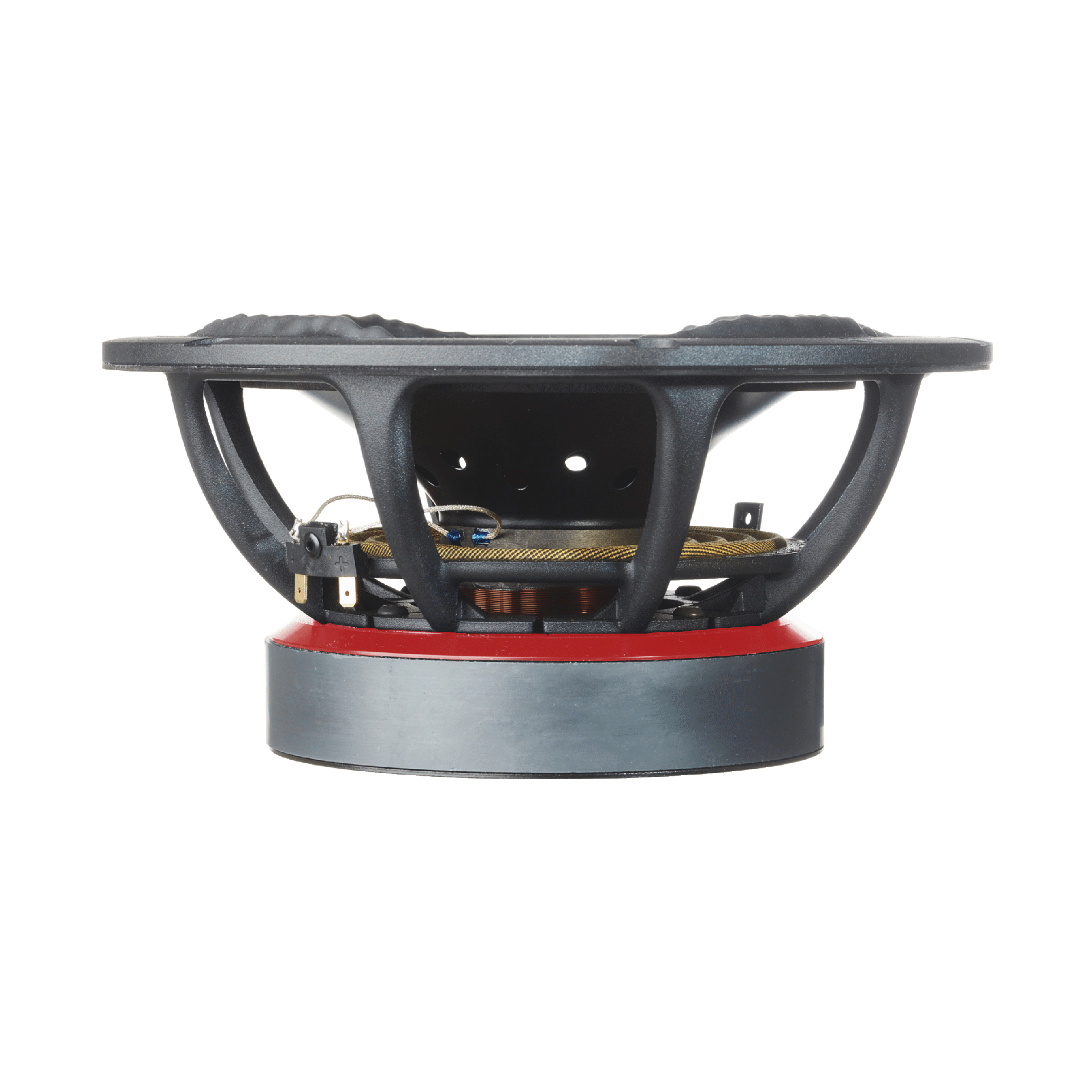

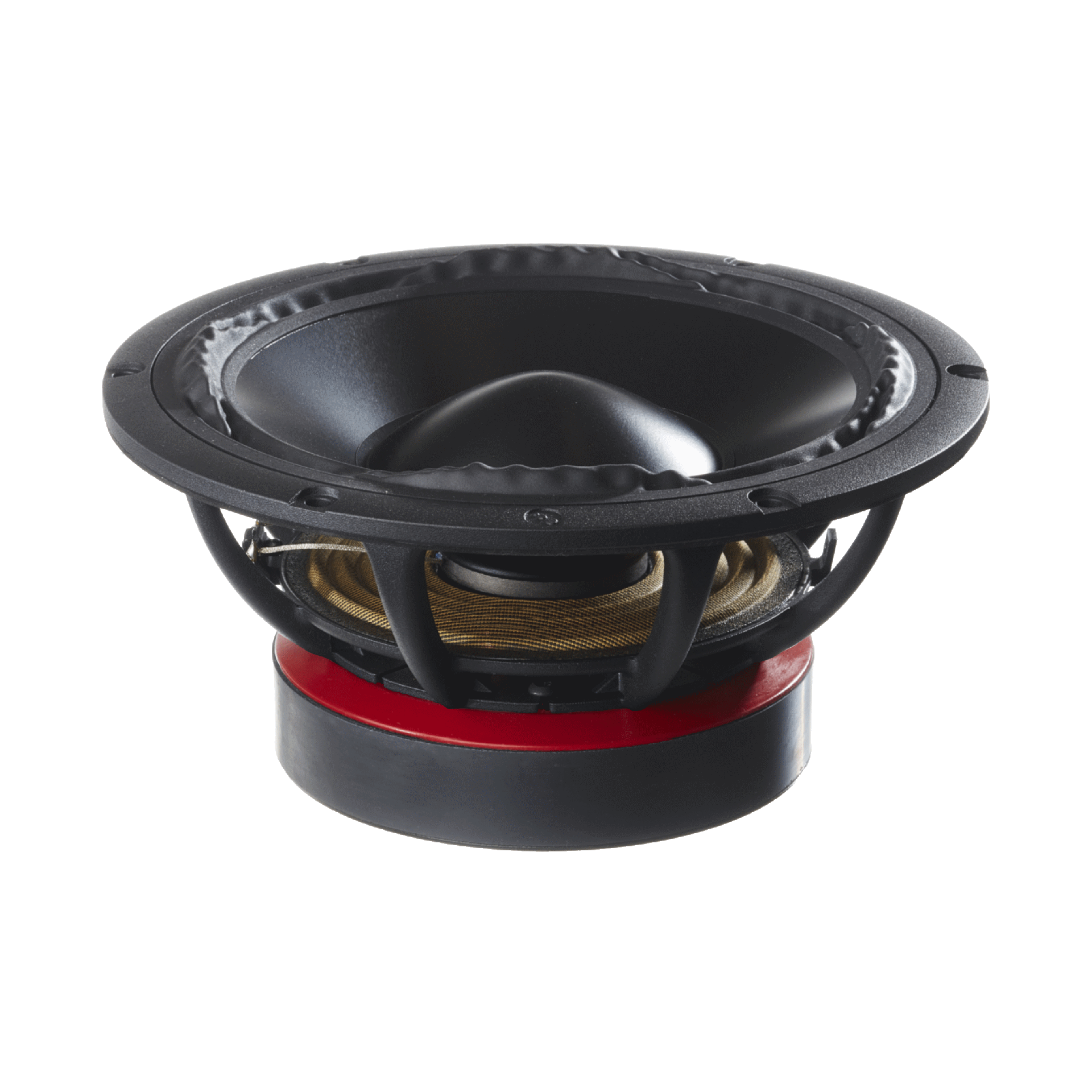

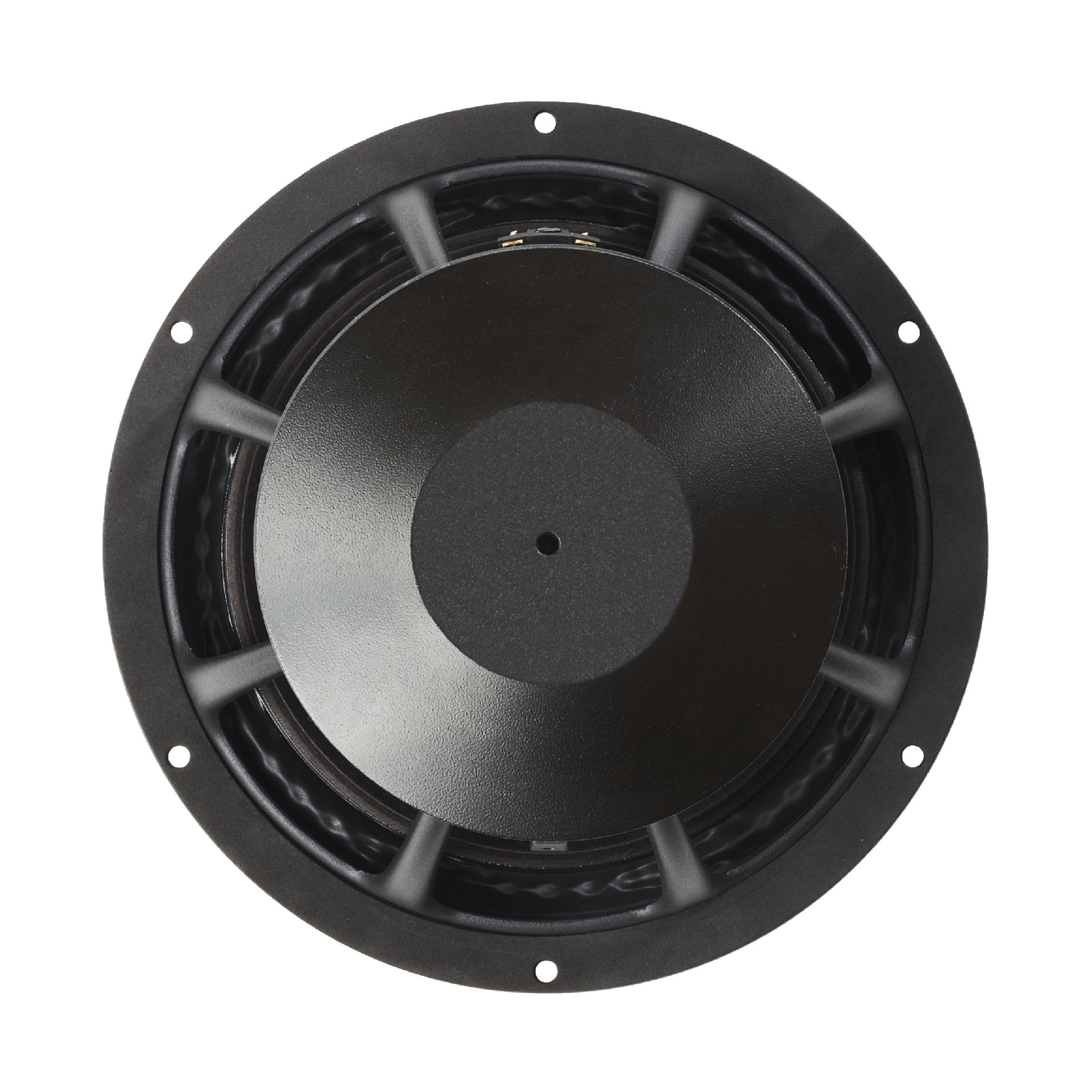

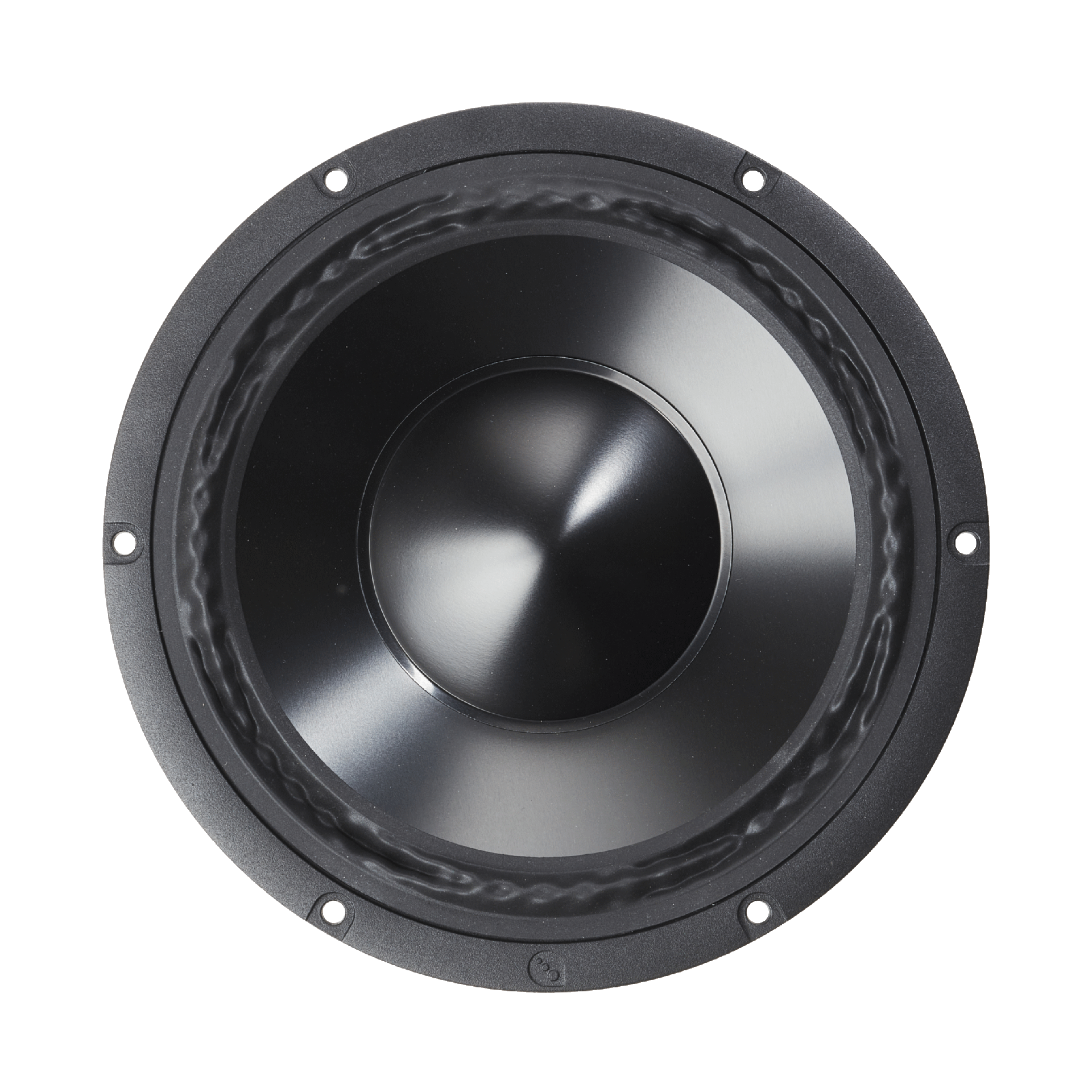

Purifi PTT8.0X08-NAB-01
Purifi PTT8.0X08-NAB-01 is a 8" 8 ohm LF driver. The validated T/S data includes Fs 24Hz, Qts 0.35, Vas 74.5L, Xmax 9.3mm, sensitivity 86.5dB, plus 219cm³ Vd and 65 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
Sensitivity
86.5dB
EBP
65
Either alignment
Vd
219cm³
T/S Parameters
Valid
Fs24Hz
Qts0.35
Qes0.37
Qms5.8
Vas74.5L
Re6.0Ω
Le0.33mH
BL10.7Tm
Sd235cm²
Mms48g
Xmax9.3mm
SPL87dB
Impedance8Ω
Min Impedance6.6Ω
Voice Coil52mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£601.38
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.5kg
Diameter221.0mm
Cutout Diameter193.0mm
Bolt Circle Diameter210.0mm
