- Fs
- 27Hz
- Xmax
- 12mm
- SPL
- 88dB
- Pe
- 250W
- BL
- 14.6T·m
- Vd
- 552cm³
- Qts
- 0.34
- Vas
- 70L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
220 plotted pointsMedium confidence497 selected pixels of 1,408 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,667 selected pixels of 2,776

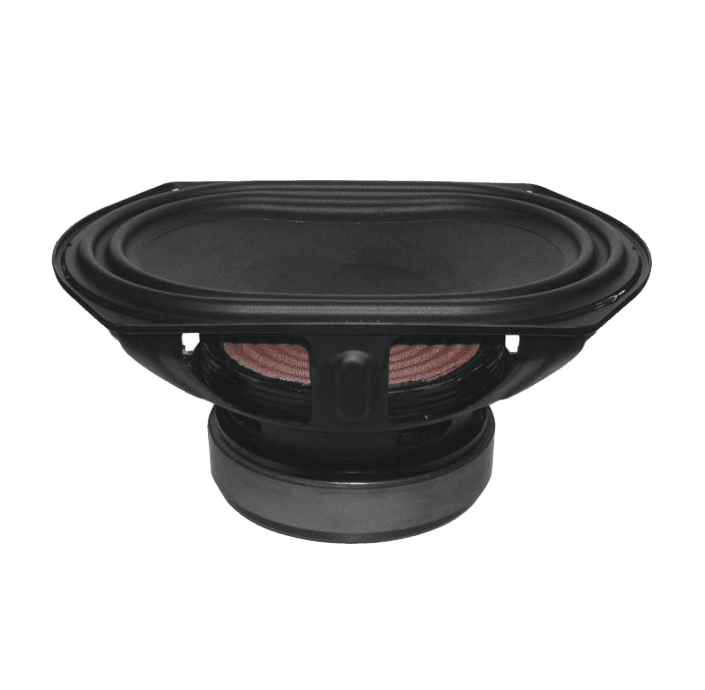

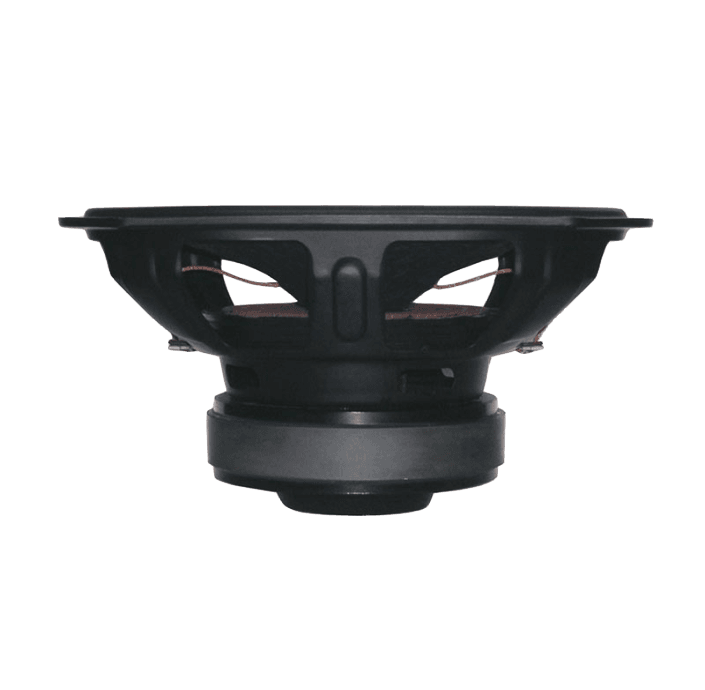

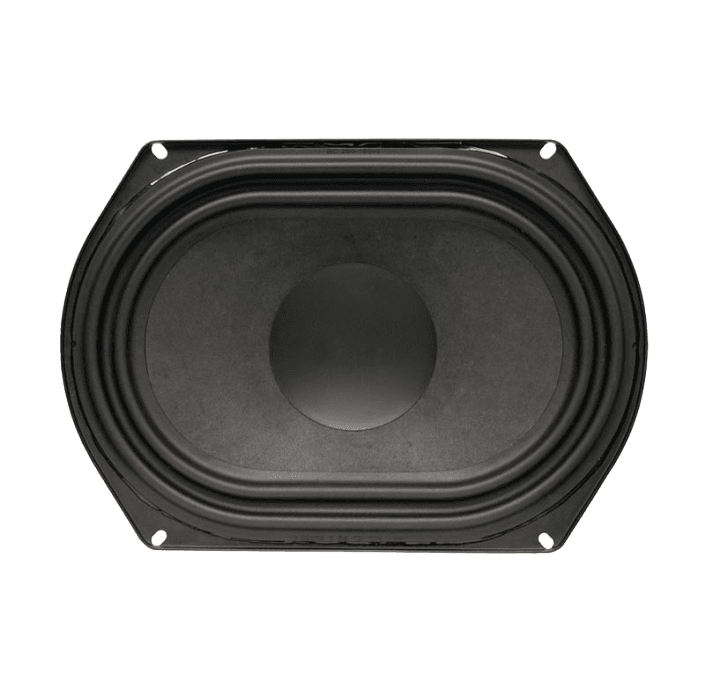

Tang Band W8Q-1071F is an 8-inch 4 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 27 Hz, Qts 0.34, Vas 70.4 L, Xmax 12 mm, sensitivity 87.9 dB, plus 552 cm³ Vd and 75 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 27Hz
- Qts
- 0.34
- Qes
- 0.36
- Qms
- 4.6
- Vas
- 70.4L
- Re
- 3.2Ω
- Le
- 0.85mH
Motor and cone
- BL
- 14.6T·m
- Sd
- 460cm²
- Mms
- 135g
- Xmax
- 12mm
- Vd †
- 552cm³
Power and response
- Sensitivity †
- 87.9dB
- Manufacturer sensitivity
- 88dB
- Power
- 250W
- Impedance
- 4Ω
- EBP †
- 75 · Sealed or vented
Other published values
- Power Peak
- 500
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 8″
- BL
- 14.6T·m
- Fs
- 27Hz
- Le
- 0.85mH
- Re
- 3.2Ω
- Sd
- 460cm²
- Mms
- 135g
- Qes
- 0.36
- Qms
- 4.6
- Qts
- 0.34
- SPL
- 87.9dB
- Vas
- 70.4L
- Xmax
- 12mm
- Power
- 250W
- Impedance
- 4Ω
- Power Peak
- 500
- Sensitivity
- 88dB
- Calculated sensitivity †
- 87.9dB
- Manufacturer sensitivity
- 88dB
02
Compare
Same-size drivers, compared with the W8Q-1071F. Clear differences are green when better and red when worse.
This driverW8Q-1071F
Best price
–
Fs
27 Hz
Qts
0.34
Vas
70.4 L
BL
14.6 T·m
Xmax
12 mm
Sensitivity
87.9 dB
Power
250 W
SB AcousticsSB20PFC30-4
£35.17Fs34 Hz +25%, worse
Qts0.33 –
Vas66.2 L −6%
BL6.6 T·m −55%, worse
Xmax5.8 mm −52%, worse
Sensitivity90.4 dB +2.5, better
VisatonW 200 S
£50.23Fs29 Hz +7%
Qts0.35 –
Vas65 L −8%
BL7.7 T·m −47%, worse
Xmax3.5 mm −71%, worse
Sensitivity88.2 dB –
B&C8PS21
£91.27Fs73 Hz +170%, worse
Qts0.33 –
Vas14 L −80%, better
BL12.6 T·m −14%, worse
Xmax5 mm −58%, worse
Sensitivity93.8 dB +5.9, better
CIARENDI8
£103.24Fs81 Hz +200%, worse
Qts0.33 –
Vas13 L −82%, better
BL12.8 T·m −12%, worse
Xmax4.5 mm −63%, worse
Sensitivity94.9 dB +7, better
SB AcousticsSB23MFCL45-4
£117.27Fs27 Hz –
Qts0.34 –
Vas37 L −47%, better
BL9.6 T·m −34%, worse
Xmax12 mm –
Sensitivity85.1 dB −2.8, worse
LavoceWAN082.01
£127.02Fs85 Hz +215%, worse
Qts0.32 −6%
Vas9 L −87%, better
BL14.4 T·m –
Xmax5.8 mm −52%, worse
Sensitivity94 dB +6.1, better
VisatonGF 200
£132.67Fs30 Hz +11%, worse
Qts0.34 –
Vas68 L −3%
BL9.2 T·m −37%, worse
Xmax6 mm −50%, worse
Sensitivity89 dB +1.1
VisatonAL 200
£150.67Fs32 Hz +19%, worse
Qts0.35 –
Vas77 L +9%
BL8.8 T·m −40%, worse
Xmax7 mm −42%, worse
Sensitivity90.1 dB +2.2, better
MarkaudioMA200-M MULTI
£156.00Fs33 Hz +22%, worse
Qts0.35 –
Vas65.2 L −7%
BL8.5 T·m −41%, worse
Xmax9 mm −25%, worse
Sensitivity89.6 dB +1.7
FaitalPRO8RS340
£163.28Fs42 Hz +56%, worse
Qts0.34 –
Vas25.5 L −64%, better
BL13 T·m −11%, worse
Xmax7.3 mm −39%, worse
Sensitivity89.2 dB +1.3
Beyma8NMFW
£228.68Fs37 Hz +37%, worse
Qts0.34 –
Vas27 L −62%, better
BL13.4 T·m −8%
Xmax9 mm −25%, worse
Sensitivity87.8 dB –
SB AcousticsWO24TX-8
£292.97Fs25 Hz −9%
Qts0.34 –
Vas88 L +25%, worse
BL10.4 T·m −28%, worse
Xmax8.6 mm −29%, worse
Sensitivity87.6 dB –
SB AcousticsWO24TX-4
£292.97Fs26 Hz –
Qts0.35 –
Vas79 L +12%, worse
BL7.9 T·m −46%, worse
Xmax8.8 mm −27%, worse
Sensitivity87.9 dB –
£309.76
Fs33 Hz +22%, worse
Qts0.30 −12%, better
Vas72 L –
BL8.8 T·m −40%, worse
Xmax7 mm −42%, worse
Sensitivity90.6 dB +2.7, better
PurifiPTT8.0X04-NAB-01
£586.08Fs26 Hz −4%
Qts0.36 +6%
Vas70.4 L –
BL8 T·m −45%, worse
Xmax9.3 mm −22%, worse
Sensitivity87.2 dB −0.7
Tang BandW8-740M
No current priceFs30 Hz +11%, worse
Qts0.34 –
Vas14.7 L −79%, better
BL14.3 T·m –
Xmax12 mm –
Sensitivity82.3 dB −5.6, worse
Tang BandW8-1363SB
No current priceFs30 Hz +11%, worse
Qts0.32 −6%
Vas15.4 L −78%, better
BL13.9 T·m −4%
Xmax12 mm –
Sensitivity82.8 dB −5.1, worse
PurifiPTT8.0X08-NAB-01
No current priceFs24 Hz −11%, better
Qts0.35 –
Vas74.5 L +6%
BL10.7 T·m −27%, worse
Xmax9.3 mm −22%, worse
Sensitivity86.5 dB −1.4
KartesianWOM185_VKI
No current priceFs32 Hz +19%, worse
Qts0.32 −6%
Vas33.6 L −52%, better
BL10.2 T·m −30%, worse
Xmax12 mm –
Sensitivity87.3 dB −0.6
No photo
PHL Audio2520
No current priceFs109 Hz +304%, worse
Qts0.33 –
Vas9 L −87%, better
BL14.3 T·m –
Xmax2 mm −83%, worse
Sensitivity97 dB +9.1, better
SB AcousticsMW19PF-8
No current priceFs30 Hz +11%, worse
Qts0.34 –
Vas63 L −11%, better
BL7 T·m −52%, worse
Xmax6.5 mm −46%, worse
Sensitivity88.7 dB +0.8
Tang BandW8-740P
No current priceFs30 Hz +11%, worse
Qts0.28 −18%, better
Vas20.0 L −72%, better
BL13.7 T·m −6%
Xmax12.1 mm –
Sensitivity84.4 dB −3.5, worse
Dayton Audio8MB200N-8
No current priceFs94 Hz +248%, worse
Qts0.32 −6%
Vas8.8 L −88%, better
BL14.4 T·m –
Xmax3.9 mm −67%, worse
Sensitivity95.2 dB +7.3, better
JensenBP8150-8
No current priceFs75 Hz +177%, worse
Qts0.33 –
Vas13.1 L −81%, better
BL13.3 T·m −9%
Xmax3.1 mm −74%, worse
Sensitivity93.8 dB +5.9, better
B&C8CXN64
No current priceFs71 Hz +163%, worse
Qts0.33 –
Vas10.5 L −85%, better
BL15.5 T·m +6%
Xmax5.5 mm −54%, worse
Sensitivity92.3 dB +4.4, better
Tang BandW8-1363SBF
No current priceFs32 Hz +19%, worse
Qts0.39 +15%, worse
Vas13.4 L −81%, better
BL13.0 T·m −11%, worse
Xmax12 mm –
Sensitivity82.1 dB −5.8, worse
Beyma8CFX260ND
No current priceFs100 Hz +270%, worse
Qts0.35 –
Vas8 L −89%, better
BL13.5 T·m −7%
Xmax6 mm −50%, worse
Sensitivity95.4 dB +7.5, better
KartesianBOM185_VKI
No current priceFs38 Hz +41%, worse
Qts0.32 −6%
Vas32.2 L −54%, better
BL11.6 T·m −20%, worse
Xmax10 mm −17%, worse
Sensitivity89.2 dB +1.3
HiViE8N
No current priceFs35 Hz +30%, worse
Qts0.33 –
Vas52.5 L −25%, better
BL10.4 T·m −29%, worse
Xmax4.9 mm −59%, worse
Sensitivity89.9 dB +2, better
