Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Acoustics SB20PFCR30-4 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverSB20 series
SB Acoustics
SB Acoustics SB20PFCR30-4
SB Acoustics SB20PFCR30-4 is a 8" 4 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 34Hz, Qts 0.33, Vas 66.2L, Xmax 11.5mm, sensitivity 90.5dB, plus 248cm³ Vd and 92 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £31.27.
Size
8"
Impedance
4Ω
RMS Power
50W
Sensitivity
90.5dB
92.5dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
92
Either alignment
Vd
248cm³

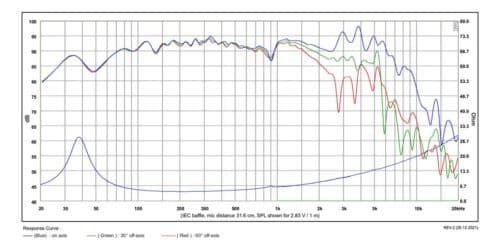

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees200 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence2,295 selected pixels of 3,315 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
200 plotted pointsMedium confidence898 selected pixels of 2,755 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,713 selected pixels of 4,843
T/S Parameters
Valid
Fs34Hz
Qts0.33
Qes0.37
Qms2.8
Vas66.2L
Re3.4Ω
Le0.71mH
BL6.6Tm
Sd216cm²
Mms22g
Xmax11.5mm
SPL91dB
Power50W
Impedance4Ω
Voice Coil31mm
Flux Density1.20T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£31.27
inc VAT
Back order
soundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£36.90
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£43.95
inc VAT
Best current price
Updated 17 May 2026
leanbusiness
£31.27
Avg £37.61£6.34 below avg (-16.9%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
SB20PFCR30-4
8"
Best current price
£31.27
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
77%
Similarity
12% more£34.95
SB Acoustics
SB20PFCR30-8
8"
Higher price
Xmax11.5mm0%
Qts0.37+12%
BL7.7Tm+17%
Vas66.2L0%
Qes0.43+16%
79%
Similarity
88% more£58.80
Visaton
W 200 S - 4 OHM
8"
Higher price
Xmax10mm-13%
Qts0.35+6%
BL7.7Tm+17%
Vas65L-2%
Qes0.38+3%
70%
Similarity
170% more£84.41
SB Acoustics
SB23NRXS45-4
8"
Higher price
Xmax13mm+13%
Qts0.3-9%
BL6.9Tm+5%
Vas87.5L+32%
Qes0.32-14%
60%
Similarity
170% more£84.41
SB Acoustics
SB23NRXS45-8
8"
Higher price
Xmax13mm+13%
Qts0.38+15%
BL7.5Tm+14%
Vas94L+42%
Qes0.41+11%
78%
Similarity
216% more£98.70
SB Acoustics
SB23NBACS45-4
8"
Higher price
Xmax13mm+13%
Qts0.330%
BL6.7Tm+2%
Vas95L+44%
Qes0.35-5%
51%
Similarity
216% more£98.70
SB Acoustics
SB23NBACS45-8
8"
Higher price
Xmax13mm+13%
Qts0.4+21%
BL7.9Tm+20%
Vas93.4L+41%
Qes0.43+16%
78%
Similarity
265% more£114.02
SB Acoustics
SB23CACS45-4
8"
Higher price
Xmax13mm+13%
Qts0.330%
BL6.7Tm+2%
Vas95L+44%
Qes0.35-5%
52%
Similarity
265% more£114.02
SB Acoustics
SB23CACS45-8
8"
Higher price
Xmax13mm+13%
Qts0.4+21%
BL7.9Tm+20%
Vas87L+31%
Qes0.44+19%
66%
Similarity
465% more£176.73
Visaton
AL 200
8"
Higher price
Xmax10mm-13%
Qts0.35+6%
BL8.8Tm+33%
Vas77L+16%
Qes0.39+5%
50%
Similarity
523% more£194.95
SB Acoustics
MW19P-8
7"
Higher price
Xmax13.4mm+17%
Qts0.29-12%
BL7.7Tm+17%
Vas61L-8%
Qes0.32-14%
50%
Similarity
523% more£194.95
SB Acoustics
MW19PNW-8
7"
Higher price
Xmax13.4mm+17%
Qts0.29-12%
BL7.7Tm+17%
Vas61L-8%
Qes0.32-14%
43%
Similarity
827% more£289.88
SB Acoustics
MW19TX-4
7"
Higher price
Xmax13.6mm+18%
Qts0.27-18%
BL6.3Tm-5%
Vas53.2L-20%
Qes0.28-24%
