LF DriverSB23 series
SB Acoustics
SB Acoustics SB23CACS45-4
SB Acoustics SB23CACS45-4 is a 8" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 23Hz, Qts 0.33, Vas 95L, Xmax 13mm, sensitivity 87.2dB, plus 281cm³ Vd and 66 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £114.02.
Size
8"
Impedance
4Ω
RMS Power
60W
Sensitivity
87.2dB
90.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
66
Either alignment
Vd
281cm³

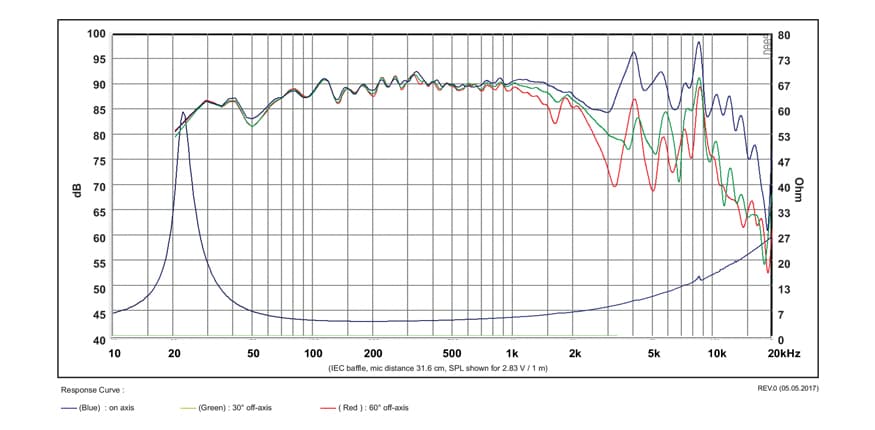

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence2,296 selected pixels of 6,472
T/S Parameters
Valid
Fs23Hz
Qts0.33
Qes0.35
Qms6.0
Vas95.0L
Re3.3Ω
Le0.27mH
BL6.7Tm
Sd216cm²
Mms33g
Xmax13.0mm
SPL87dB
Power60W
Impedance4Ω
Voice Coil46mm
Flux Density0.86T
Pricing & availability
Price definitionsPrice movement
Best current price
£114.02
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.7kg
