Overview
LF Driver
Tang Band

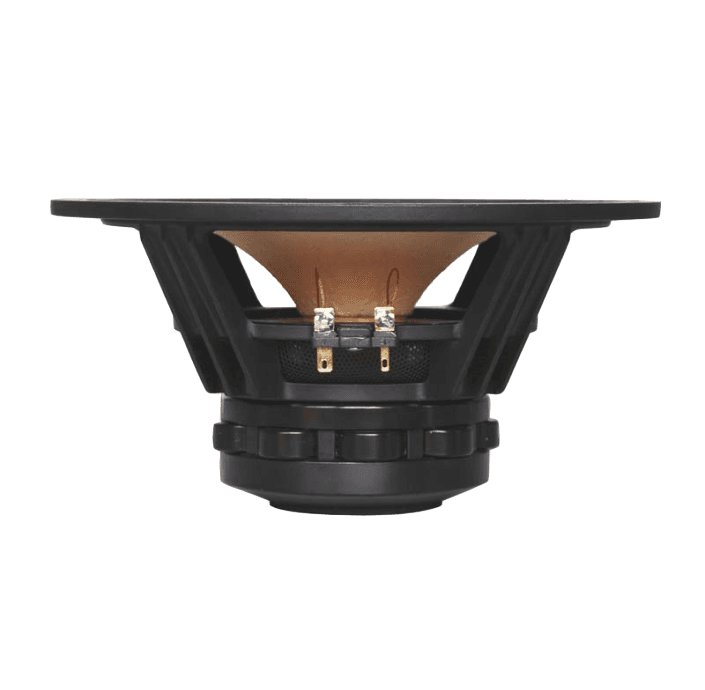

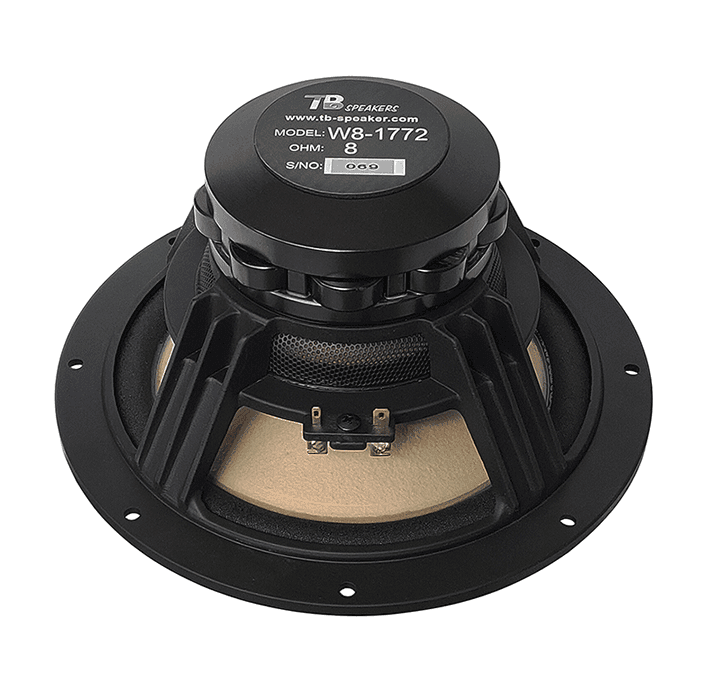

Tang Band W8-1772
Tang Band W8-1772 is a 8" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 42Hz, Qts 0.27, Vas 94.5L, Xmax 3mm, sensitivity 94.9dB, plus 66cm³ Vd and 117 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
30W
Sensitivity
94.9dB
EBP
117
Vented alignment
Vd
66cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,230 selected pixels of 2,602 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,200 selected pixels of 2,200
T/S Parameters
Valid
Fs42Hz
Qts0.27
Qes0.36
Qms1.0
Vas94.5L
Re6.8Ω
Le0.01mH
BL7.1Tm
Sd220cm²
Mms10g
Xmax3.0mm
SPL95dB
Power30W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W8-1772
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
48%
Similarity
SEAS
H1353-08/06 T18REX/XFC
7"
Xmax3mm0%
Qts0.24-11%
BL7.8Tm+10%
Vas42L-56%
Qes0.29-19%
