7-inch LF driver · MW19 series · 39 mm voice coil · 70 W
SB Acoustics MW19PF-4 4Ω
4 Ω
No current price
- Fs
- 29Hz
- Xmax
- 6.5mm
- SPL
- 89dB
- Pe
- 70W
- BL
- 6.1T·m
- Vd
- 103cm³
- Qts
- 0.27
- Vas
- 63L

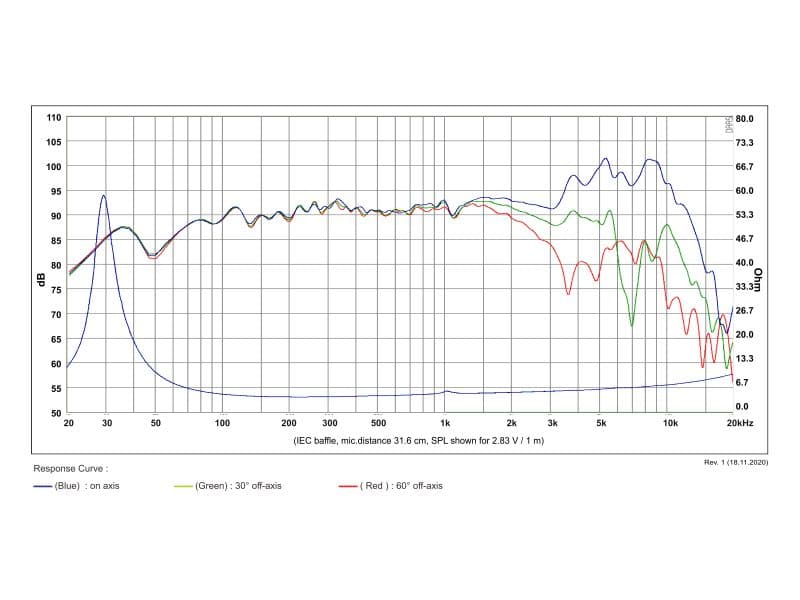

Published graphs
SB Acoustics MW19PF-4 is a 7-inch 4 ohm LF driver rated at 70 W RMS. The validated T/S data includes Fs 29 Hz, Qts 0.27, Vas 62.7 L, Xmax 6.5 mm, sensitivity 89.4 dB, plus 103 cm³ Vd and 104 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 29Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 5.2
- Vas
- 62.7L
- Re
- 3.4Ω
- Le
- 0.20mH
Motor and cone
- BL
- 6.1T·m
- Sd
- 158cm²
- Mms
- 17g
- Xmax
- 6.5mm
- Vd †
- 103cm³
- Voice coil
- 39mm
- Flux density
- 0.90T
Power and response
- Sensitivity †
- 89.4dB
- Manufacturer sensitivity
- 91.5dB
- Power
- 70W
- Impedance
- 4Ω
- EBP †
- 104 · Leans vented
Size and mounting
- Weight
- 2.3kg
Other published values
- Cms
- 1.77mm/N
Sensitivity shows 89.4 dB, calculated from the T/S values. SB Acoustics publishes 91.5 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else SB Acoustics lists
LF · Primary · 7″
- BL
- 6.1T·m
- Fs
- 29Hz
- Le
- 0.20mH
- Re
- 3.4Ω
- Sd
- 158cm²
- Cms
- 1.77mm/N
- Mms
- 17g
- Qes
- 0.28
- Qms
- 5.2
- Qts
- 0.27
- SPL
- 89.4dB
- Vas
- 62.7L
- Xmax
- 6.5mm
- Power
- 70W
- Impedance
- 4Ω
- Flux density
- 0.90T
- Sensitivity
- 91.5dB
- Calculated sensitivity †
- 89.4dB
- Manufacturer sensitivity
- 91.5dB
- Voice coil
- 39mm
- Weight
- 2.3kg
