LF DriverSB17 series
SB Acoustics
SB Acoustics SB17CAC35-4
SB Acoustics SB17CAC35-4 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 30Hz, Qts 0.29, Vas 37.8L, Xmax 11mm, sensitivity 87dB, plus 130cm³ Vd and 95 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £82.13.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
87.0dB
90.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
95
Either alignment
Vd
130cm³

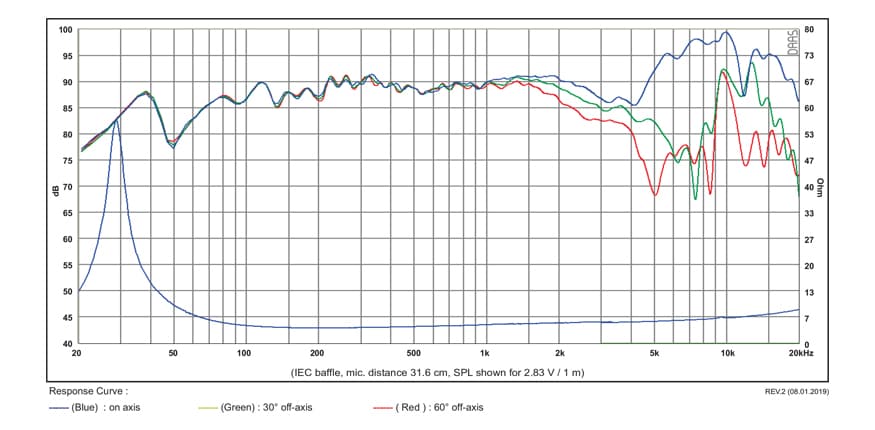

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,320 selected pixels of 3,136 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence845 selected pixels of 2,779
T/S Parameters
Valid
Fs30Hz
Qts0.29
Qes0.31
Qms4.7
Vas37.8L
Re3.1Ω
Le0.13mH
BL5.3Tm
Sd118cm²
Mms15g
Xmax11.0mm
SPL87dB
Power60W
Impedance4Ω
Voice Coil36mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Best current price
£82.13
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
