LF DriverSB15 series
SB Acoustics
SB Acoustics SB15MFC30-4
SB Acoustics SB15MFC30-4 is a 5" 4 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 36Hz, Qts 0.28, Vas 19.4L, Xmax 10mm, sensitivity 86.6dB, plus 82cm³ Vd and 118 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £48.66.
Size
5"
Impedance
4Ω
RMS Power
50W
Sensitivity
86.6dB
90.0dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
118
Vented alignment
Vd
82cm³

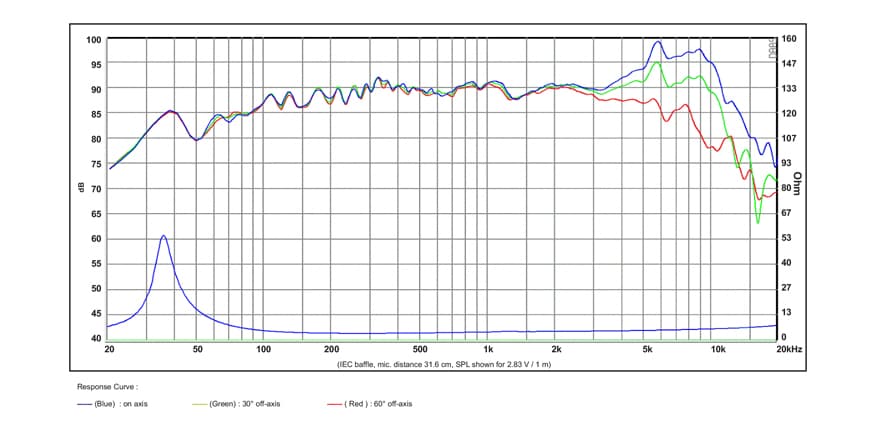

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,226 selected pixels of 7,958 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence754 selected pixels of 2,043 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,315 selected pixels of 6,033
T/S Parameters
Valid
Fs36Hz
Qts0.28
Qes0.30
Qms5.3
Vas19.4L
Re3.1Ω
Le0.12mH
BL4.8Tm
Sd82cm²
Mms10g
Xmax10.0mm
SPL87dB
Power50W
Impedance4Ω
Voice Coil31mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Best current price
£48.66
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
